734-IE2VK 2-Channel 0-10V Input Module Allen-Bradley

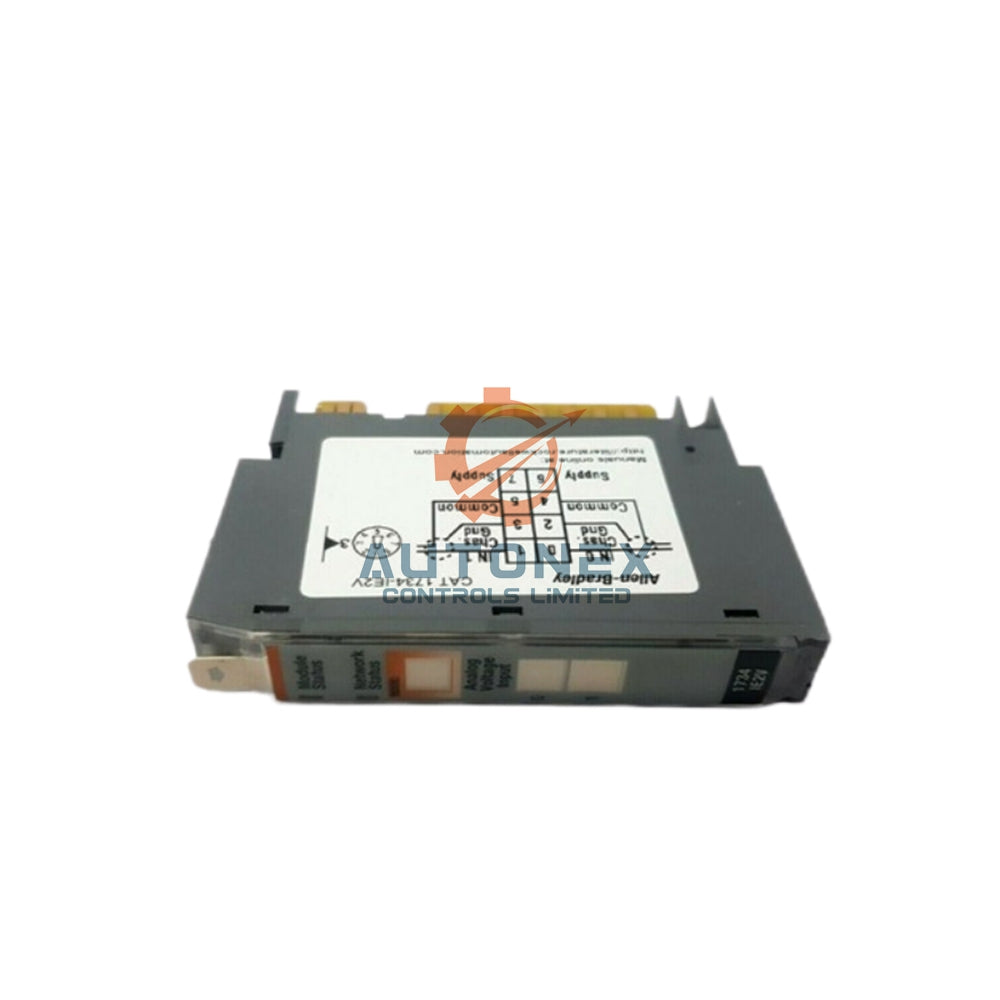

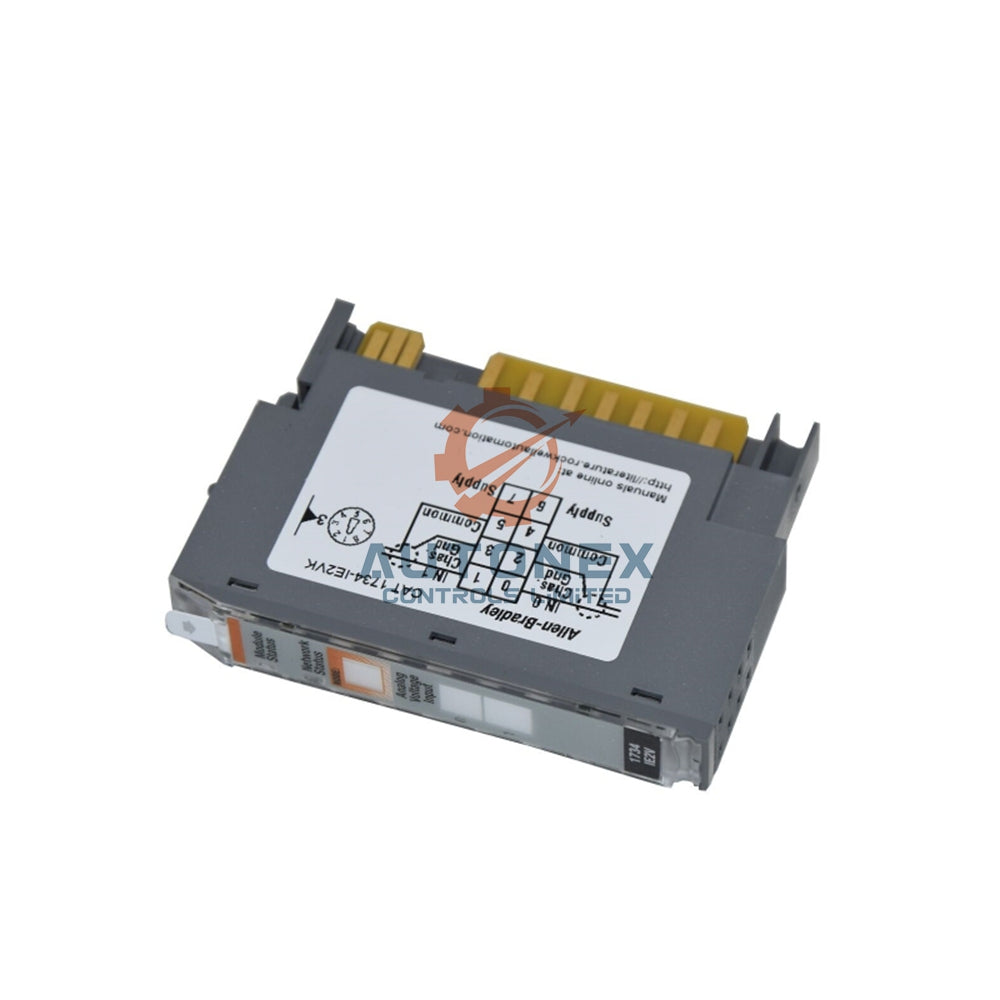

1734-IE2VK Allen‑Bradley POINT I/O Analog Input Module

Technical Specifications

• Manufacturer: Allen‑Bradley
• Product Line: POINT I/O 1734
• Model: 1734-IE2VK Analog Input Module
• Part Number: 1734-IE2VK
• UPC: 889508698779
• Input Channels: 2 single‑ended channels
• Signal Range: 0‑10V
• Resolution: Signed 15‑bit
• Conformal Coating: Yes
• Isolation Voltage: 50V continuous (non‑isolated)
• Power Supply: 24V DC
• Weight: 0.06 lbs (0.03 kg)
• Application: In‑Cabinet
• Mounting: DIN Rail
• Enclosure Style: Open‑Style
• Signal Configuration: Single‑Ended
• Isolation Type: Non‑Isolated
• Certifications: CE, UL, c‑UL, Class I Division 2, ATEX Zone 2

Frequently Asked Questions (FAQ)

• What signal range does the 1734-IE2VK support? The module accepts a 0‑10V single‑ended voltage input. This range is standard for many industrial sensors and transmitters.
• What is the resolution of the 1734-IE2VK? The module provides signed 15‑bit resolution for accurate signal conversion. This ensures precise measurement for control applications.
• Does the 1734-IE2VK have conformal coating? Yes, the module features conformal coating for environmental protection. This coating guards against moisture, dust, and corrosive atmospheres.
• What mounting base is compatible with this module? The 1734-IE2VK fits the 1734‑TB and 1734‑TBS mounting bases. These bases provide the physical and electrical connection to the DIN rail.
• Is this module isolated? No, the 1734-IE2VK is a non‑isolated module. It provides 50V continuous isolation voltage for basic protection.
• Is this a new original product? Yes, we supply the 1734-IE2VK as a new, original Allen‑Bradley product. We source all items directly from authorized distribution channels.
