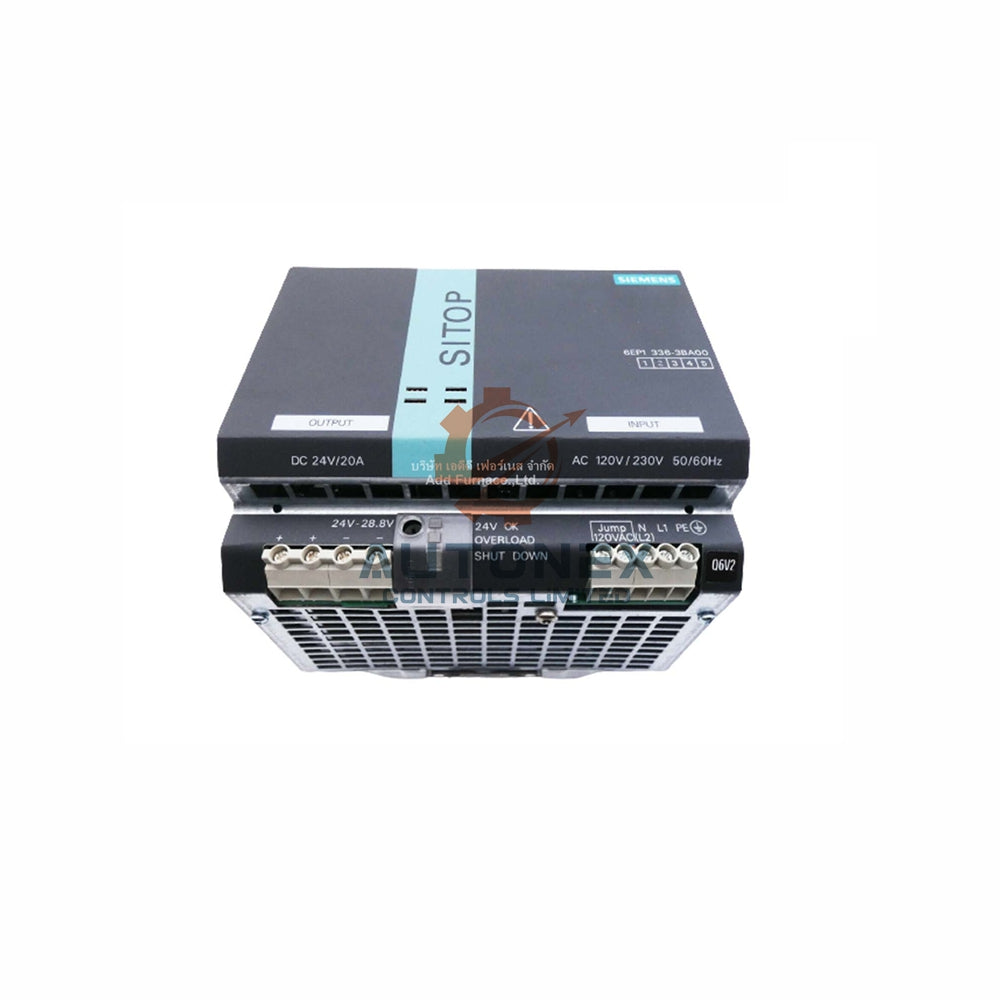

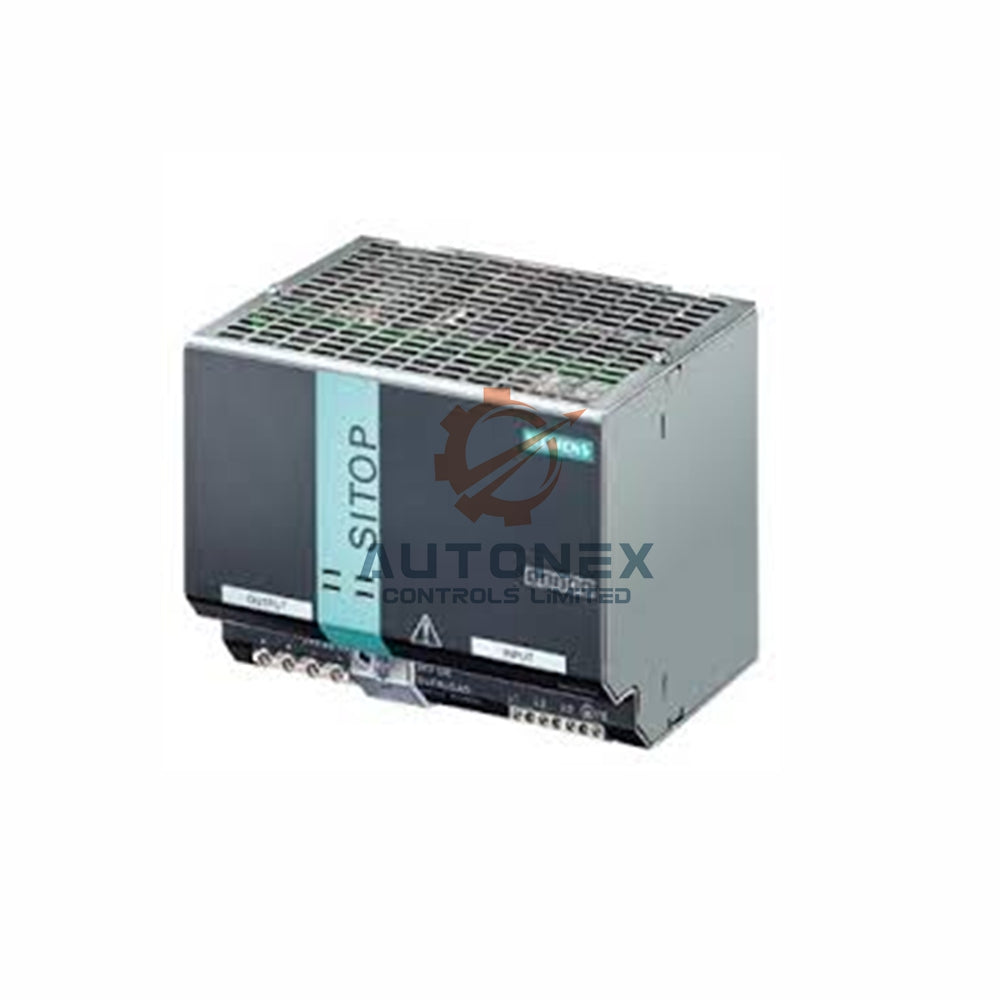

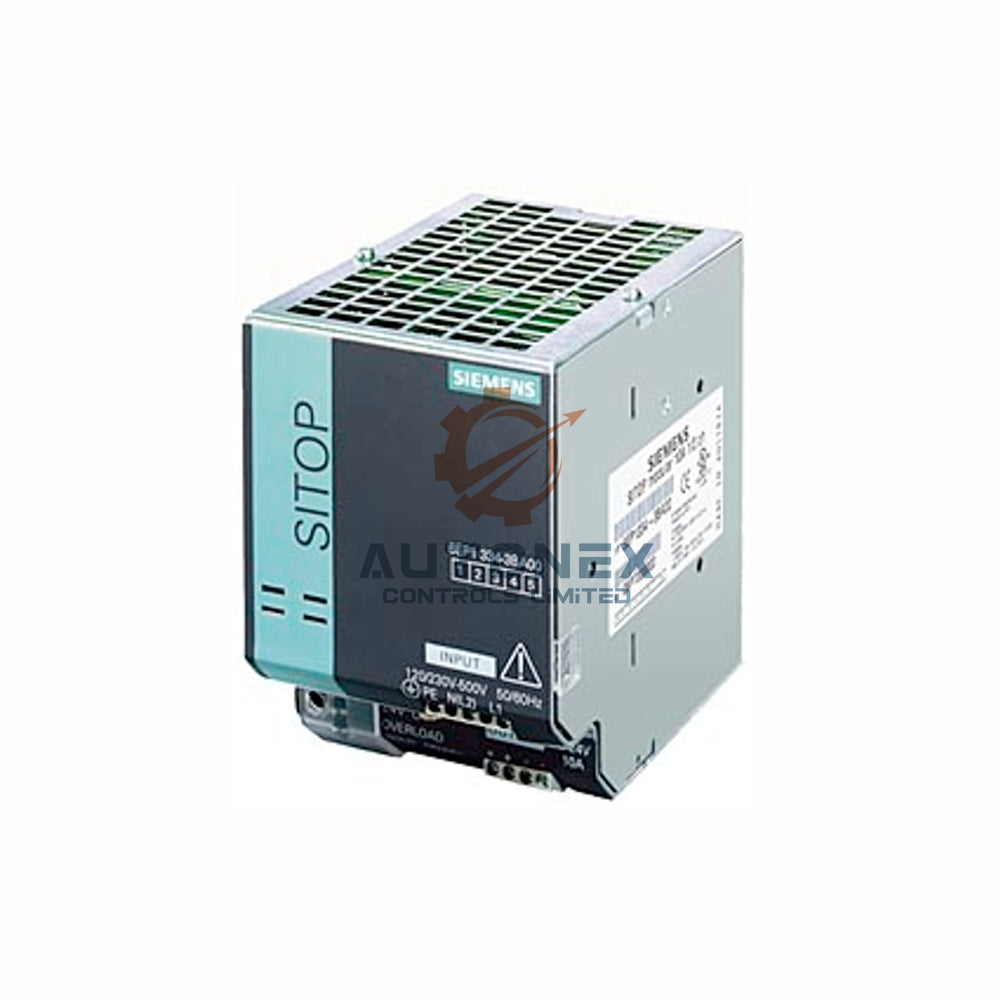

6EP1336-3BA10 Siemens PSU8200 24VDC 20A Power Supply

Siemens 6EP1336-3BA10 SITOP PSU8200 24V 20A Power Supply

Key Technical Specifications

• Input voltage AC: 85 ... 275 V AC (rated 120-230 V) with wide-range capability.
• Input voltage DC: 88 ... 350 V DC (rated 110-220 V).
• Output voltage: 24 V DC rated, adjustable from 24 V to 28 V via potentiometer.
• Output current: 20 A rated; derating applies above +60 °C (3% per K).
• Output power: 480 W typical active power.
• Mains buffering: minimum 20 ms at Vin = 230 V for rated load.
• Residual ripple: max 100 mV (typical 80 mV); voltage peak max 200 mV.
• Short-circuit protection: selectable constant current (~21.5 A) or latching shutdown.
• Overload capability: 150% Iout rated up to 5 seconds per minute.
• Overvoltage protection: clamps output below 31.8 V for safety.

Status Signaling and Control Features

• Normal operation display: Green LED indicates "24 V OK".
• Alarm signal output: Relay contact (NO, 60 V DC / 0.3 A) for remote monitoring.
• Remote ON/OFF: Terminals 15 and 16 provide external control capability.
• Overload and fault display: Yellow LED for overload, red LED for latching shutdown.
• Soft start behavior: No output voltage overshoot during power-on.
• Response delay: maximum 1.5 s; voltage rise time typical 250 ms.

Environmental and Mechanical Data

• Operating temperature: -25 °C to +70 °C with natural convection; startup tested from -40 °C.
• Storage / transport temperature: -40 °C to +85 °C.
• Climate class: 3K3 per IEC 60721, 5–95% RH non-condensing.
• Enclosure dimensions: 90 mm width x 125 mm height x 125 mm depth.
• Weight: 1.2 kg; mounts on DIN rail EN 60715 (35x7.5/15).
• Required spacing: 50 mm top/bottom, 0 mm left/right for stacking.

Approvals and Safety Compliance

• CE marking, UKCA marking, EAC, and RCM conformity.
• cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; also cCSAus (CSA C22.2 No. 62368-1, UL 62368-1).
• BIS certification (R-41183539) and CB certificate available.
• Shipbuilding approval: ABS (American Bureau of Shipping) and DNV (Det Norske Veritas) certified.
• SEMI F47 compliant for semiconductor equipment voltage sag immunity.
• Galvanic isolation: SELV (ES1) output per EN 61204-7, transformer per EN 61558-2-16.
• Protection class: IP20, with Class I insulation.
• MTBF at 40 °C: 583,500 hours for reliable operation.

Installation and Connection Guide

• Mounting: Snap the SITOP PSU8200 24V 20A directly onto a standard 35 mm DIN rail.
• Input connection: Screw terminals for L, N, PE (0.2 ... 4 mm² single-core or finely stranded).
• Output connection: Two screw terminals each for + and - (0.2 ... 4 mm²).
• Auxiliary contacts: Terminals 13, 14 for alarm relay; terminals 15, 16 for Remote ON/OFF.
• Parallel operation: You can connect up to 2 units of 6EP1336-3BA10 for increased power.
• Recommended fuse: For 1-phase: 10 A characteristic C. For 2-phase: Siemens 3RV2711-1HD10 (120 V) or 3RV2711-1ED10 (230 V).
• Inrush current: limited to max 20 A at 25 °C; I²t value max 5 A²·s.
• Short-circuit behavior: Selectable between constant current (~21.5 A) or latching shutdown.

Package Contents

• 1x Siemens SITOP 6EP1336-3BA10 power supply module.
• Multilingual quick-start guide (paper version).
• DIN rail mounting clips (pre-installed).
• No additional cables or adapters are included.

Shipping and Delivery

• We ship from our warehouse within 5 business days after order confirmation.
• Carrier options: FedEx, UPS, or DHL express services.
• All units are brand new, original Siemens stock.
• We offer a 30-day return window for unused items in original packaging.

Frequently Asked Questions

• Q: Does this power supply accept both AC and DC input?
  Yes, the 6EP1336-3BA10 accepts 85-275 V AC and 88-350 V DC with wide-range capability.
• Q: What happens during overload or short-circuit?
  You can select constant current limiting (~21.5 A) or latching shutdown with automatic restart.
• Q: Can I connect this unit in parallel with another?
  Yes, you can parallel up to 2 units for higher output current.
• Q: Does this model have Remote ON/OFF capability?
  Yes, terminals 15 and 16 provide Remote ON/OFF control for external switching.
• Q: What is the typical efficiency and power loss?
  Efficiency is 94%, with power loss around 31 W at full rated output.
• Q: Is the output voltage adjustable?
  Yes, use the front potentiometer to adjust from 24 V to 28 V.
• Q: What is the operating temperature range?
  Operation from -25 °C to +70 °C; startup tested from -40 °C.
• Q: Do you have stock available?
  Yes, we maintain ample stock for immediate shipment.
