330904-08-10-10-01-05 Bently Nevada 3300 NSv Proximity Probes

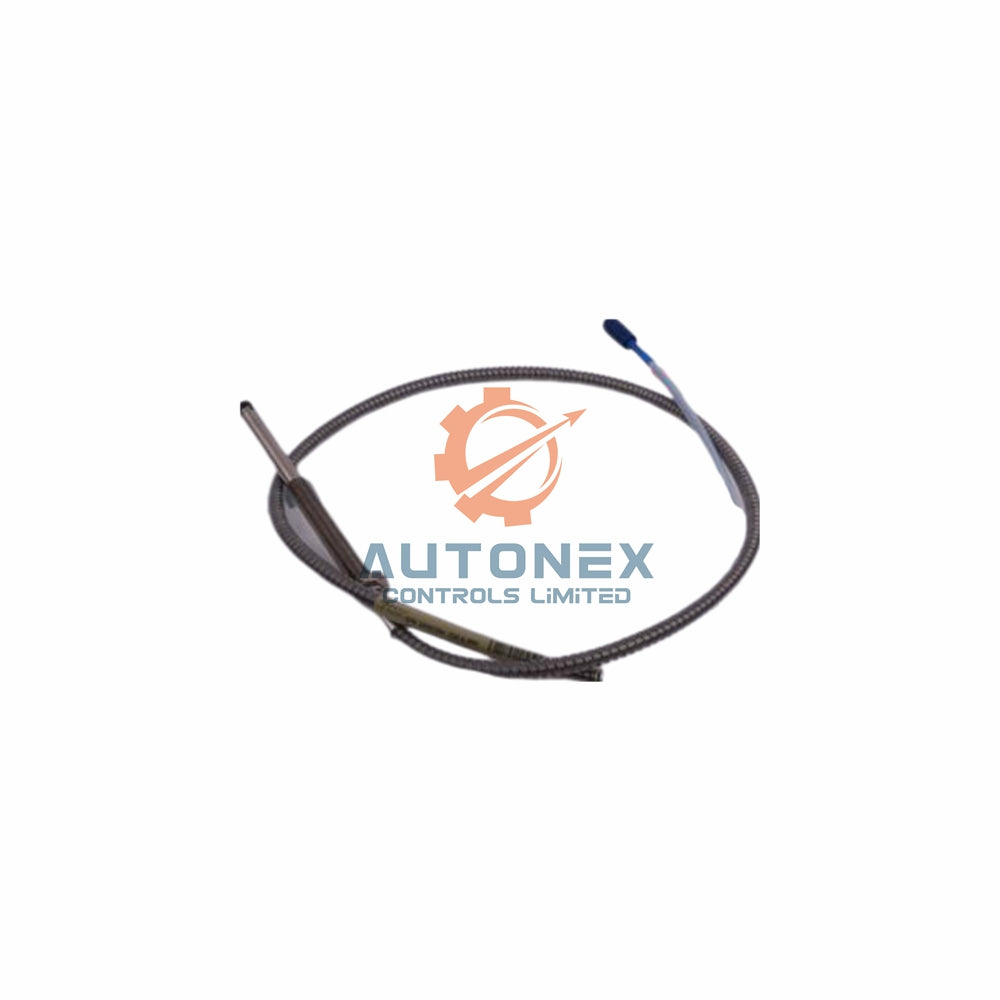

Bently Nevada 3300 NSv Proximity Probe – 330904-08-10-10-01-05

• Manufacturer: Bently Nevada – a trusted leader in machinery protection.
• Model: 3300 NSv (Part Number: 330904-08-10-10-01-05).
• Condition: New & Original in factory packaging.
• Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm (10 to 70 mils).
• Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz, +0, -3 dB typical with up to 305 m of field wiring.
• Target Size (Flat): Minimum 8.9 mm diameter; recommended 13 mm diameter.
• Agency Approval: Multiple Approvals (Option 05) included.

Technical Specifications – 3300 NSv Probe

• Probe DC Resistance (1.0 m length): 4.2 ± 0.5 ohms (center to outer conductor).
• Extension Cable DC Resistance: Center conductor 0.220 Ω/m; Shield 0.066 Ω/m.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG); recommend three-conductor shielded triad.
• Maximum Field Wiring Length: 305 meters (1,000 feet) between Proximitor and monitor.
• Probe Tip Material: Polyphenylene sulfide (PPS) for durability.
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable: 75 Ω coaxial, FEP insulated, available in 0.5, 1, 5, or 7 meter lengths.
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Maximum Pressure Seal: Viton O-ring design (not pressure tested prior to shipment).

Installation and Mechanical Guidelines

• Recommended Torque (Probe Case): Finger tight; maximum 0.56 N•m (5 in•lb).
• Connector-to-Connector Torque (M8x1 case): Maximum 7.3 N•m (65 in•lb); Recommended 5.1 N•m (45 in•lb).
• Maximum Thread Engagement (M8x1): 12 mm.
• Minimum Bend Radius (with or without armor): 25.4 mm (1.0 in).
• Thread Option: M8X1 with armor and miniature coaxial ClickLoc connector.
• Unthreaded Length Option: 80 mm (08- option).
• Overall Case Length Option: 100 mm (10- option).
• Total Length Option: 1.0 meter (39 inches) with standard cable.

Frequently Asked Questions (FAQ)

• Is the 3300 NSv probe a genuine Bently Nevada product? Yes, it is brand new, original, and comes in factory packaging.
• What is the linear range of this probe? 1.5 mm (60 mils), starting from approximately 0.25 mm (10 mils) from the target.
• Can I use this probe with existing 3300 RAM extension cables? Yes, it is fully compatible and interchangeable.
• What is the recommended gap setting? 1.0 mm (40 mils) for standard operation.
• Do you have these probes in stock? Yes, we keep the 3300 NSv in stock for fast delivery.
• How long does shipping take? We ship within 5 days via FedEx, UPS, or DHL.
• What is the maximum field wiring length? Up to 305 meters (1000 feet) with proper cable.
• Can I return the probe if it doesn't fit my application? Yes, we offer a 30-day return policy.
