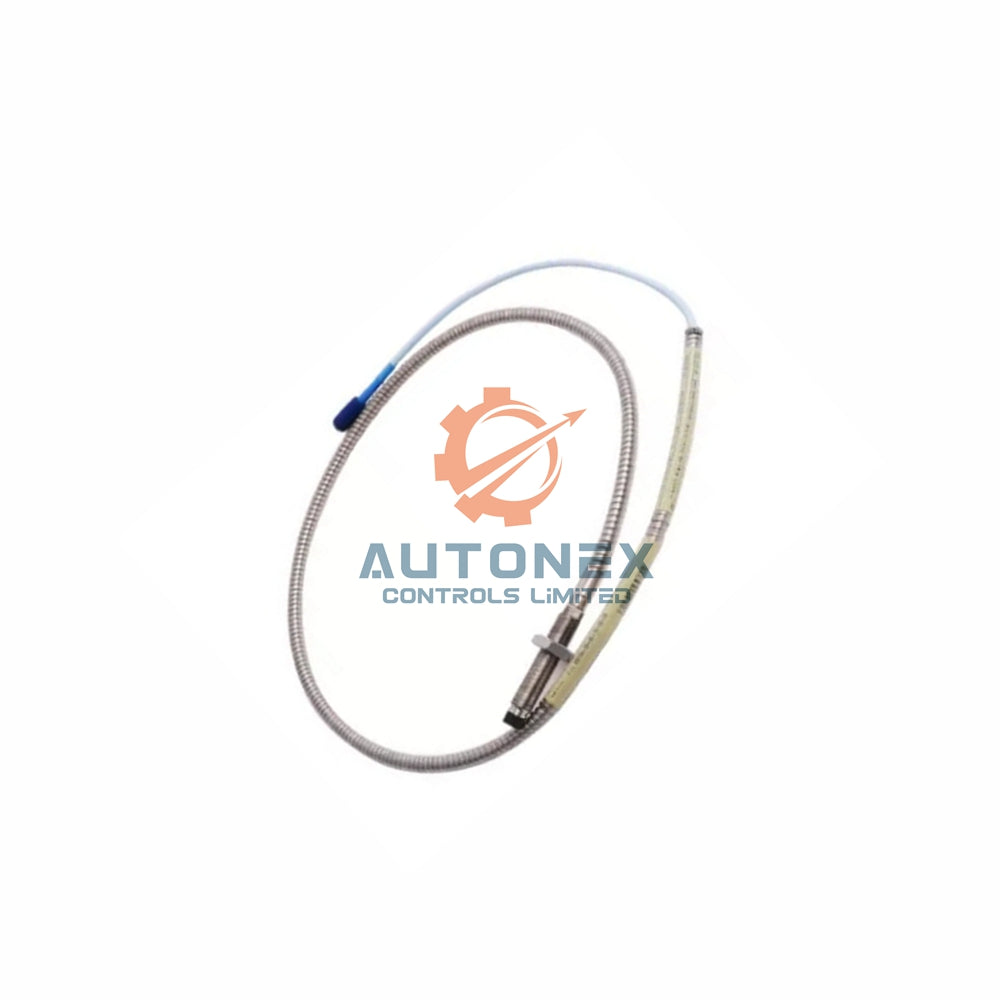

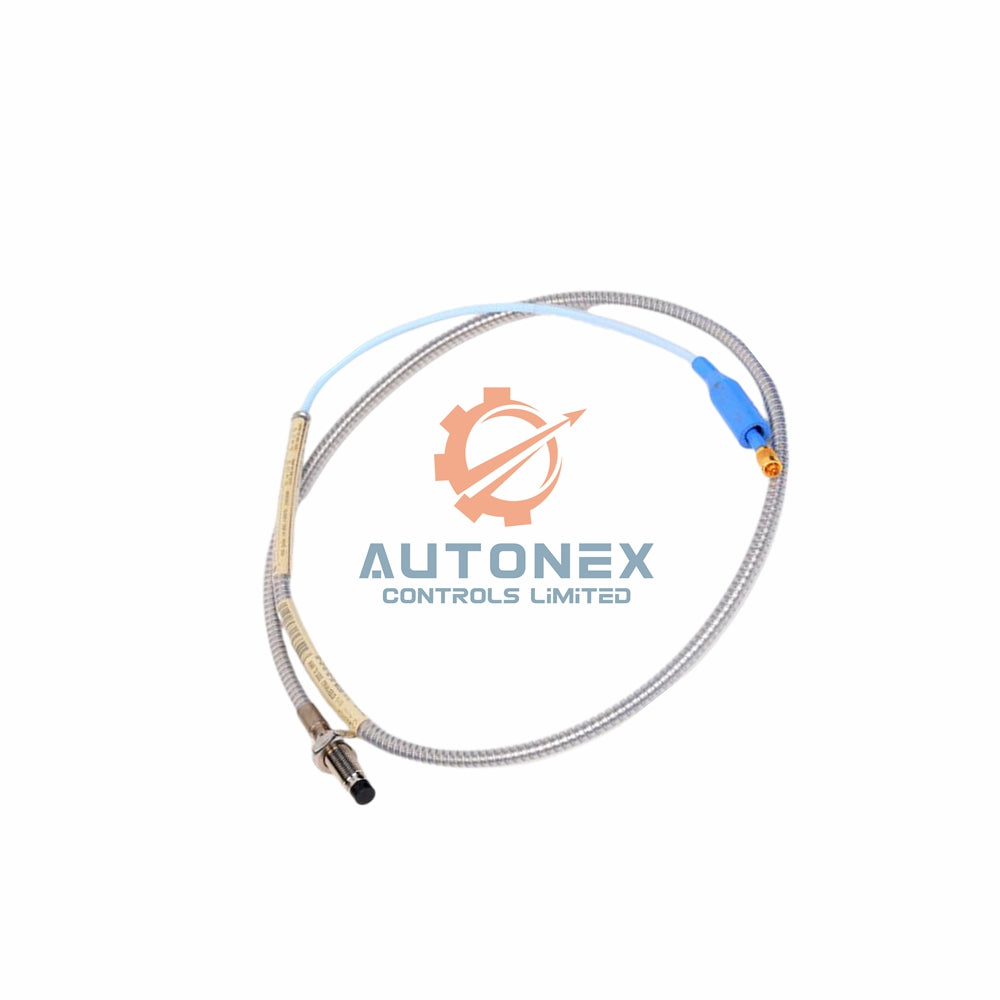

330904-00-15-50-01-05 Bently Nevada 3300 NSv Proximity Probe

Bently Nevada 3300 NSv Proximity Probe - 330904 Series

• Brand & Model: Bently Nevada, 3300 NSv series, part number 330904-00-15-50-01-05.
• Linear Range: 1.5 mm (60 mils) starting from 0.25 mm (10 mils) up to 1.75 mm (70 mils). Output voltage ranges from -1 to -13 Vdc.
• Recommended Gap: 1.0 mm (40 mils) for optimal performance.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Line (DSL): Less than ±0.06 mm (±2.3 mils) ensures high linearity.
• Frequency Response: 0 to 10 kHz (+0, -3 dB) with up to 305 meters of field wiring.
• Probe DC Resistance (RPROBE): 5.3 ± 0.7 ohms for 5.0 meter probe length.
• Extension Cable: Center conductor 0.220 Ω/m, shield 0.066 Ω/m, capacitance 69.9 pF/m.
• Field Wiring: 0.2 to 1.5 mm² (16-24 AWG), max length 305 meters (1000 feet).

Technical Specifications

• Target Size: Minimum 8.9 mm (0.35 in) diameter; recommended 13 mm (0.5 in).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Cable: 75 Ω coaxial, FEP insulated, total lengths: 0.5, 1, 5, or 7 meters.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: Same as operating range.
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without armor.
• Maximum Probe Case Torque: 7.3 N•m (65 in•lb); Recommended 5.1 N•m (45 in•lb).
• Maximum Length of Thread Engagement (M8x1): 12 mm.
• Agency Approval: Multiple Approvals (option 05).

Frequently Asked Questions (FAQ)

• Is this probe new and original? Yes, we supply a brand new, original 3300 NSv probe in factory packaging.
• Do you have stock available? Yes, we have this item in stock and ready for shipment.
• What is the shipping time? We dispatch orders within 5 business days via FedEx, UPS, or DHL.
• Can I return this product? We accept returns within 30 days of delivery.
• What is the linear range of this probe? The linear range is 1.5 mm (60 mils) from 0.25 mm to 1.75 mm.
• What is the recommended gap setting? The recommended gap is 1.0 mm (40 mils).
• What is the frequency response? 0 to 10 kHz typical with +0, -3 dB rolloff.
