330903-00-05-70-11-00 3300 NSv Probe Genuine Bently Nevada

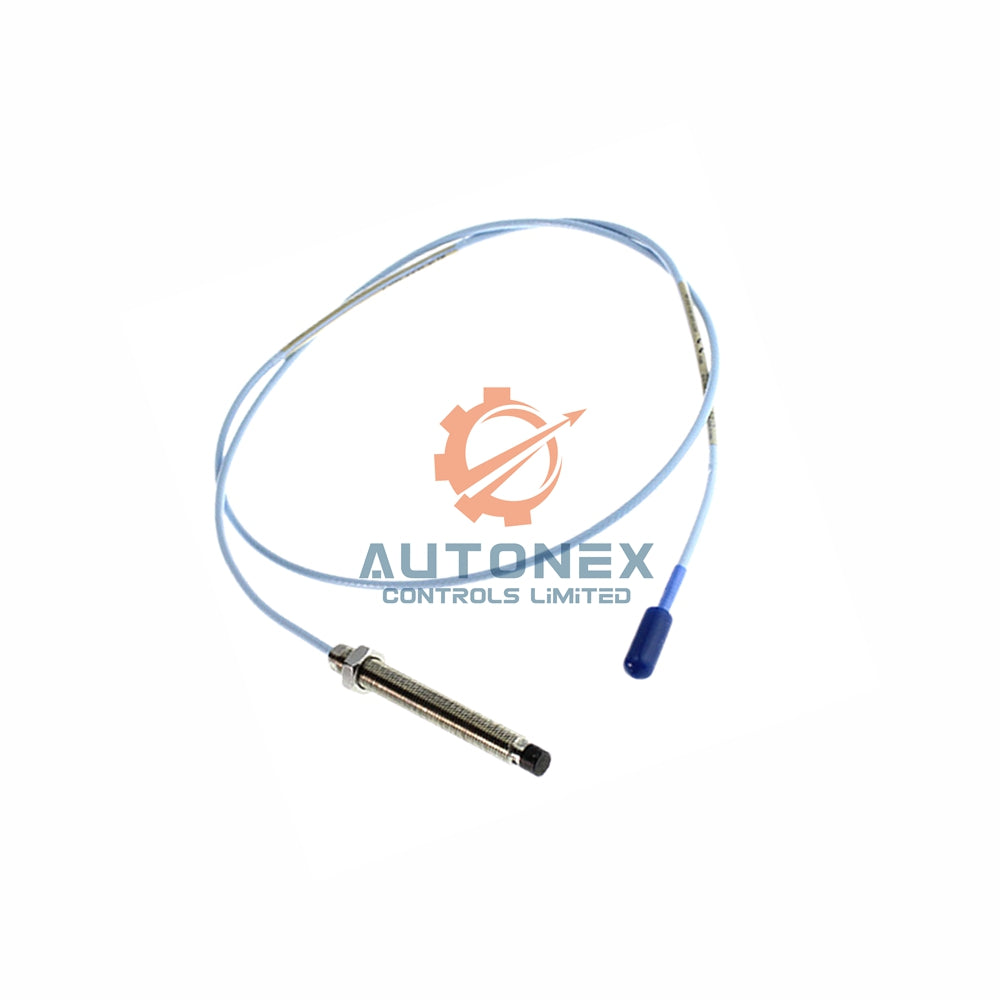

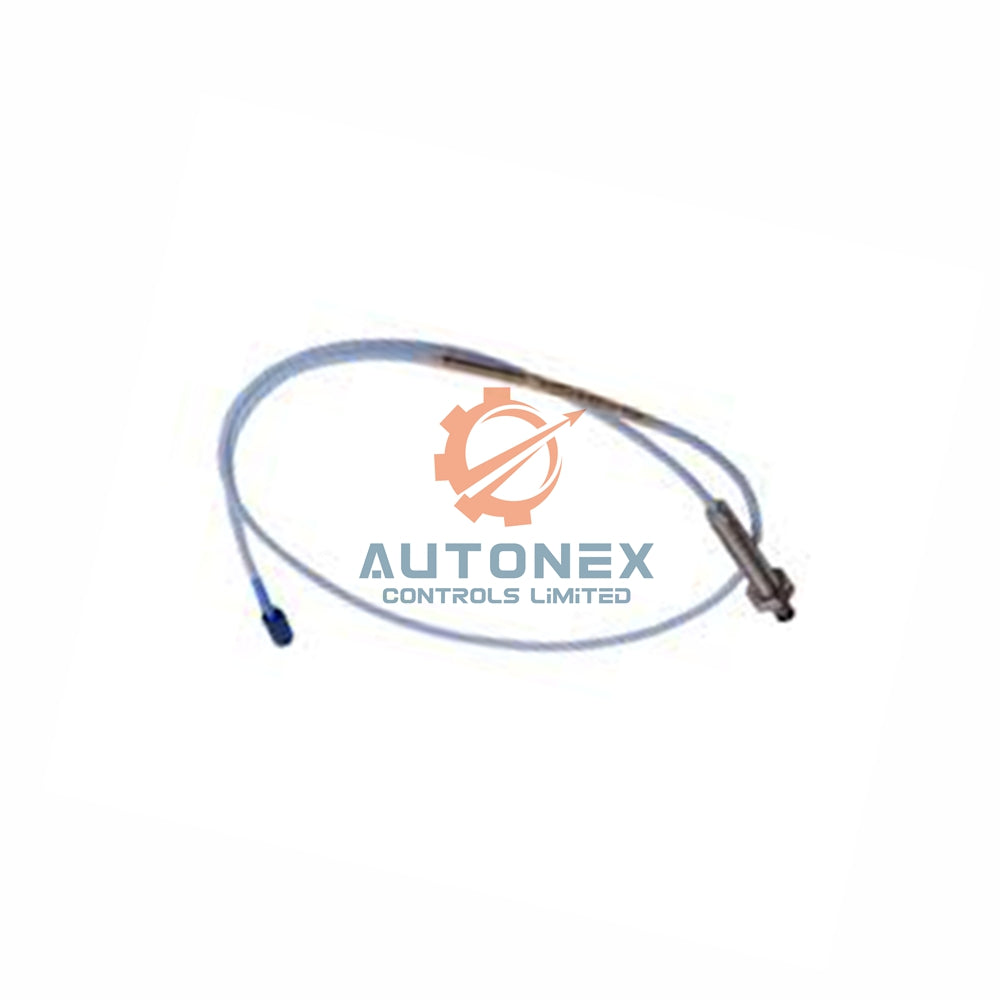

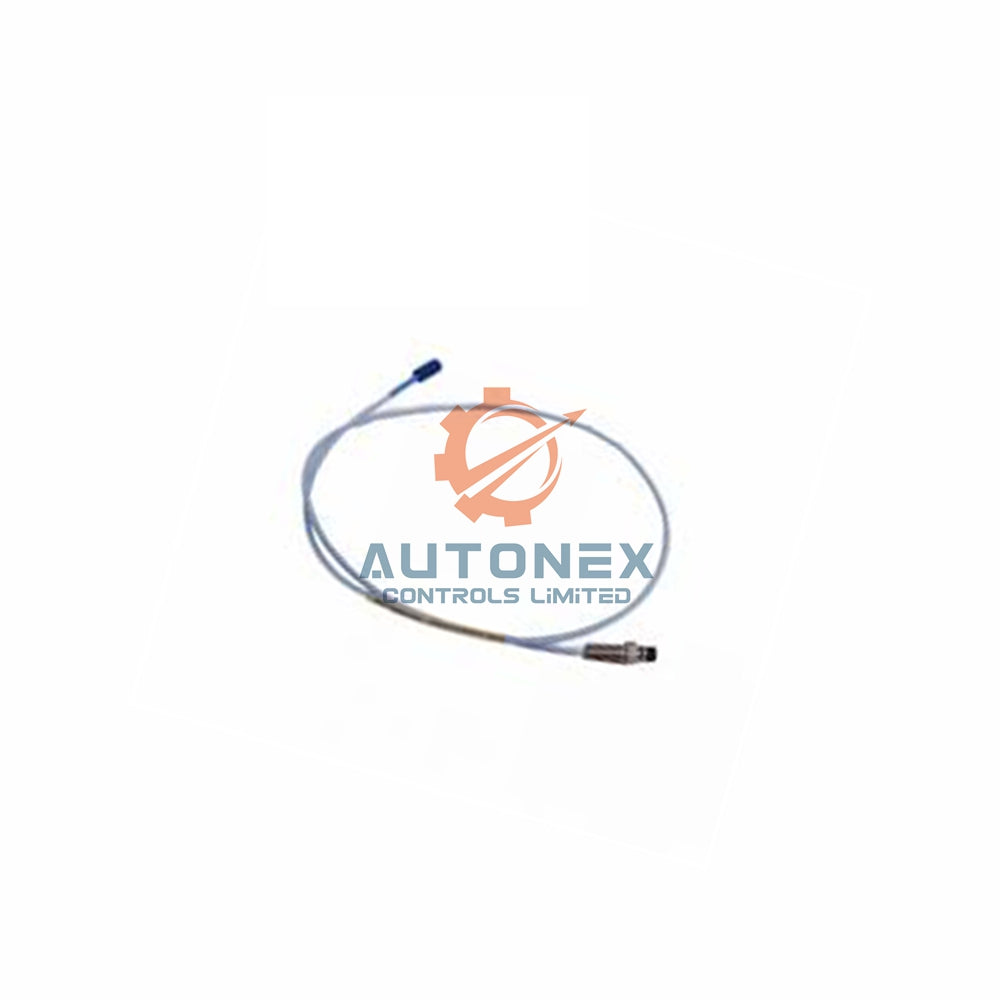

Bently Nevada 330903-00-05-70-11-00 3300 NSv Proximity Probe – Precision Vibration Monitoring

Key Technical Specifications

• Manufacturer: Bently Nevada
• Model & Part Number: 330903-00-05-70-11-00
• Probe Type: 3300 NSv Proximity Probe, M8X1 thread, without armor
• Unthreaded Length: 00 mm
• Overall Case Length: 50 mm
• Total Probe Length: 7.0 meters (23.0 feet) with Miniature coaxial ClickLoc connector, connector protector, and FluidLoc cable
• Agency Approval: Not required (Option 00)
• Probe DC Resistance (RPROBE): 5.9 ± 0.9 ohms for 7.0m length
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm (10 to 70 mils) – approximately -1 to -13 Vdc
• Recommended Gap Setting: 1.0 mm (40 mils)
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz, +0, -3 dB typical with up to 305 meters of field wiring
• Target Size (Flat Target): Minimum 8.9 mm diameter; recommended minimum 13 mm diameter
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Probe Case Material: AISI 304 stainless steel (SST)
• Probe Cable: 75 Ω coaxial, fluoroethylene propylene (FEP) insulated
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F)
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor
• Maximum Probe Case Torque: 7.3 N•m (65 in•lb)
• Recommended Probe Case Torque: 5.1 N•m (45 in•lb)
• Maximum Length of Thread Engagement (M8x1): 12 mm

Frequently Asked Questions (FAQ)

• Is the 330903-00-05-70-11-00 a genuine new probe?
  Yes, this is a brand new Bently Nevada 3300 NSv Proximity Probe in factory packing.
• Do you have this probe in stock?
  Yes, we keep the 3300 NSv Proximity Probe in stock for immediate shipment.
• What is the linear range of this probe?
  The linear range is 1.5 mm (60 mils) from 0.25 mm to 1.75 mm gap (-1 to -13 Vdc).
• Can I use this probe with my existing 3300 RAM extension cable?
  Yes, the 3300 NSv Proximity Probe is mechanically and electrically interchangeable with 3300 RAM cables.
• What is the maximum operating temperature?
  The probe operates continuously from -52°C to +177°C (-62°F to +351°F).
• How long is the total probe cable?
  The total probe length is exactly 7.0 meters (23.0 feet) with a Miniature coaxial ClickLoc connector and FluidLoc cable.
• What does the connector protector do?
  The connector protector adds extra sealing and protection for the ClickLoc connection in harsh environments.
• What torque should I apply to the probe case?
  Use 5.1 N•m (45 in•lb) recommended torque; maximum is 7.3 N•m (65 in•lb) for M8X1 cases.
• How do you ship this probe?
  We ship via FedEx, UPS, or DHL within 5 days after your order.
• Can I return this probe?
  Yes, you may return the probe within 30 days from delivery for a refund.
