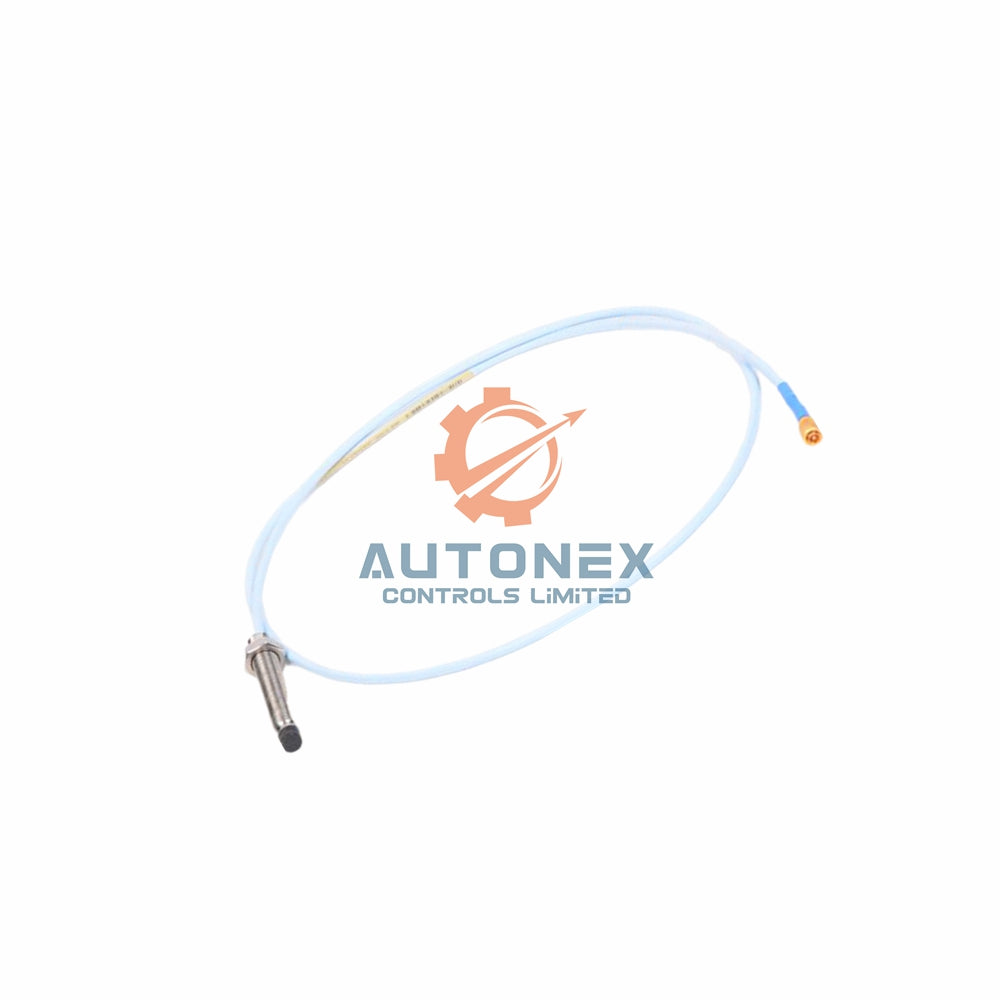

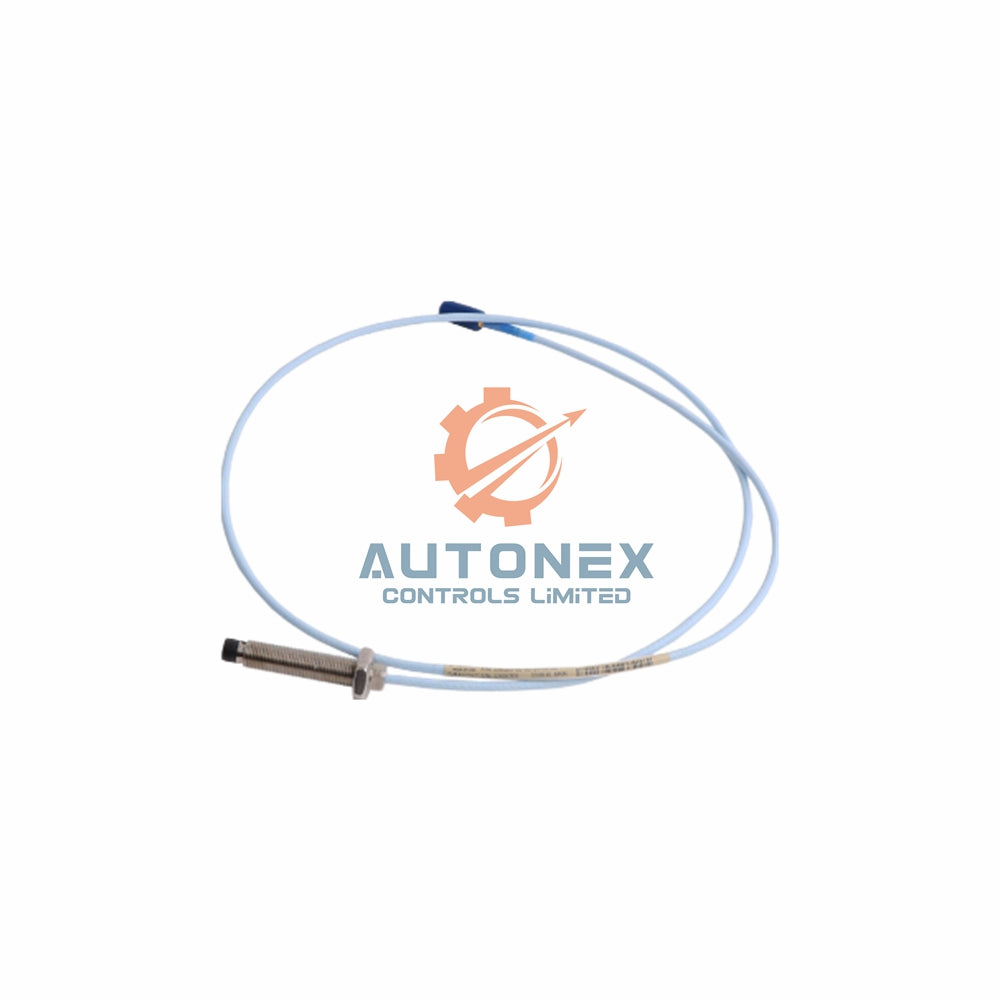

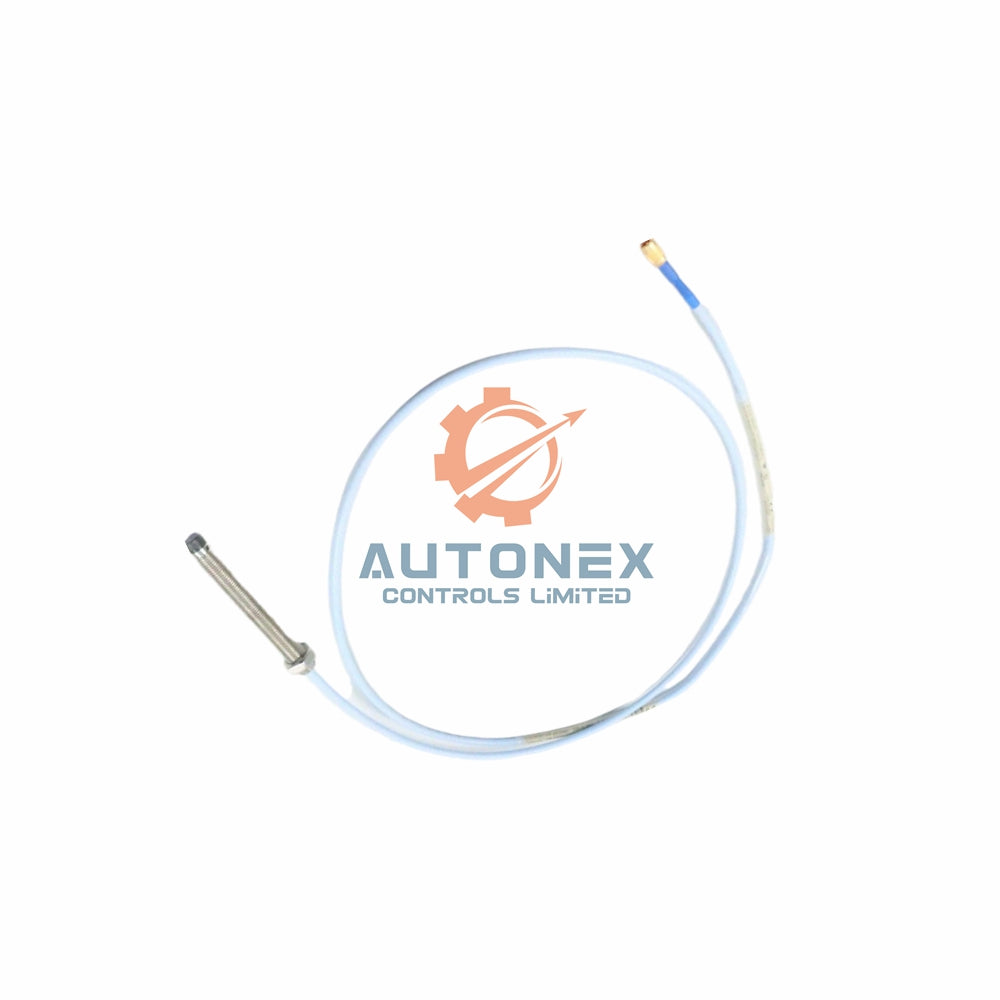

Bently Nevada 3300 XL 11 mm Proximity Probe – Model 330707-00-20-10-11-00

Key Technical Specifications

• Brand & Model: Bently Nevada 330707-00-20-10-11-00 – 3300 XL 11 mm probe.
• Overall Case Length: 2.0 inches (coded as 10 in the breakdown).
• Unthreaded Length: 0 inch (standard design).
• Cable & Connector: Miniature coaxial ClickLoc with FluidLoc cable, 75 Ω triaxial FEP insulation.
• Operating Temperature Range: -51°C to +177°C (-60°F to +351°F).
• Storage Temperature: Same wide range: -51°C to +177°C.
• Probe DC Resistance: 5.9 ± 0.5 ohms for 1.0m length.
• Maximum Thread Engagement: 0.938 inch for 5/8-18 UNF thread.
• Recommended Torque: 15.2 N·m (133 in·lb). Maximum rated torque: 45.2 N·m (400 in·lb).
• Connector Torque: Finger tight; do not exceed 0.565 N·m (5 in·lb).
• Minimum Bend Radius: 25.4 mm (1.0 inch) even with SST armor.
• Probe Pressure Capability: Uses Viton O-ring to seal differential pressure (test on request).
• Agency Approval: Not required (code 00).
• Shipping Weight: 0.17 kg.

Frequently Asked Questions (FAQ)

• Q: Is this a genuine Bently Nevada probe?
  A: Yes, we supply a brand new, original 330707-00-20-10-11-00 made in the U.S.A.
• Q: What is the total cable length of this model?
  A: The probe includes a 1 meter (3.3 feet) integrated cable.
• Q: Can I use this probe without an agency approval?
  A: Yes, code 00 means agency approval is not required for standard use.
• Q: How long does shipping take?
  A: We ship within 5 days using FedEx, UPS, or DHL for reliable service.
• Q: What is the maximum operating temperature?
  A: The probe works from -51°C up to +177°C (-60°F to +351°F).
• Q: Do you accept returns?
  A: Yes, we offer a 30-day return window for new, uninstalled probes.

Download the full datasheet: 3300 XL 11 mm Proximity Transducer System Datasheet (PDF)
