330702-00-10-10-01-00 Bently Nevada 3300 XL 11mm Probe

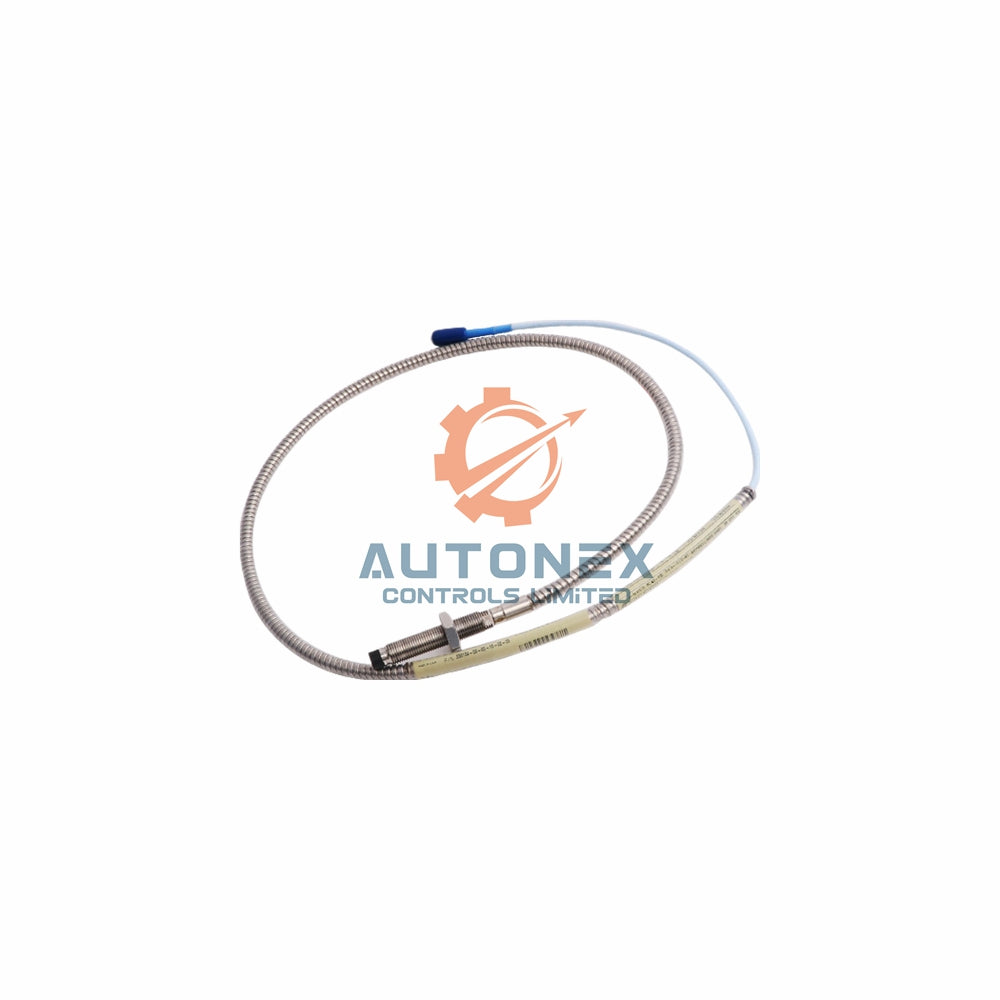

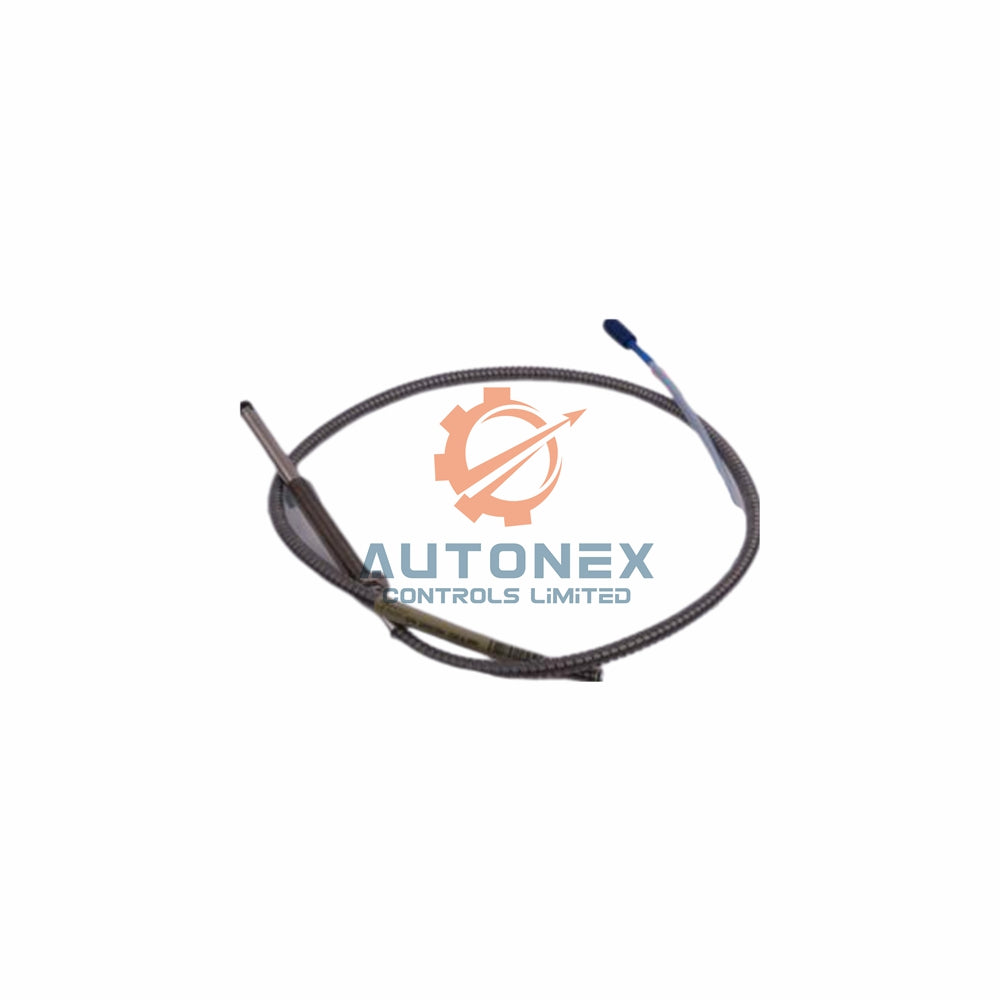

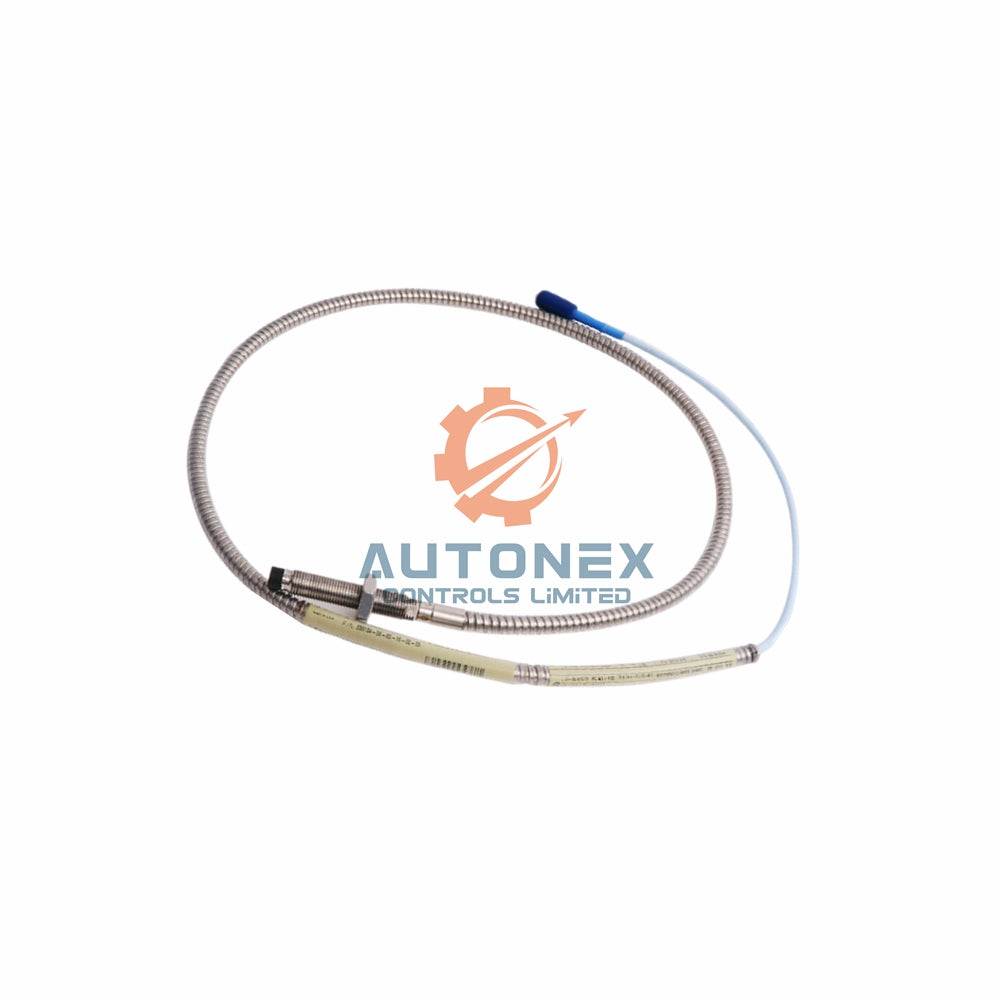

Bently Nevada 3300 XL 11 mm Proximity Probe 330702-00-10-10-01-00

Technical Parameters

• Manufacturer: Bently Nevada
• Model: 330702-00-10-10-01-00
• Product type: 3300 XL 11 mm Proximity Probes
• Made in: U.S.A.
• Probe tip material: Polyphenylene sulfide (PPS)
• Probe case material: AISI 304 stainless steel (SST)
• Cable specification: 75 Ω triaxial, FEP insulated, length 1.0 m
• DC resistance (RPROBE): 5.9 ± 0.5 ohms (center to outer conductor)
• Probe case thread: 1/2-20 UNF
• Maximum thread engagement: 0.750 in (19.05 mm)
• Maximum recommended torque: 15.2 N•m (133 in•lb)
• Maximum rated torque: 45.2 N•m (400 in•lb)
• Connector torque (max): 0.565 N•m (5 in•lb)
• Minimum bend radius: 25.4 mm (1.0 in) (with or without SST armor)
• Operating & storage temperature: -51°C to +177°C (-60°F to +351°F)
• Shipping weight: 0.17 kg

Model Suffix Breakdown (330702-00-10-10-01-00)

• 330702 – 3300 XL 11 mm probe, 1/2-20 UNF thread, with armor
• 00 – unthreaded length option (0 inches)
• 10 – overall case length option (1.0 inch)
• 10 – total length option (1.0 meter / 3.3 feet)
• 01 – miniature coaxial ClickLoc connector with connector protector, standard cable
• 00 – agency approval option (not required)

Frequently Asked Questions (FAQ)

• Q: Is this a brand new original probe?
  A: Yes, we supply only brand new Bently Nevada probes.
• Q: Do you have 330702-00-10-10-01-00 in stock?
  A: Yes, we keep this model in stock for immediate orders.
• Q: How fast do you ship?
  A: We ship within 5 business days after order confirmation.
• Q: Which carriers do you use?
  A: We ship via FedEx, UPS, or DHL for reliable delivery.
• Q: Can I return this probe?
  A: Yes, we support returns within 30 days after delivery.
• Q: What is the probe tip material?
  A: The tip uses Polyphenylene sulfide (PPS) for durability.
• Q: What happens below -34°C?
  A: Exposing the probe below -34°C may cause premature seal failure.
• Q: Does Bently Nevada pressure test each probe?
  A: No, probes are not pressure tested before shipment unless you request it.
• Q: What is the DC resistance value?
  A: The resistance from center to outer conductor is 5.9 ± 0.5 ohms for 1m length.
