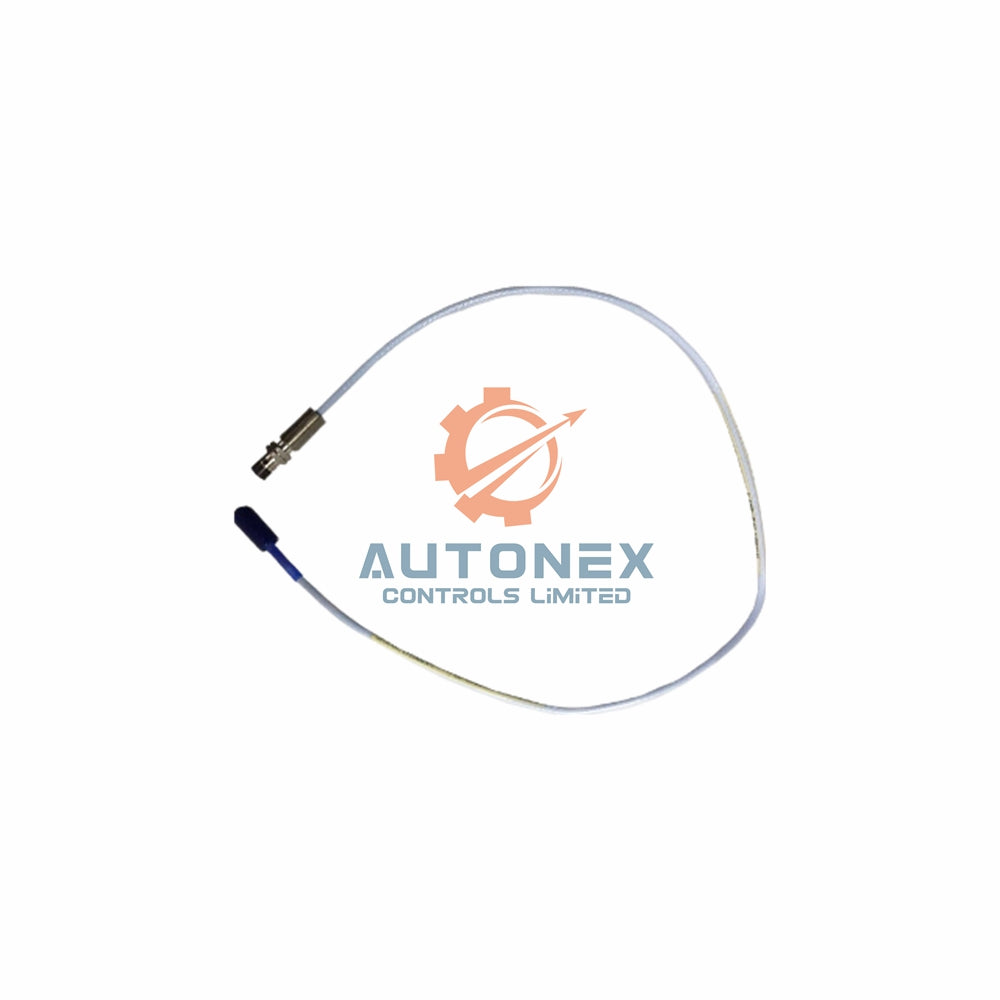

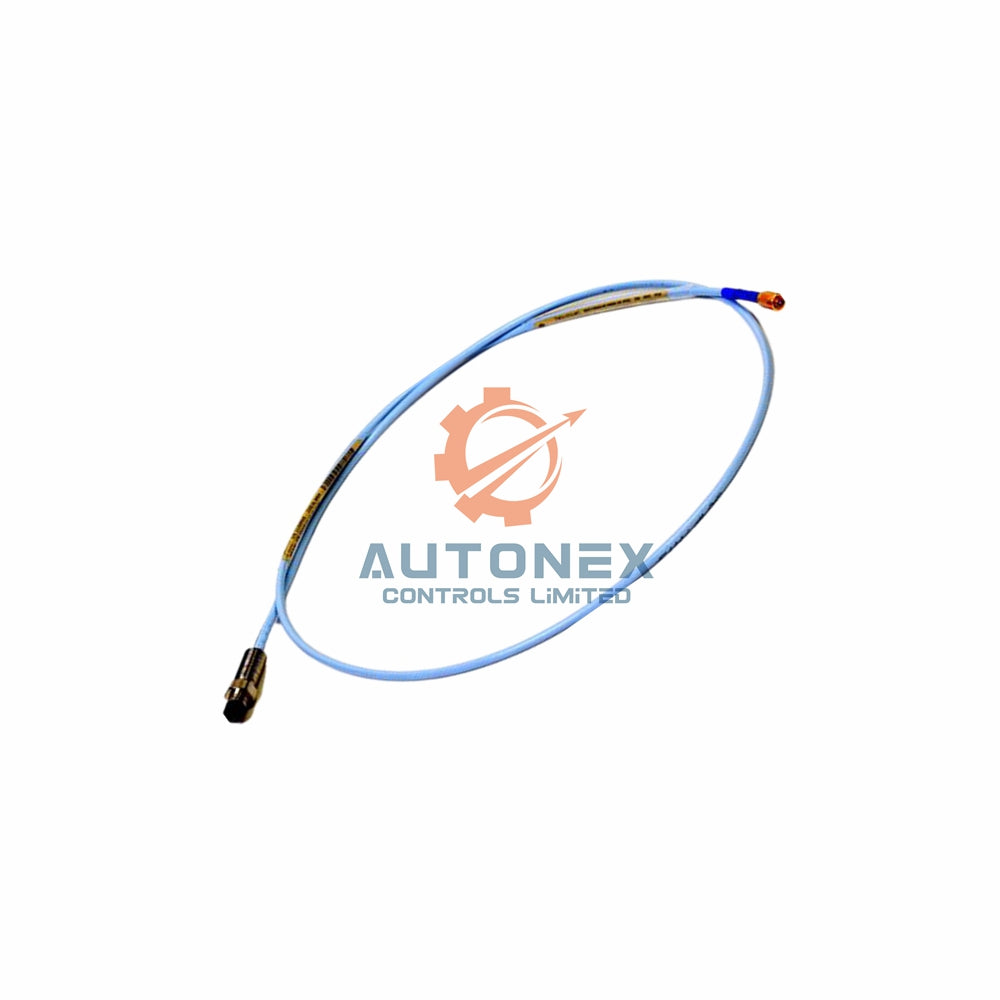

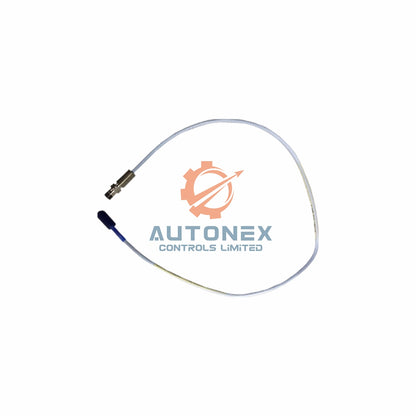

330171-00-16-05-02-05 Bently Nevada 5mm Probe 0.5m Cable

Bently Nevada 330171-00-16-05-02-05 5mm Probe Overview

Key Technical Specifications

• Brand: Bently Nevada (Made in U.S.A).
• Model Number: 330171-00-16-05-02-05.
• Probe Tip Material: Polyphenylene sulfide (PPS) for excellent durability.
• Probe Case Material: AISI 304 stainless steel (SST).
• Thread Size: 1/4-28 UNF with maximum thread engagement of 0.375 inches.
• Unthreaded Length Option: 00 = 0.0 inches (fully threaded design).
• Overall Case Length Option: 16 = 1.6 inches.
• Total Length Option: 05 = 0.5 meter (1.6 feet).
• Connector Option: 02 = Miniature coaxial ClickLoc connector with standard cable.
• Agency Approval Option: 05 = Multiple Approvals (EPL Ga, Gc, Dc).
• Weight: 0.323 kg.

Electrical & Environmental Ratings

• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.
• Supply Sensitivity: Less than 2 mV output change per volt input change.
• Output Resistance: 50 Ω.
• Probe DC Resistance (0.5m cable): 7.45 ± 0.50 Ω from center conductor to outer conductor.
• Probe Temperature Range: -35°C to +177°C (-31°F to +351°F).
• Exposing this probe below -34°C (-30°F) may damage the pressure seal.
• 60 Hz Magnetic Field Immunity: Probe output voltage measures only 0.0004 mV pp/gauss at 10 mil gap.

Mechanical & Installation Data

• Recommended Mounting Hole Tap: Use a #3 or larger tap drill for the 1/4-28 thread.
• Maximum Thread Engagement Length: Do not exceed 0.375 inches.
• Recommended Probe Case Torque: 5.1 N·m (45 in·lb); maximum torque 7.3 N·m (65 in·lb).
• Connector-to-Connector Torque: Maximum 0.565 N·m (0.42 ft·lbf).
• Minimum Cable Bend Radius: 25.4 mm (1.0 inch).
• Tensile Strength: 222 N (50 lbf) for probe case to lead and for connectors.
• Cable Type: 75 Ω triaxial FEP insulated cable.
• Connector Material: Gold-plated brass or gold-plated beryllium copper.

Frequently Asked Questions (FAQ)

• Q: Is this the genuine Bently Nevada 330171-00-16-05-02-05?
  A: Yes, we supply 100% new and original factory-sealed probes directly from Bently Nevada.
• Q: Do you have this 330171 3300 5mm probe in stock?
  A: Yes, we maintain ample stock of this exact model for immediate shipment.
• Q: What is the maximum cable length for this probe?
  A: This specific model comes with a 0.5 metre cable. You can add extension cables up to 9 meters total.
• Q: Can this probe operate in high temperature environments?
  A: Yes, the probe tip withstands up to +177°C (+351°F) standard, with special T1 rating to +232°C.
• Q: What shipping carriers do you use?
  A: We use FedEx, UPS, and DHL for reliable and traceable delivery worldwide.
• Q: What is your return policy?
  A: We accept returns within 30 days. The product must be unused and in original packaging.
