330104-15-25-10-02-05 Bently Nevada 3300 XL Proximity Probe

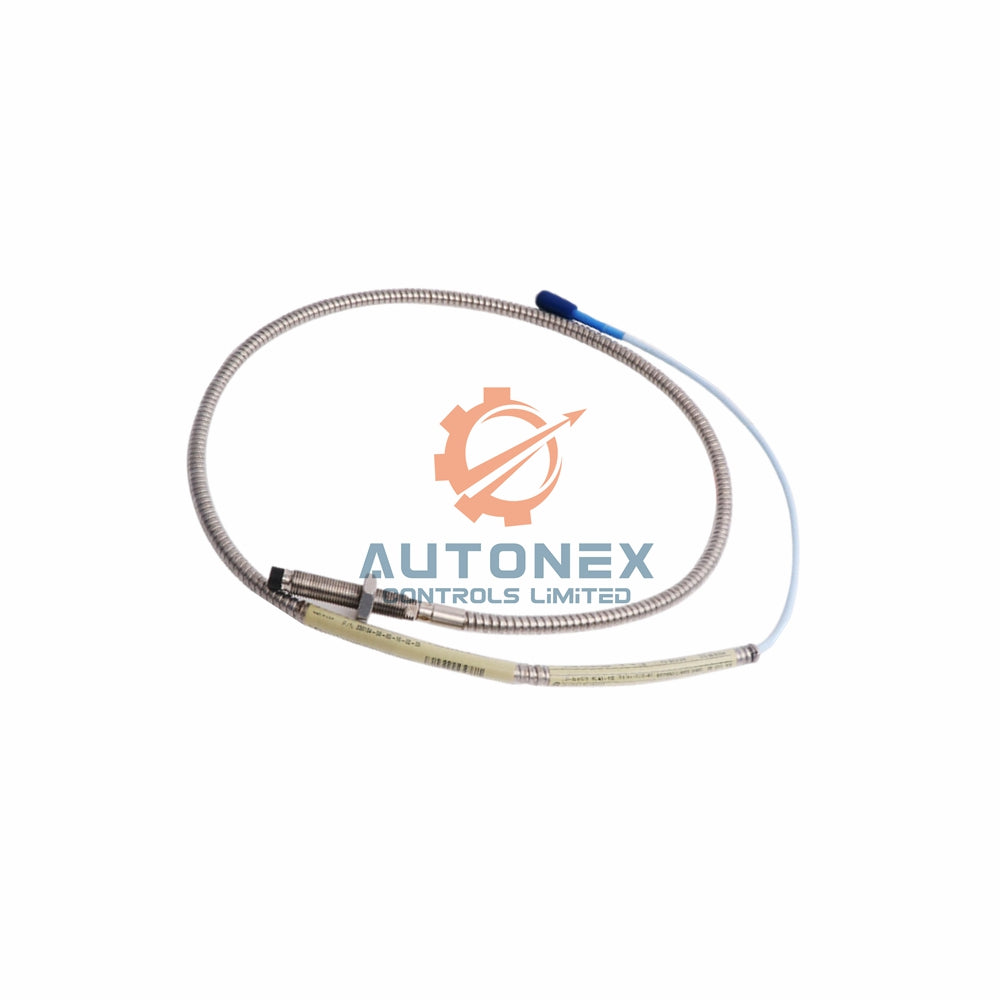

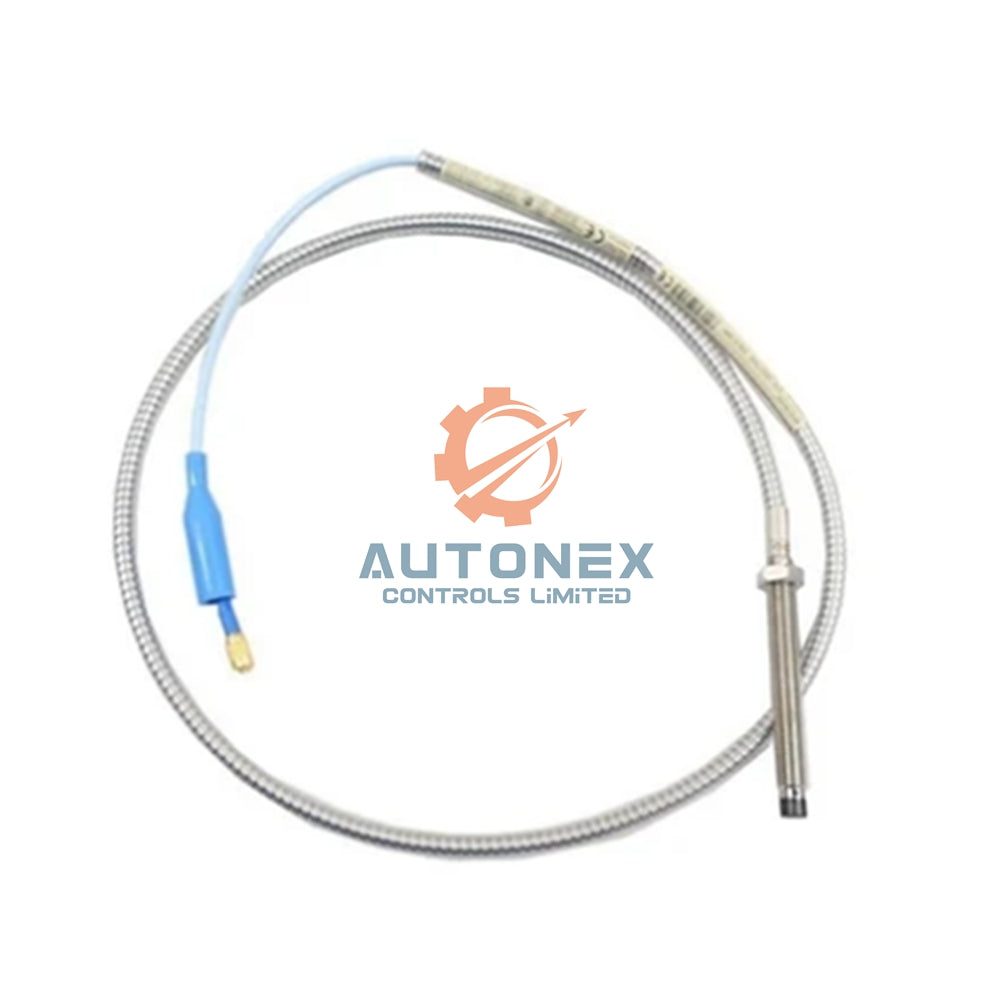

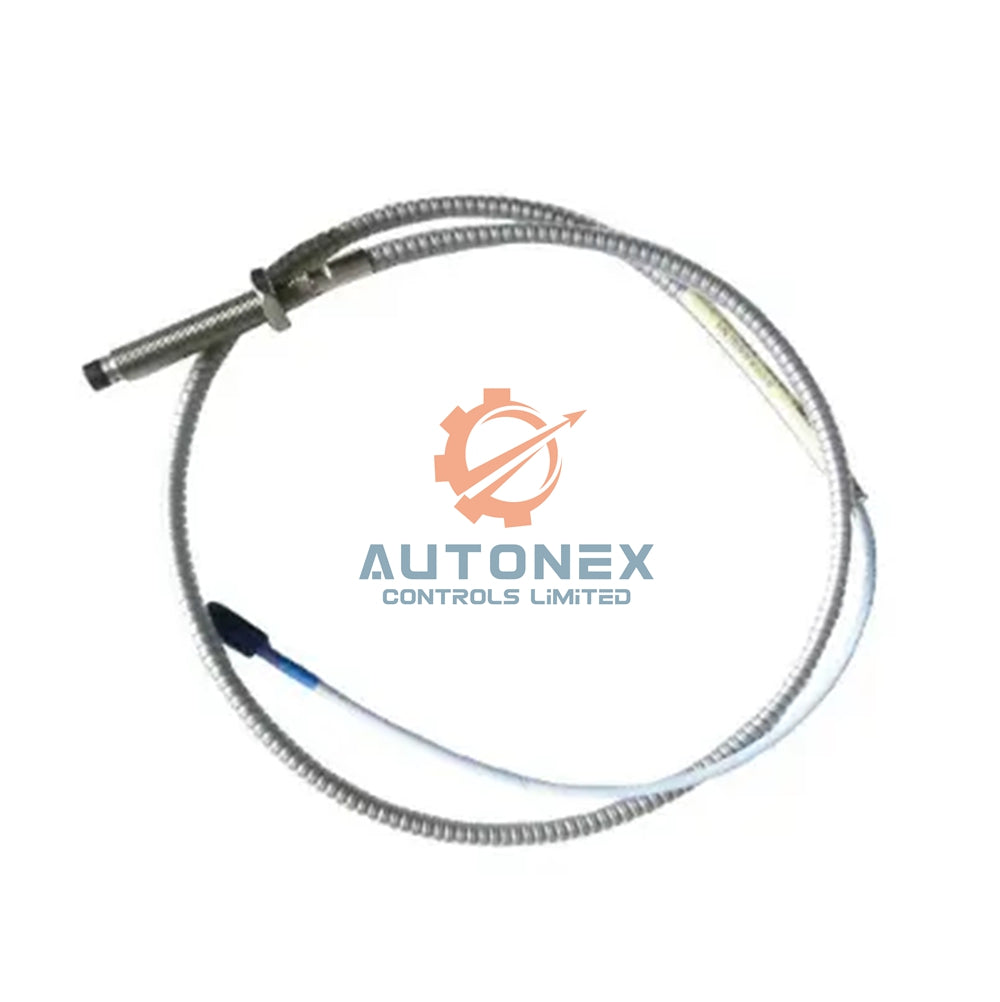

Bently Nevada 330104-15-25-10-02-05 3300 XL 8 mm Proximity Probe

Key Technical Specifications

• Manufacturer & Model: Bently Nevada – 330104-15-25-10-02-05, 3300 XL 8 mm Proximity Probe, Metric.
• Unthreaded Length: 150 mm (Option 15) – extended reach for deeper installations.
• Overall Case Length: 250 mm (Option 25).
• Total Length: 1.0 meter (3.3 feet) with miniature coaxial ClickLoc connector and standard cable (Option 02).
• Agency Approval: CSA, ATEX, IECEx (Option 05) for hazardous areas.
• Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance.
• Probe Case Material: AISI 303 or 304 stainless steel (SST).
• Probe Case Thread: M10 x 1 with max engagement of 15 mm.
• Nominal DC Resistance (RPROBE): 7.59 ± 0.50 Ω for 1.0 m length.
• Linear Range: 2 mm (80 mils) from 0.25 to 2.3 mm (10 to 90 mils), approximately –1 to –17 Vdc.
• Recommended Radial Vibration Gap: -9 Vdc (approx. 1.27 mm / 50 mils).
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), 3-conductor shielded triad, max 305 m (1000 ft) to monitor.
• Temperature Range (Standard): -52 °C to +177 °C (-62 °F to +350 °F).
• Relative Humidity: Less than 3% ASF change after 56 days at 93% RH (IEC 68-2-3).
• Intrinsic Safety: AEx/Ex ia IIC T5…T1 Ga (with zener barriers or galvanic isolators).
• Non-incendive: AEx/Ex nA IIC T5…T1 Gc, Class I, Division 2, Groups A-D.

Installation & Mechanical Details

• Use the M10 x 1 thread for mounting; ensure thread engagement does not exceed 15 mm.
• Note: The 150 mm unthreaded length (Option 15) provides extra reach for applications requiring deeper probe placement.
• Connect field wiring with 3-conductor shielded triad cable (16–24 AWG) for signal integrity.
• Keep total field wiring length under 305 meters (1000 feet) to maintain frequency response.
• Refer to frequency response graphs (Figures 10 and 12) for signal roll-off at high frequencies.
• Probe weight: 323 g/m (11.4 oz) – plan for mechanical support accordingly.
• Storage and operating temperature: –52 °C to +177 °C (standard); avoid prolonged exposure below –34 °C to protect the pressure seal.
• The Viton® O-ring seals differential pressure between tip and case (not pressure tested before shipment).

Environmental & Compliance

• Certified for Class I, Zone 0 (AEx/Ex ia IIC T5…T1 Ga) with intrinsic safety barriers per drawing 141092.
• Also approved for Class I, Division 2 and Zone 2 (nA, ec) per drawing 140979.
• Withstands humidity up to 93% for 56 days with minimal scale factor shift.
• Probe cable and connector tolerate –51 °C to +260 °C for extended range versions.

Package Contents

• 1x Bently Nevada 330104-15-25-10-02-05 3300 XL 8 mm Proximity Probe, Metric.
• Integrated miniature coaxial ClickLoc connector with standard cable (1.0 m).
• Mounting hardware and instruction sheet (quick start guide).
• Calibration certificate (factory traceable).

Frequently Asked Questions (FAQ)

• Is this probe brand new and original?
  Yes, we supply 100% new, original Bently Nevada 330104-15-25-10-02-05 probes.
• Do you have stock available?
  Yes, we maintain stock for this 3300 XL probe and ship within 5 business days.
• What shipping carriers do you use?
  We ship via FedEx, UPS, or DHL – you can select your preferred option.
• What is the return policy?
  We accept returns within 30 days of delivery for unused items.
• Can I use this probe in a Zone 0 area?
  Yes, with proper intrinsic safety barriers, it meets AEx/Ex ia IIC T5…T1 Ga requirements.
• What is the maximum cable length to the monitor?
  Keep field wiring under 305 meters (1000 feet) to avoid high-frequency roll-off.
• Does the probe come with a pressure test?
  Probes are not pressure tested before shipment; contact the custom design department if your application requires it.
• What makes this probe different?
  The 330104-15-25-10-02-05 features a 150 mm unthreaded length and 250 mm case – ideal for deep-reach installations.
