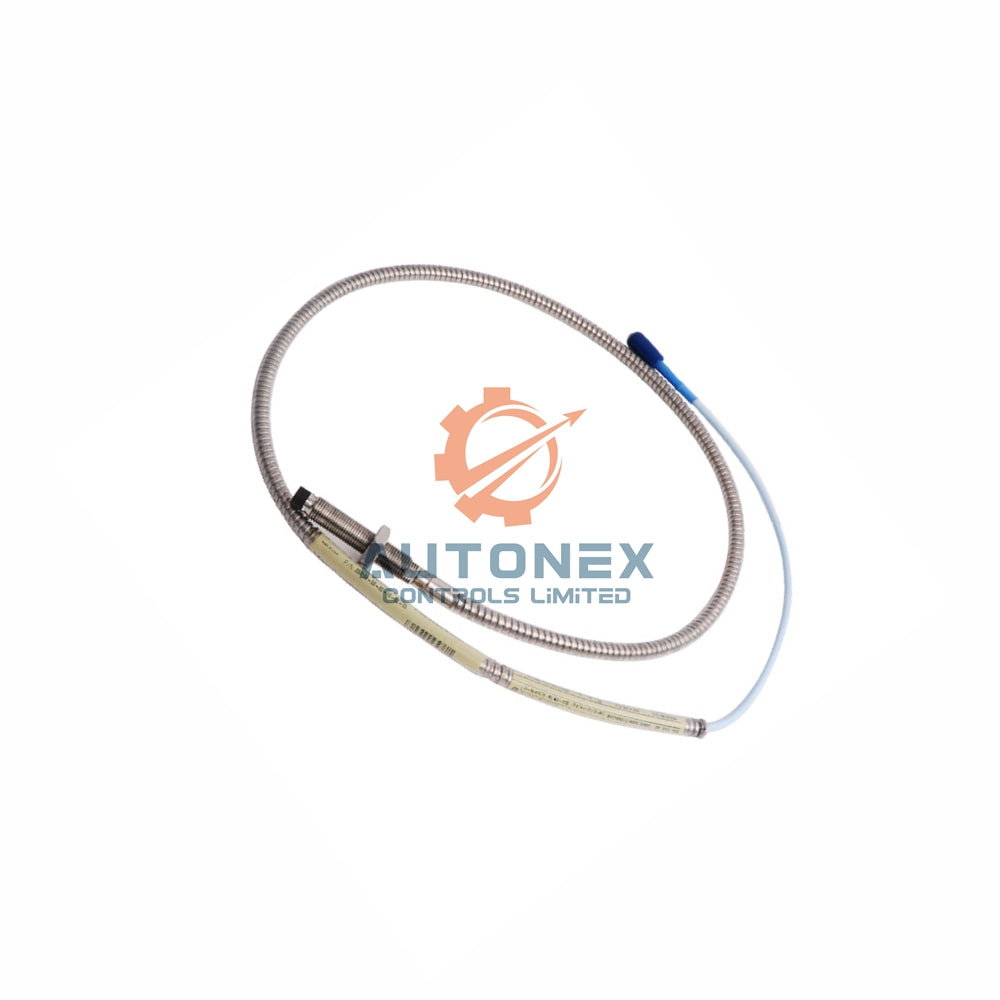

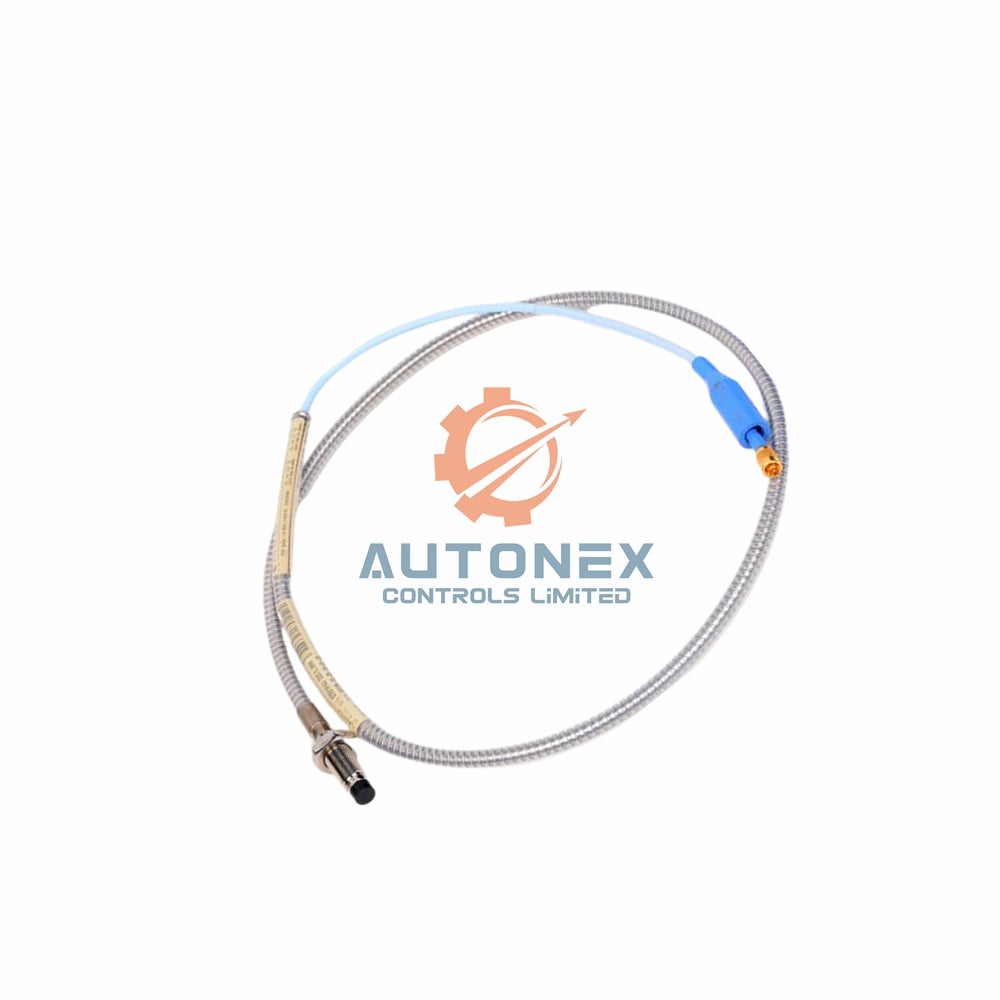

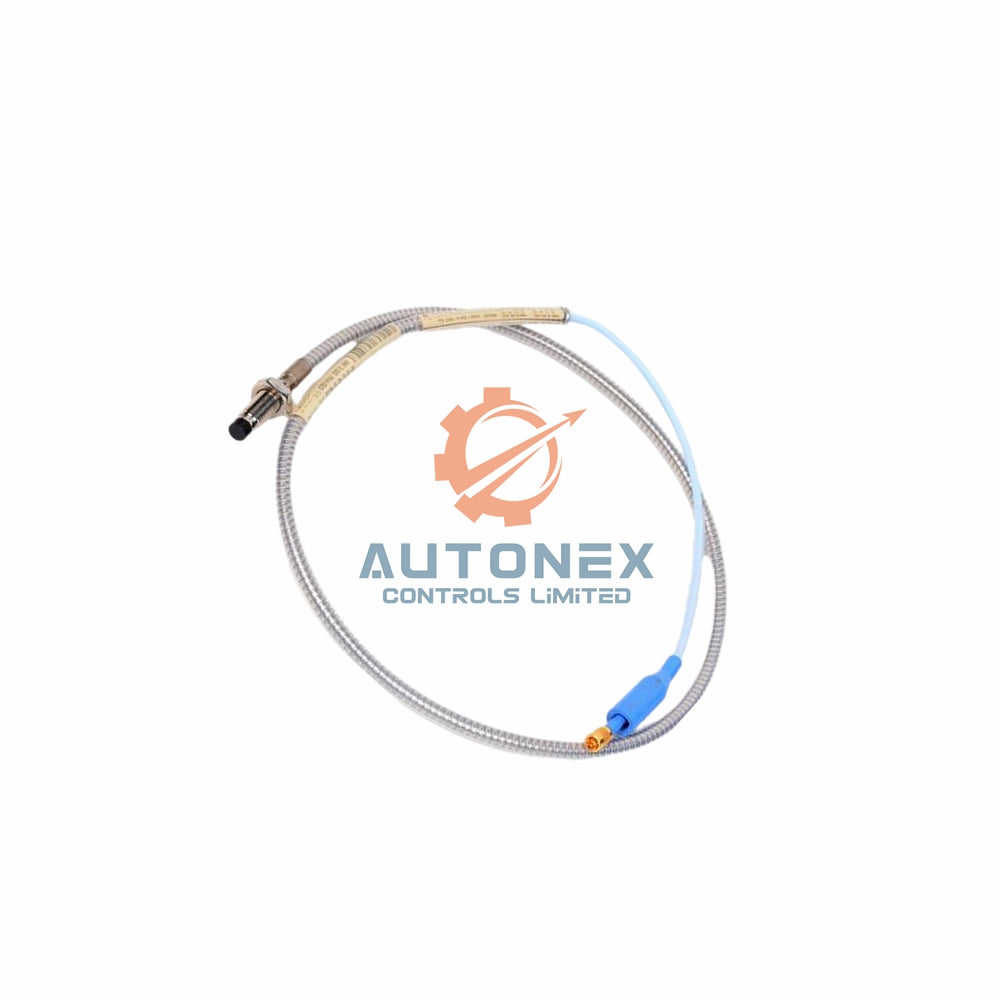

330102-00-40-05-02-00 Genuine Bently Nevada Proximity Probes

Key Technical Specifications

• Brand & Model: Bently Nevada 330102-00-40-05-02-00, 3300 XL Series 8 mm Probe.
• Linear Range: 2 mm (80 mils) from 0.25 mm to 2.3 mm (10 to 90 mils).
• Output Voltage Range: Approximately -1 Vdc to -17 Vdc over linear range.
• Recommended Gap for Radial Vibration: -9 Vdc equals approx. 1.27 mm (50 mils).
• Nominal DC Resistance (RPROBE): 7.45 ± 0.50 Ω for 0.5 meter length.
• Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance.
• Probe Case Material: AISI 303 or 304 stainless steel (SST) for harsh environments.
• Case Thread: 3/8-24 UNF with maximum thread engagement 0.563 inch.
• Probe Length Options: Unthreaded length 0.0 in, overall case length 4.0 in, total length 0.5 meter (1.6 feet).
• Operating Temperature (Standard Probe): -52°C to +177°C (-62°F to +350°F).
• Extended Temperature Range Option: Tip -52°C to +218°C; cable/connector -51°C to +260°C.
• Pressure Seal: Viton® O-ring seals differential pressure between tip and case.
• Relative Humidity Performance: Less than 3% change in Average Scale Factor at 93% humidity (IEC 68-2-3).
• Agency Approval Option: 00 = Not required (standard non-hazardous version).
• Connector & Cable: Miniature coaxial ClickLoc connector with standard cable.
• Weight: 323 g/m (11.4 oz per meter).

Frequently Asked Questions (FAQ)

• Is this 330102-00-40-05-02-00 probe brand new and original?
  Yes, we supply only 100% genuine Bently Nevada 3300 XL series probes. No counterfeits or refurbished units.
• What is the linear range of the 3300 XL 8 mm probe?
  This probe offers a 2 mm (80 mils) linear range from 0.25 mm to 2.3 mm (10 to 90 mils).
• Can I use this 0.5 meter probe with a 9 meter Proximitor sensor?
  No. The 3-meter length works only with 9 meter Proximitor sensors. 5-meter probes work only with 5 meter Proximitor sensors. This 0.5 m length works with standard 3300 XL Proximitor sensors.
• What approvals does this probe carry?
  The 330102-00-40-05-02-00 has option 00 (not required), meaning no agency approvals. Use this version only in non-hazardous areas.
• What is the maximum temperature for the probe tip?
  Standard tip operates from -52°C to +177°C. Extended range reaches +218°C for the tip, and +260°C for cable/connector.
• How long does shipping take?
  We ship within 5 business days via FedEx, UPS, or DHL. Delivery times vary by destination.
• Do you have the 330102-00-40-05-02-00 in stock?
  Yes, we keep this model in stock for fast shipment worldwide.
• What is the return policy?
  You can return the probe within 30 days after delivery, provided it is unused and in original packaging.
• What field wiring length works with the 3300 XL Proximitor Sensor?
  You can extend up to 305 meters (1,000 feet) between the sensor and monitor using shielded triad cable.
