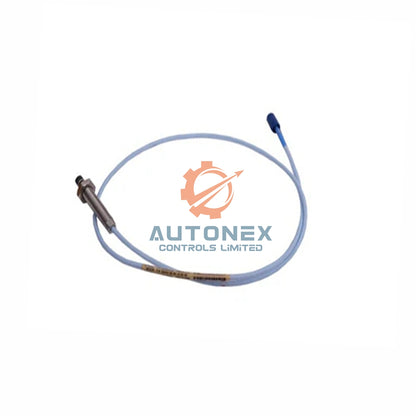

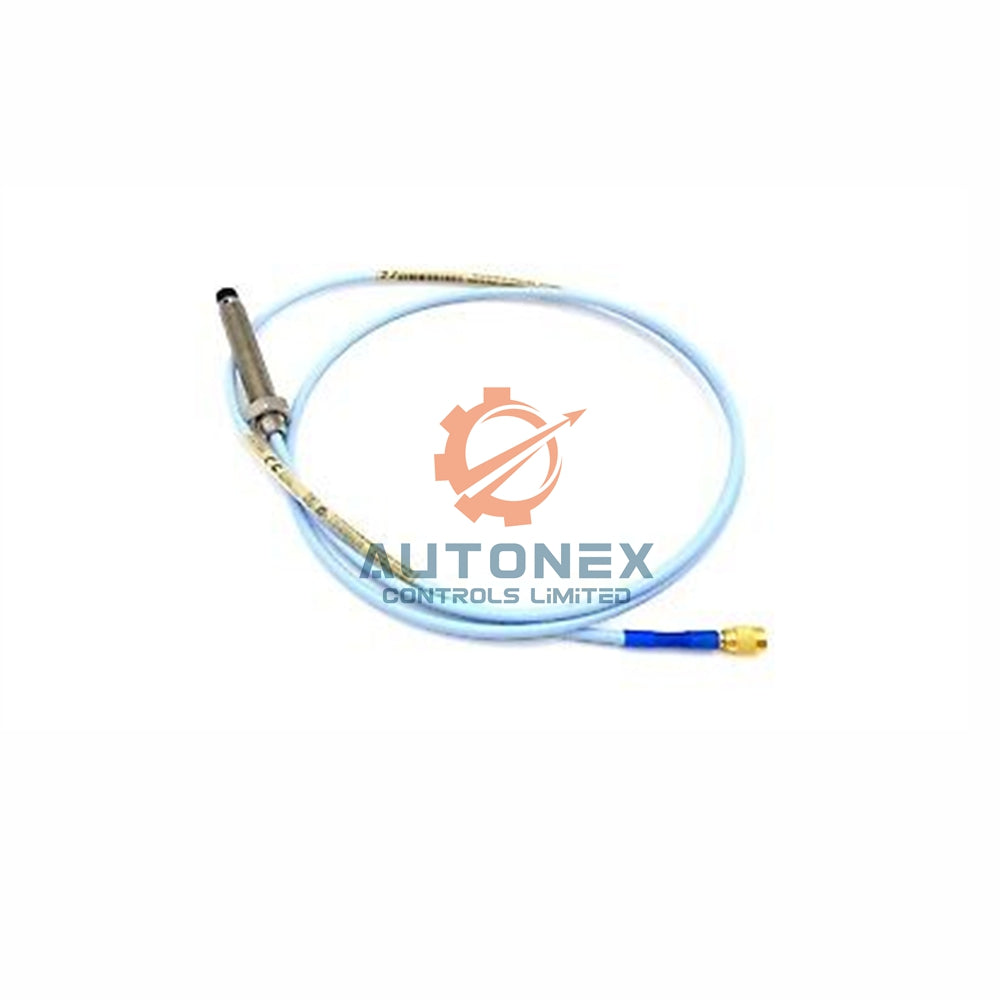

Bently Nevada 330903-00-05-05-02-05 Proximity Vibration Probe

Core Technical Specifications

• Brand & Model: Bently Nevada 330903-00-05-05-02-05
• Linear Measurement Range: A wide range of 1.5 mm (60 mils) for flexible setup.
• Recommended Gap Setting: Optimal performance at a 1.0 mm (40 mils) installation gap.
• Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil) with a tight tolerance.
• Frequency Response: 0 to 10 kHz, capturing both slow rolls and high-speed vibrations.
• Nonlinearity (DSL): Less than ±0.06 mm (±2.3 mils) for high accuracy.
• Temperature Range: Excellent stability from -52°C to +177°C (-62°F to +351°F).
• Cable & Connector: Includes a 0.5-meter FEP coaxial cable with a secure ClickLoc connector.

Electrical & Environmental Performance

• DC Resistance: Low resistance of 4.0 Ω ± 0.5 Ω for stable signal transmission.
• Cable Capacitance: Typical value of 69.9 pF per meter.
• Environmental Tolerance: Designed for harsh conditions with wide operating and storage temperatures.
• Wiring & Distance: Use shielded triad wiring (16-24 AWG). Supports cable runs up to 305m to the monitor.
• Agency Approvals: The -05 suffix indicates multiple international safety approvals.

Frequently Asked Questions (FAQ)

• Q: What is the exact model and brand of this probe?
  A: This is the Bently Nevada 330903-00-05-05-02-05 probe from the 3300 NSv series.
• Q: What target gap should I set for this probe?
  A: For best performance, set the probe gap to 1.0 mm (40 mils) from the target surface.
• Q: Can this probe handle high-temperature environments?
  A: Yes, it operates reliably in temperatures from -52°C to +177°C.
• Q: What type of connector does it use?
  A: It features a miniature coaxial connector with a ClickLoc locking mechanism for secure connections.
• Q: How quickly can you ship this item?
  A: We have stock available and typically ship within 5 business days after order confirmation.

Download the complete product datasheet for detailed specifications: 3300 XL NSv Proximity Transducer System Datasheet - 147385
