3300 NSv Probe - Bently Nevada - 330903-00-02-10-12-05

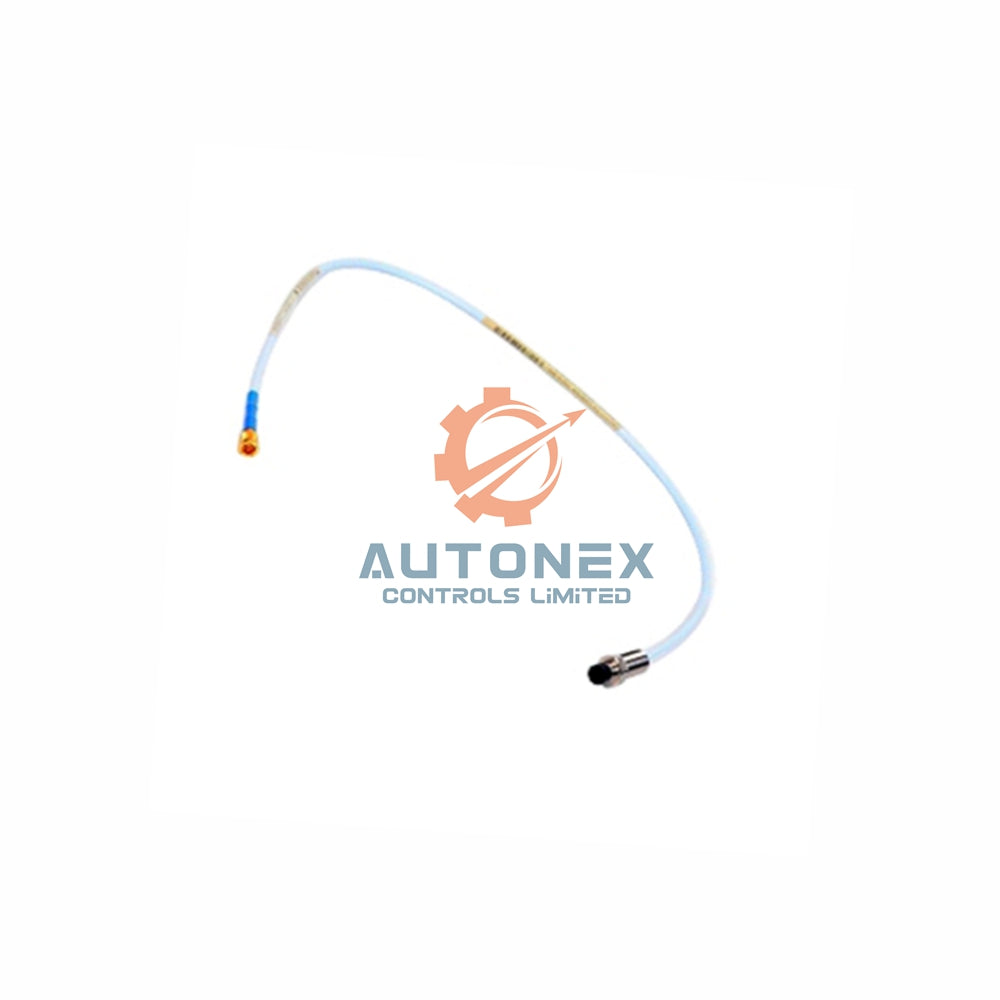

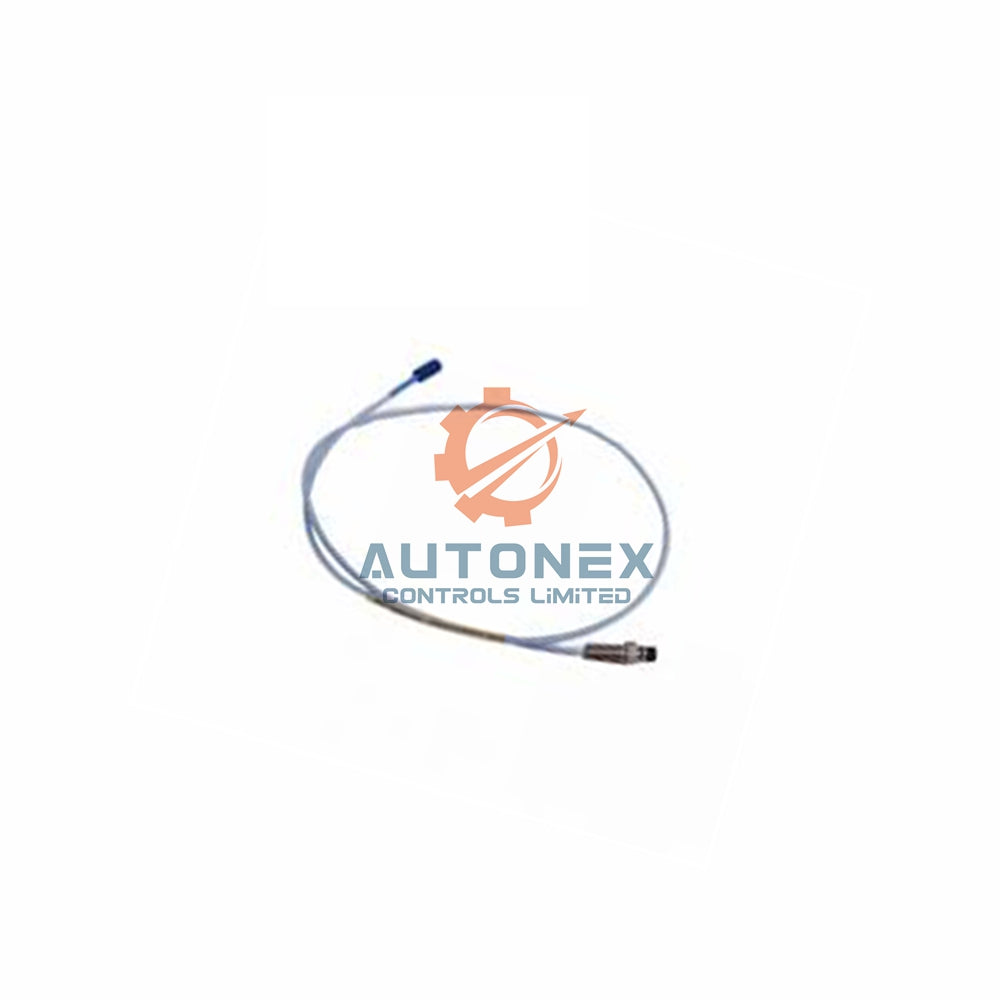

Bently Nevada 3300 NSv Proximity Probe - 330903-00-02-10-12-05

Model Number Suffix Explanation

• -00: Specifies a 0 mm unthreaded probe section.
• -02: Indicates a short 20 mm overall case length.
• -10: Defines the total attached cable length as 1.0 meter.
• -12: Denotes a ClickLoc connector with a FluidLoc sealed cable.
• -05: Confirms the probe holds multiple international agency approvals.

Core Technical Specifications

• Brand: Bently Nevada
• Model: 3300 NSv Probe
• Part Number: 330903-00-02-10-12-05
• Linear Measurement Range: 0.25 to 1.75 mm
• Recommended Initial Gap (Gap Voltage): 1.0 mm
• Scale Factor (Sensitivity): 7.87 V/mm (+12.5% / -20%)
• Frequency Response: 0 to 10 kHz (with up to 305 m cable)
• Output Voltage Range: -1 to -13 Vdc
• Minimum Target Size: For best results, use a target ≥ 13 mm in diameter.

Physical & Electrical Data

• Mounting Thread: Standard M8 x 1 metric thread.
• Integrated Cable: 75 Ω FEP coaxial, 1.0 m length with FluidLoc sealing.
• Probe Coil DC Resistance: 4.2 Ω ± 0.5 Ω.
• Operating Temperature Range: Excellent performance from -52°C to +177°C.

Frequently Asked Questions (FAQ)

• Q: What is the main benefit of the "-12" suffix (FluidLoc)?
  A: The FluidLoc cable provides a superior seal at the connector. It resists fluids and is ideal for wet or oily environments.
• Q: Is this probe a genuine Bently Nevada product?
  A: Absolutely. We supply only 100% authentic, new Bently Nevada components with full traceability.
• Q: How quickly will my order ship?
  A: We process most orders rapidly. Your probe typically ships within 5 business days.
• Q: What shipping methods are available?
  A: We ship worldwide via express services like DHL, FedEx, and UPS for fast delivery.
• Q: What is the unthreaded length of this model?
  A> The suffix "-00" means it has 0 mm of unthreaded length. The threads run the full case length.
• Q: Can I use this with my existing 3300 system?
  A: Yes. The 330903-00-02-10-12-05 is fully compatible with standard Bently Nevada 3300 XL drivers and monitors.

For complete technical drawings and specifications, download the official datasheet here: 3300 XL NSv Proximity Transducer System Datasheet (PDF)

For technical questions, quotes, or volume pricing, please contact our sales specialists.
