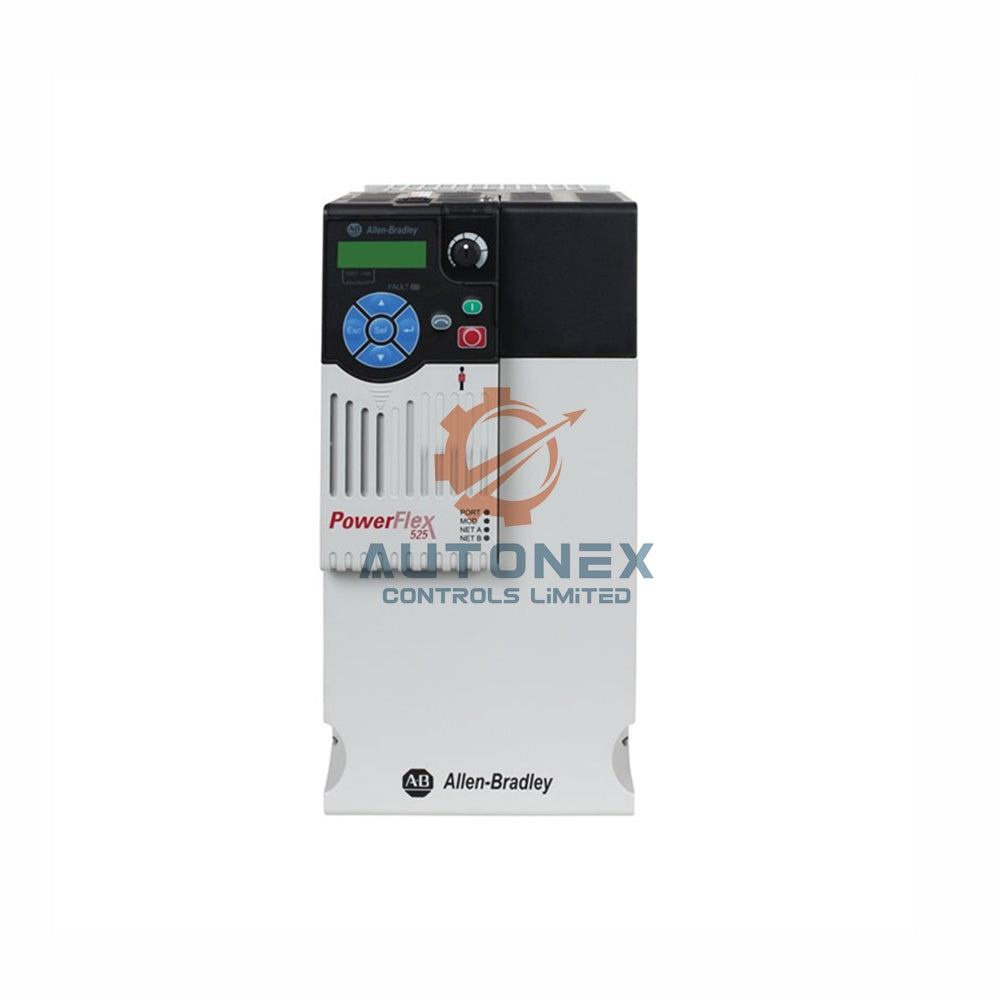

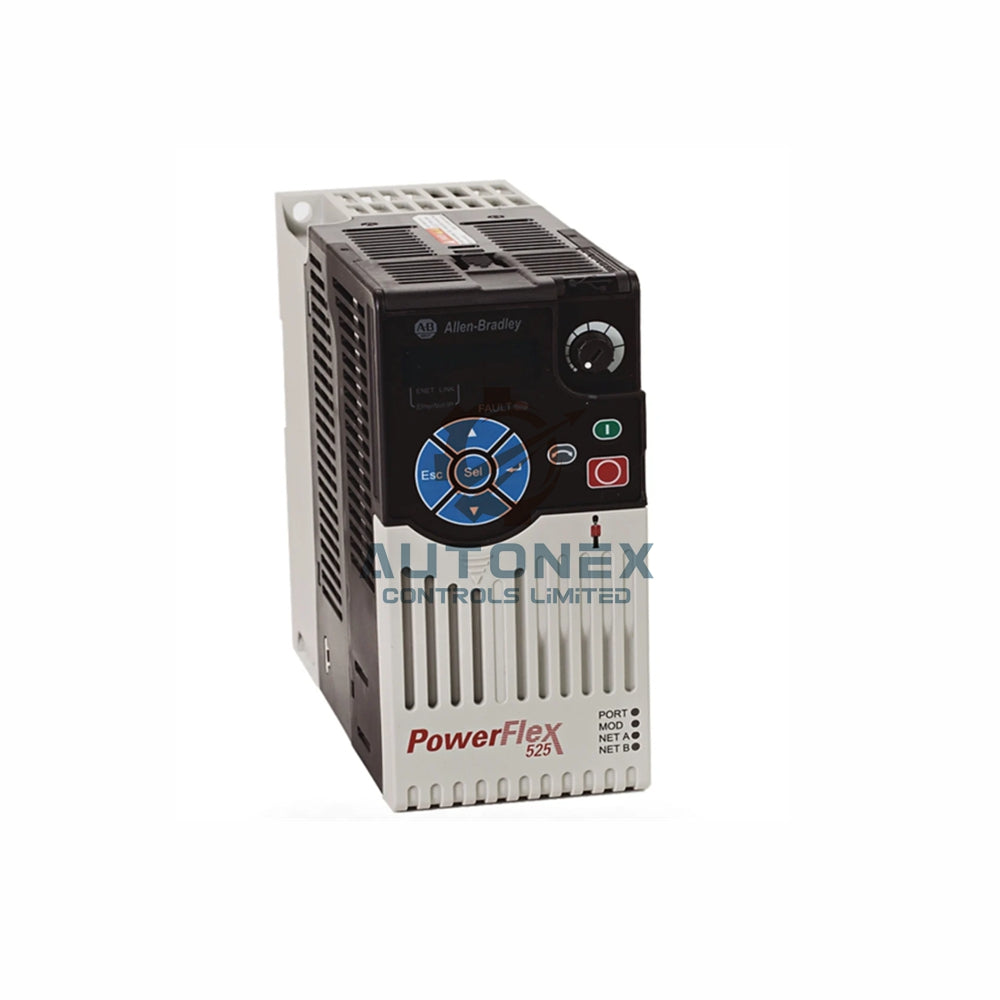

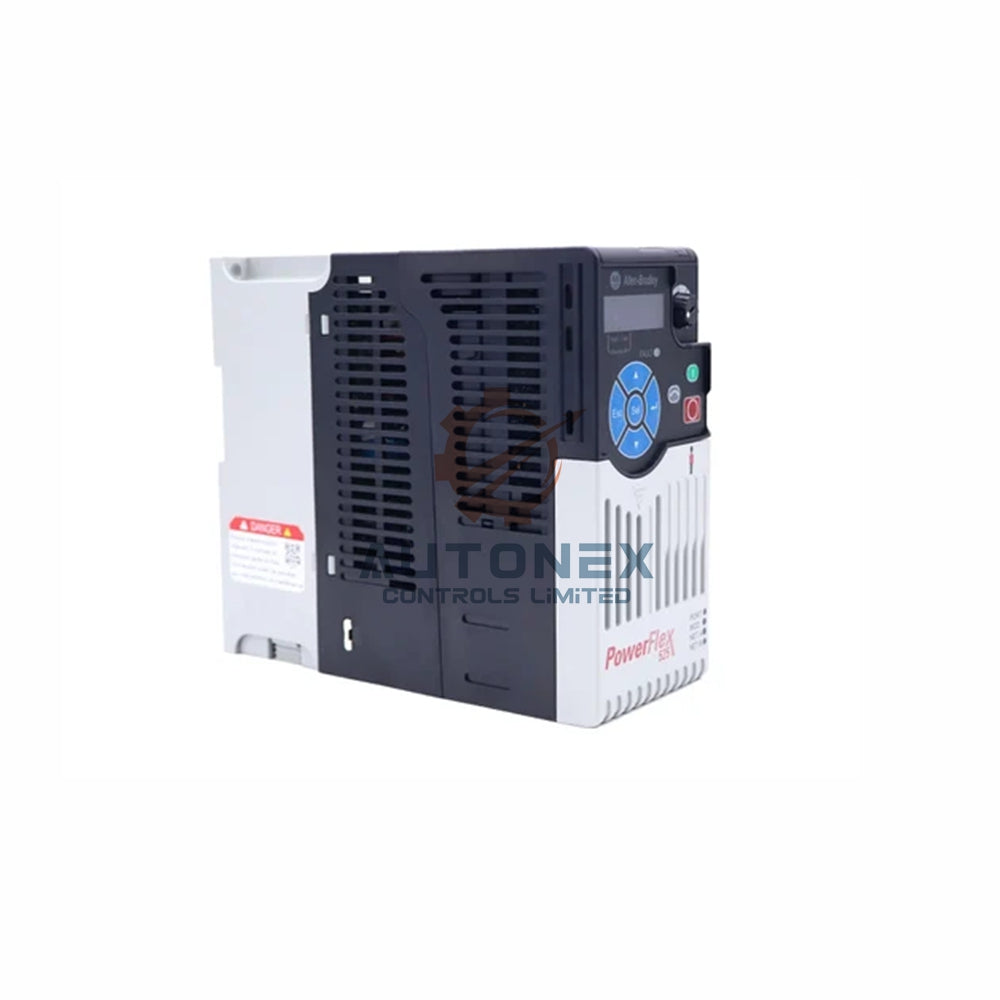

25B-V6P0N104 Allen-Bradley PowerFlex 525 Drive

Allen Bradley PowerFlex 525 AC Drive 25B-V6P0N104: Reliable Motor Control

Detailed Technical Specifications

• Brand: Allen Bradley
• Model: 25B-V6P0N104
• Input Power: 100-120 VAC, Single Phase, 47-63 Hz
• Output Power: 0-230 VAC, Three Phase, 6.0 A
• Motor Power: 1.5 HP (1.1 kW) for both heavy and normal duty cycles
• Frequency Range: Adjustable output from 0 to 500 Hz
• Overload Capacity: 150% for 60 seconds, handles short surges up to 175%
• Control Inputs: 6 digital inputs, 1 analog input (0-10V/0-20mA)
• Control Outputs: 2 Form C relay outputs, 1 analog output (0-10V/0-20mA)
• Operating Temperature: -20°C to +50°C without derating
• Storage Temperature: -40°C to +85°C
• Enclosure Rating: IP20 / NEMA Open Type
• Safety Certification: Includes Safe Torque Off (STO) functionality

Frequently Asked Questions (FAQ)

• Q: Is this drive brand new and do you have it in stock?
  A: Yes, every unit is 100% new and original. We have ready stock for immediate shipment.
• Q: What is the input voltage for the 25B-V6P0N104 model?
  A: This model requires a single-phase 100-120 VAC power input.
• Q: Can this drive control a 1 HP motor?
  A: Yes, the drive can power motors up to 1.5 HP (1.1 kW), making it suitable for 1 HP applications.
• Q: Does it include built-in Ethernet communication?
  A: Yes, the PowerFlex 525 series features a built-in Ethernet/IP port for easy networking.
• Q: How soon will my order ship?
  A: We process and ship all orders within 5 business days.
• Q: What is your return policy?
  A: We offer a 30-day return policy for your peace of mind.

For more detailed technical data and wiring diagrams, please download the full PDF datasheet.

Download the product manual here: PowerFlex 520-series Technical Manual
