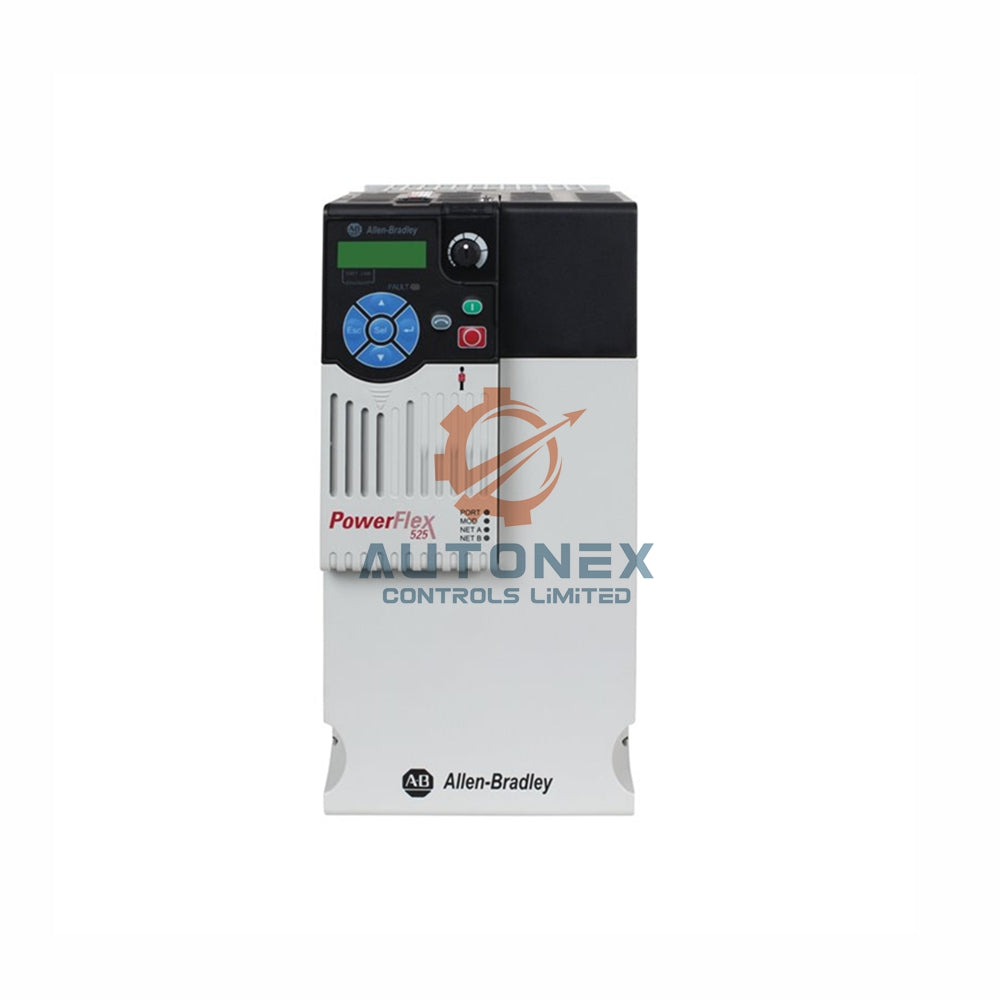

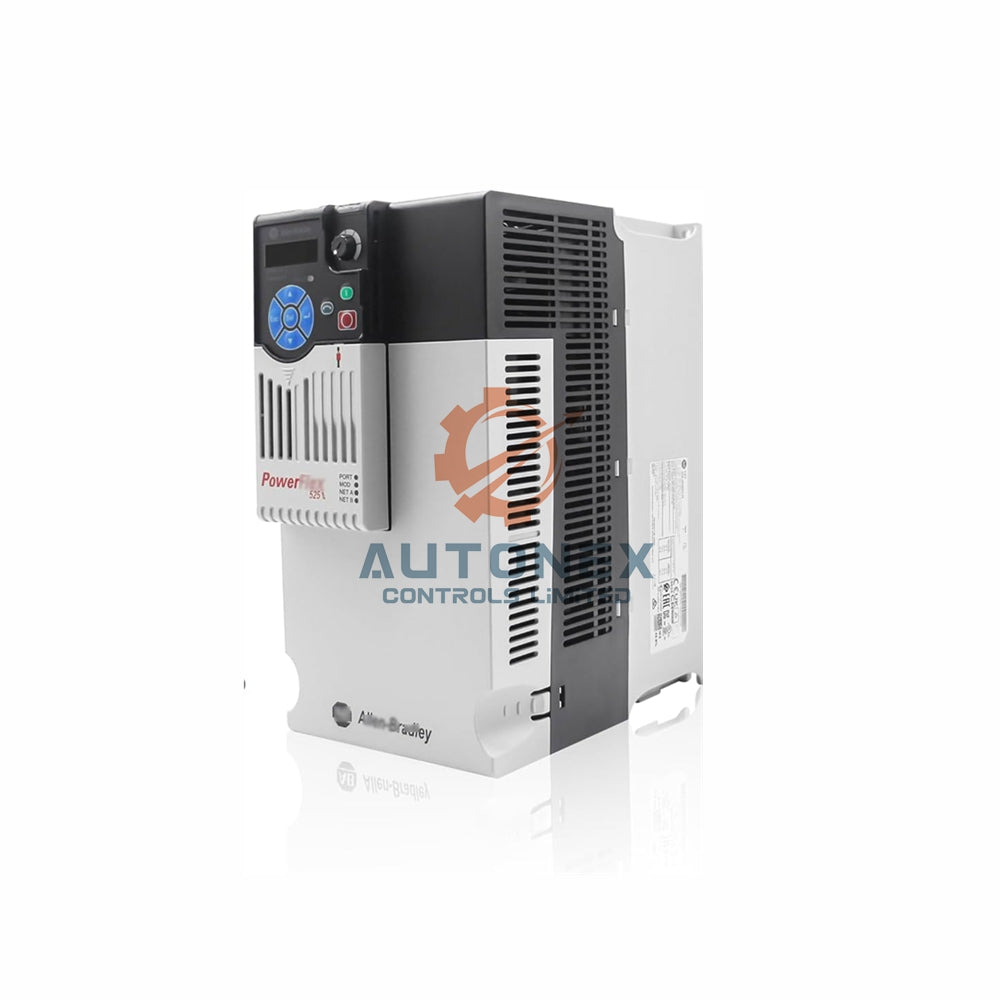

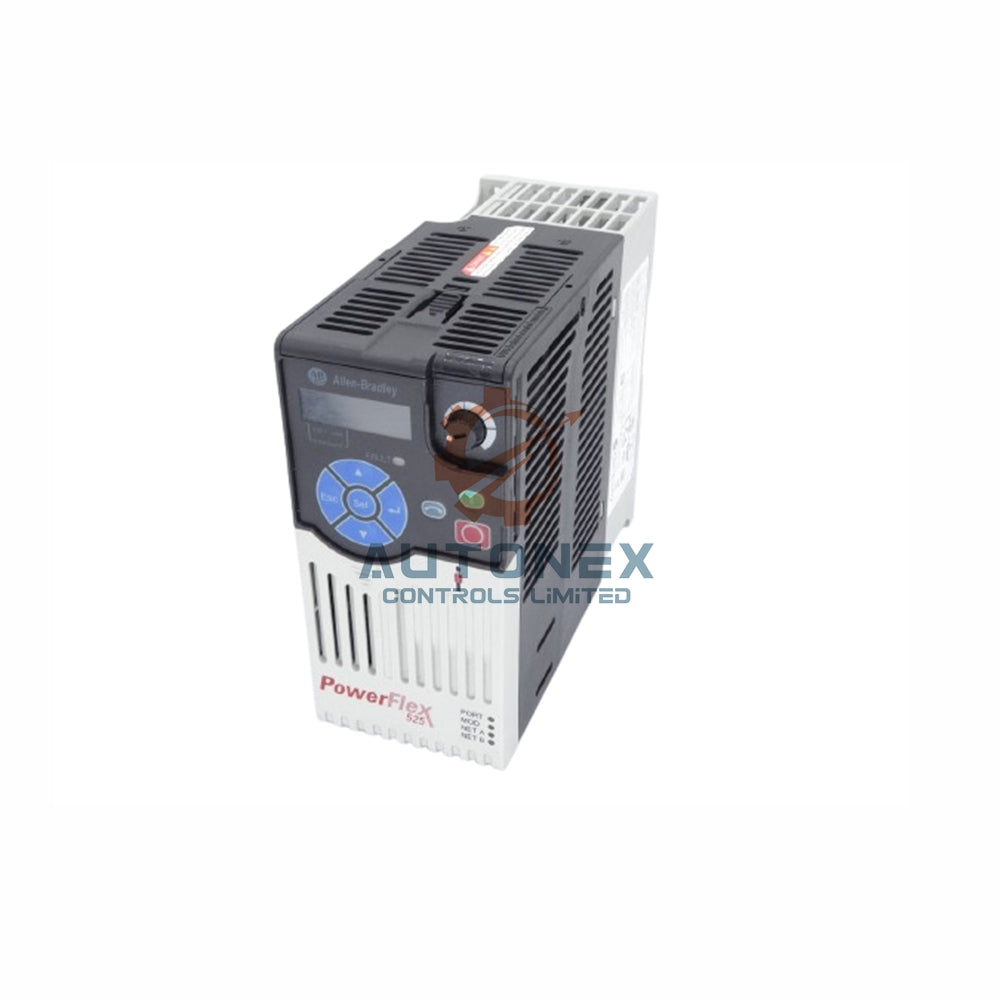

25B-E012N104 Allen-Bradley PowerFlex 525 Drive

Allen-Bradley PowerFlex 525 Drive 25B-E012N104: Frame C Industrial Power

Environmental Operating Limits

• Operating Temperature: -20°C to +50°C without derating
• This temperature range applies to IP20 vertical mounting
• Storage Temperature: -40°C to +85°C for unused units
• Maximum Altitude: 2000 meters (6,562 feet) without derating
• The altitude rating applies to 525-600 VAC voltage class
• These specifications ensure reliable operation in harsh conditions

Performance and Acoustic Characteristics

• Sound Pressure Level: Approximately 57 dBA at 1 meter distance
• This measurement applies to Frame C models during operation
• Power Factor: Typically 0.98 at rated load conditions
• The high power factor reduces overall system energy consumption
• These values represent typical performance under normal conditions

Frequently Asked Questions (FAQ)

• What are the main advantages of Frame C design?
  Frame C provides better thermal performance and more installation options.
• Can I mount these drives directly next to each other?
  Yes, vertical mounting allows zero-stack adjacent installation.
• What temperature range can this drive operate within?
  It operates from -20°C to +50°C without performance derating.
• How much clearance does horizontal mounting require?
  Add 50mm clearance top and bottom for proper airflow.
• What is the typical shipping time for this model?
  We process and ship most orders within five business days.
• Do you accept returns if the product doesn't meet my needs?
  Yes, we accept returns within 30 days for new, unused products.

Download the complete technical manual for detailed specifications and installation diagrams: PowerFlex 520-series AC Drive Manual

For technical specifications or volume pricing information, contact our team.
