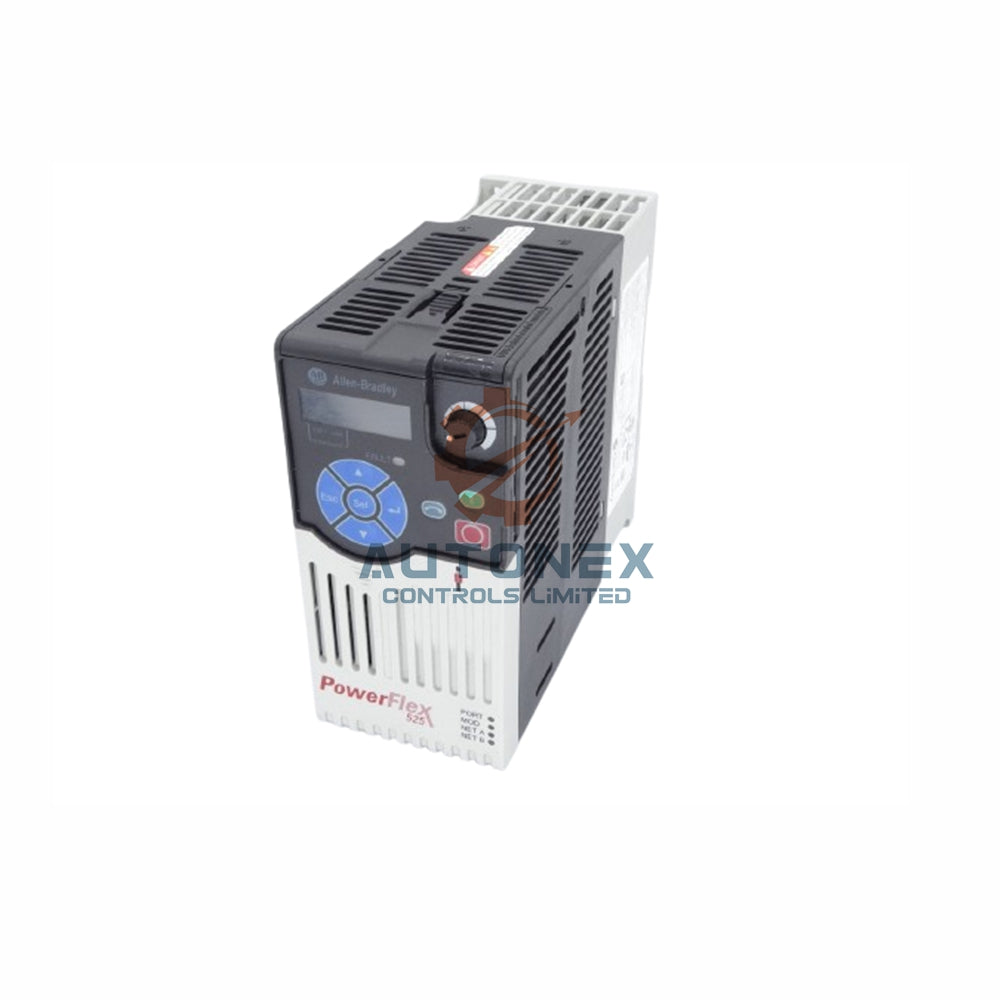

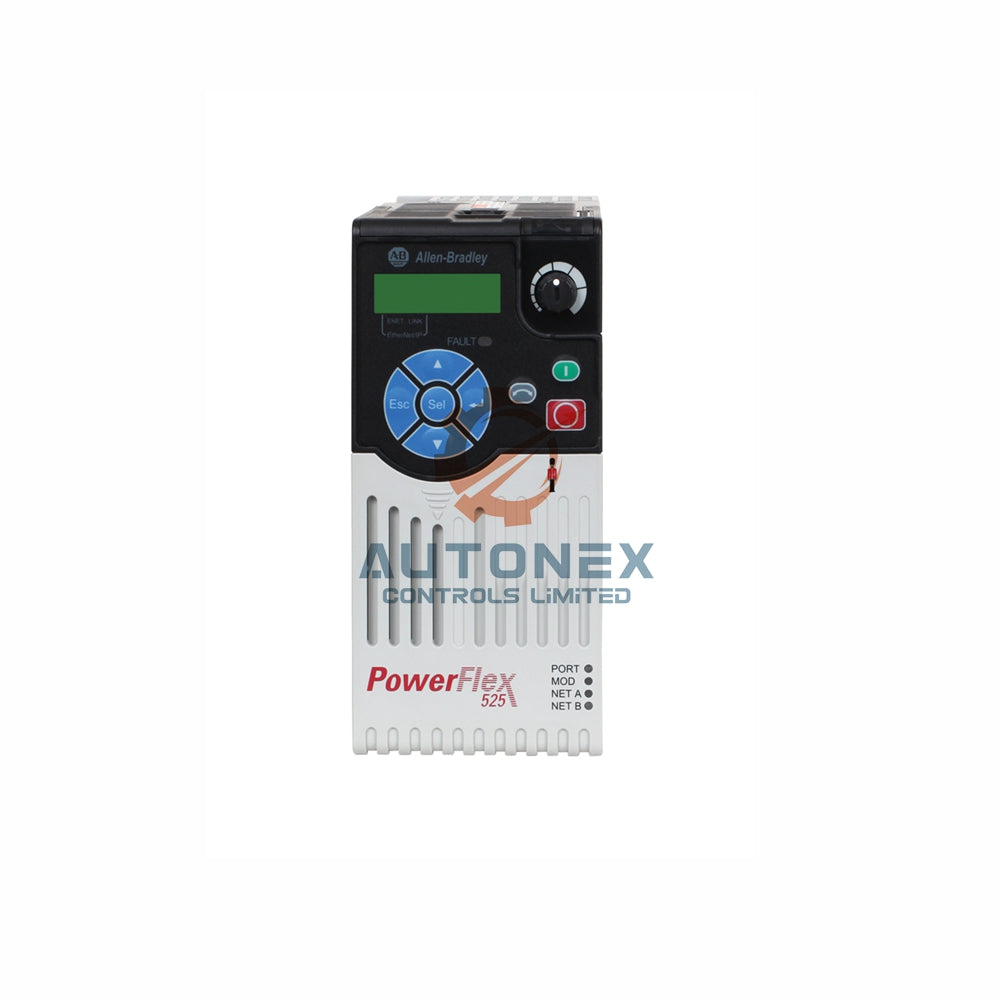

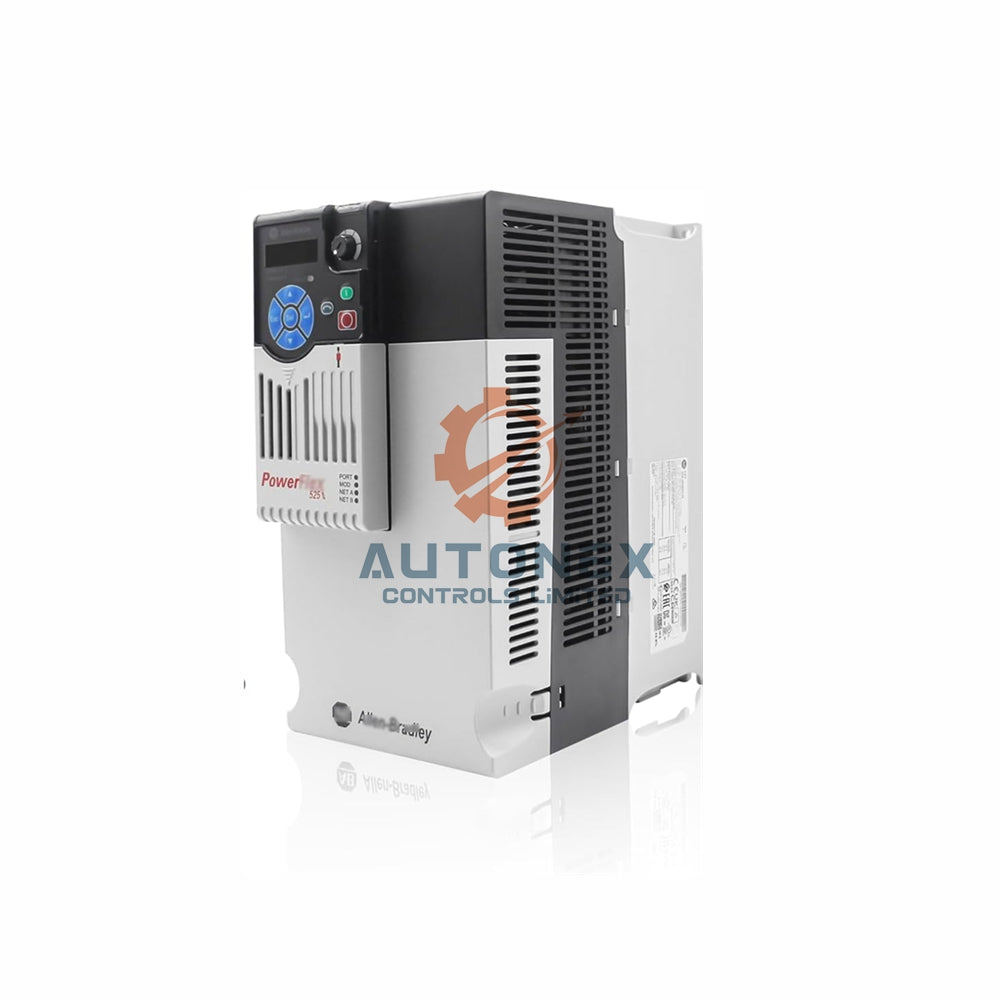

25B-D2P3N314 Allen-Bradley Powerflex 525 | AC Drive

Allen-Bradley PowerFlex 525 AC Drive 25B-D2P3N314: Precision Control for Demanding Applications

Core Technical Specifications

• Brand & Model: Allen-Bradley 25B-D2P3N314 / PowerFlex 525 Series
• Input Power: 480 VAC, 3-phase industrial power supply
• Output Power: 1 HP (0.75 kW) for consistent performance
• Output Current: 2.3 Amps continuous output rating
• Frequency Operation: 50/60 Hz standard line frequency
• Motor Phases: Designed for 3-phase motor applications
• Physical Size: Compact Frame A dimensions
• Enclosure Protection: IP20 NEMA Open Type rating
• Noise Reduction: Built-in EMC filter for cleaner operation
• Braking System: Integrated IGBT brake for motor control

Installation and Physical Characteristics

• The Frame A design allows for space-efficient panel mounting
• You can install this drive in various industrial control panels
• The open-type enclosure requires proper panel protection
• Ensure adequate ventilation around the drive during operation
• Follow local electrical codes for proper installation

Frequently Asked Questions (FAQ)

• What is the input voltage requirement for this model?
  The 25B-D2P3N314 requires 480 VAC, 3-phase input power.
• Do you have this specific model available in stock?
  Yes, we maintain stock of this PowerFlex 525 model for quick shipment.
• What is the advantage of the built-in EMC filter?
  It reduces electrical noise and prevents interference with other equipment.
• How does the IGBT brake function help motor control?
  It provides faster stopping and better braking control for motors.
• What is your typical order processing time?
  We ship most orders within five business days after payment.
• Which shipping carriers do you typically use?
  We ship via major carriers including DHL, FedEx, and UPS worldwide.

Download the complete technical manual for detailed specifications: PowerFlex 520-series AC Drive Manual

For pricing inquiries or technical questions, please reach out to our sales team.
Contact: sales@nex-auto.com
