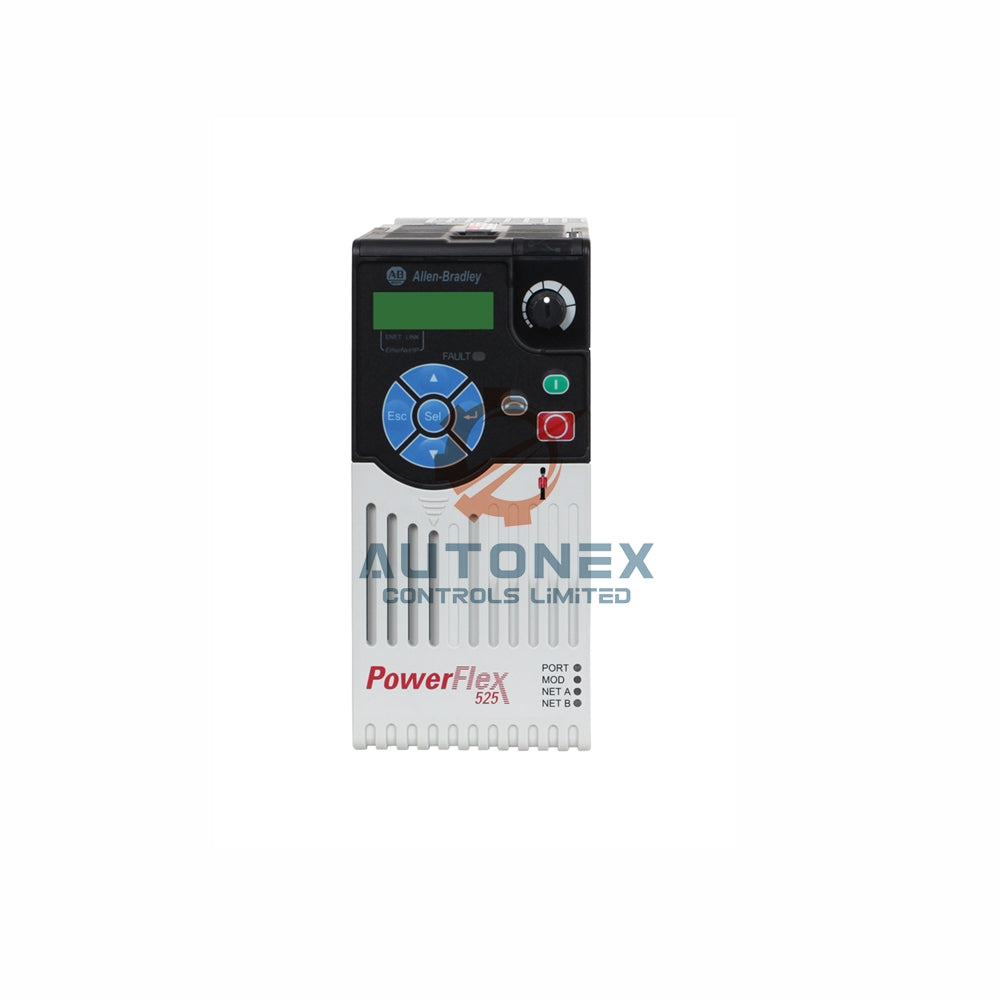

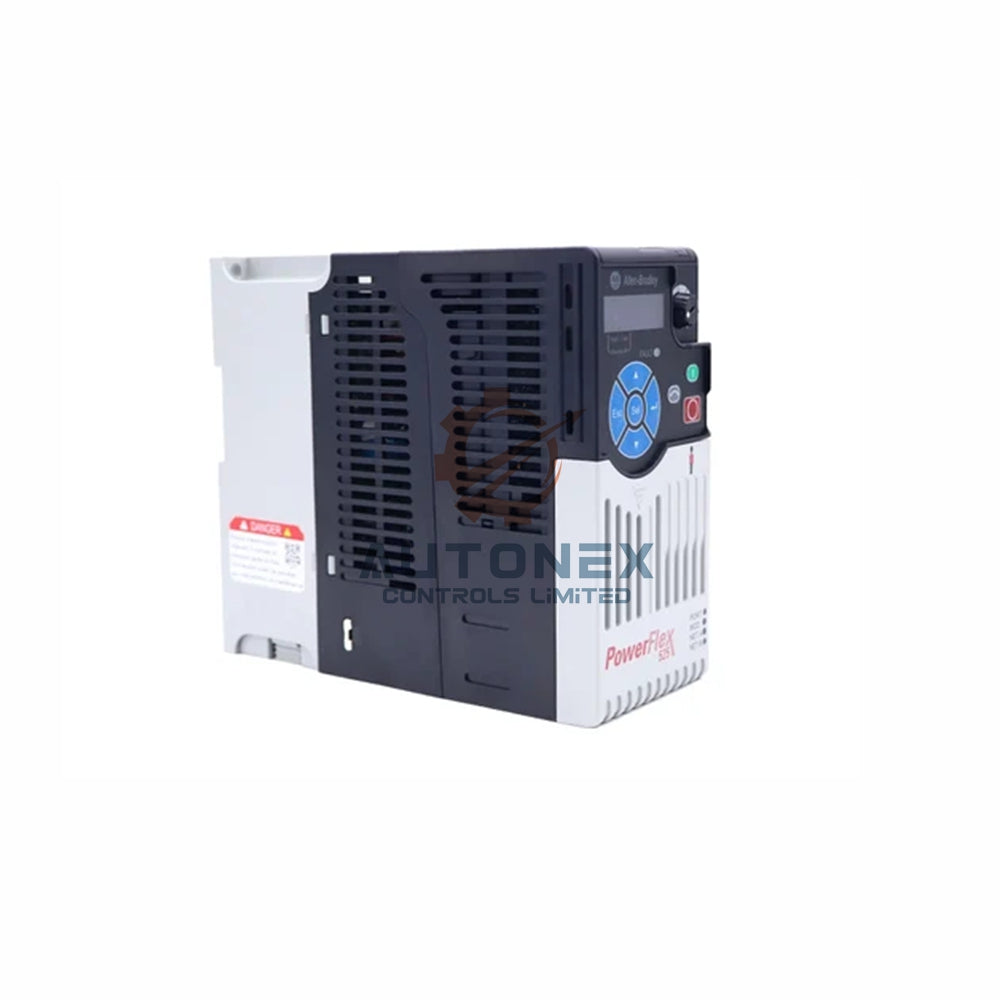

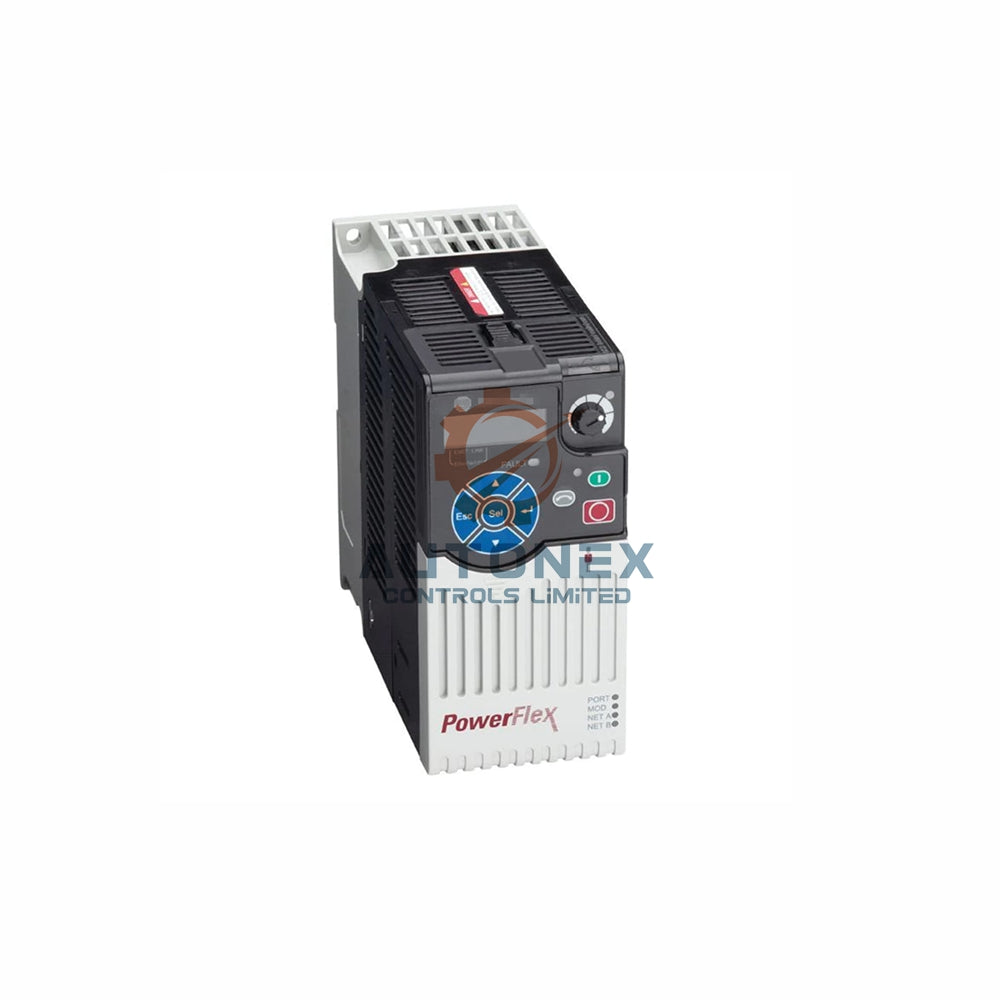

25B-B8P0N104 - Allen-Bradley PowerFlex 525 Drive

Allen Bradley PowerFlex 525 Variable Frequency Drive

Technical Specifications

• Brand: Allen-Bradley
• Model Number: 25B-B8P0N104 PowerFlex 525 VFD
• Input Power: 200-240V AC three phase, 47-63 Hz
• Output Power: 1.5 kW (2.0 HP) three phase capability
• Output Current: Rated at 8.0 Amps continuous
• Output Frequency: Adjustable from 0 to 500 Hz range
• Control Methods: V/Hz, Sensorless Vector, Closed Loop
• Communication: RS485 and dual Ethernet built-in
• Enclosure Rating: IP20 / NEMA Open, Frame Size A
• Operating Temperature: -20°C to 50°C wide range
• Unit Weight: 1.1 kg for easy handling and installation

Control and Performance Features

• Control both induction and permanent magnet motors effectively
• Maintain high 97.5% efficiency for energy savings
• Handle 110% overload conditions for one minute duration
• Provide 200% hardware current limit and 300% fault protection
• Include Safe Torque Off (STO) for enhanced safety compliance
• Support PointStop function without encoder requirement
• Operate two independent PID loops for process control

Input/Output Configuration

• Access seven digital inputs for control and monitoring
• Utilize two opto-isolated outputs for status indication
• Connect two relay outputs for alarm or control functions
• Interface two analog inputs (4-20 mA signal range)
• Use one analog output (0-10V or 4-20 mA selectable)
• Connect external potentiometer (1-10 kΩ) for speed control

Frequently Asked Questions

• Is this VFD new and genuine Allen Bradley?
  Yes, we supply only new, authentic Allen Bradley products with full warranty.
• How quickly do you process orders?
  We ship all in-stock items within 5 business days after payment confirmation.
• Which shipping carriers do you use?
  We primarily use FedEx, UPS, and DHL for reliable global delivery.
• What is your return policy?
  We accept returns within 30 days for unused products in original packaging.
• Does this model support network communication?
  Yes, the 25B-B8P0N104 includes dual Ethernet and RS485 ports.
• What safety features are included?
  It features Safe Torque Off, surge protection, and comprehensive fault detection.

For complete technical documentation and wiring diagrams, download the full product manual.

Download PowerFlex 520-Series Technical Manual PDF

Need application engineering support or volume pricing? Contact our technical team today.
