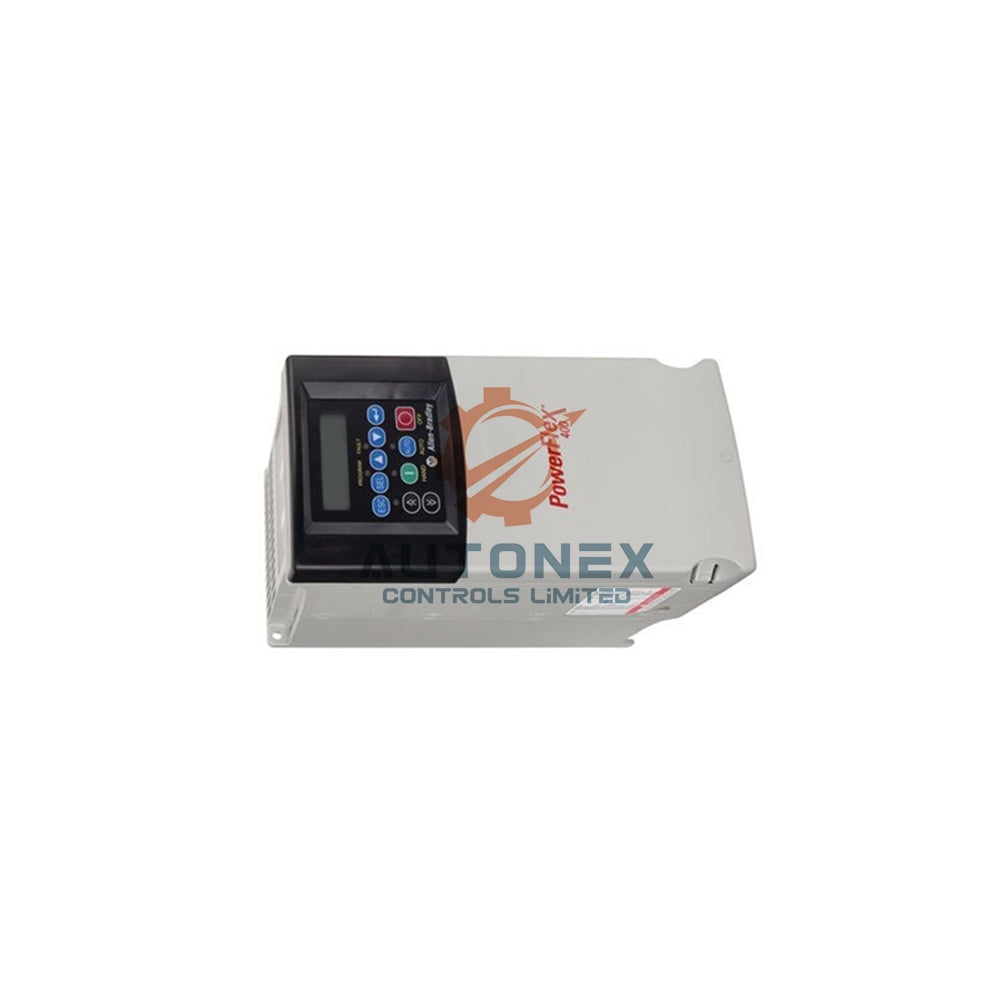

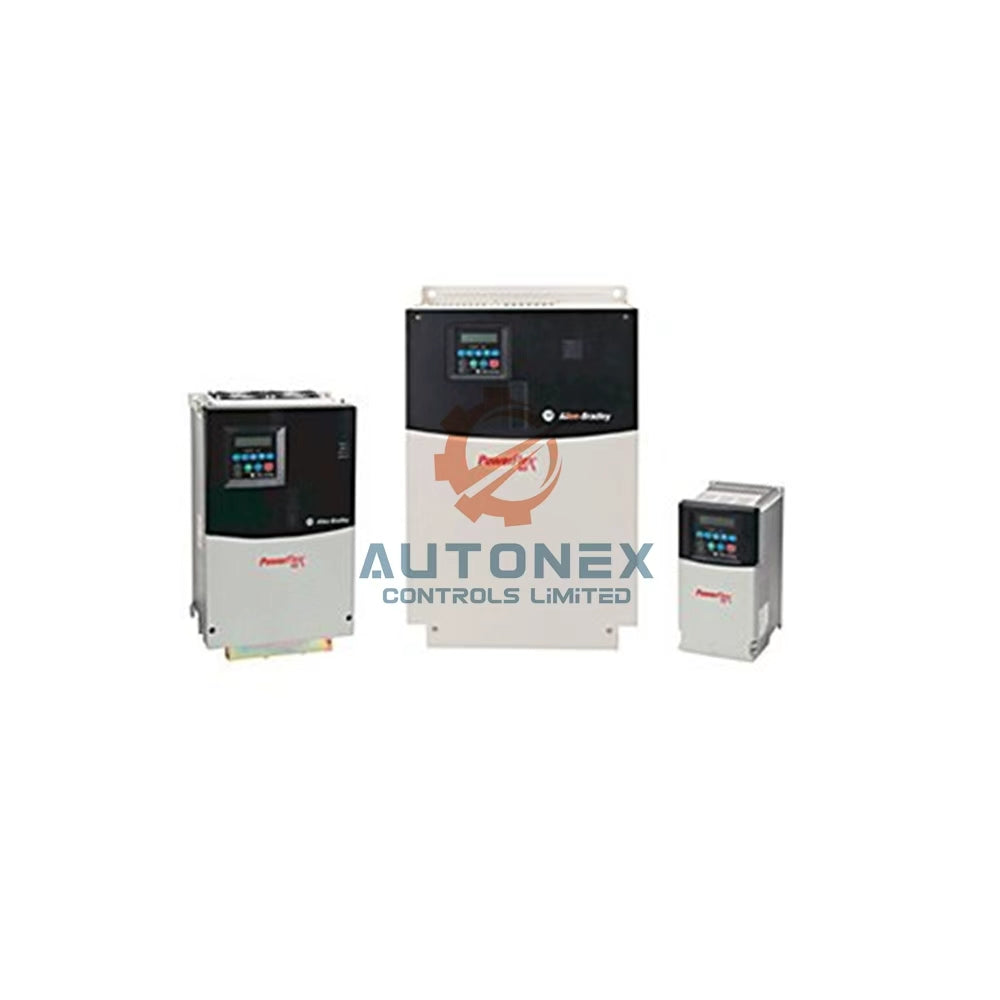

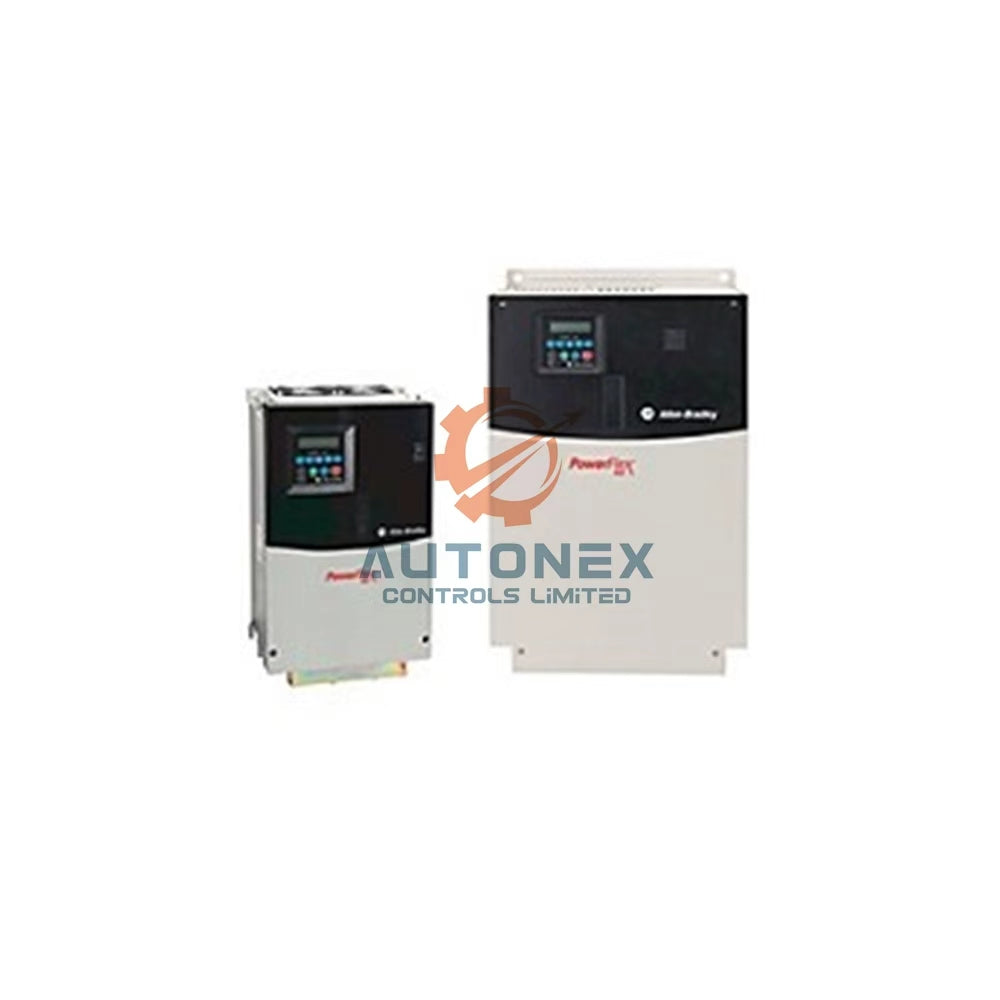

22C-B090A103 Allen-Bradley Powerflex 400 Drive

Allen-Bradley PowerFlex 400 AC Drive: High-Capacity Motor Control

Essential Technical Specifications

• Brand: Allen-Bradley
• Model: 22C-B090A103
• Input Voltage: 200-240 V AC Three-Phase
• Voltage Range: 180-265 V AC
• Input Current: 92 A
• Output Voltage: 0-230 V AC
• Output Current: 90 A @ 45°C / 81 A @ 50°C
• Motor Power: 30 HP (~22 kW)
• Apparent Power: 38.3 kVA
• Efficiency: 97.5%
• Power Factor: 0.98
• Carrier Frequency: 2-10 kHz
• Output Frequency: 0-320 Hz

Control and Communication Features

• Multiple control modes: V/Hz, slip compensation, PID
• Digital inputs: 7 channels with 24V DC operation
• Analog inputs: 2 channels for voltage or current signals
• Relay outputs: 2 Form C contacts
• Analog outputs: 2 configurable channels
• Integrated keypad with 2×16 character LCD display
• Built-in RS-485 communication with daisy-chain capability
• Easy parameter programming and monitoring

Thermal Performance and Derating

• Maximum output current: 90 A at 45°C ambient
• Derated output current: 81 A at 50°C ambient
• Efficient cooling design for continuous operation
• Thermal protection for motor and drive safety
• Automatic derating based on temperature conditions

Packaging and Shipping Details

• Factory new in original Allen-Bradley packaging
• Complete with all necessary mounting hardware
• Includes comprehensive user manual and documentation
• Professional packaging ensuring transit protection
• Shipped via FedEx, UPS, or DHL express services
• Quick order processing and tracking information

Frequently Asked Questions

What is the condition of this drive unit?

We supply only brand new, factory sealed Allen-Bradley products.

Is the 22C-B090A103 model available now?

Yes, we maintain regular stock of this VFD for immediate ordering.

How quickly can you ship my order?

We process and ship all orders within 5 business days after confirmation.

Which shipping services do you offer?

We use DHL, FedEx, and UPS for reliable global delivery.

What is your return policy for this drive?

We provide 30-day returns for unused products in original condition.

What is the maximum motor size this drive can handle?

The 22C-B090A103 controls motors up to 30 HP (22 kW).

How does temperature affect the drive's performance?

Output current reduces from 90A to 81A when ambient temperature rises from 45°C to 50°C.

What communication capabilities does it have?

It features built-in RS-485 with daisy-chain functionality for networks.

Access complete technical information: For detailed specifications and installation guides, download the full PowerFlex 400 manual here.
