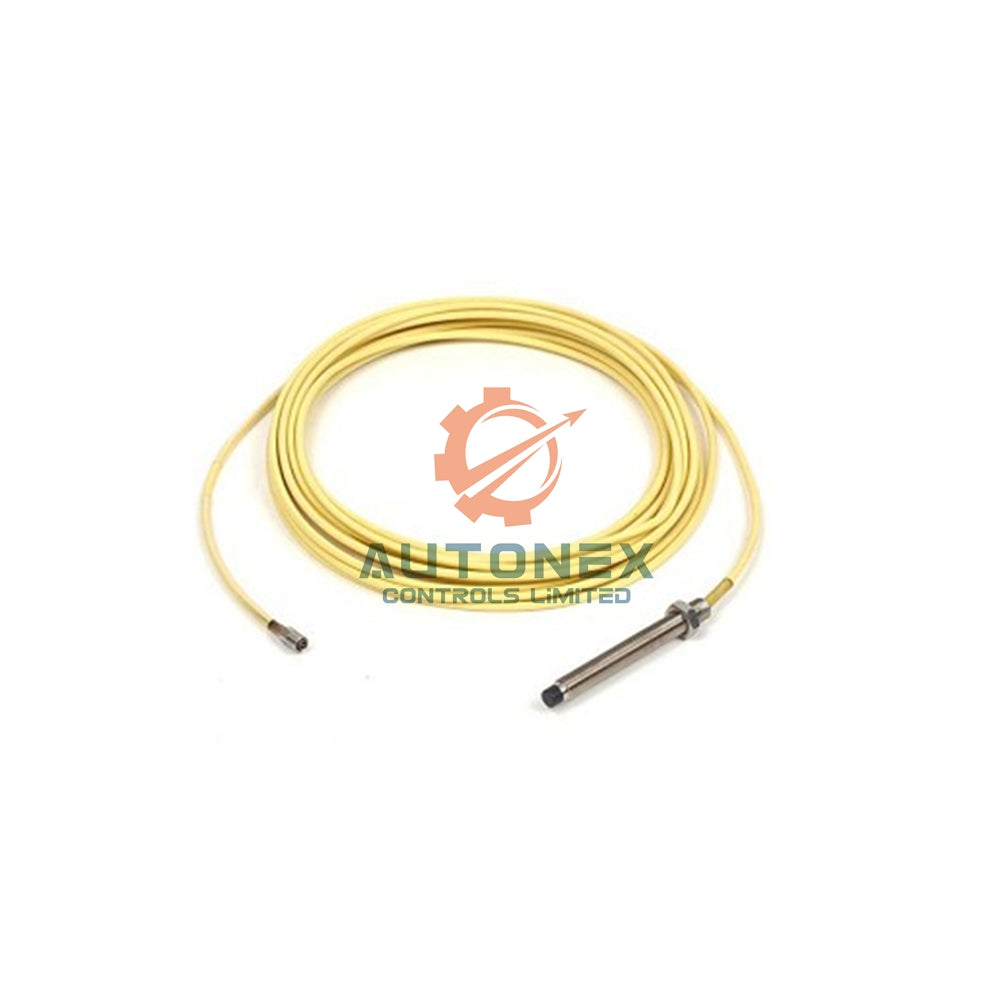

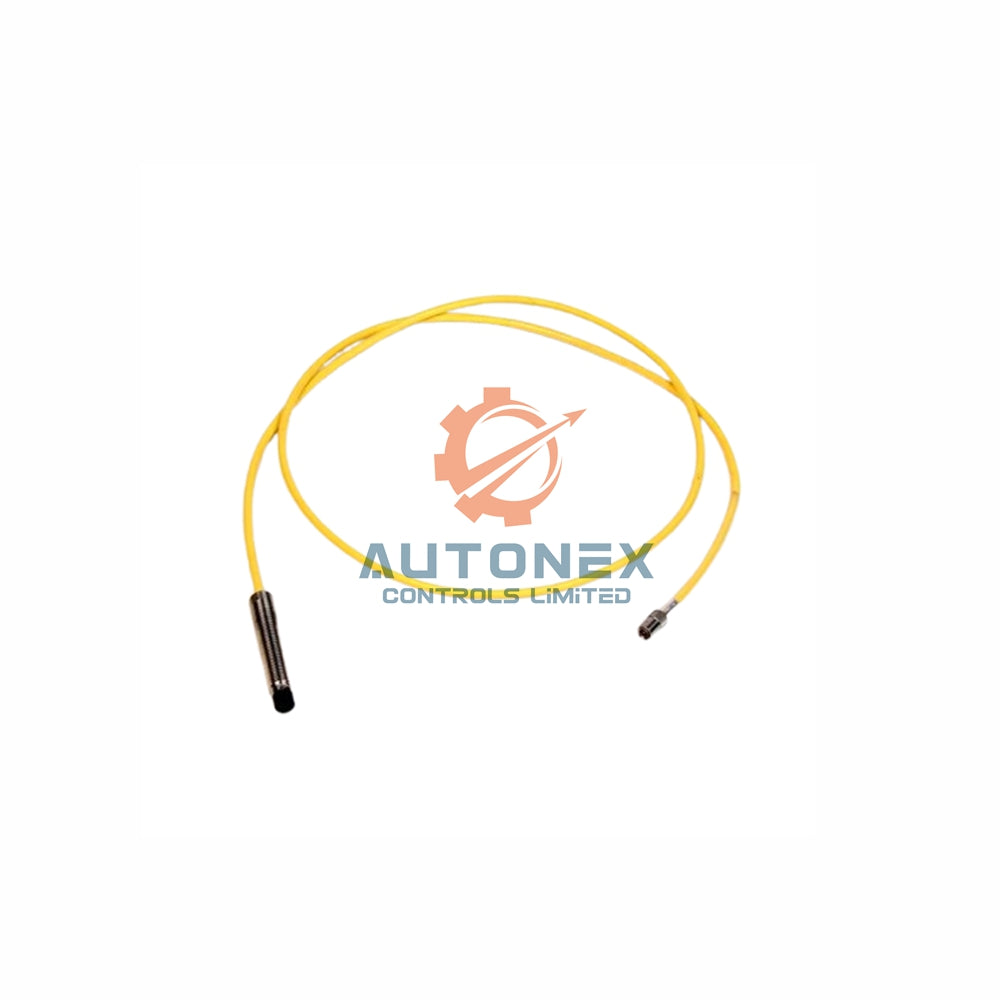

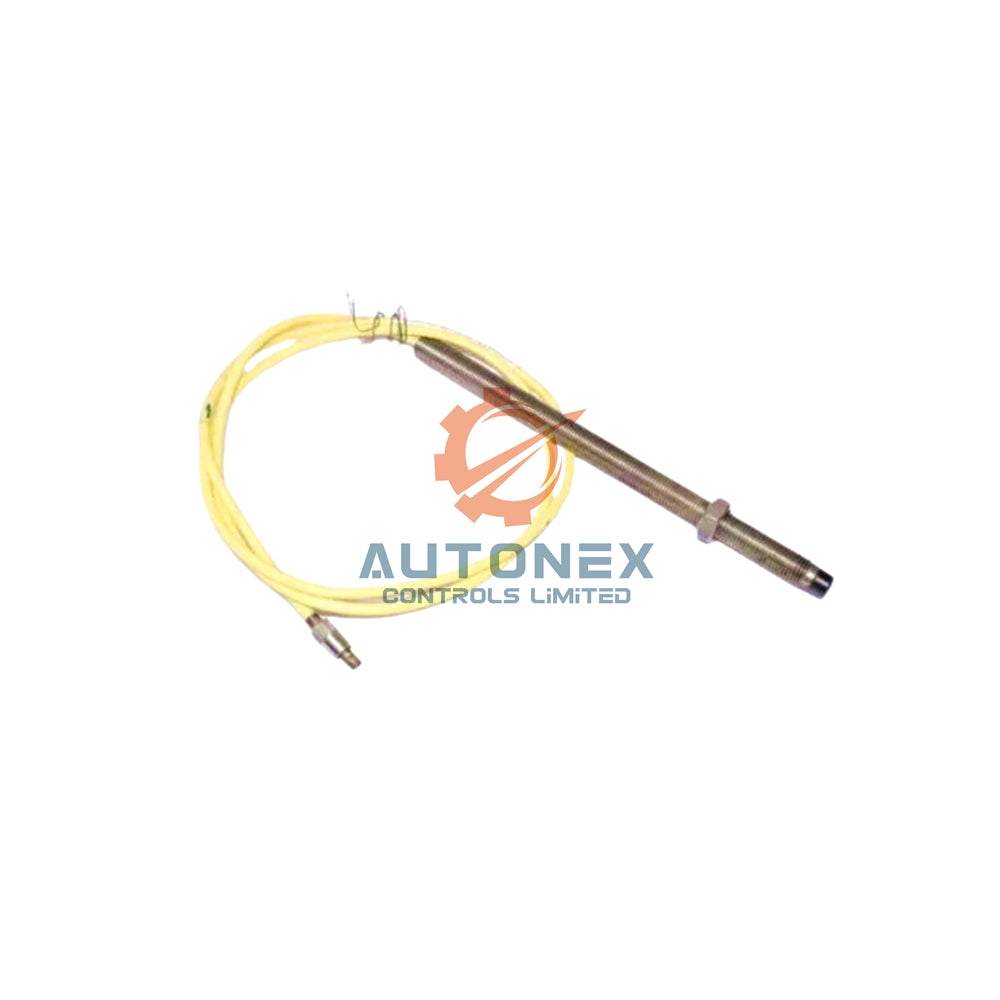

21504-00-56-05-02 Bently Nevada Proximity Transducer 8mm Probe

Bently Nevada 21504-00-56-05-02 8mm Proximity Transducer System

Complete Model Structure for 21504-00-56-05-02

• The base model 21504 represents the 7200 Series Proximity Transducer platform from Bently Nevada.
• Suffix "00" indicates an unthreaded length of 0 mm, meaning threads run completely to the probe tip for specific mounting applications.
• Suffix "56" specifies an overall case length of 5.6 inches, ensuring proper fit within your machinery's mounting requirements.
• Suffix "05" designates a cable length of 0.5 meters (20 inches) for flexible routing to the proximitor module.
• Suffix "02" confirms the inclusion of a miniature male coaxial connector for secure and reliable signal transmission.

Key Technical Specifications and Performance Data

• Measurement Range: This 21504-00-56-05-02 system provides a full linear output range of 80 mils (2.0 mm) for comprehensive vibration analysis.
• Initial Gap Setting: The linear measurement starts precisely at 10 mils (0.25 mm) from the probe tip to the target surface.
• Output Sensitivity: It delivers a precise signal output of 200 mV/mil (7.87 V/mm) with system calibration accuracy of ±4%.
• System Linearity: The 21504-00-56-05-02 maintains linearity within 0.8 mils, with a maximum interchange error of ±2.3 mils when swapping probes.
• Frequency Response: This transducer monitors dynamic motion from 0 to 10 kHz, with signal attenuation limited to -5% at maximum frequency.
• Power Requirements: The system operates on DC power from -17.5 to -26 Vdc while drawing a maximum current of 12 mA.

Design and Physical Construction Details

• Tip Diameter: The sensing tip measures 8 mm in diameter, the standard size for 7200 Series proximity probes.
• Thread Specification: It features 3/8-24 UNF threads for secure mounting in standard probe holders and standoff blocks.
• Body Style: This 21504-00-56-05-02 utilizes a standard body construction without lead armor for general purpose industrial applications.
• Mechanical Design: The 0 mm unthreaded length ensures the threads extend completely to the tip, ideal for flush mounting configurations.

Environmental Limits and Chemical Resistance

• Probe Temperature Range: The probe and cable withstand extreme temperatures from -34°C to +177°C for harsh operating environments.
• Proximitor Module Range: The proximitor electronics operate reliably in temperatures from -51°C to +100°C.
• Humidity Tolerance: The system functions in 0 to 95% relative humidity, non-condensing conditions without performance degradation.
• Corrosion Resistance: This 21504-00-56-05-02 resists exposure to air, water, oil, MEK, DMF, and 10% acid solutions.

Download the complete product manual here: 7200 Proximity Transducer Systems

Frequently Asked Questions (FAQ)

• What does the suffix "00" mean on this 21504-00-56-05-02 probe? The "00" suffix indicates zero unthreaded length, meaning the threads run completely to the tip for flush mounting applications.
• How does probe interchange affect accuracy with this model? When interchanging probes, the system accuracy becomes ±9.5% with linearity of ±2.3 mils due to minor variations between individual sensors.
• What is the difference between system accuracy and probe interchange accuracy? System accuracy (±4%) applies when using the original matched probe, while interchange accuracy allows for probe replacement without full system recalibration.
• Can this 8 mm probe withstand exposure to industrial chemicals? Yes, this 21504-00-56-05-02 resists air, water, oil, MEK, DMF, and 10% acid solutions commonly found in industrial environments.
• Do you have the 21504-00-56-05-02 in stock for immediate shipment? Yes, we maintain this configuration as a new and original unit, available for delivery within 5 days.
• What shipping methods do you use for this proximity probe? We ship all orders via FedEx, UPS, or DHL to ensure fast and reliable worldwide delivery to your facility.
• What is the return policy for this Bently Nevada transducer? We offer a 30-day return window on this item for your complete satisfaction and peace of mind.
