177230-01-01-CN Bently Nevada Seismic Transmitter 4-20mA

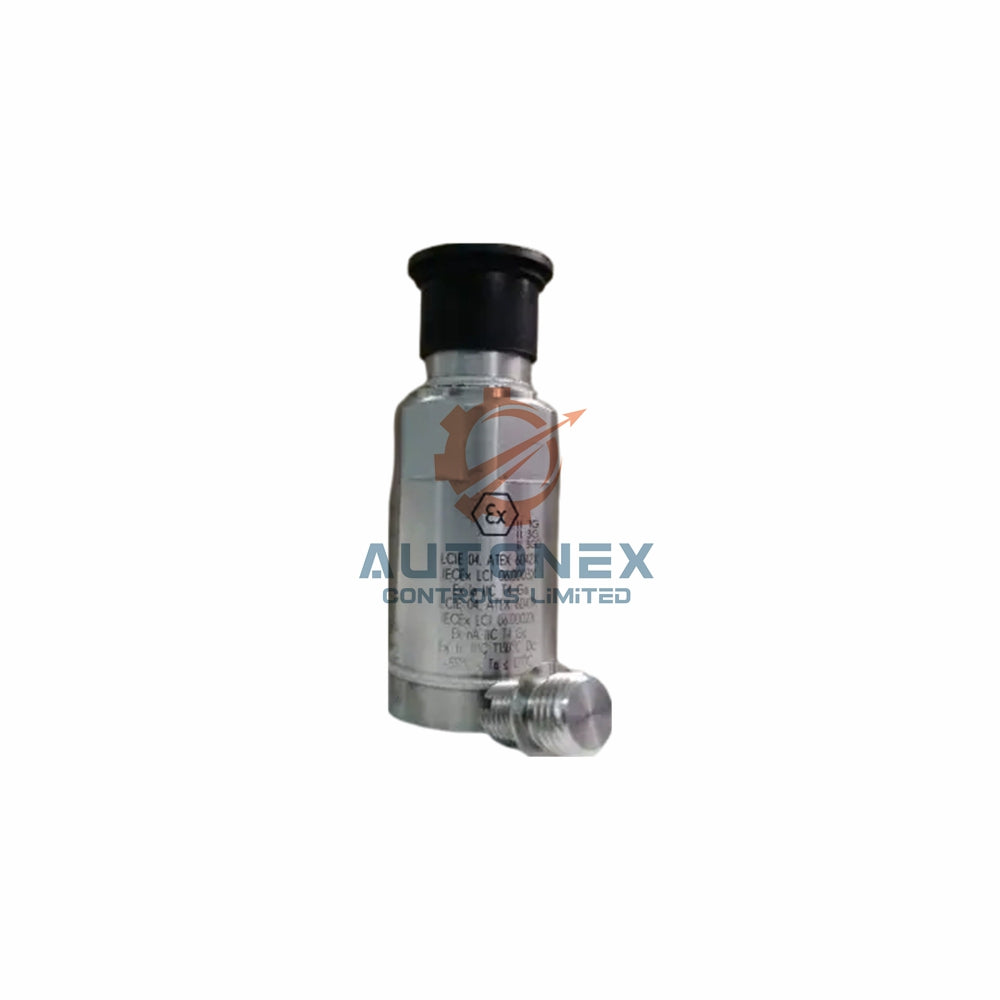

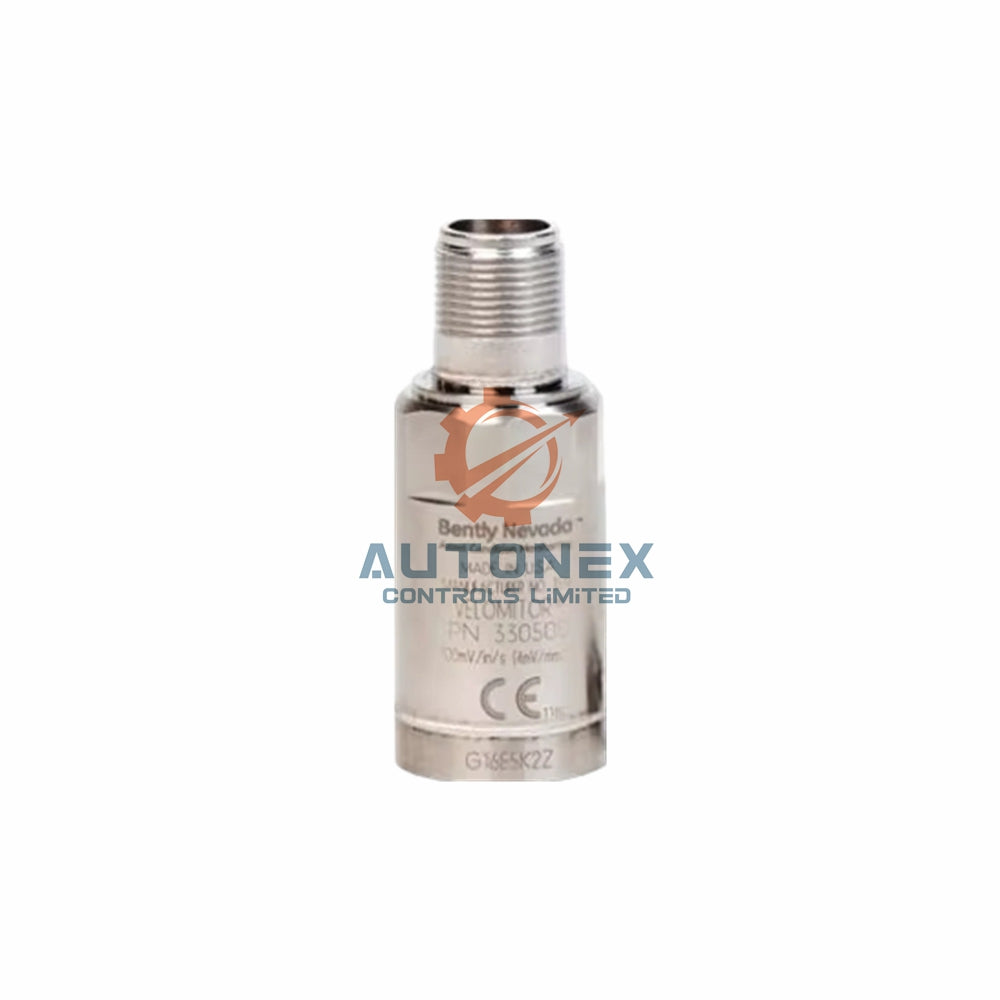

Bently Nevada 177230-01-01-CN Seismic Transmitter Overview

Key Technical Specifications

• Brand: Bently Nevada – Product No.: 177230-01-01-CN – seismic transmitter type.
• Sensitivity (main loop): 4 ±0.3 mA = 0.0 mm/s; 20 ±2 mA = full scale (25.4 mm/s).
• Frequency response code -BB 01: 10 Hz to 1 kHz ±10% (600 cpm to 60 kcpm).
• Sensing element: Ceramic / shear type. Mounted resonant frequency >12 kHz.
• Transverse sensitivity: Less than 5% of sensitivity – excellent directional accuracy.
• Magnetic field sensitivity: <20 μm/s/gauss (peak) and <14.7 mm/s²/gauss.
• Electrical isolation: >108 ohms; breakdown voltage 600 Vrms with <1 mA leakage.
• Operating temperature: -40°C to +85°C (-40°F to +185°F).
• Shock survivability: 9.810 m/s² (1.000 g peak) per maximum drop test.
• Settling time: Less than 15 seconds within 2% of final value.

Physical Dimensions and Materials

• Diameter: 25.4 mm (1.00 in). Height: 66.0 mm (2.60 in).
• Weight: 131 g (4.62 oz) typical. Case material: 316L stainless steel.

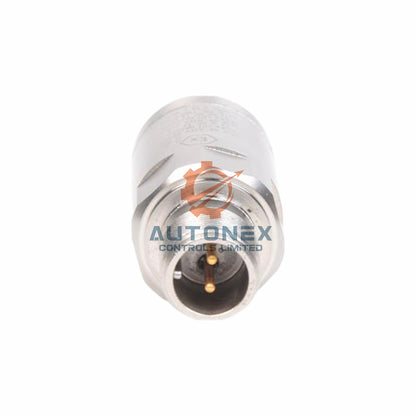

• Connector: 3-pin MIL-C-5015, also 316L stainless steel.
• Mounting hole in body: 1/4-28 UNF. Alternate mounting threads: M6 X 1 SI, M8 x 1.25 SI.
• Mounting torque: 4 to 7 N-m (35.4 to 62.0 in-lbf).
• Sensor seal: Hermetically sealed – ideal for harsh conditions.

Connector Wiring Convention (3-pin MIL-C-5015)

• Pin A: 4-20 mA Positive Loop (positive with reference to Pin B).
• Pin B: 4-20 mA Loop Return (negative loop return for Pin A and common for dynamic signal).
• Pin C: Dynamic Acceleration Signal (unbuffered, referenced to Pin B).
• Output signal: 4 to 20 mA current loop from Pin A to Pin B.
• Full scale range (-AA 01): 25.4 mm/s (1.0 in/s) ±10%.
• The transmitter output is proportional to RMS vibration levels.

Environmental and Electrical Endurance

• Relative humidity: To 100% non-submerged (no condensation issues).
• Magnetic field immunity: Less than 20 μm/s per gauss peak (50-60 Hz based).
• Isolation breakdown voltage: 600 Vrms ensures safe system integration.
• Excitation voltage range: 12 to 30 Vdc (current limited to 40 mA).
• Compatible with PLC, DCS, and SCADA internal supplies (typically 30-35 mA limited).
• The 177230-01-01-CN requires no external signal conditioning for 4-20 mA loops.

Frequently Asked Questions (FAQ)

• Q: Do you have this seismic transmitter in stock?
  A: Yes, we keep 177230-01-01-CN in stock. Ready for immediate order.
• Q: What is the typical delivery time?
  A: We dispatch within 5 business days after order confirmation. Shipping via DHL, FedEx, or UPS takes 3-7 days.
• Q: Can I return this product if it does not meet my needs?
  A: Yes, we support 30 days for returns. Items must be unused and in original packaging.
• Q: What is the frequency response for code 01?
  A: The -BB 01 option gives 10 Hz to 1 kHz ±10% (600 to 60 kcpm) for RMS vibration.
• Q: Does the transmitter output dynamic vibration signal?
  A: Yes, Pin C provides an unbuffered dynamic acceleration signal referenced to Pin B.
• Q: What power supply should I use for the 4-20 mA loop?
  A: Use 12 to 30 Vdc current-limited supply (40 mA max). Most PLC/DCS modules work fine.
• Q: Is the 177230-01-01-CN suitable for high humidity areas?
  A: Absolutely. It tolerates 100% relative humidity as long as you do not submerge it.
