1734-IK 24V DC Counter Module | 1MHz Encoder Input Allen-Bradley

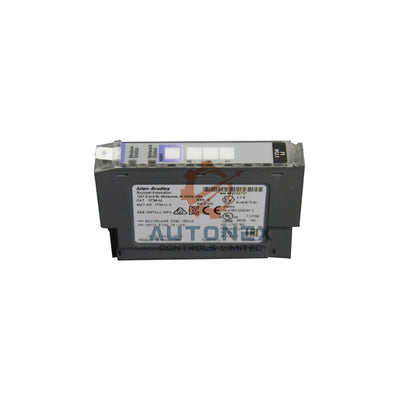

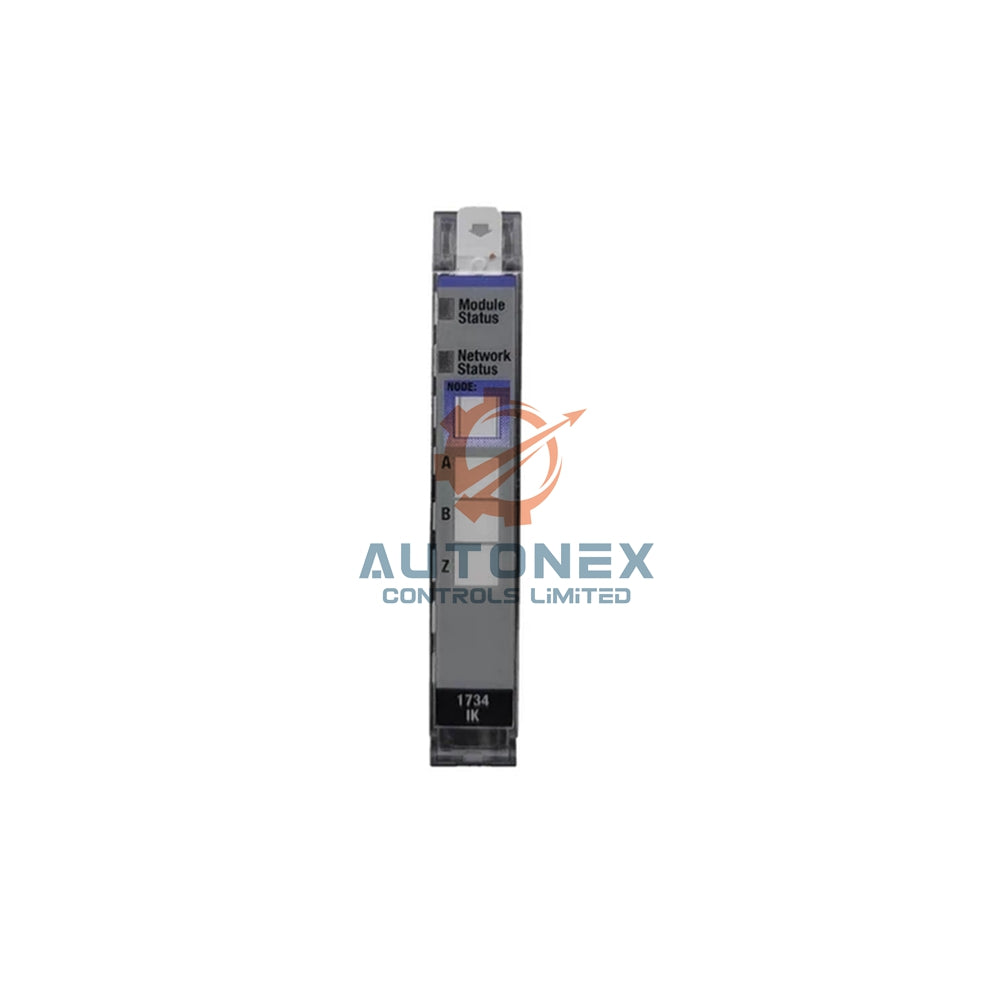

1734-IK Allen-Bradley POINT I/O Incremental Encoder Module

Core Technical Specifications

• Brand: Allen‑Bradley | Model: 1734-IK
• Series: POINT I/O | Module Type: Incremental Encoder Module
• Number of Counters: 1
• Input Voltage Range: 15-24 Volts DC (nominal 24V DC)
• Input Current: 6.1 mA @ 15V DC | 10.2 mA @ 24V DC
• Key Switch Position: 2
• Enclosure Type: Open‑Style (requires cabinet installation)
• Wiring Category: 1 (all signal ports)
• Dimensions: 2.21 x 0.47 x 2.97 inches

Frequently Asked Questions (FAQ)

• Q: What voltage does the 1734-IK require?
  A: It accepts 15-24 Volts DC input. Nominal voltage is 24 Volts DC.
• Q: What type of encoders work with this module?
  A: The 1734-IK works with differential (RS‑422) encoders, single‑ended encoders, and pulse generators. It also supports mechanical limit switches.
• Q: What is the maximum input frequency?
  A: The module can process frequencies up to 1 MHz.
• Q: Does the module need external power?
  A: No, the 1734-IK draws power from the POINTbus. No external DC power supply is required.
• Q: What wiring base is compatible?
  A: Use 1734‑TB, 1734‑TBS, 1734‑TB3, or 1734‑TB3S wiring base assemblies.
• Q: How does the module return counter data?
  A: It returns a 24‑bit binary number (0 to 16,777,215) inside a 32‑bit long word.
• Q: What do the yellow status indicators show?
  A: Three yellow LEDs show the real‑time status of A, B, and Z encoder inputs.
• Q: Do you have stock of the 1734-IK?
  A: Yes, we have new original units in stock ready to ship.
• Q: What is your return policy?
  A: We support 30‑day returns for unused items in original packaging.
• Q: How long does shipping take?
  A: We dispatch within 5 days, then FedEx/UPS/DHL delivers based on your location.
