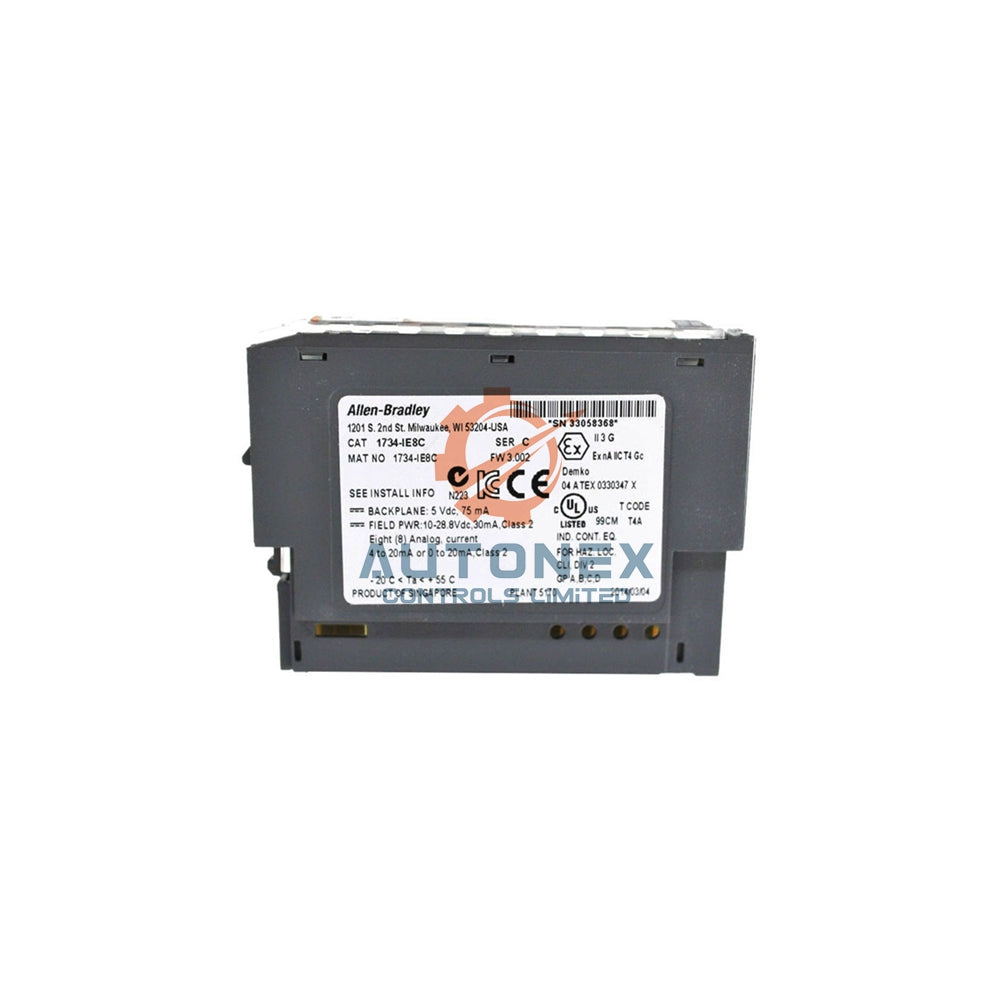

1734-IE8CK Allen-Bradley High-Density Input Module

1734-IE8CK Allen-Bradley High-Density Input Module

Core Technical Specifications

• Manufacturer: Allen‑Bradley | Series: POINT I/O 1734 | Model: 1734-IE8CK
• Product Type: High‑Density Input Module with conformal coating
• Number of Inputs: Eight (8) current inputs – single‑ended and non‑isolated
• Input Current Ranges: 0…20 mA or 4…20 mA (user‑selectable per channel)
• Absolute Accuracy: 0.1% Full Scale @ 77°F (25°C)
• Resolution: 16 bits across 0…21 mA → 0.32 µA per count
• Input Impedance (Resistance): 60 Ohms
• Conversion Type: Delta‑Sigma (Σ-Δ) for high precision
• Data Format: Signed Integer – easy PLC integration

Frequently Asked Questions (FAQ)

• Q: What makes the 1734-IE8CK different from the standard 1734-IE8C?
  A: The 1734-IE8CK includes a factory conformal coating for extra environmental protection.
• Q: Are the inputs isolated?
  A: No, this module has eight single‑ended non‑isolated current inputs.
• Q: Can I mix 0-20mA and 4-20mA signals on different channels?
  A: Yes, each channel is individually configurable for either range.
• Q: Does the module need periodic calibration?
  A: No, the 1734-IE8CK comes factory calibrated and requires no field calibration.
• Q: Which terminal base should I use?
  A: Use the 1734-TB3 or 1734-TB3S wiring base assembly.
• Q: Is the conformal coating removable?
  A: No, the coating is permanent and applied during manufacturing.
• Q: Do you have this module in stock?
  A: Yes, we have new original 1734-IE8CK units ready to ship.
• Q: What is your return policy?
  A: We support 30‑day returns for unused items in original packaging.
• Q: How long does shipping take?
  A: We dispatch within 5 days, then FedEx/UPS/DHL delivers based on your location.
