150-F1250NBA 1000HP 460V AC Open Enclosure | Allen-Bradley

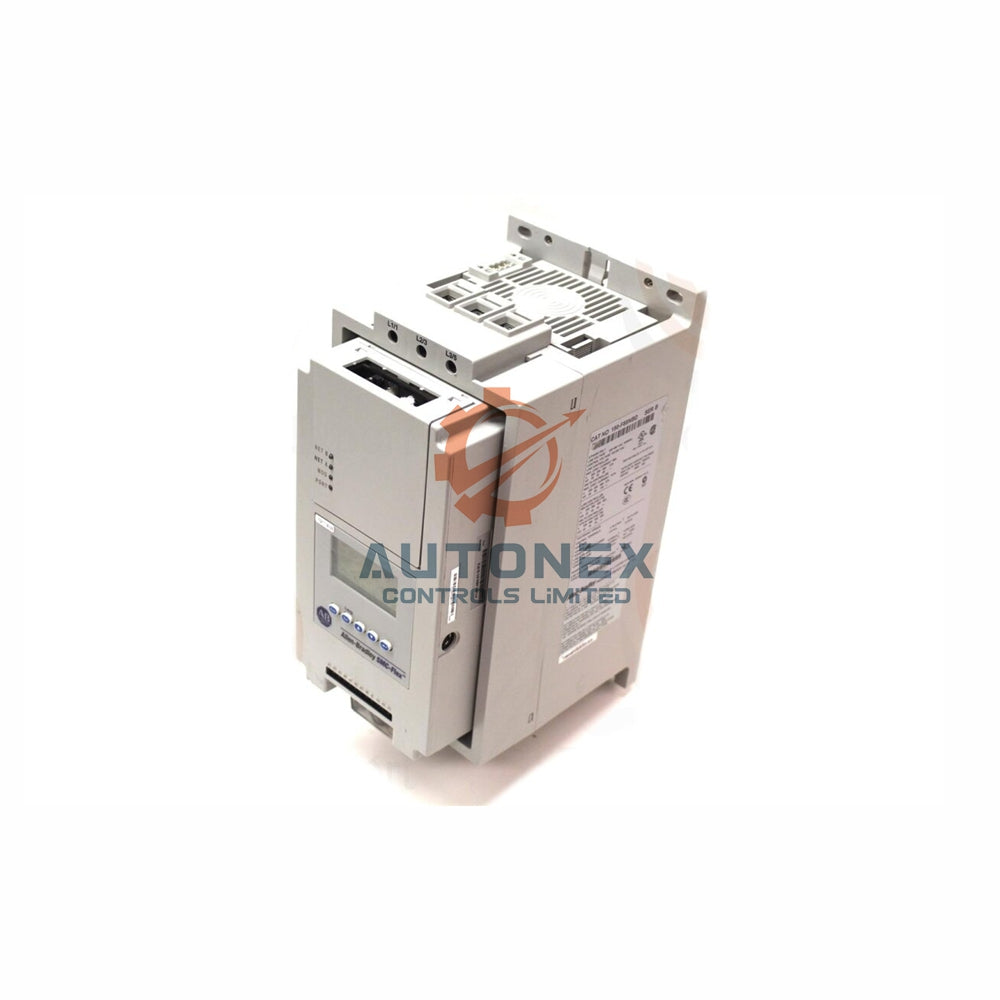

150-F1250NBA Allen-Bradley SMC-Flex Smart Motor Controller

Technical Specifications (Allen-Bradley 150-F1250NBA)

• Manufacturer: Allen-Bradley
• Model / Part Number: 150-F1250NBA
• Product Line: SMC-Flex smart motor controller
• Category: Drives
• Bulletin Number: Solid State Controller
• Enclosure Type: Open (requires user-provided cabinet)
• Controller Rating: 1250 A, 1000 HP at 460V AC
• Input Line Voltage: 200-460V AC, 3-phase, 50 and 60 Hz (-15%, +10%)
• Control Voltage: 230/240V AC (for 625-1250 A units)
• Rated Voltage: 200-460V AC
• Power Dissipation: 1222 W
• Control Module Power: 751 VA (800 VA maximum)
• Heatsink Fan Power: 150 VA
• Operating Temperature: 23 to 122°F (-5 to 50°C)
• Relative Humidity: 5 to 95% (non-condensing)

Performance Specifications by Input Voltage

• At 200/208V input: supports 416-1250 A motor current with maximum 400 HP at 60 Hz operation
• At 230V input: supports 416-1250 A motor current with 400 kW maximum at 50 Hz or 500 HP at 60 Hz
• At 460V input: supports 416-1250 A motor current with 710 kW maximum at 50 Hz or 1000 HP at 60 Hz

Frequently Asked Questions (FAQ)

• Is this 150-F1250NBA brand new and original?
  Yes, we supply 100% new original Allen-Bradley products. Every 150-F1250NBA ships in factory-sealed packaging with full manufacturer specifications.
• Do you have the 150-F1250NBA in stock?
  Yes, we maintain stock of this high-current model. Orders typically ship within five business days after payment confirmation.
• Which shipping carriers do you use?
  We ship via FedEx, UPS, or DHL depending on your location and preference. All shipments include tracking information.
• Can I return this controller if it doesn't suit my application?
  We accept returns within 30 days for unused products in original packaging. Contact our sales team to arrange return authorization.
• What control voltage does the 150-F1250NBA require?
  This unit requires 230/240V AC control voltage, which applies to all 625-1250 A SMC-Flex controllers. Do not apply line voltage directly to logic circuits.
• Does the 150-F1250NBA include pump control features?
  Pump control is available as an optional feature. Standard operating modes include current limit, soft start, dual ramp, full voltage, linear speed acceleration, and preset slow speed.
• What braking options work with this controller?
  Optional braking features include accu-stop, slow speed control, and smart motor braking for applications requiring enhanced stopping performance.
• How much heat does the 150-F1250NBA generate?
  The controller dissipates 1222 W during normal operation. Ensure your enclosure provides adequate ventilation or cooling to maintain proper operating temperature.
• What protection features are included?
  Metal oxide varistors provide transient protection. The controller also monitors undervoltage, overvoltage, motor stall, jam, overload, underload, and controller overtemperature conditions.
