XNXXSG1SS Honeywell - Electrochemical Sensor

Honeywell XNXXSG1SS Electrochemical Sensor Assembly

• Gas Detected: Hydrogen (H₂) – low range.
• Sensor Type: Electrochemical (EC) Smart Sensor.
• Default Range: 0 to 1,000 ppm.
• Lower Detectable Limit: 30 ppm.
• Default Calibration Point: 500 ppm.
• Response Time (T50): Under 60 seconds.
• Response Time (T90): Under 90 seconds.
• Accuracy: ±8 ppm.
• Operating Temperature: -20°C to +55°C (-4°F to 131°F).
• Housing Material: Stainless Steel (indicated by 'SS' suffix).

Technical Specifications & Performance

• Brand & Model: Honeywell XNXXSG1SS – electrochemical assembly.
• Detection Range: Fixed at 0 – 1,000 ppm (no selectable full scale).
• Calibration Gas Range: 30 to 70% of selected full scale.
• Response Characteristics: T50 <60 sec, T90 <90 sec.
• Accuracy & Linearity: ±8 ppm across the operating range.
• Environmental Tolerance: Operates from -20°C to 55°C.
• Interference Protection: Smart electronics reduce cross-gas effects.

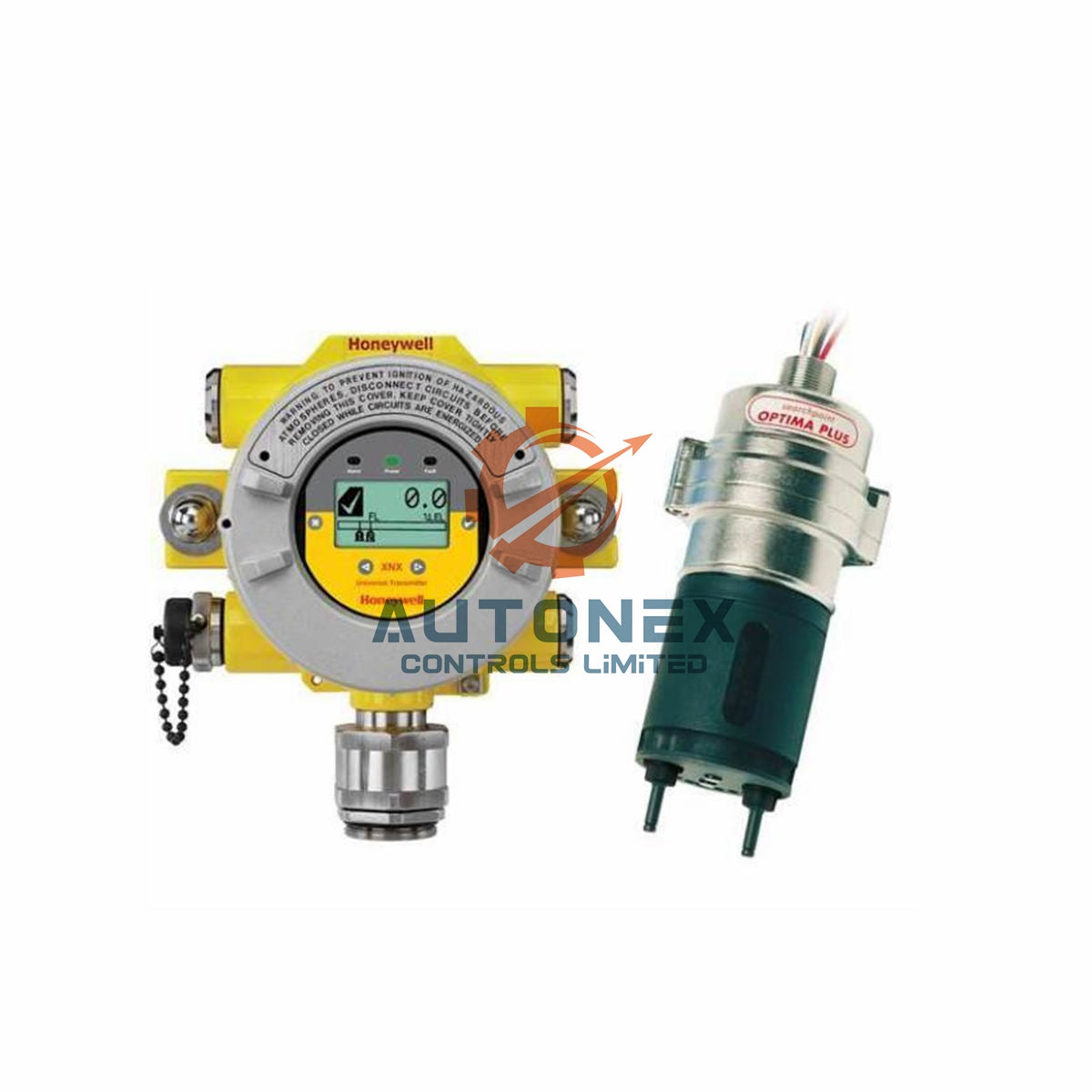

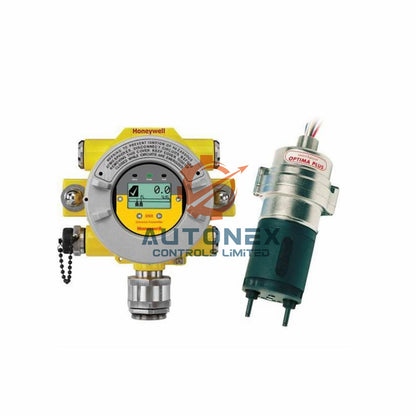

• Compatibility: Works with XNX Universal Transmitter and Series 3000 MkII/MkIII.

Frequently Asked Questions (FAQ)

• Q: Is this sensor compatible with the XNX transmitter?
  Yes, the XNXXSG1SS directly replaces the hydrogen sensor in XNX and Series 3000 MkII/MkIII.
• Q: What is the detection range for hydrogen?
  It detects H₂ from 0 to 1,000 ppm with a 30 ppm lower limit.
• Q: Can I calibrate this sensor in the field?
  Yes, you can use 30-70% of full scale (default 500 ppm) for calibration.
• Q: What is the typical response time?
  T50 is under 60 seconds, and T90 under 90 seconds.
• Q: Does this sensor require powering down the transmitter?
  No, the smart design supports hot-swapping without disconnecting power.
• Q: What is the operating temperature range?
  It works from -20°C to +55°C (-4°F to 131°F).
• Q: Do you have stock available?
  Yes, we maintain ample stock for immediate shipment.
• Q: What is your return policy?
  We support 30-day returns on unused, original-condition units.
