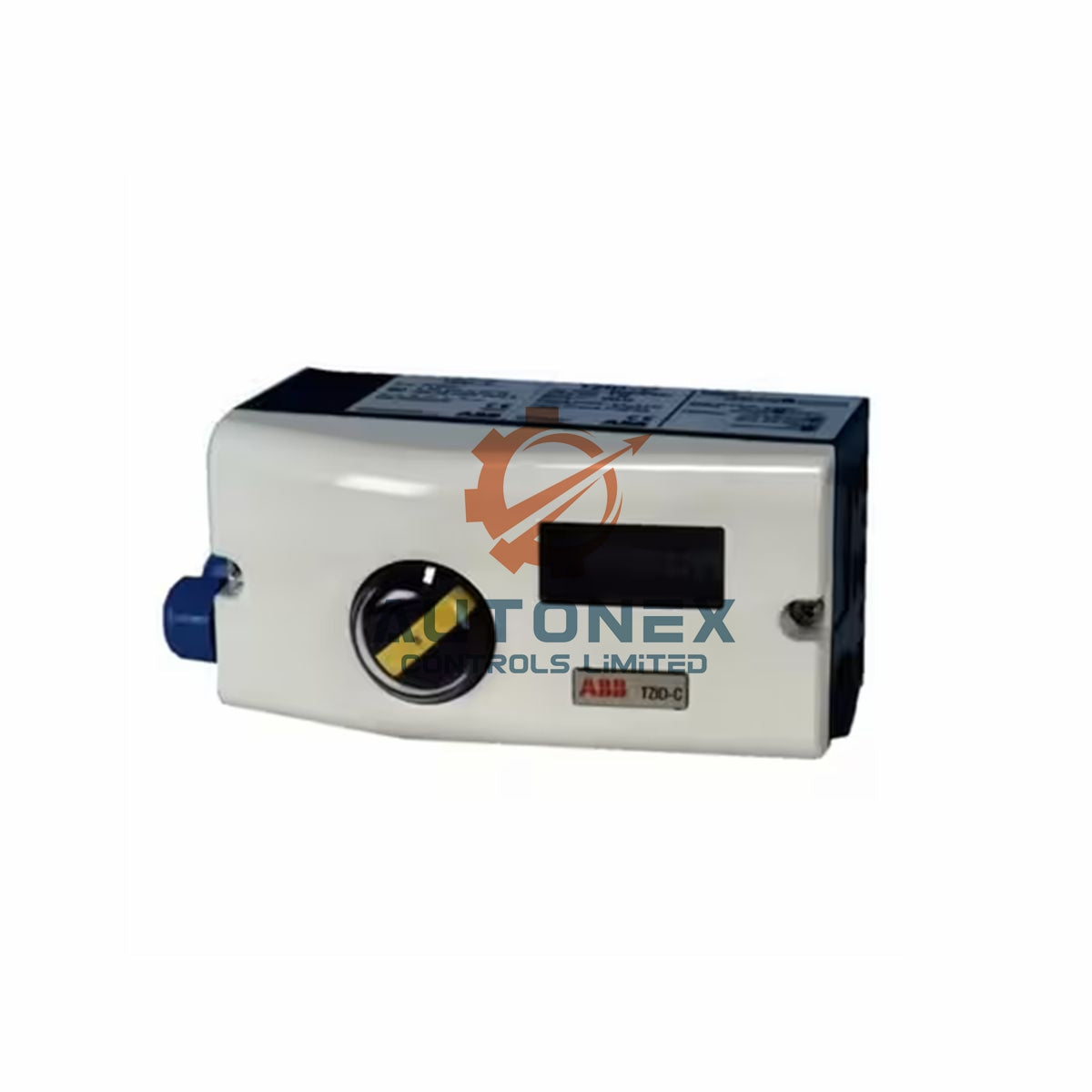

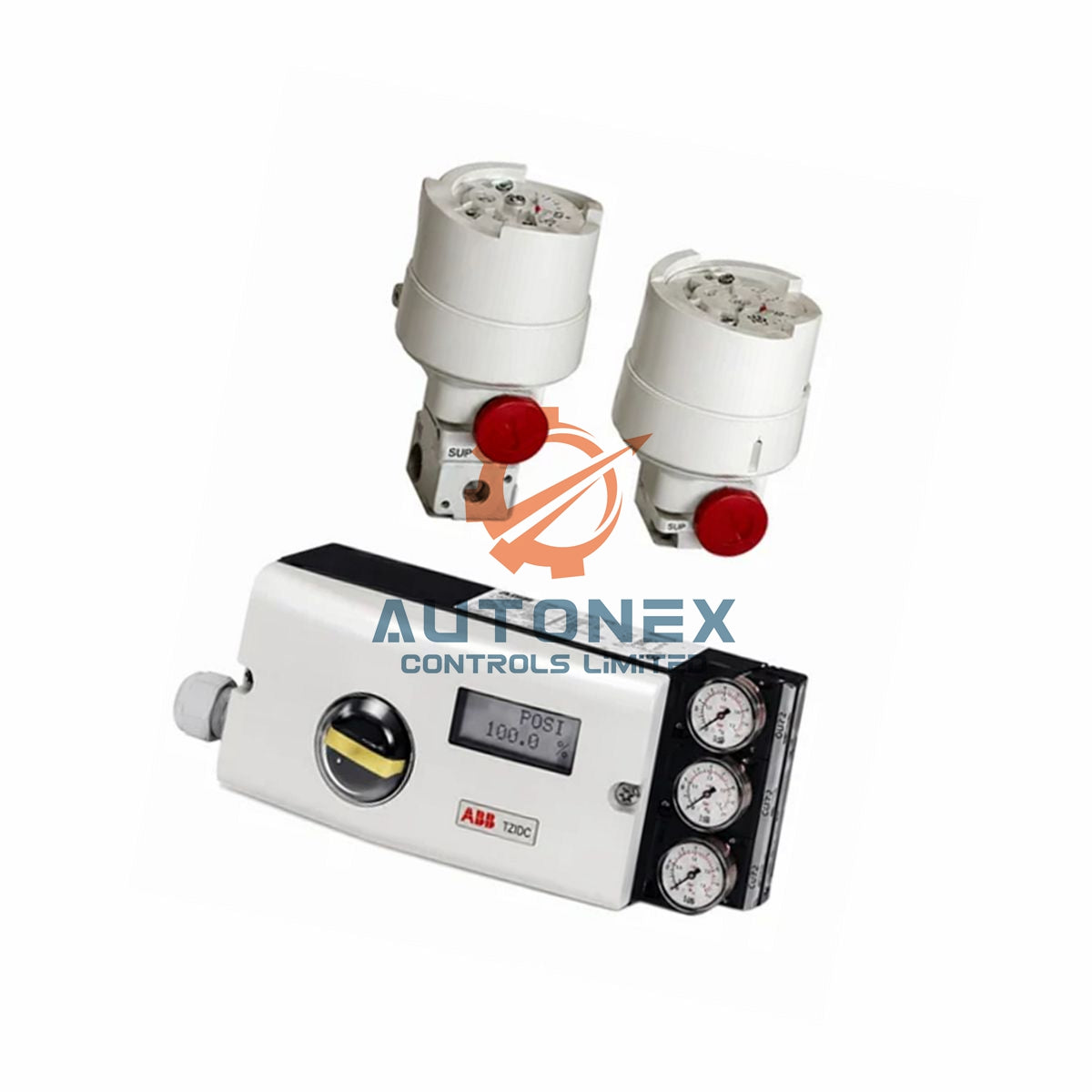

V18345-1010521001 ABB Electro-Pneumatic Positioner TZIDC

V18345-1010521001 ABB Electro-Pneumatic Positioner – TZIDC Series

Key Technical Specifications

• Brand: ABB
• Model: V18345-1010521001
• Category: Electro-Pneumatic Positioner / TZIDC Series
• Housing: Aluminium case, IP 65 (NEMA 4X), no mechanical indicator
• Input signal: 4…20 mA with LKS adapter
• Action: Double acting, fail freeze
• Connections: Electrical 1/2-14 NPT; air 1/4-18 NPT
• Analog feedback: Plug-in module, 4…20 mA, two-wire
• Mechanical feedback: None
• Design: Standard
• Weight: 1.7 kg
• Explosion protection: None

Transmission Data and Performance Influences

• Output action: Increasing signal 0…100% raises output pressure OUT 1; decreasing signal 0…100% lowers output pressure OUT 1
• Signal direction: Direct mode maps 4…20 mA to position 0…100%; reverse mode maps 20…4 mA to position 0…100%
• Characteristic curve: Linear, equal percentage 1:25 or 1:50, inverse 25:1 or 50:1, and freely configurable with 20 reference points
• Characteristic deviation: ≤ 0.5%
• Tolerance band: Adjustable from 0.3% to 10%
• Dead band: Adjustable from 0.1% to 10%
• Resolution (A/D conversion): > 4000 steps
• Sample rate: 20 msec
• Ambient temperature influence: ≤ 0.5% for every 10 °C change
• Vibration influence: ≤ ± 1% up to 10 g and 80 Hz
• Seismic requirements: Meets DIN/IEC 68-3-3 Class III for strong and strongest earthquakes
• Mounting orientation: No effect on performance

Installation Guide

• Verify the actuator type and confirm compatibility with double acting, fail freeze operation.
• Mount the V18345-1010521001 securely to the actuator using the standard mounting kit.
• Connect electrical wiring to the 1/2-14 NPT thread and air piping to the 1/4-18 NPT thread.
• Wire the 4…20 mA input signal and the analog feedback module as required.
• Configure signal direction, characteristic curve, tolerance band, and dead band through the operator panel.
• Check supply air pressure and confirm stable output pressure at OUT 1 before commissioning.

Package List

• 1 × ABB V18345-1010521001 Electro-Pneumatic Positioner
• 1 × Mounting kit for actuator installation
• 1 × Analog position feedback plug-in module
• 1 × LKS adapter connection accessory
• 1 × Electrical and air connection fittings

Shipping and Support

• Stock: We have this item in stock for immediate order processing.
• Dispatch: We ship within 5 days after order confirmation.
• Couriers: FedEx, UPS, and DHL are available for global delivery.
• Returns: We support 30-day returns under our standard policy.
• Condition: Brand new original.

FAQ

• Q: What input signal does the V18345-1010521001 accept?
  A: It accepts a 4…20 mA input signal with an LKS adapter connection.
• Q: Is this positioner single or double acting?
  A: This model is double acting with a fail freeze output function.
• Q: What is the resolution of the A/D conversion?
  A: The resolution exceeds 4000 steps for precise position control.
• Q: What is the sample rate?
  A: The sample rate is 20 msec.
• Q: How does ambient temperature affect performance?
  A: The influence is ≤ 0.5% for every 10 °C change in temperature.
• Q: Does mounting orientation affect operation?
  A: No, mounting orientation has no effect on performance.
• Q: What characteristic curves are available?
  A: Linear, equal percentage 1:25 or 1:50, inverse 25:1 or 50:1, and freely configurable with 20 reference points.
• Q: What are the connection thread sizes?
  A: Electrical connection is 1/2-14 NPT and air connection is 1/4-18 NPT.
