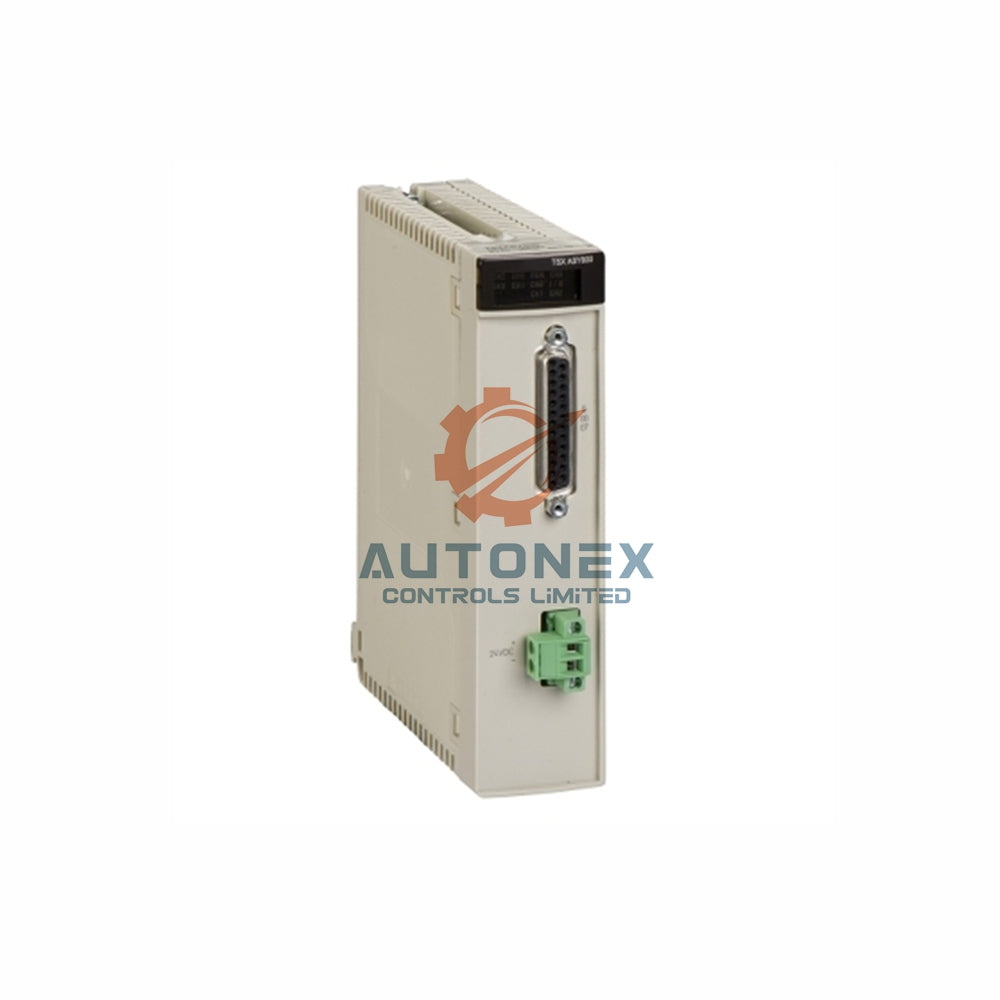

TSXSCY11601 Schneider Modicon Premium RS485 Module

TSXSCY11601 Schneider Modicon Premium RS485 Communication Module

Technical Specifications

• Brand: Schneider Electric
• Model: TSXSCY11601
• Series: Modicon Premium Automation platform
• Category: Communication module
• Software designation: Unity Pro
• Structure type: heterogeneous industrial bus
• Product compatibility: Atrium and Premium controllers
• Access method: master/slave
• Integrated connection: 1 serial link with a SUB-D 25 connector
• Port protocol: Modbus
• Port support: RS485 isolated
• Transmission mode: asynchronous in baseband
• Transmission frame: character mode, RTU/ASCII and Uni-Telway
• Transmission rate: 1.2 to 19.2 kbit/s
• Transmission medium: 2 twisted shielded pairs cable
• Number of devices: 32, with addresses from 0 to 247
• Bus length: 1300m for Uni-Telway, Modbus and character mode
• Tap links length: 15m
• Requests: 120 words or 1920 bits per request
• Control parameter: one CRC 16 on each frame
• Monitoring: diagnostic counters and event counters
• Current consumption: 350mA at 5VDC
• Module format: standard
• Product weight: 0.34kg

Supported Modbus Functions

• Read bits (01), read input bits (02) and read words (03) as master
• Read input words (04) as master and slave
• Write 1 bit or n bits (05) and write n output bits (0F) as master and slave
• Write 1 word or n words (06) and write n output words (10) as master and slave
• Exceptional read status (07) and diagnostic (08) as master and slave
• Slave identification (11), event counter (0B) and event connection (0C)

Environmental Tolerance

• Operating temperature: 0–60°C
• Storage temperature: -25–70°C
• Relative humidity: 5–95% without condensation
• Operating altitude: up to 2000m

Local Signalling

• RUN LED: module operating
• ERR LED: internal fault or module failure
• CH0 LED: communication activity

Installation Guide

• Insert the standard-format module into a free Modicon Premium rack slot.
• Wire the two twisted shielded pairs to the SUB-D 25 connector.
• Set the transmission rate between 1.2 and 19.2 kbit/s to match the bus.
• Keep tap links within 15m and total bus length within 1300m.
• Confirm the 350mA 5VDC draw against your rack power budget.
• Check the RUN and CH0 LEDs after you start communication.

Package List

• 1 x TSXSCY11601 RS485 communication module
• 1 x protective packaging box

Shipping

• We ship with FedEx, UPS and DHL.
• We dispatch stocked items within 5 days.
• You receive tracking details after dispatch.

FAQ

• Q: Which protocols does the TSXSCY11601 support?
  A: It supports Modbus, Uni-Telway and ASCII/RTU character mode. The port is RS485 isolated.
• Q: How many devices can I connect?
  A: You can connect up to 32 devices. Addresses range from 0 to 247.
• Q: What is the maximum bus length?
  A: The bus reaches 1300m for Uni-Telway, Modbus and character mode. Tap links stay within 15m.
• Q: What transmission rate does the module offer?
  A: It offers 1.2 to 19.2 kbit/s. Set the rate to match your bus.
• Q: Which cable does the module require?
  A: It requires 2 twisted shielded pairs cable. The connection uses a SUB-D 25 connector.
• Q: Is the product new and in stock?
  A: Yes, the product is brand new and original. We hold stock and ship within 5 days.
• Q: What is the return policy?
  A: We support returns within 30 days.
