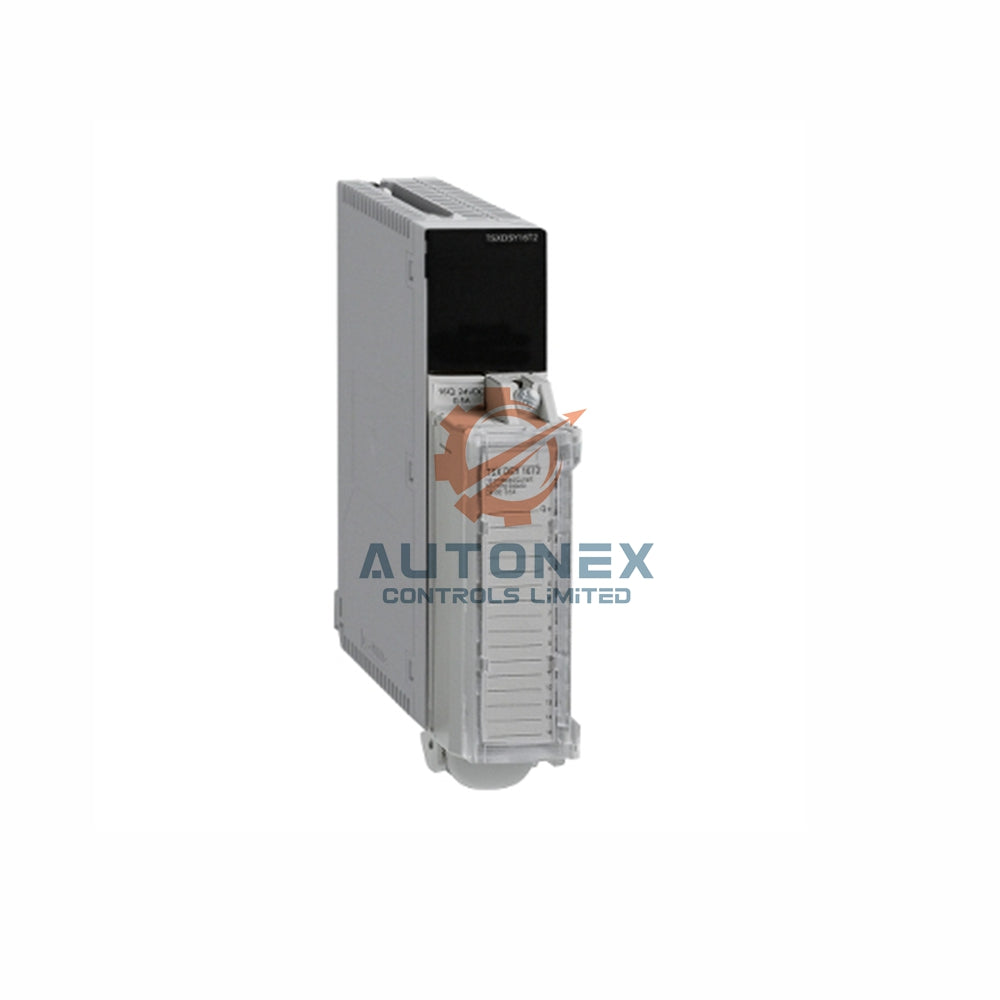

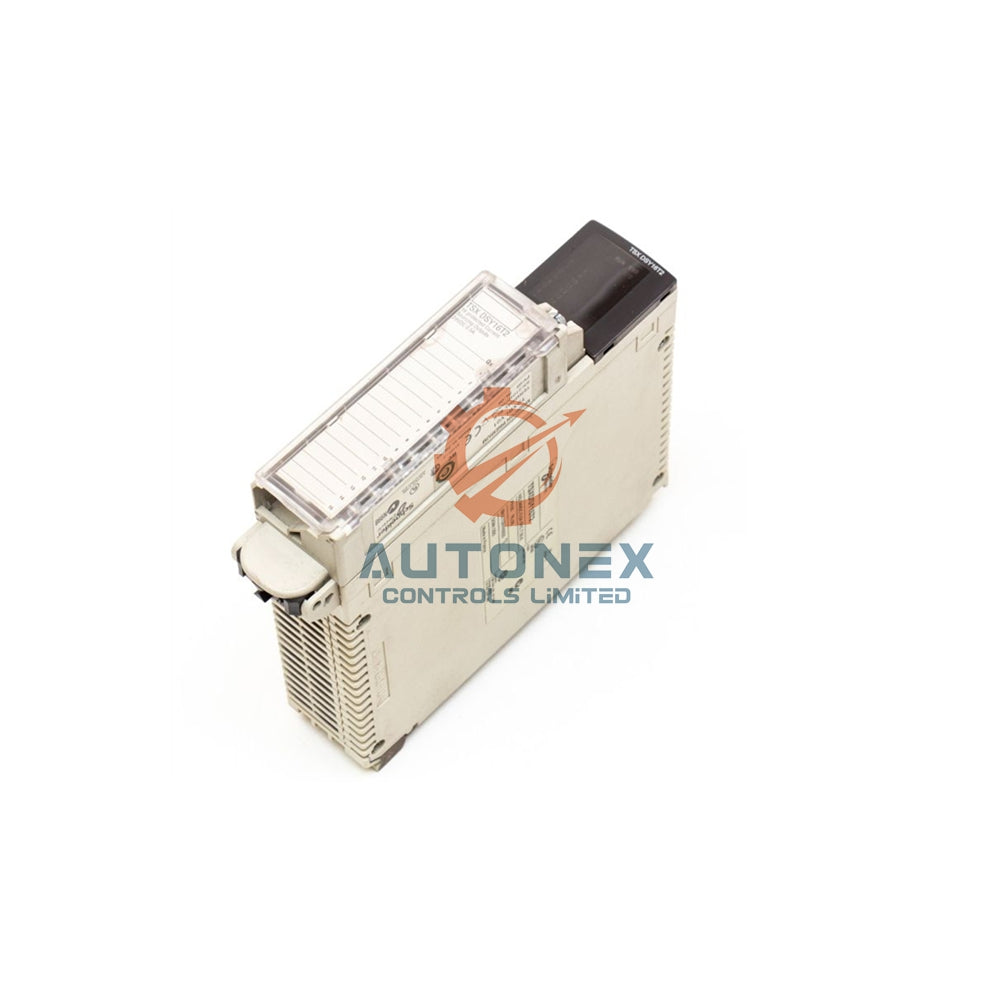

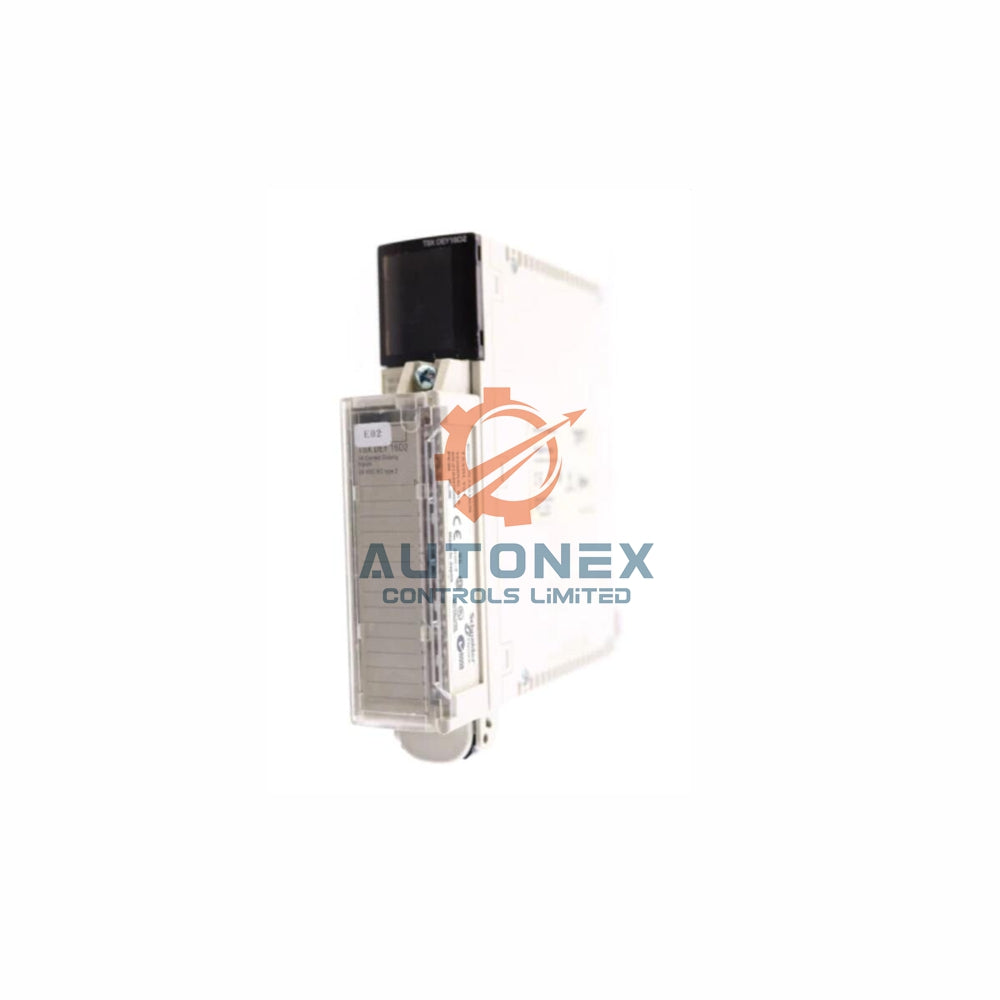

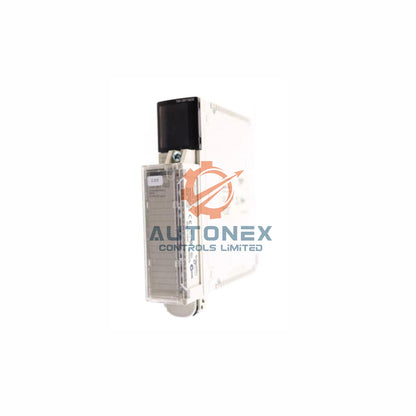

TSXDSY08T2 Schneider Electric Modicon Premium Output Module

TSXDSY08T2 Schneider Electric 8-Point Transistor PNP Output Module – Modicon Premium

Technical Specifications

• Brand: Schneider Electric
• Model: TSXDSY08T2
• Series: Modicon Premium
• Category: Discrete output module – 8-point transistor PNP
• Channels: 8 points (1 group × 8)
• Signal type: DC output, transistor, source (PNP)
• Voltage range: 24 V DC
• Output current: 0.5 A per channel
• Isolation: Channel-to-bus 1500 V AC dielectric; isolation resistance >10 MΩ @ 500 V
• Diagnostics: Electronic overload and short-circuit protection with auto trip on reactivation
• Response time: 0.5 ms typical
• Slots required: 1
• Supply voltage: 24 V DC field + 5 V DC backplane
• Bus current: 55 mA @ 5 V DC
• Power consumption: 1.0 W + (0.75 W × number of outputs × current per module)
• Protection rating: IP20
• Dimensions (H×W×D): 140 × 35 × 80 mm
• Weight: 0.15 kg
• Lifecycle: Discontinued (last verified 2026-09)

Key Performance Features

• The transistor source output design suits PNP wiring and simplifies connection to common DC loads.
• Electronic overload and short-circuit protection trip automatically and recover on reactivation.
• A typical response time of 0.5 ms supports fast actuation in machine control sequences.
• Channel-to-bus isolation of 1500 V AC shields backplane electronics from field transients.
• Isolation resistance above 10 MΩ at 500 V confirms clean separation between circuits.
• The single-slot footprint saves rack space in dense Modicon Premium configurations.

Installation Guide

• Insert the module into one free slot of the Modicon Premium rack and lock it in place.
• Connect the 24 V DC field supply and confirm polarity before you energize the load.
• Keep each channel at or below 0.5 A to stay within the rated output current.
• Calculate total module power using 1.0 W plus 0.75 W times outputs times current.
• Maintain the IP20 environment and avoid conductive dust near the terminal area.
• Verify wiring against the PNP source configuration before you start the machine.

Package Contents

• 1 x TSXDSY08T2 discrete output module
• 1 x Terminal block set
• 1 x Product documentation
• Package weight: 0.15 kg

Shipping

• We ship orders through FedEx, UPS, and DHL.
• Stock items leave our warehouse within 5 days.
• You receive tracking details once the carrier collects your parcel.

FAQ

• Q: What output type does the TSXDSY08T2 provide?
  A: It provides 8 transistor source (PNP) outputs rated for 24 V DC operation.
• Q: How much current can each channel handle?
  A: Each channel delivers up to 0.5 A of output current.
• Q: Does the module protect against short circuits?
  A: Yes, it offers electronic overload and short-circuit protection with auto trip on reactivation.
• Q: What is the isolation rating?
  A: Channel-to-bus isolation reaches 1500 V AC dielectric with resistance above 10 MΩ at 500 V.
• Q: How fast does the output respond?
  A: The typical response time is 0.5 ms.
• Q: How many rack slots does it need?
  A: It requires one slot and measures 140 × 35 × 80 mm at 0.15 kg.
• Q: Do you keep this module in stock and how fast do you ship?
  A: We keep brand new original stock and ship within 5 days via DHL, FedEx, or UPS. We support 30-day returns.
