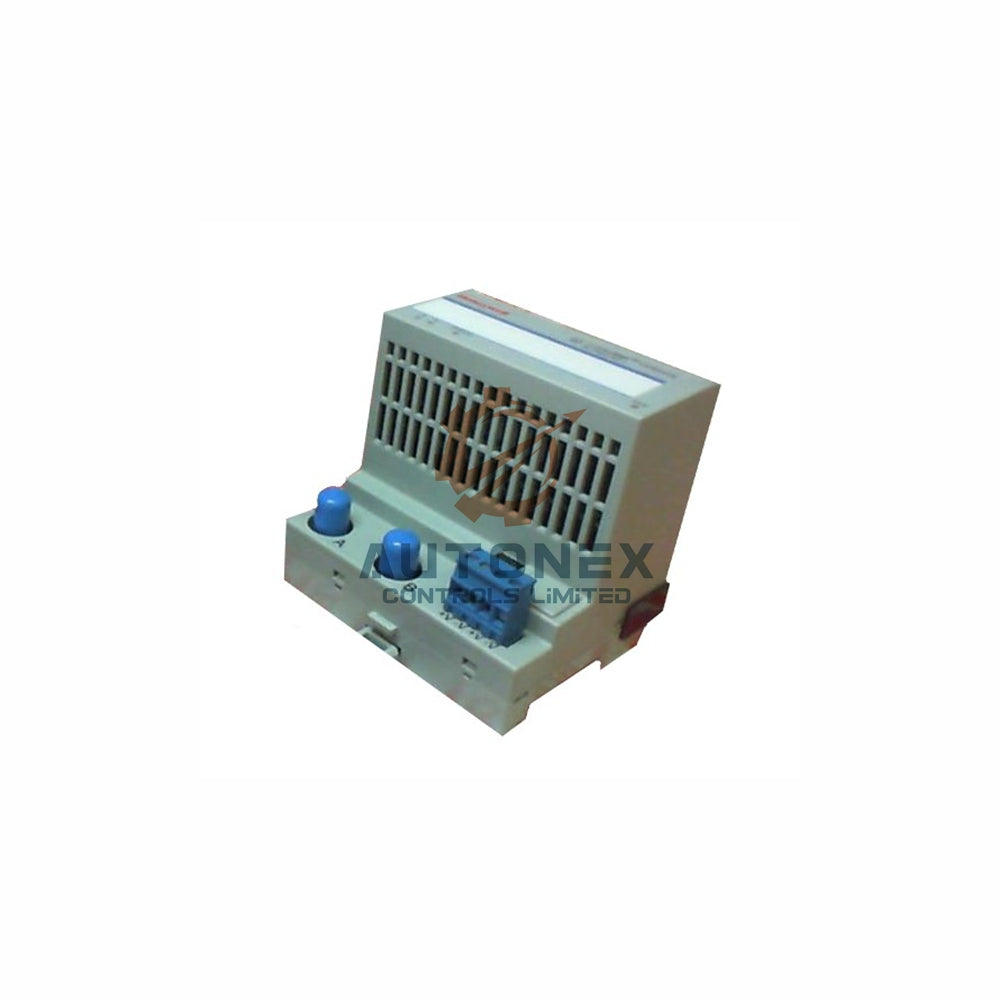

Honeywell TC-PGCN11 General-Purpose I/O Module

Key Technical Specifications

• Brand & Model: Honeywell TC-PGCN11 – General-Purpose I/O Module.
• I/O Capacity: Accepts up to 8 I/O modules on the backplane.
• Intrinsically Safe Power Input: Ui 9.5 Vdc, Ii 1 A, Ci 120 nF, Li negligible.
• Power Dissipation: Consumes 8 W (one power supply unit load).
• Internal Bus (Backplane): Uo 5.4 Vdc, Io 400 mA, Po 2.16 W, Lo 10 μH, Co 65 μF.
• External ControlNet Bus (A & B): Uo 5.4 Vdc, Io 160 mA, AC coupled with high-pass filter ≥ 500 kHz.
• Communication Rate: 5 Mbit/s (ControlNet).
• Galvanic Isolation (per DIN EN 50020): Backplane bus / power supply, Backplane bus / ControlNet, and ControlNet / power supply.
• Ambient Temperature Range: –20°C to 70°C (operation); –20°C to 100°C (storage).
• Humidity & Environment: 95% non-condensing RH, G3 pollution gas test level (ISA-S71.04-1985).
• Shock & Vibration: 15g peak (11 ms duration); 2g @ 10 Hz to 500 Hz (IEC 68-2-6).
• Protection Class: IP20 (requires external IP54 or better housing for field installation).

Frequently Asked Questions (FAQ)

• Q: Is the TC-PGCN11 intrinsically safe for hazardous areas?
  Yes, it carries CENELEC II 2 G EEx ib IIC/IIB T4 and features intrinsically safe power channels (Ui 9.5 V, Ii 1 A).
• Q: How many I/O modules can this backplane support?
  The TC-PGCN11 supports up to 8 I/O modules simultaneously.
• Q: What is the maximum ambient operating temperature?
  It operates from –20°C to 70°C (–4°F to 158°F) and can be stored at –20°C to 100°C.
• Q: Does this module require external isolation?
  No, it provides galvanic isolation between backplane bus, power supply, and ControlNet per DIN EN 50020.
• Q: What cable type is recommended for ControlNet?
  Use Belden 3092A coaxial cable as specified in Honeywell’s Experion Controller Technical Data.
• Q: Is the TC-PGCN11 in stock and available for fast shipping?
  Yes, we keep this model in stock and ship via FedEx, UPS, or DHL within 5 business days.
• Q: Can I return the module if it does not meet my needs?
  We accept returns within 30 days from delivery (conditions apply).
