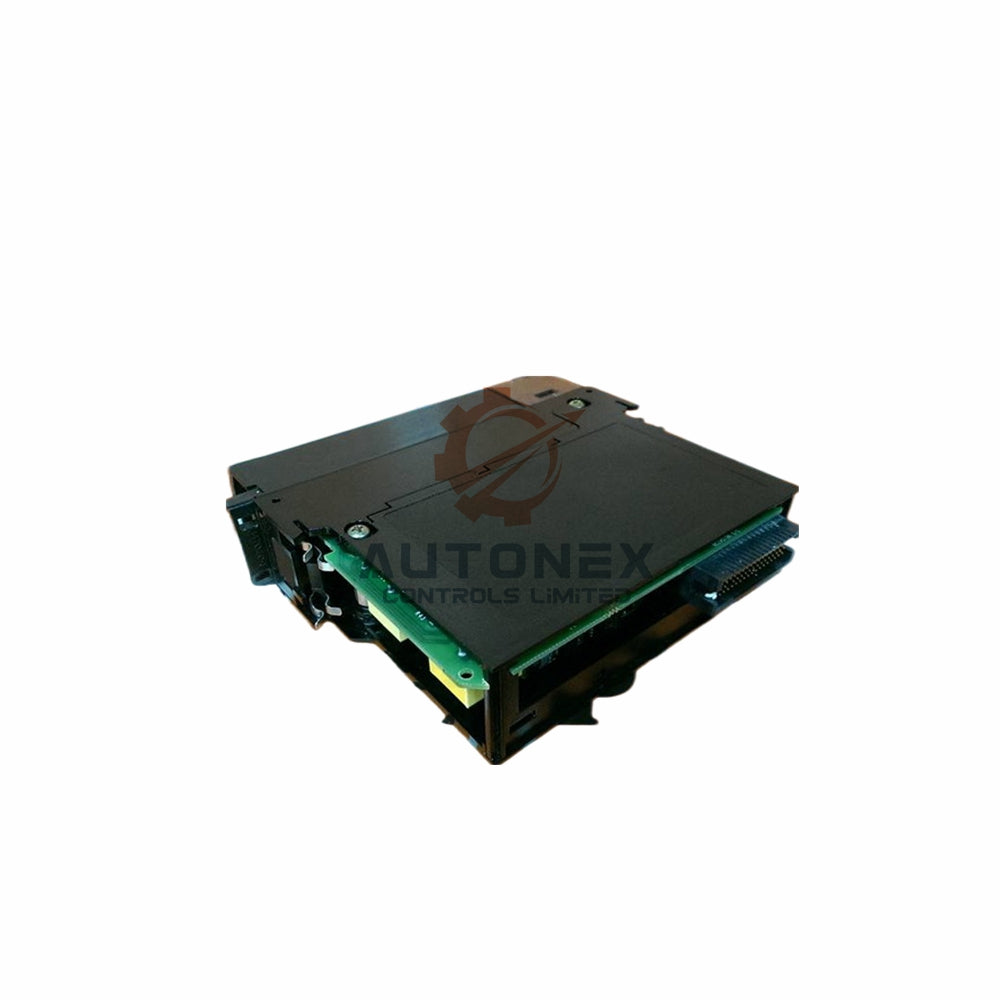

TC-ODX161 Honeywell 16-Point Discrete Output Module

Honeywell TC-ODX161 10-30 VDC 16-Point Diagnostic Discrete Output Module

Key Technical Specifications

• Brand: Honeywell
• Model: TC-ODX161
• Category: Diagnostic Discrete Output Module
• Number of Points: 16, arranged as 8 points per common
• On-State Voltage Range: 19.2–30 VDC
• Per Point Current Rating: 2.0 A maximum at 30°C, 1.0 A maximum at 60°C
• Per Module Current Rating: 8.0 A maximum at 30°C, 4.0 A maximum at 60°C
• Surge Current: 4 A for 10 ms each, repeatable every 1 second
• Minimum On-State Current: 1.0 mA per output
• Maximum On-State Voltage Drop: 1.2 VDC at 2.0 A
• Thermal Overload Short/Trip: 6 A for 350 ms minimum, 8 A for 180 ms minimum, 10 A for 120 ms minimum
• No Load Detection: 5 VDC minimum at 3 mA minimum
• Output Verification: 5 VDC minimum on detection
• Pulse Test: 1 ms or 2 ms user selectable pulse width
• Maximum Off-State Leakage Current: 1.0 mA per point
• Fault State: User definable On or Off
• Output Signal Delay Off to On: 1.0 ms maximum
• Output Signal Delay On to Off: 5.0 ms maximum
• Power Dissipation: 5.1 W maximum
• Backplane Current: See Module Power Consumption Data, page 46
• Isolation Voltage: 1500 VAC RMS output to backplane and between commons
• Connection Terminal Blocks: TC-TBCH, 36-position terminal block

FAQ

• Q: What is the on-state voltage range of the Honeywell TC-ODX161?
  A: The module supports 19.2–30 VDC for each output point.
• Q: How many outputs does the TC-ODX161 provide?
  A: It provides 16 diagnostic discrete output points, grouped as 8 points per common.
• Q: What is the maximum current per point?
  A: Each point handles 2.0 A maximum at 30°C and 1.0 A maximum at 60°C.
• Q: What is the maximum current per module?
  A: The module handles 8.0 A maximum at 30°C and 4.0 A maximum at 60°C.
• Q: What diagnostic functions does this module offer?
  A: It offers thermal overload short/trip, no load, output verification, and pulse test.
• Q: What is the surge current rating?
  A: It delivers 4 A for 10 ms each, repeatable every 1 second.
• Q: What is the minimum on-state current?
  A: The minimum on-state current is 1.0 mA per output.
• Q: What is the maximum on-state voltage drop?
  A: The maximum on-state voltage drop is 1.2 VDC at 2.0 A.
• Q: What is the maximum off-state leakage current?
  A: The maximum off-state leakage current is 1.0 mA per point.
• Q: What is the output signal delay?
  A: Off to on is 1.0 ms maximum, and on to off is 5.0 ms maximum.
• Q: What is the isolation voltage?
  A: The isolation voltage is 1500 VAC RMS output to backplane and between commons.
• Q: What terminal block does this module use?
  A: It uses the TC-TBCH 36-position terminal block.
• Q: How much power does the module dissipate?
  A: The module dissipates 5.1 W maximum.
