TC-ODD321 Honeywell 24 VDC Output Module

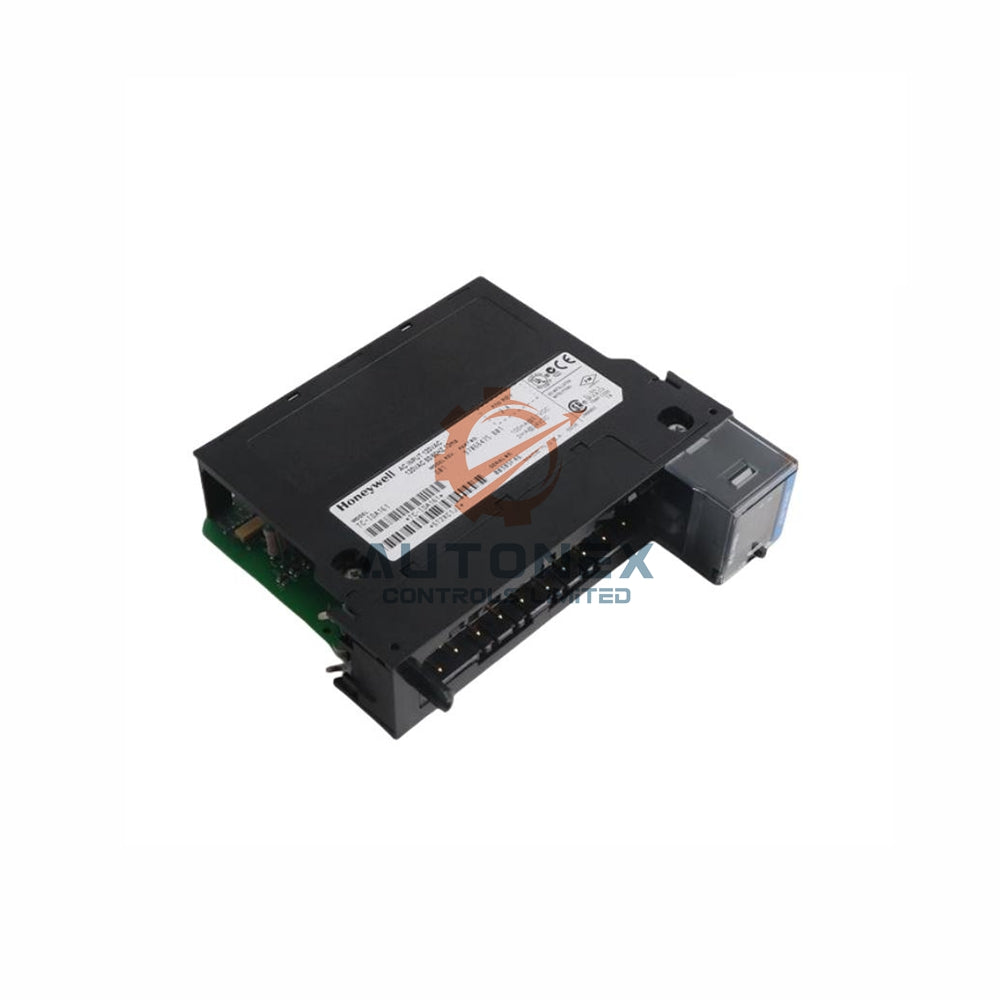

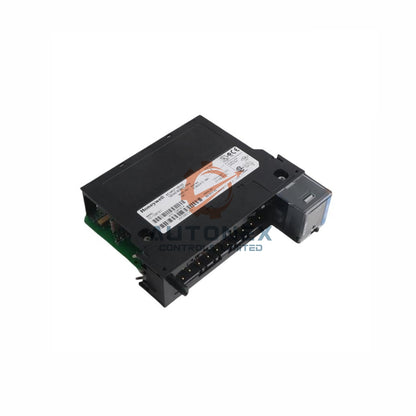

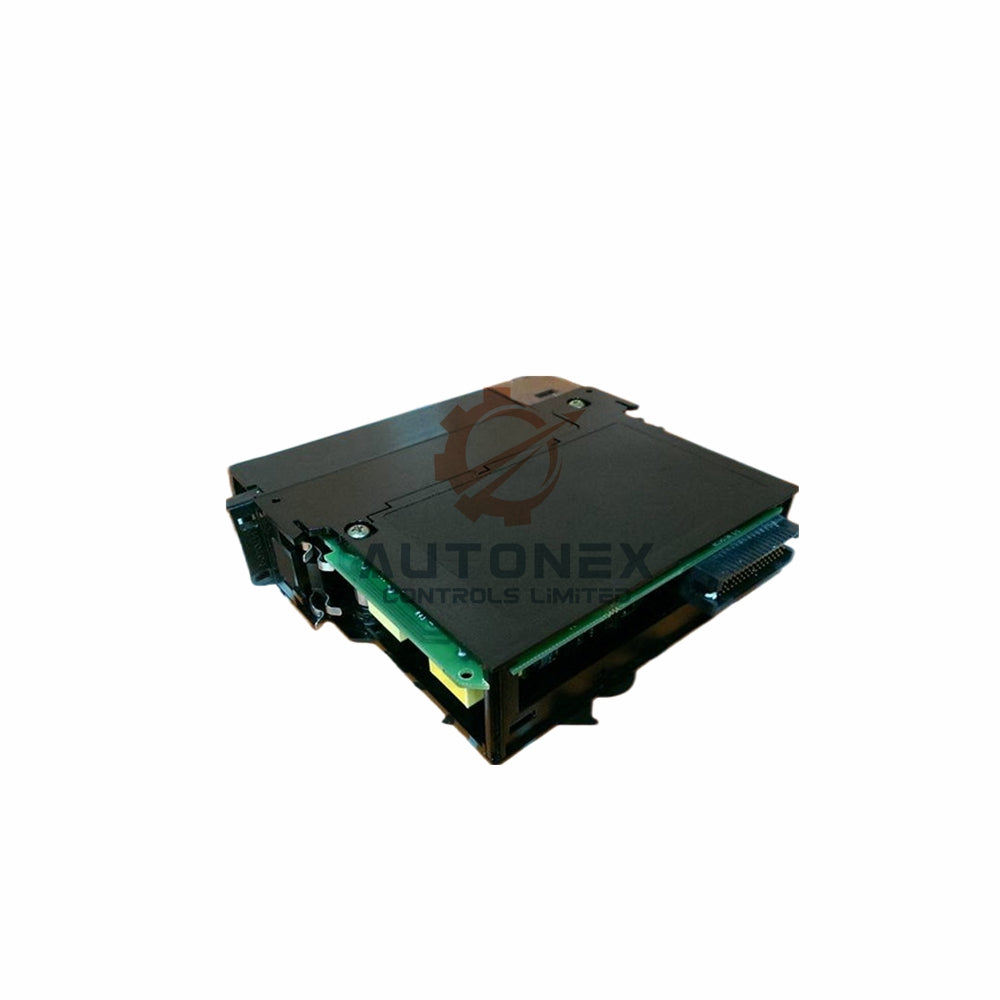

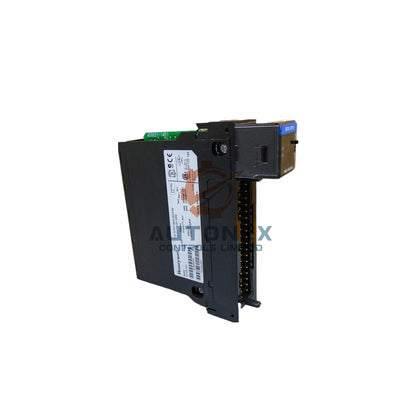

Honeywell TC-ODD321 24 VDC 32-Point Discrete Output Module

Key Technical Specifications

• Brand: Honeywell
• Model: TC-ODD321
• Category: Discrete Output Module
• Number of Outputs: 32, arranged as 16 points per common
• Output Voltage Range: 10–31.2 VDC at 50°C with linear derating, 10–28 VDC at 60°C
• Per Point Current Rating: 0.5 A maximum at 50°C with linear derating, 0.35 A maximum at 60°C
• Per Module Current Rating: 16 A maximum at 50°C with linear derating, 10 A maximum at 60°C
• Surge Current: 1 A for 10 ms each, repeatable every 2 seconds at 60°C
• Flash On Time: 100 µs target, 150 µs maximum
• Minimum On-State Load Current: 3.0 mA per output
• Maximum On-State Voltage Drop: 1 VDC at rated current per point, 3 VDC for IEC 1131-2
• Maximum Off-State Leakage Current: 0.5 mA per point, 1 mA per point for IEC 1131-2 at 0.25 A output
• Configurable Fault States per Point: Hold Last State, ON, or OFF, with OFF as default
• Configurable States in Program Mode per Point: Hold Last State, ON, or OFF, with OFF as default
• Fusing: Not protected, fused IFM is recommended to protect outputs
• Reverse Polarity Protection: None, incorrect wiring may damage outputs
• Output Delay Time Off to On: 1.0 ms maximum
• Output Delay Time On to Off: 1.0 ms maximum
• Power Dissipation: 6.1 W
• Backplane Current: See Module Power Consumption Data, page 46
• Isolation Voltage Group to Group: 100% tested at 2546 VDC for 1 second, 250 VAC maximum continuous voltage between groups
• Isolation Voltage User to System: 100% tested at 2546 VDC for 1 second
• Connection Terminal Blocks: TC-TBCH, 36-position terminal block

Performance and Thermal Derating

• The module supports an output range from 10 VDC to 31.2 VDC at 50°C with linear derating.
• At 60°C, the output range narrows to 10 VDC to 28 VDC for safe operation.
• Each point handles 0.5 A at 50°C with linear derating and 0.35 A at 60°C.
• The full module handles 16 A at 50°C with linear derating and 10 A at 60°C.
• Surge current reaches 1 A for 10 ms, and it repeats every 2 seconds at 60°C.
• Flash on time targets 100 µs with a 150 µs maximum for fast switching.
• Minimum on-state load current stays at 3.0 mA per output.
• Off-state leakage remains below 0.5 mA per point for clean channel separation.
• Group-to-group isolation holds 250 VAC maximum continuous voltage between groups.
• Both group-to-group and user-to-system isolation pass 2546 VDC testing for 1 second.

Installation Guide

• Mount the TC-ODD321 in a compatible Honeywell I/O rack or control panel slot.
• Use the TC-TBCH 36-position terminal block for field wiring connections.
• Add a fused IFM to protect outputs because the module has no internal fusing.
• Check wiring polarity carefully because the module lacks reverse polarity protection.
• Apply linear derating for current and voltage when panel temperature exceeds 50°C.
• Set fault states and program mode states per point before system commissioning.
• Confirm the 1.0 ms delay times fit your control loop timing requirements.
• Review power dissipation of 6.1 W when planning panel thermal management.
• Test group-to-group and user-to-system isolation before applying full field power.

Package List

• 1 x Honeywell TC-ODD321 32-Point Discrete Output Module
• 1 x TC-TBCH 36-position terminal block
• 1 x Protective packaging for safe transport

Shipping and Support

• We ship by FedEx, UPS, and DHL according to your delivery preference.
• We keep this module in stock and dispatch orders within 5 days.
• We offer a 30-day return policy for eligible purchases.
• We supply new original units for industrial replacement and project use.

FAQ

• Q: What is the output voltage range of the Honeywell TC-ODD321?
  A: It supports 10–31.2 VDC at 50°C with linear derating and 10–28 VDC at 60°C.
• Q: How many outputs does the TC-ODD321 provide?
  A: It provides 32 discrete outputs, grouped as 16 points per common.
• Q: What is the maximum current per point?
  A: Each point handles 0.5 A maximum at 50°C with linear derating and 0.35 A maximum at 60°C.
• Q: What is the maximum current per module?
  A: The module handles 16 A maximum at 50°C with linear derating and 10 A maximum at 60°C.
• Q: What is the surge current rating?
  A: It delivers 1 A for 10 ms each, repeatable every 2 seconds at 60°C.
• Q: What is the flash on time?
  A: The flash on time is 100 µs target with a 150 µs maximum.
• Q: What is the minimum on-state load current?
  A: The minimum on-state load current is 3.0 mA per output.
• Q: What is the maximum off-state leakage current?
  A: The maximum off-state leakage current is 0.5 mA per point.
• Q: Does this module have internal fusing?
  A: No, it is not protected, and a fused IFM is recommended to protect outputs.
• Q: Does this module have reverse polarity protection?
  A: No, incorrect wiring may damage the outputs.
• Q: What is the output delay time?
  A: Both off-to-on and on-to-off delays are 1.0 ms maximum.
• Q: What is the isolation voltage?
  A: Group-to-group and user-to-system isolation are 100% tested at 2546 VDC for 1 second.
• Q: What terminal block does this module use?
  A: It uses the TC-TBCH 36-position terminal block.
• Q: How much power does the module dissipate?
  A: The module dissipates 6.1 W.
