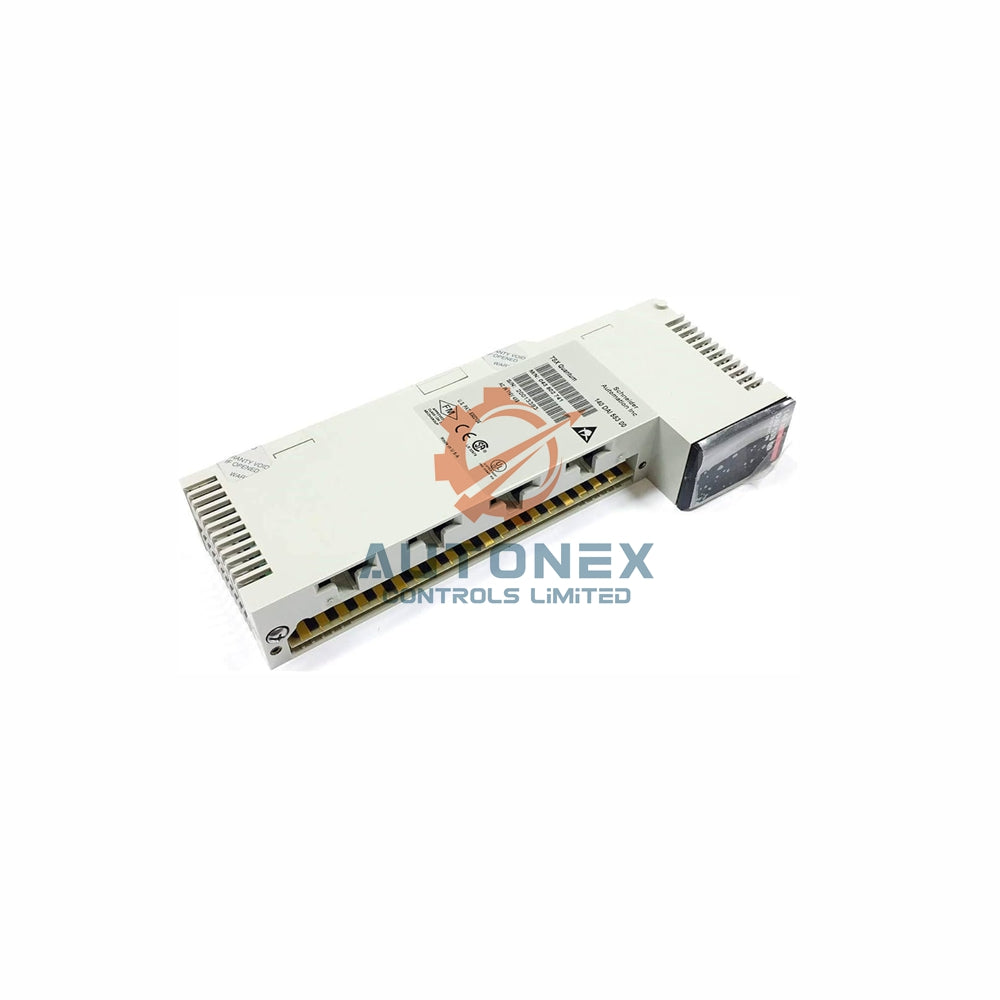

Schneider Electric 140DAI54000 AC Discrete Input Module

Product Introduction: Schneider Electric 140DAI54000 Discrete Input Module

Core Technical Specifications

• Brand: Schneider Electric
• Model: 140DAI54000
• Product Type: 115V AC Discrete Input Module
• Platform: Designed for the Modicon Quantum automation platform.
• Software Compatibility: Works with Concept, ProWORX 32, and Unity Pro.
• Input Channels: Provides 16 discrete input channels.
• Rated Input Voltage: 115 Volts AC nominal.
• Input Current: Approximately 11.1 mA to 13.2 mA depending on line frequency.
• State Recognition: Guarantees ON state from 79-132V AC, OFF state from 0-20V AC.

Performance & Electrical Characteristics

• Response Time: Fast sensing with response times from 0.75 ms to 12.3 ms depending on line cycle and transition.
• High Voltage Isolation: Features excellent isolation of 1780 Vrms for 1 minute between channels and from channels to the bus.
• Network Frequency: Operates across standard industrial frequencies from 47 to 63 Hz.
• Robust Input Protection: Withstands voltage surges up to 200V for one cycle.
• Power Requirements: Draws 180 mA from the Quantum backplane with a maximum dissipation of 5.5W.
• Comprehensive Diagnostics: Includes 16 green LEDs for individual input status, plus active and fault LEDs.

Environmental Durability & Certifications

• Operating Temperature: Built for reliable performance from 0°C to 60°C (32°F to 140°F).
• Storage Temperature: Can be safely stored from -40°C to 85°C (-40°F to 185°F).
• Environmental Rating: Handles up to 95% relative humidity (non-condensing) and altitudes up to 5000 meters.
• EMC Robustness: High immunity to electrostatic discharge (4kV contact/8kV air) and RF interference (10 V/m up to 2 GHz).
• Safety Standards: Certified to UL 508 and CSA C22.2 No 142, with cUL and FM Class 1 Div 2 approvals.

Frequently Asked Questions (FAQ)

• Q: Is this 140DAI54000 module genuine and new?
  A: Absolutely. We sell only authentic, brand new Schneider Electric products.
• Q: What is the input voltage for this Quantum module?
  A: The 140DAI54000 is designed for 115V AC input signals.
• Q: How many input points does it provide?
  A: This module offers 16 discrete input channels in a single group.
• Q: What is the isolation rating for safety?
  A: It provides robust 1780 Vrms isolation between channels and to the system bus.
• Q: What software can I use to program it?
  A: It is compatible with Schneider Electric's Unity Pro, Concept, and ProWORX 32 software.
• Q: What is the module's operating temperature range?
  A: This Modicon Quantum input module operates in 0°C to 60°C environments.
• Q: Do you have stock, and what is the shipping time?
  A: Items are typically in stock, and we aim to ship within 5 business days.
• Q: What is your return policy?
  A: We offer a 30-day return window for unused products in original condition.
