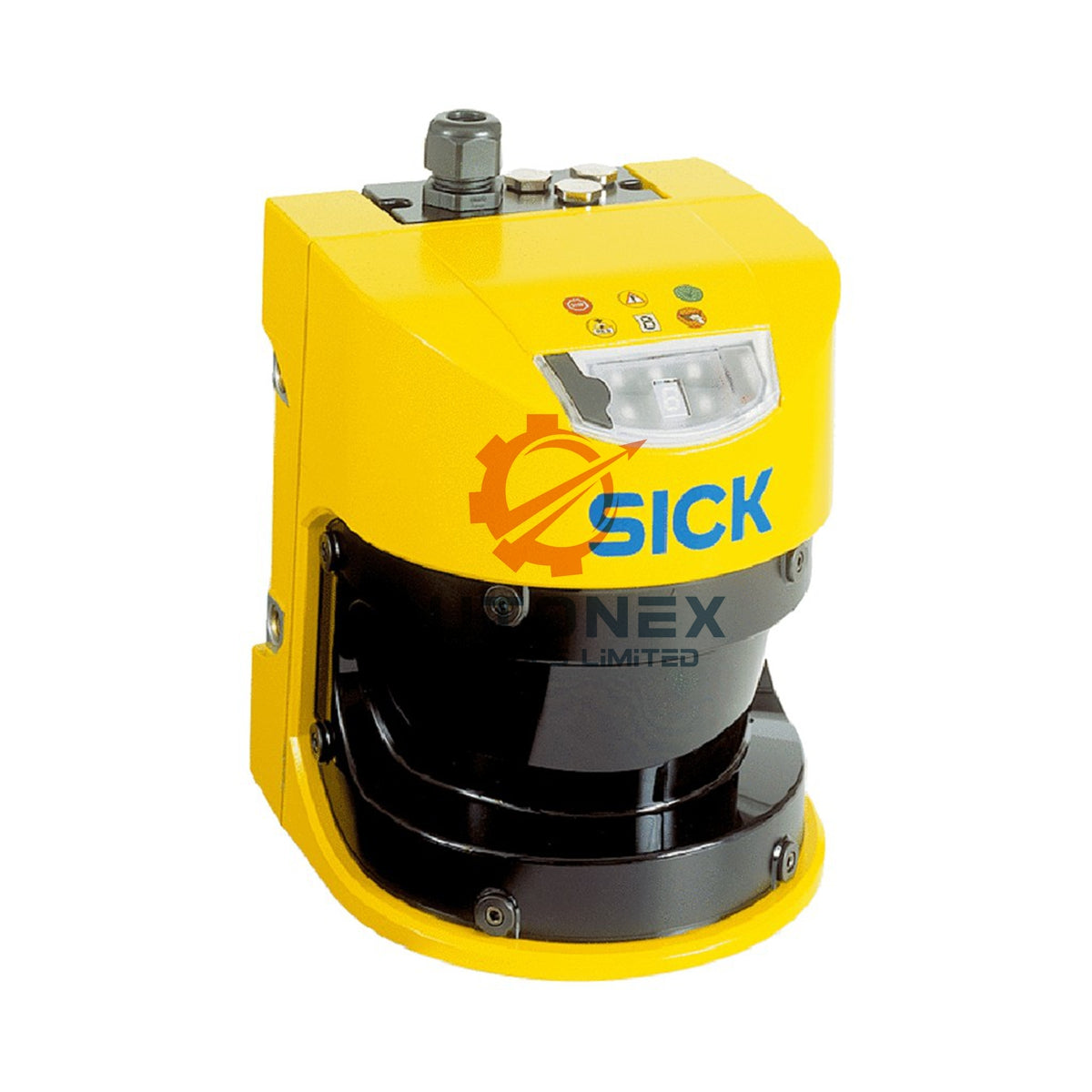

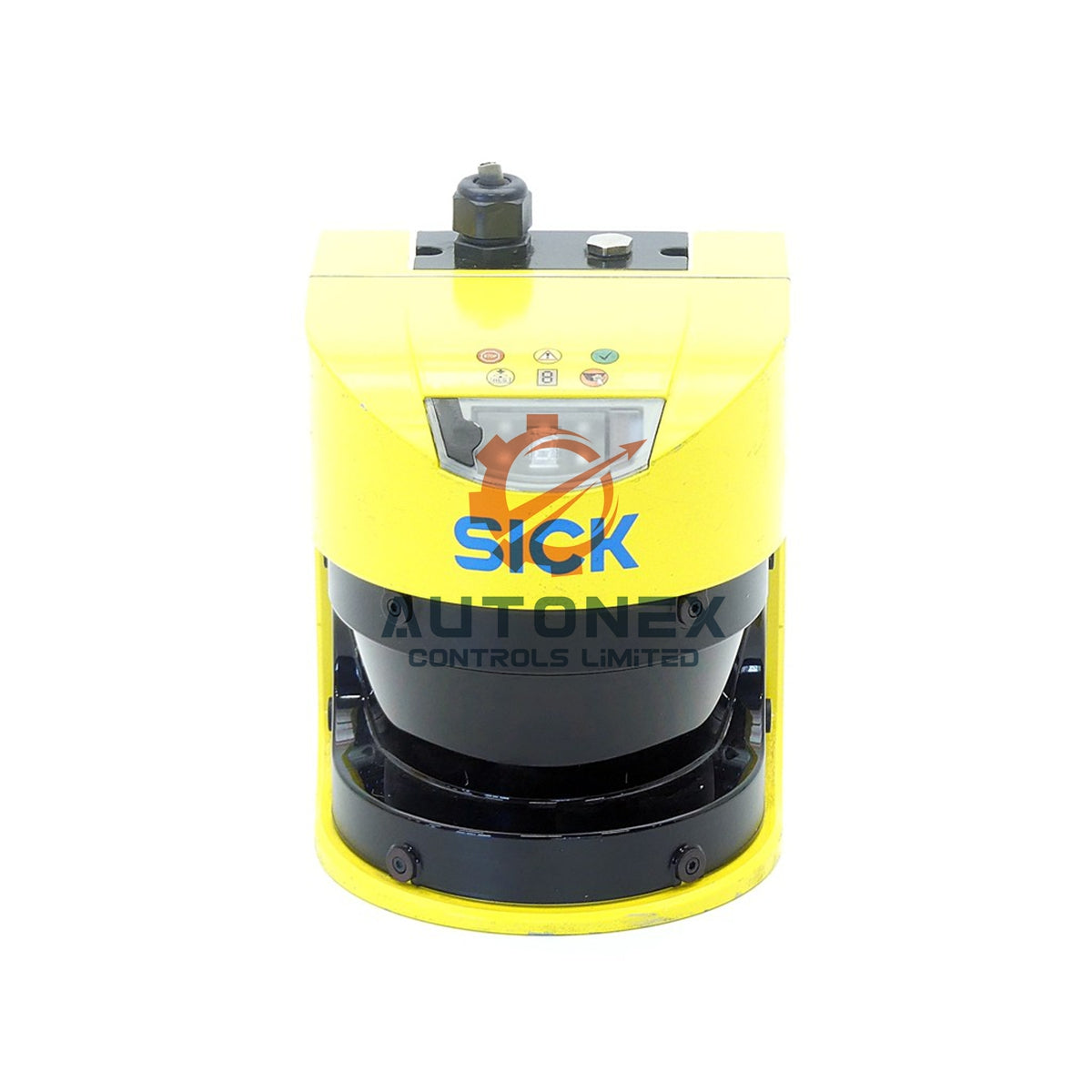

S30A-4011DA S3000 Professional SICK Safety Laser Scanner

S30A-4011DA S3000 Professional Safety Laser Scanner by SICK

Key Technical Specifications

• Brand: SICK
• Model: S30A-4011DA
• Series: S3000 Professional
• Protective field range: 4 m
• Warning field range: 49 m (20 m at 20% reflectivity)
• Distance measuring range: 49 m
• Scanning angle: 190°
• Resolution: 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm
• Angular resolution: 0.5° or 0.25°, depending on range and resolution
• Response time: 60 ms
• Number of field sets: 8
• Number of fields: 24
• Number of monitoring cases: 16

Safety and Performance Data

• Safety integrity level: SIL2 (IEC 61508)
• Category: Category 3 (EN ISO 13849)
• Performance level: PL d (EN ISO 13849)
• PFHD: 8.0 x 10^-8
• Mission time: 20 years (EN ISO 13849)
• Safe state on fault: At least one OSSD stays in the OFF state
• Protective field supplement: 100 mm
• Multiple samplings: 2 to 16, configurable

Electrical and Output Details

• Protection class: II (EN 50178)
• Supply voltage: 24 V DC (16.8 V DC to 28.8 V DC)
• Power consumption: ≤ 0.8 A without output load; ≤ 2.3 A with maximum output load
• OSSDs: 2 x 500 mA
• Application diagnostic outputs: 3 x 100 mA
• Measured data output: Via RS-422
• Safe device communication: Via EFI

Functions and Configuration

• Restart interlock: Yes
• External device monitoring (EDM): Yes
• Multiple sampling: Yes
• Monitoring case switching: Yes
• Simultaneous monitoring: Yes
• Static protective field switching: Yes
• Dynamic protective field switching: Yes
• Contour as a reference: Yes
• Integrated configuration memory: Yes
• Delay of automatic reset: 2 s to 60 s, configurable

Mechanical and Environmental Data

• Dimensions: 155 mm x 185 mm x 160 mm
• Weight: 3.3 kg
• Housing material: Aluminum die cast
• Housing color: RAL 1021 (yellow)
• Front screen material: Polycarbonate
• Front screen surface: Outside with scratch-resistant coating
• Enclosure rating: IP65 (EN 60529)
• Ambient operating temperature: –10 °C to +50 °C
• Storage temperature: –25 °C to +50 °C

Optical and Laser Information

• Type of light: Pulsed laser diode
• Wavelength: 905 nm
• Detectable remission factor: 1.8% to > 1,000%, reflectors
• Laser class: Class 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1)

Installation Guide

• Mount the scanner on a stable surface indoors, away from strong vibration and direct sunlight.
• Keep the scanning window clean and free from dust, oil, and water droplets.
• Connect the supply voltage within 16.8 V DC to 28.8 V DC for safe operation.
• Configure protective fields, warning fields, and monitoring cases through the SICK configuration software.
• Verify the response time, multiple samplings, and restart interlock settings before machine start.
• Use the EFI interface for safe device communication when integrating with other safety devices.
• Check the OSSD outputs and application diagnostic outputs after wiring.

Package List

• 1 x S30A-4011DA S3000 Professional Safety Laser Scanner
• 1 x Sensor unit without system plug
• 1 x Quick start guide
• 1 x Packaging box

Shipping and Support

• Stock: We have this item in stock as brand new and original.
• Lead time: We ship within 5 days after order confirmation.
• Shipping: We use FedEx, UPS, and DHL for fast international delivery.
• Returns: We support 30-day returns.
• Payment and invoice: Please contact our sales team for details.

FAQ

• Q: What is the protective field range of the S30A-4011DA?
  A: The protective field range is 4 m, and the warning field range reaches 49 m.
• Q: How many protective fields can this scanner monitor at the same time?
  A: It monitors up to 4 protective fields simultaneously.
• Q: What resolution options does this S3000 Professional model support?
  A: You can configure 30 mm, 40 mm, 50 mm, 70 mm, or 150 mm resolution.
• Q: What is the response time of the S30A-4011DA?
  A: The response time is 60 ms.
• Q: What safety level does this scanner meet?
  A: It meets SIL2, Category 3, and PL d requirements.
• Q: What is the operating temperature range?
  A: The ambient operating temperature range is –10 °C to +50 °C.
• Q: What is the enclosure rating?
  A: The enclosure rating is IP65.
• Q: How many field sets and monitoring cases does it support?
  A: It supports 8 field sets, 24 fields, and 16 monitoring cases.
• Q: What shipping methods do you use?
  A: We ship by FedEx, UPS, and DHL.
• Q: What is the return policy?
  A: We support 30-day returns.
