Keypad HMI Terminal Allen-Bradley 2711P-K4C5A8

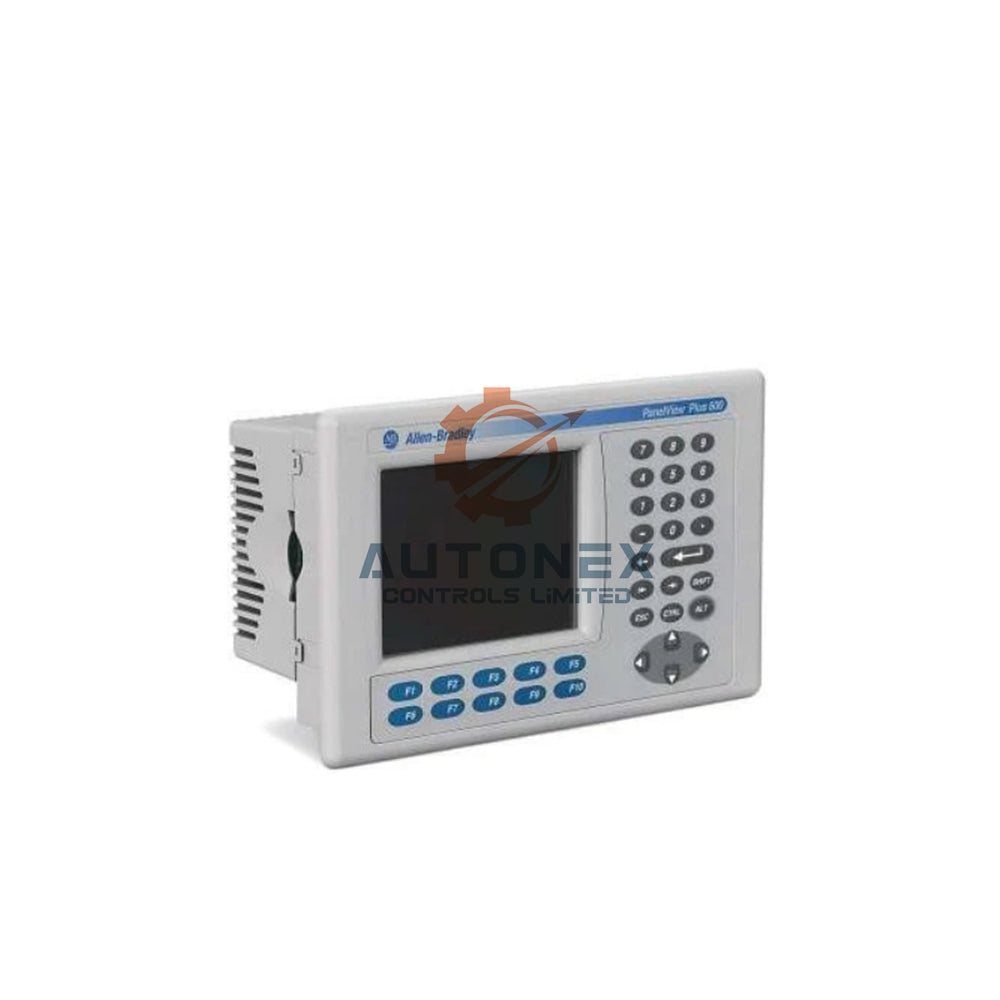

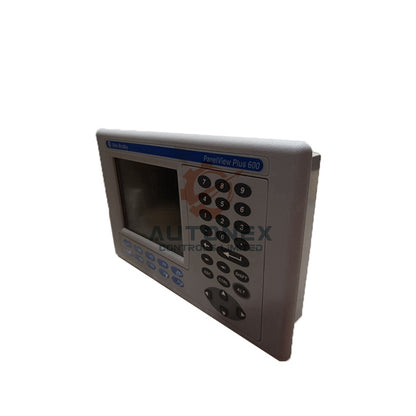

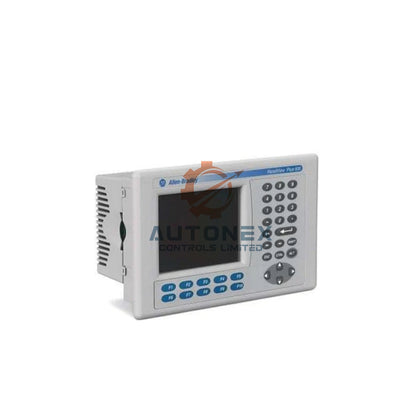

Allen-Bradley PanelView 6 Plus 2711P-K4C5A8 Keypad Operator Terminal

Core Technical Specifications

• Brand & Model: This is an Allen-Bradley 2711P-K4C5A8 terminal from the PanelView 6 Plus series.
• Display: 3.5-inch color graphic display for clear process visualization.
• Input Method: Full keypad with arrow keys, number keys, and programmable function keys.
• Power Supply: Operates on 100-240V AC input power.
• Communication: Primary connectivity through an RS-232 serial port (no Ethernet support).
• Memory: Equipped with 256 MB RAM for enhanced application performance.
• Backlight: Features a non-replaceable backlight unit.

Communication & Serial Connectivity

• The RS-232 serial port is a multi-purpose 9-pin male connector.
• Supports DH-485 communication via serial connection.
• Enables DF1 full-duplex exchanges with controllers using direct or modem links.
• Facilitates third-party point-to-point communication protocols.
• Maximum cable length: 15.24 meters (50 feet).
• Supports application transfers, printing, and uploads/downloads to computers.

Frequently Asked Questions (FAQ)

• Q: Does the 2711P-K4C5A8 support Ethernet communication?
  A: No, this model uses RS-232 serial communication only, with no Ethernet support.
• Q: What is the memory capacity of this terminal?
  A: It contains 256 MB of RAM for application operation.
• Q: Can I replace the backlight on this unit?
  A: No, the backlight is designated as non-replaceable.
• Q: What protocols does the RS-232 port support?
  A: It supports DH-485, DF1 full-duplex, and point-to-point communication.
• Q: What power supply is required?
  A: It requires 100-240V AC input power.
• Q: Is this model in stock for immediate purchase?
  A: Yes, we have the 2711P-K4C5A8 in stock for prompt shipment.

For technical support or purchasing details for this Allen-Bradley PanelView 6 Plus terminal, please contact us.
