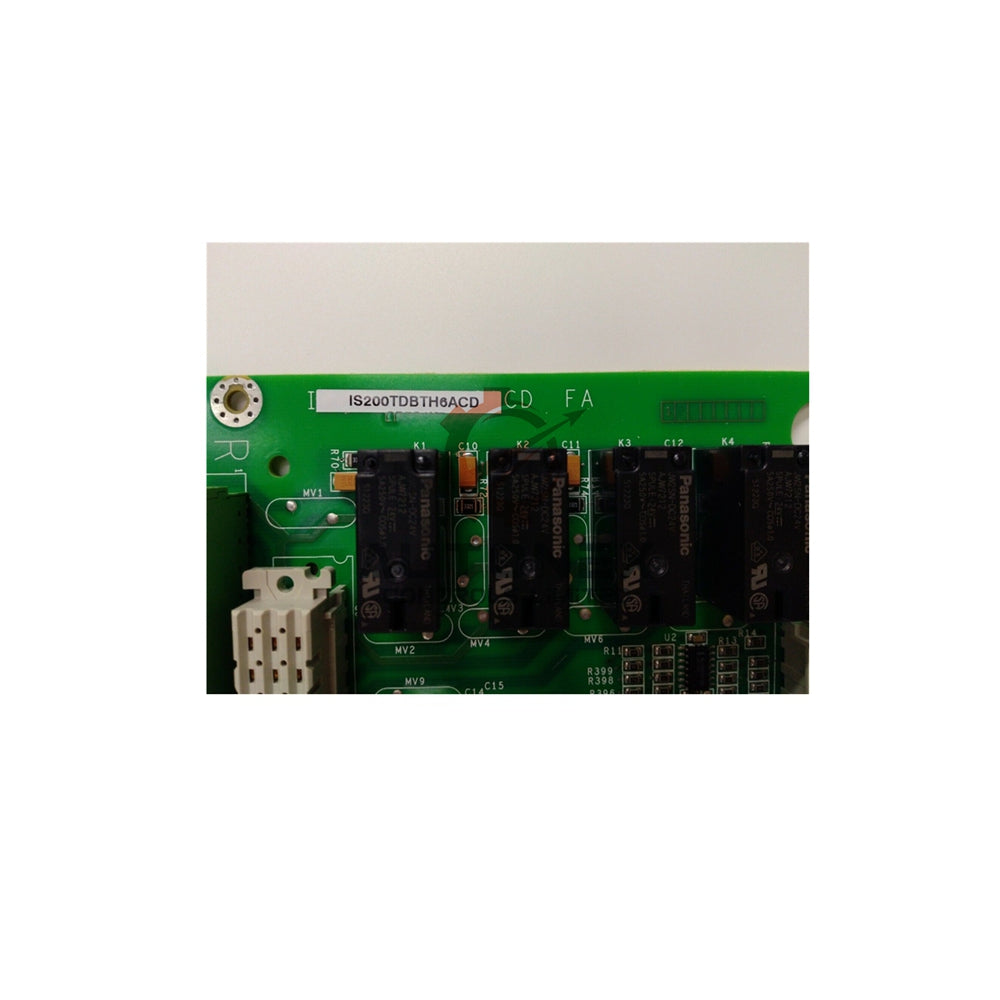

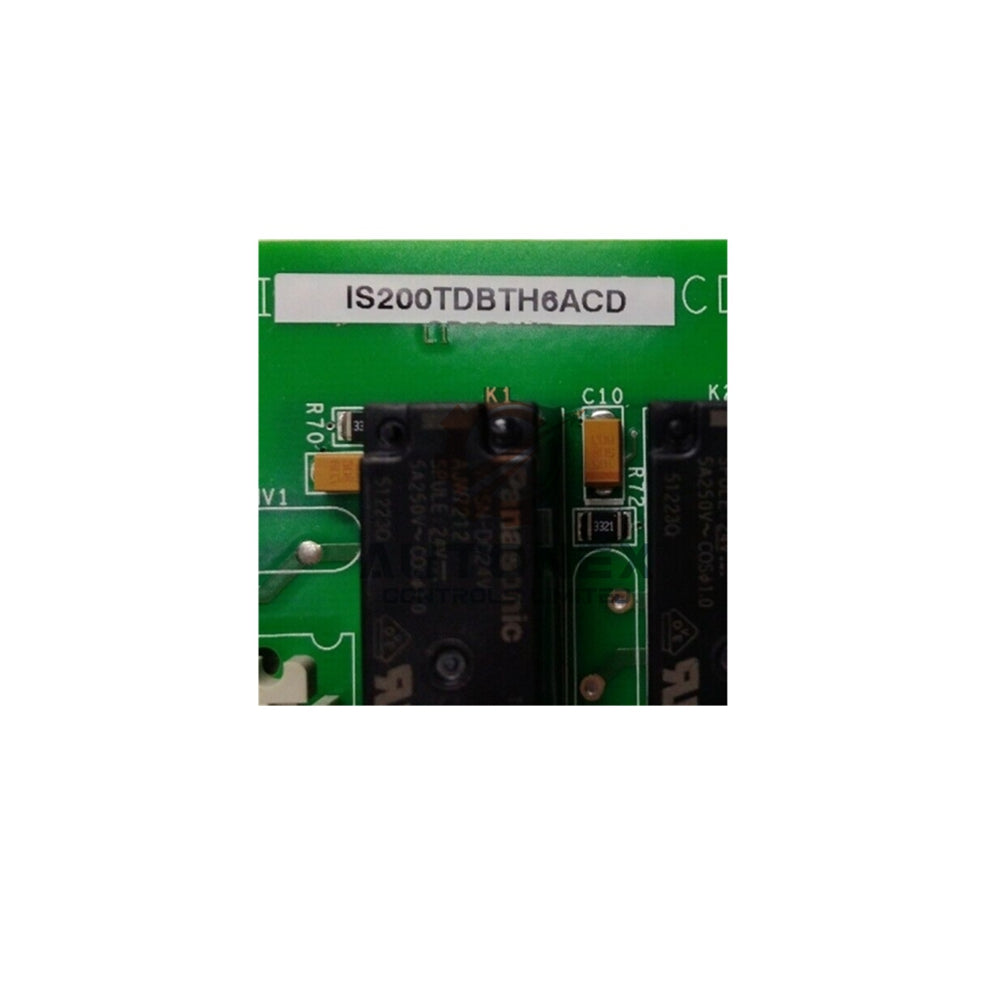

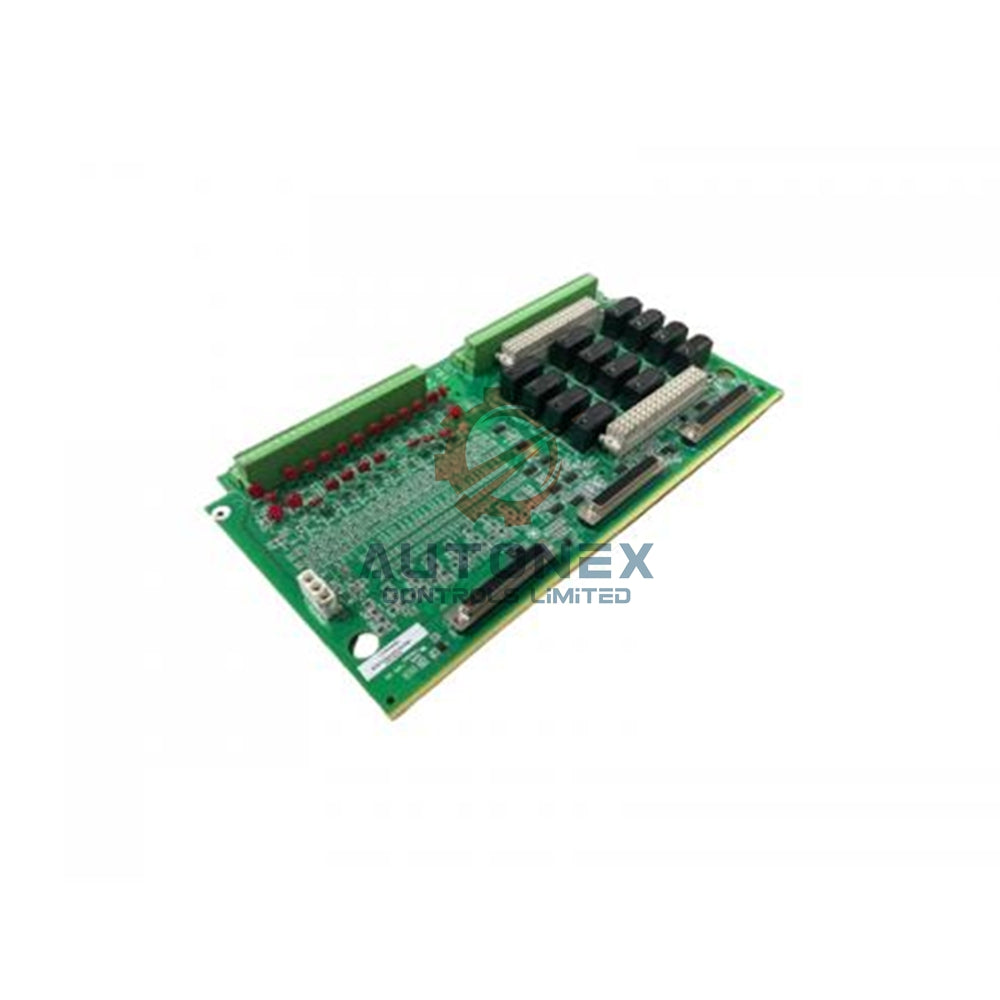

IS200TDBTH6ACD GE Terminal Board Mark VIe 24 Channels

IS200TDBTH6ACD General Electric Terminal Board Mark VIe

• Brand & Model: General Electric IS200TDBTH6ACD (Mark VIe series).
• Input Channels: 24 contact inputs with noise suppression.
• Wetting Voltage Ranges: 16‑32 V dc, 32‑64 V dc, and 100‑145 V dc.
• Input Current Limits: First 21 circuits draw 2.5 mA; circuits 22‑24 draw 10 mA.
• Relay Outputs: 12 form‑C relay outputs with option card support.
• Power Supply: +5 V dc required; 24 V dc supply current‑limited to 0.5 A.
• Input Filter: Hardware filter for noise reduction.
• Compatibility: Works with PDIO I/O packs in TMR configurations.
• Mounting: Supports DIN‑rail or flat mounting.

Installation Guidelines

• Mount the IS200TDBTH6ACD on a DIN‑rail using the sheet metal carrier and insulator.
• Alternatively, bolt the assembly directly into a cabinet for flat mounting.
• Wire input contacts to the lower terminal block (TB2) using #18 AWG wires.
• Connect relay outputs to the upper terminal block (TB1) following the screw assignments.
• Terminate shields on a separate bracket to maintain signal integrity.
• Connect PDIO I/O packs to the JR1, JS1, and JT1 connectors for TMR operation.

Key Technical Specifications

• Manufacturer: General Electric (USA).
• Model: IS200TDBTH6ACD (A‑rated revision).
• Series: Mark VIe Speedtronic (Group 6).
• PCB Coating: Conformal coating for hardware protection.
• Connectors: Three PDIO connection points for TMR controllers.
• Hardware: 12 potentiometers, MOVs, integrated circuits, and a 3‑port connector.
• Input filter: Hardware filter for high‑frequency noise rejection.
• Option board: Supports WROBH1 relay board with six jumpers.
• Operating temperature: ‑30 °C to +65 °C.
• Dimensions: 17.8 cm wide × 33.02 cm.

Package & Shipping Information

• Each package includes one IS200TDBTH6ACD terminal board.
• Shipping dimensions: standard anti‑static packaging.
• Common carriers: FedEx, UPS, and DHL.
• No certificates or warranty documents included in the package.

Frequently Asked Questions

• Is the IS200TDBTH6ACD a new original board?
  Yes, we supply 100% new and original units.
• Do you have this terminal board in stock?
  Yes, we keep the IS200TDBTH6ACD in stock for immediate orders.
• What is the lead time for shipping?
  We ship within 5 business days after order confirmation.
• Which shipping carriers do you use?
  We ship via FedEx, UPS, or DHL as per your preference.
• Can I return the board if it does not meet my needs?
  Yes, we support a 30‑day return policy.
• Is this board compatible with simplex systems?
  No, the IS200TDBTH6ACD requires three PDIO packs for proper TMR operation.
• Does the board have any jumpers or configurations?
  The TDBT board has no jumpers; jumpers are on the optional WROBH1 relay board.
