Industrial HMI Flexem - FE7370WE-4G

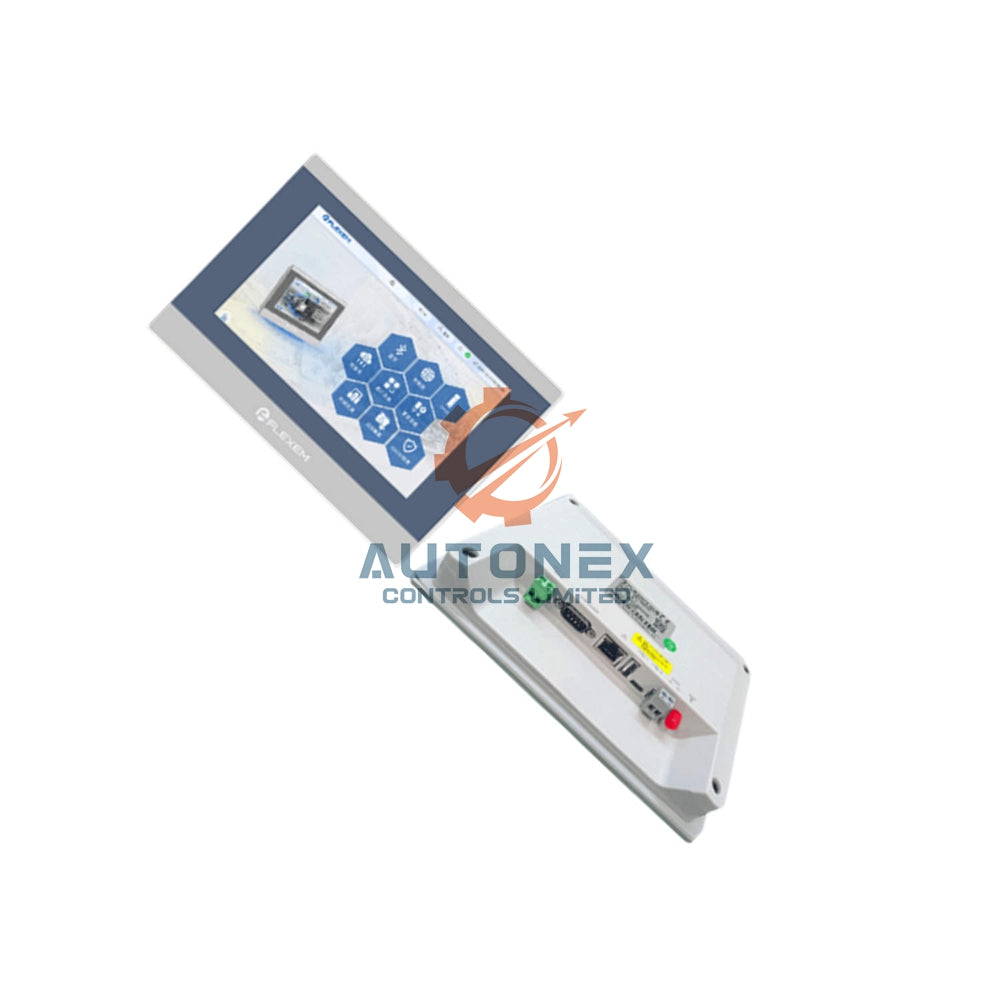

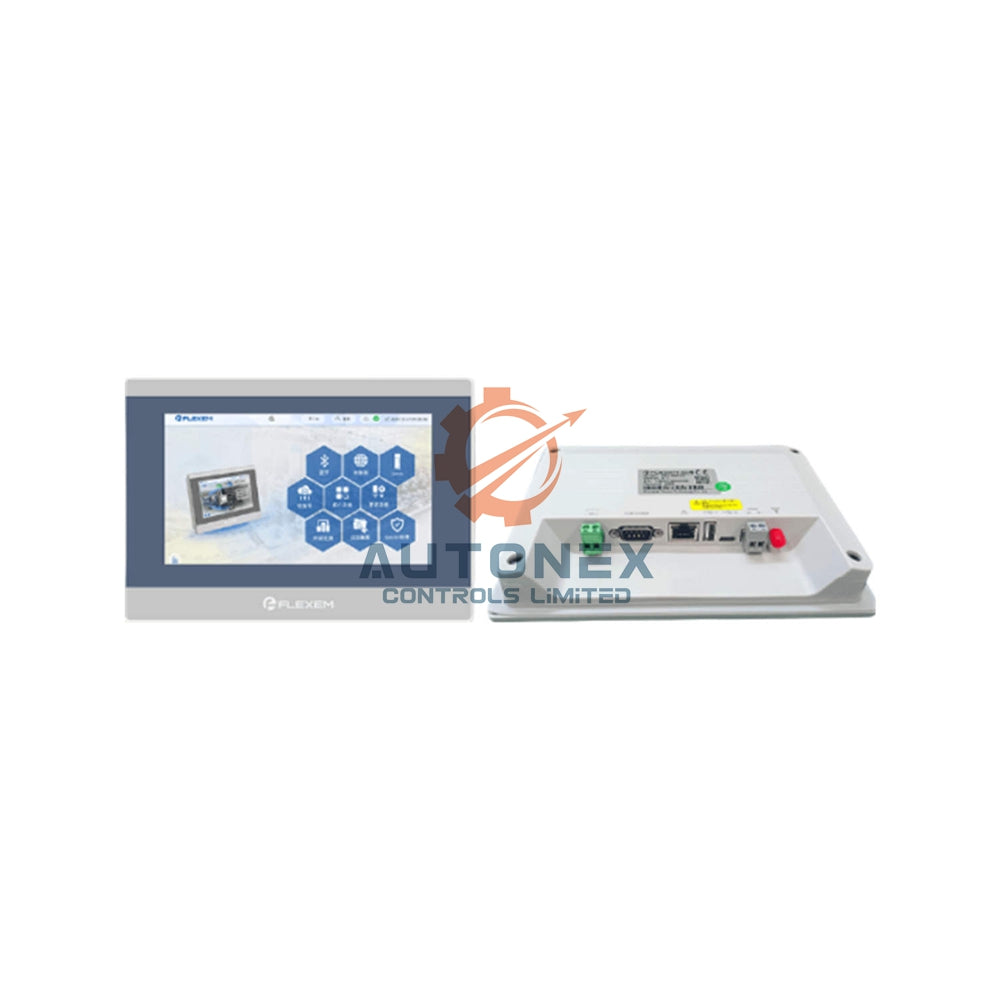

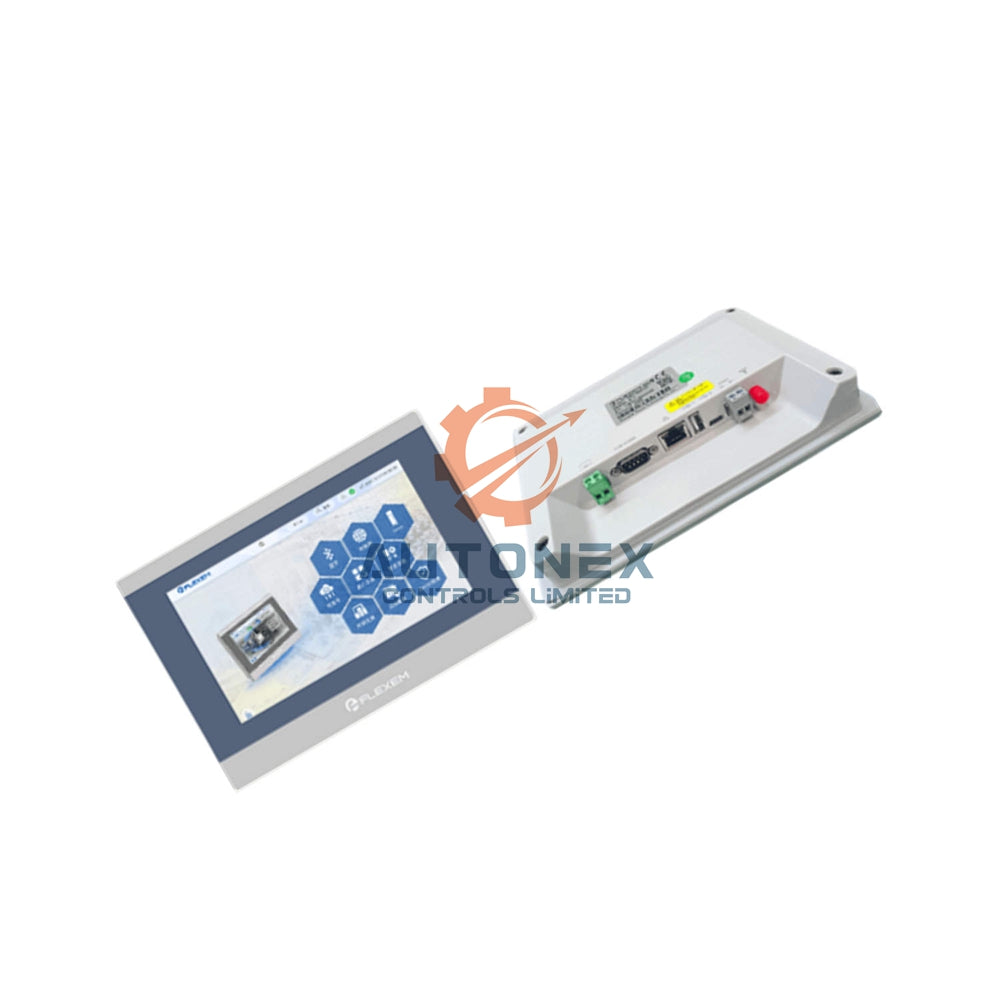

Flexem FE7370WE-4G: A Powerful 4G-Enabled Industrial HMI Touch Panel

Core Display & Touch Specifications

• Brand & Model: Flexem FE7370WE-4G Industrial HMI.
• Display: 7-inch 16:9 TFT LCD with wide 85-degree viewing angles on all sides.
• Resolution & Color: Crisp 1024 x 600 pixel resolution with 24-bit color depth.
• Brightness: 350 cd/m² brightness ensures clear visibility on the factory floor.
• Touch Panel: Durable 4-wire industrial resistive touchscreen.

IoT Data & Edge Computing Capabilities

• Data Monitoring: Handles up to 300 data points.
• Alarms: Supports configuration for 100 alarm notification points.
• Historical Data: Logs up to 30 historical data points.
• Edge Computing: Supports 20 edge computing points with script programming functionality.

Power & Electrical Specifications

• Rated Power: Low consumption, under 10 Watts.
• Input Voltage: 24V DC rated, with a wide working range from 9V to 28V DC.
• Protection: Includes lightning surge protection on the power line.
• Interruption Tolerance: Can withstand power dips shorter than 5 milliseconds.

Environmental Durability & Installation

• Operating Temperature: Reliable from 0°C to 50°C.
• Storage Temperature: Safe storage from -20°C to 60°C.
• Humidity: 10% to 90% RH, non-condensing.
• Vibration Endurance: 10-25 Hz, 2G acceleration for 30 minutes (X,Y,Z directions).
• Protection Rating: Front panel rated IP65 (NEMA 4), rear is IP20.
• Enclosure: High-strength engineering plastic shell.
• Cutout Size: Panel cutout required is 190 x 136 mm.
• Dimensions: 204 x 145 x 34 mm (overall unit size).
• Weight: Lightweight at approximately 472 grams.
• Certifications: Complies with CE and RoHS standards.
• UV Note: Do not operate in environments with high ultraviolet light.

Packaging, Shipping & Support

• Package Contents: Includes the Flexem FE7370WE-4G HMI unit and user manual.
• Product Condition: Brand new and originally packaged.
• Stock Status: This model is in stock and ready to ship.
• Shipping Policy: Orders ship within 5 business days via FedEx, UPS, or DHL.
• Return Policy: We offer a worry-free 30-day return policy.

Frequently Asked Questions (FAQ)

• Q: Does the FE7370WE-4G need an extra module for IoT connectivity?
  A: No, it has a built-in 4G and Bluetooth IoT module, eliminating the need for an external Flink module.
• Q: What is the main advantage of the dual-core processor?
  A: The 1GHz dual-core Cortex-A7 CPU provides smoother multi-tasking and faster response times for complex applications.
• Q: Can I use this HMI in remote locations without Ethernet?
  A: Yes, the built-in 4G LTE connectivity allows it to operate in remote areas using cellular networks.
• Q: What does "edge computing" mean for this HMI?
  A: It can run simple logic scripts locally (supporting 20 points), processing data at the source before sending it to the cloud.
• Q: How many devices can it communicate with?
  A: With support for over 100 industrial protocols, it can connect to a vast array of PLCs, sensors, and drives.
• Q: Is the USB Type-C port used for programming?
  A: The USB Type-C port functions as an OTG (On-The-Go) port, which can be used for program download among other functions.
