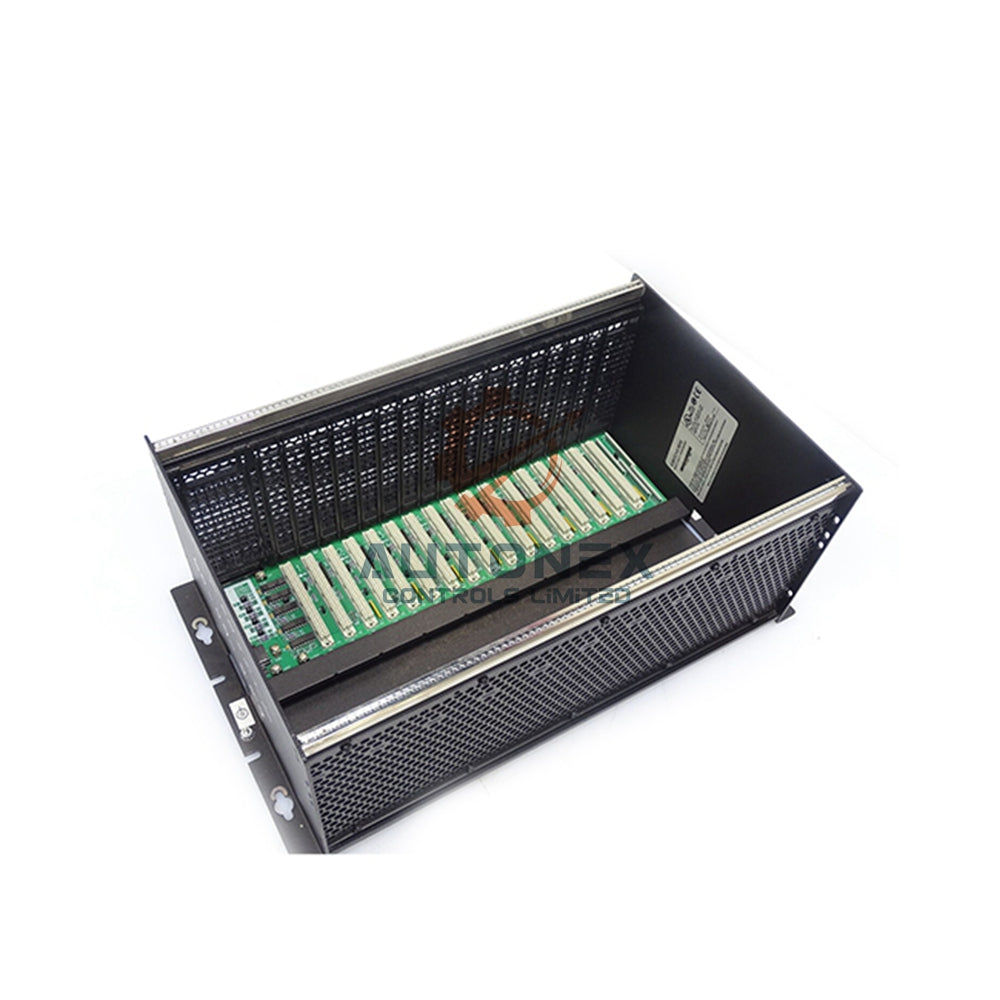

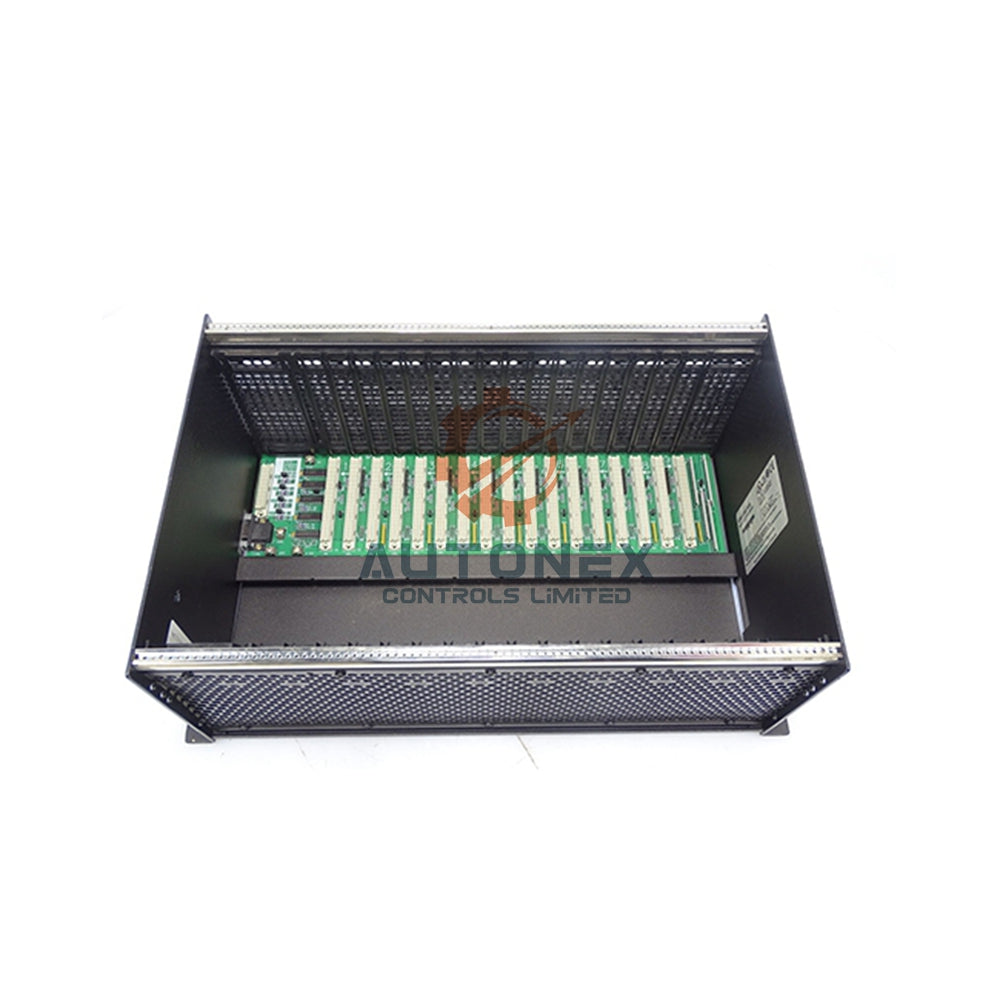

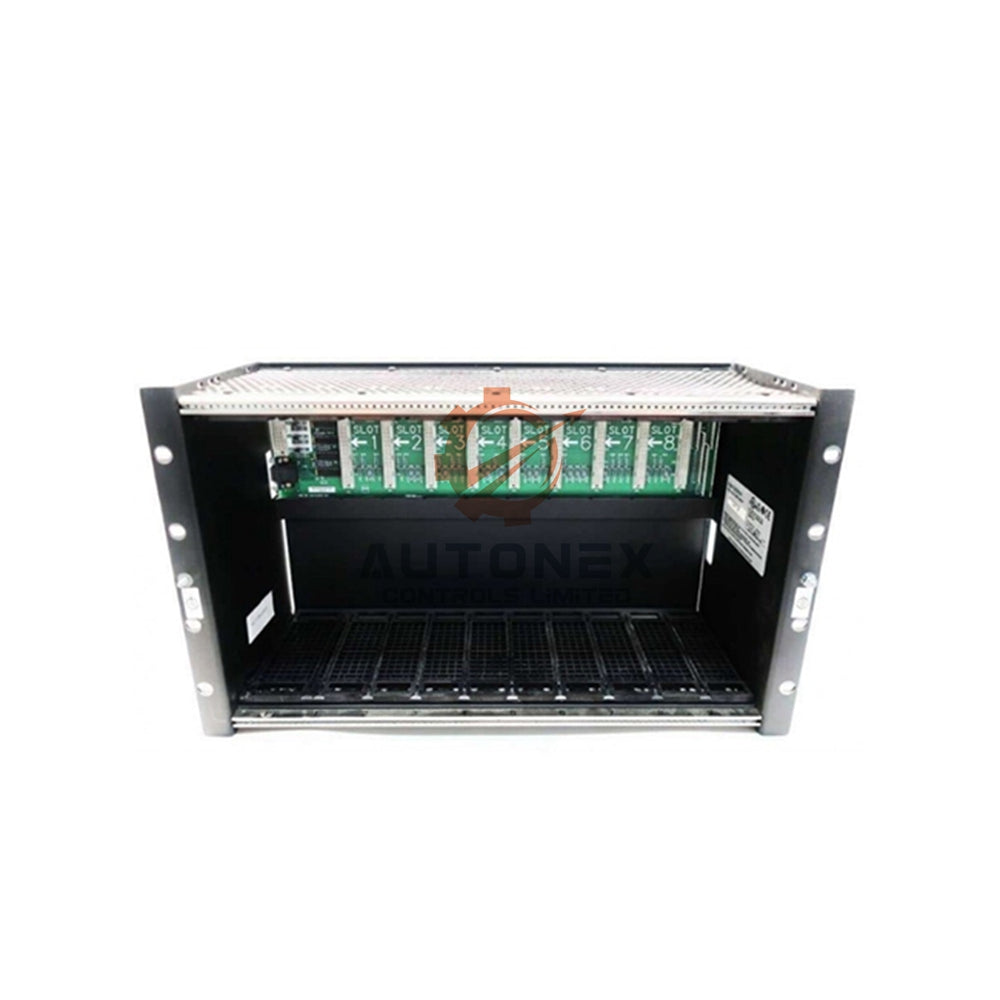

IC697CHS783 VME Integrator Rack GE Fanuc

Product Introduction IC697CHS783: VME Integrator Racks for Series 90-70/90-30 Systems

Core Technical Specifications & Features

• The racks feature a spacious 17-slot backplane supporting VME standard C.1.
• IC697CHS783 requires 3.3A @ 5VDC and 1.1A @ 12VDC from a single power source.
• You can mount them horizontally or vertically in a standard 19-inch rack.
• They also fit into a 10-inch-deep enclosure for rear-mounting applications.
• Overall dimensions are 11.15" (H) x 19" (W) x 7.5" (D), requiring adequate clearance for airflow.
• Configurable jumper settings (JP1-JP4) handle Rack ID selection, interrupt lines, and bus assignment.
• Molded latches provide secure module retention on the upper and lower rails.
• An optional fan assembly (e.g., IC697ACC744) is available for cooling high-power modules.

Frequently Asked Questions (FAQ)

• Q: Is a power supply included with the rack?
  A: No, the rack requires a separate power supply. You can use an IC697 series AC/DC or dedicated DC power supply. An external supply with the proper adapter module also works.
• Q: How do I set the rack address in a multi-rack system?
  A: You set the Rack ID by placing jumpers on the headers JP1, JP2, JP3, and JP4. These are located behind the rack power supply area.
• Q: What is your return policy?
  A: We support a 30-day return policy for unused items in original packaging. Please contact our sales team to initiate a return.
