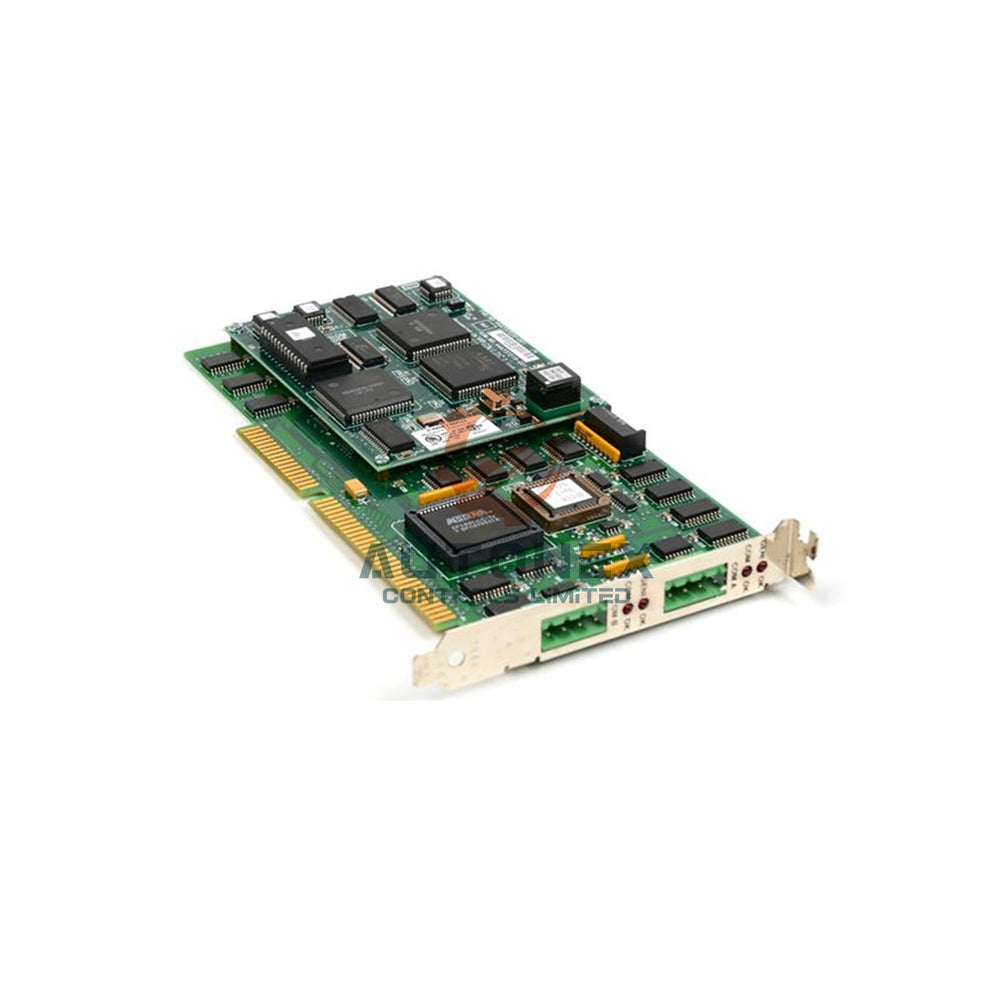

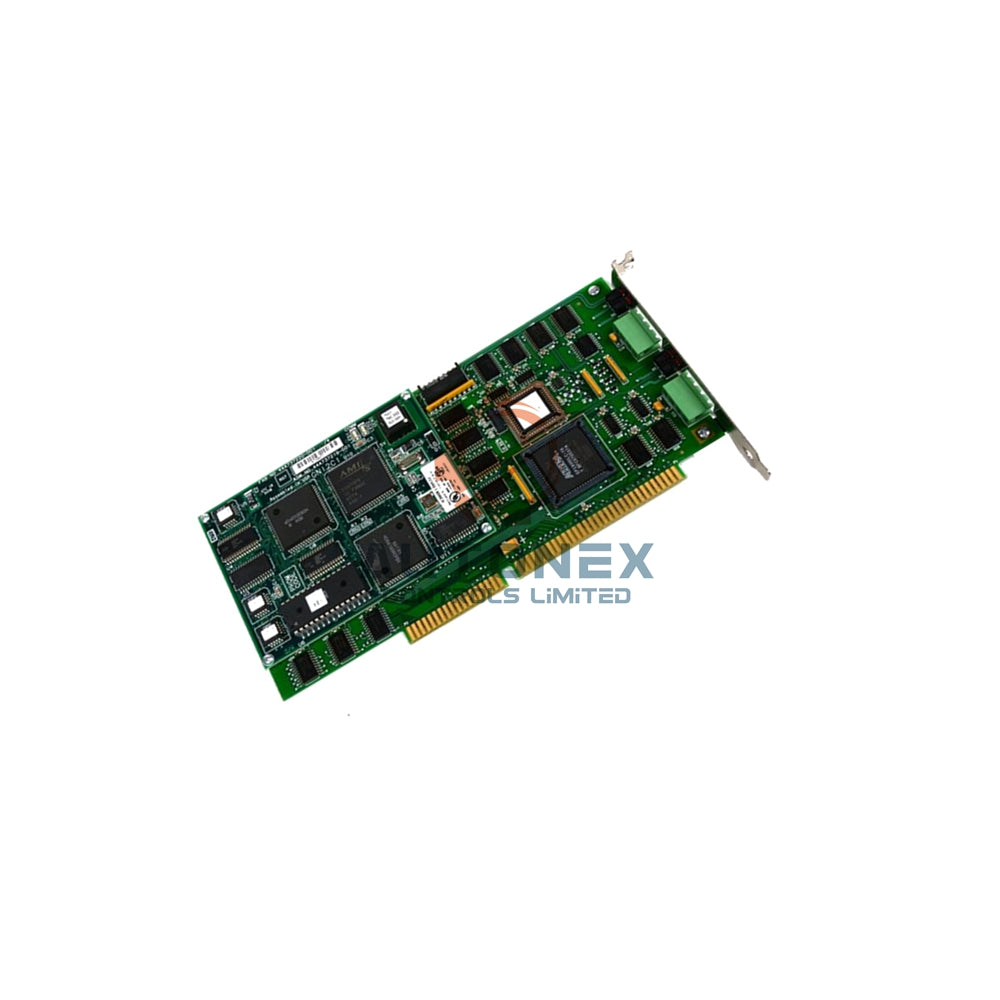

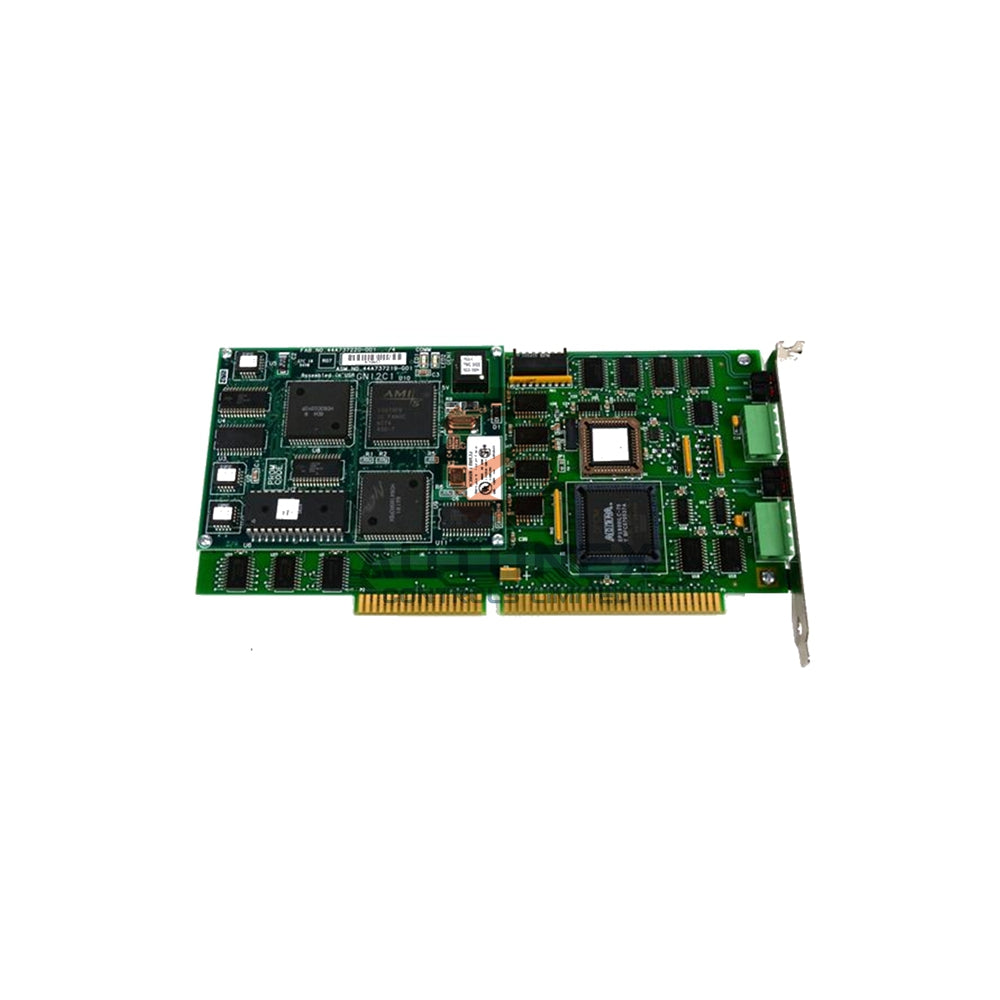

IC660ELB931 GE Fanuc Genius I/O PCI Interface Card Single-Channel

IC660ELB931 GE Fanuc Genius I/O PCI Interface Card

Key Technical Specifications

• Brand: GE Fanuc, Series: Genius I/O, Part Number: IC660ELB931.
• Product Type: PCI Genius Card, Channel: Single channel, Compatibility: Genius LAN Interface.
• Power Supply: 5 Volts DC.
• I/O Capacity: Utilizes 8,000 inputs and 8,000 output references.
• Communication Speed: Supports up to 32 devices at 153.6 Kbaud standard baud rate.
• Status Indicators: 2 LEDs on faceplate (GENI OK and COMM OK).
• Operating Temperature: 0 to 60 degrees Celsius.
• Humidity Range: 5% to 95%, non-condensing.
• Weight: 3 Pounds.
• Certifications: UL, CE.

Hardware Interface and Connectivity

• The faceplate includes a 4-pin right angle male terminal box connector with holding screws for Genius I/O interface.
• Connector pins include shield out, shield in, Serial 1, and Serial 2 for Genius bus connection.
• An onboard DIP switch allows selectable bus termination resistance of 75, 100, 120, or 150 Ohms.
• The DIP switch also configures terminal resistance for the Genius bus.
• The network requires a daisy-chain bus cable with single twisted pair and shield cable.

Frequently Asked Questions (FAQ)

• Is the IC660ELB931 a new original part? Yes, we supply only brand new original units.
• How many devices does this card support? The IC660ELB931 communicates with up to 32 devices at 153.6 Kbaud.
• What do the two LED indicators show? GENI OK indicates power and self-test pass; COMM OK flashes on communication errors.
• Can I use this card with a handheld monitor? Yes, the IC660ELB931 is fully compatible with a Handheld Monitor (HHM).
