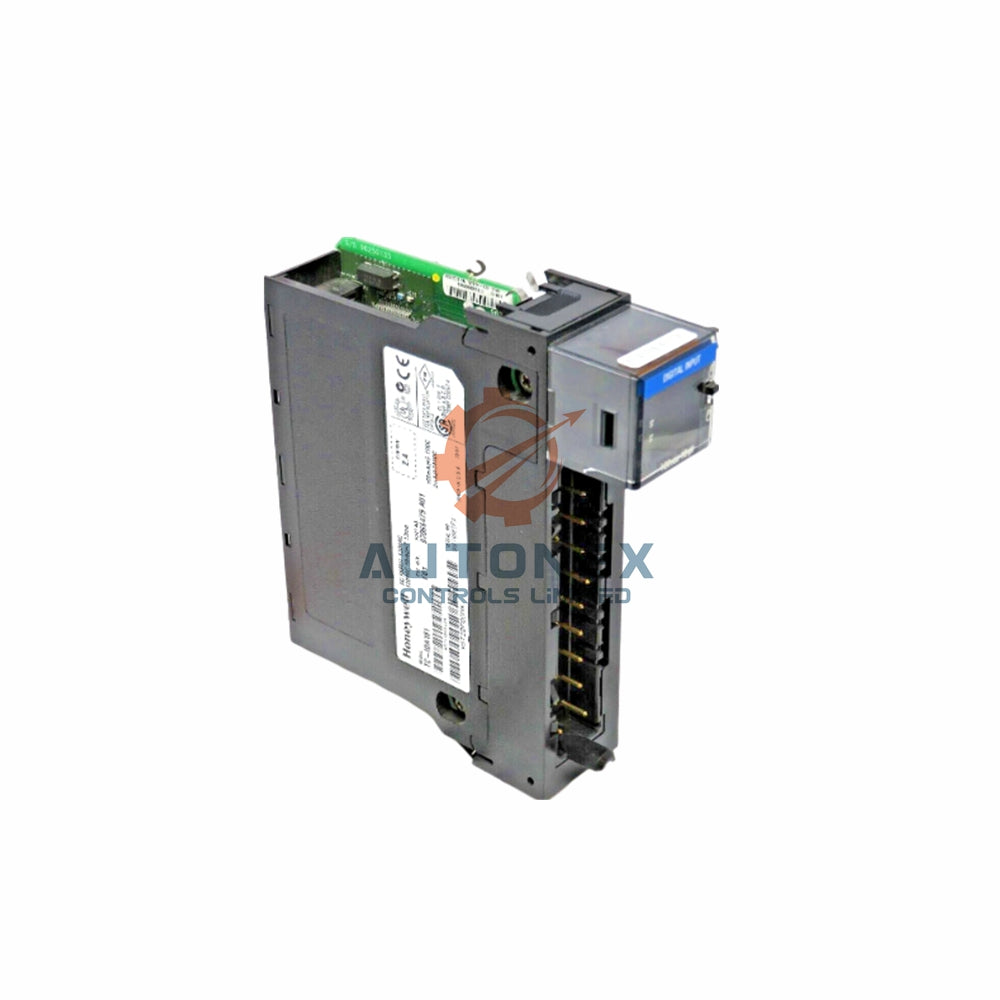

Honeywell TC-IDK161 120VAC Isolated Input Module | 16-Ch

Honeywell TC-IDK161 Isolated Discrete Input Module – 16-Point 120 VAC

Key Technical Specifications

• Brand: Honeywell
• Model: TC-IDK161
• Category: Isolated Discrete Input Module
• Number of Points: 16 individually isolated channels
• On-State Voltage Range: 79 to 132 VAC, 47 to 63 Hz
• Input Compatibility: IEC Type 1+
• Short/Inrush Current: 250 mA peak, decaying to less than 37% in 22 ms without activation
• Nominal Input Voltage: 120 VAC
• Off-State Voltage (Maximum): 20 V
• On-State Current (Minimum): 5 mA @ 79 V, 47 to 63 Hz; 15 mA @ 132 V, 47 to 63 Hz
• Off-State Current (Maximum): 2.5 mA
• Input Impedance (Maximum): 11 kΩ @ 60 Hz
• Input Delay Time (Off to On): 1 ms and 2 ms programmable, 10 ms maximum plus filter time
• Input Delay Time (On to Off): 9 ms and 18 ms programmable, 8 ms maximum plus filter time
• Power Dissipation: 4.9 W
• Isolation Voltage: Channel to channel and user to system, 100% tested at 2546 VDC for 1 second
• Connection Terminal Blocks: TC-TBCH, 36-position terminal block

Installation Guide

• Insert the TC-IDK161 module into a compatible Honeywell backplane slot.
• Use the TC-TBCH 36-position terminal block for all field input wiring.
• Confirm the field supply stays within the 79 to 132 VAC on-state range.
• Set the programmable delay time to match your machine response needs.
• Keep AC input wires separated from low level signal cables.
• Verify channel isolation by testing each point with a known AC source.

Package Contents

• 1 x Honeywell TC-IDK161 Isolated Discrete Input Module
• 1 x TC-TBCH 36-position terminal block (if ordered together)
• Product documentation is available online

Shipping and Support

• We keep this module in stock for immediate order processing.
• We ship within 5 days using FedEx, UPS, DHL, or other common carriers.
• We accept returns within 30 days for eligible items.
• All units are brand new and original.

Frequently Asked Questions

• Q: What input voltage does the TC-IDK161 accept?
  A: It accepts 120 VAC nominal with an on-state range of 79 to 132 VAC.
• Q: How many input channels does this module have?
  A: It provides 16 individually isolated input channels.
• Q: Are the input delay times adjustable?
  A: Yes, off-to-on delays are 1 ms or 2 ms, and on-to-off delays are 9 ms or 18 ms.
• Q: What is the maximum off-state voltage?
  A: The maximum off-state voltage is 20 V.
• Q: What is the off-state current limit?
  A: The maximum off-state current is 2.5 mA.
• Q: What terminal block fits this module?
  A: Use the TC-TBCH 36-position terminal block.
• Q: What isolation voltage does it provide?
  A: It provides 2546 VDC isolation tested for 1 second.
• Q: How fast do you ship?
  A: We ship within 5 days via FedEx, UPS, or DHL.
• Q: Can I return the module?
  A: Yes, we support 30-day returns for eligible orders.
