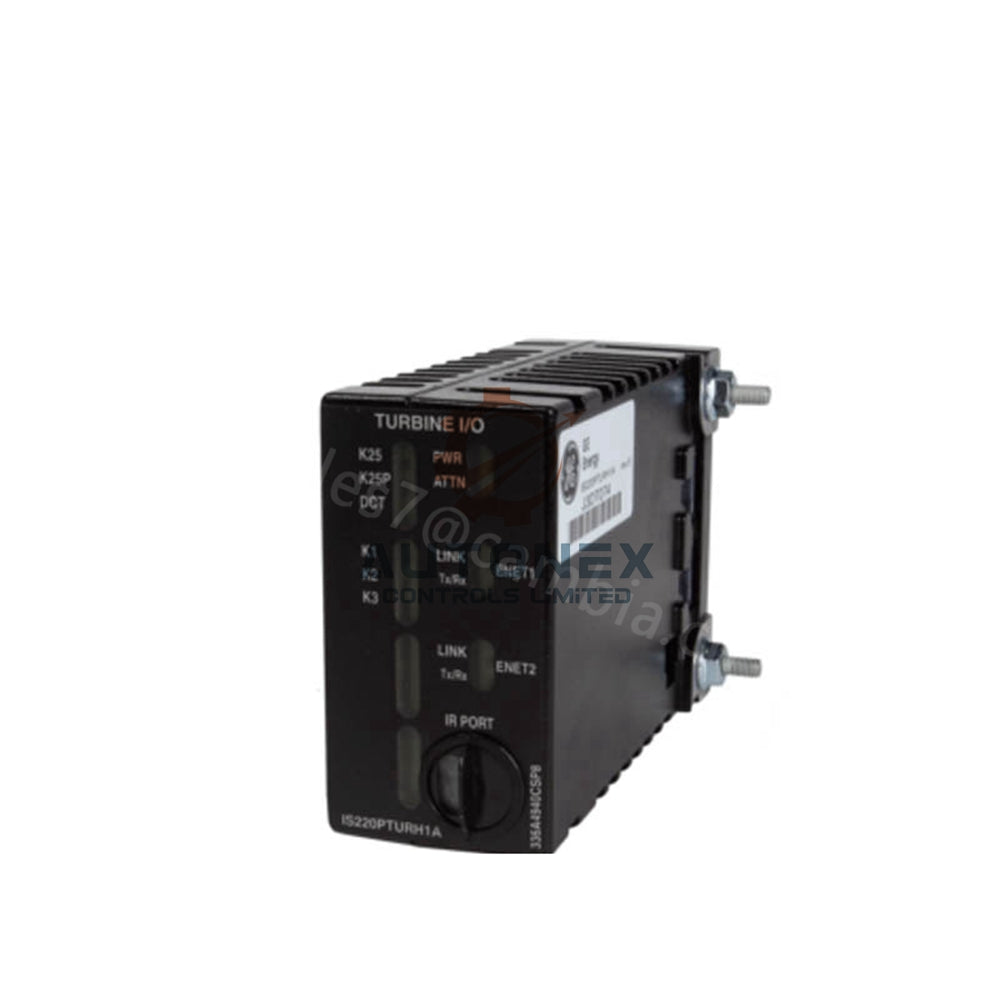

GE IS220PAOCH1B Analog Output Module | Mark VIe

GE IS220PAOCH1B Analog Output Module – Mark VIe Series

• Part Number & Revision: IS220PAOCH1B, Rev B – GE Mark VIe series.
• Output Channels: Eight simplex current outputs, 0–20 mA range, up to 900 Ohms load.
• Accuracy & Temperature: ±0.5% accuracy over -30°C to 65°C ambient.
• Physical Size: 8.26 cm high x 4.19 cm wide x 12.1 cm deep.
• Operating Environment: -30°C to 65°C (extended -40°C to 70°C external).
• Connectivity: Dual RJ45 Ethernet, 3-pin power, and DC-37 output connector.
• Diagnostics: LED indicators and infrared port for local communication.

Functional Overview of the IS220PAOCH1B Pack

• The IS220PAOCH1B acts as the electrical interface between the I/O network and analog terminal board.
• It uses a common processor board and a dedicated analog output acquisition board pair.
• Each output uses a 16-bit DAC to drive an external transistor amplifier for precise regulation.
• An internal temperature sensor monitors board temperature and alerts the control system.
• Mechanical normally-open relays enable or disable each output for added safety.
• Current feedback comes from a 16-bit ADC measuring across a 50-ohm resistor on the terminal board.

Compatibility and Control Modes for GE IS220PAOCH1B

• Simplex: Uses one I/O pack with one or two Ethernet ports – cost-effective for non-critical tasks.
• Dual: Two parallel packs with up to two Ethernet connections each – provides automatic failover.
• TMR (Triple Modular Redundant): Three packs with dedicated networks – 2-out-of-3 voting for highest integrity.
• The PAOCH1B is compatible with terminal board TBAOH1C and STAO board (not DTAO DIN-rail).

Technical Specifications – IS220PAOCH1B, Rev B

• Manufacturer: General Electric (GE) – Mark VIe series.
• Analog Outputs: 8 channels, 0–20 mA, 18V compliance, 900 Ohm max load.
• Resolution: 16-bit DAC per channel with 16-bit ADC for feedback.
• Accuracy: ±0.5% over full temperature range (-30°C to 65°C).
• Operating Temp (external): -40°C to 70°C (derating applies for dense layout).
• Minimum Load Impedance: Defined by series equivalent resistance on terminal board.
• Diagnostic LEDs: Visual status for each relay and communication health.

Installation and Packaging Information

• Mounting: The pack mounts directly to the terminal board via DC-37 connector.
• Network connections: Use dual RJ45 Ethernet ports for I/O network redundancy.
• Power input: 3-pin connector for 24V DC supply (refer to manual GEH-6721D).
• Package contents: One IS220PAOCH1B module, Rev B, with factory calibration.
• Documentation: Quick-start guide and reference to GEH-6721D manual.
• No additional cables or terminal boards included – order separately.
