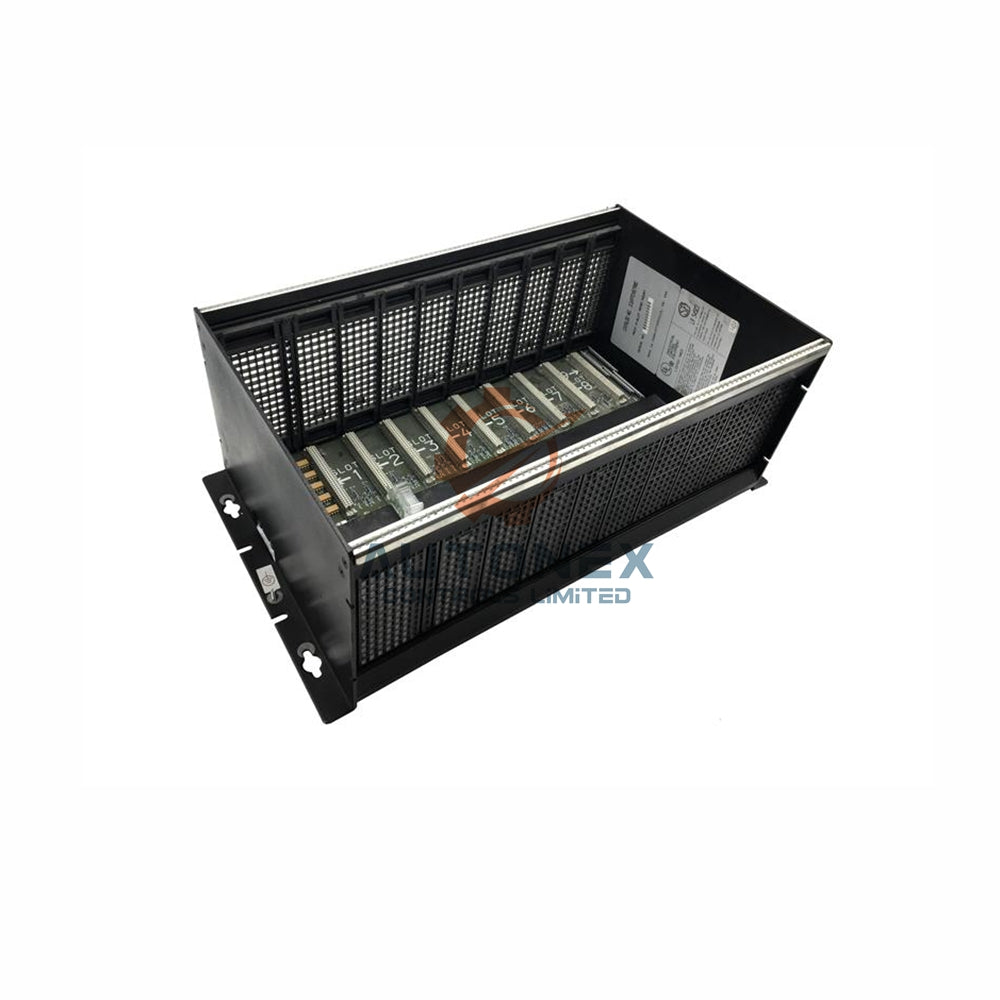

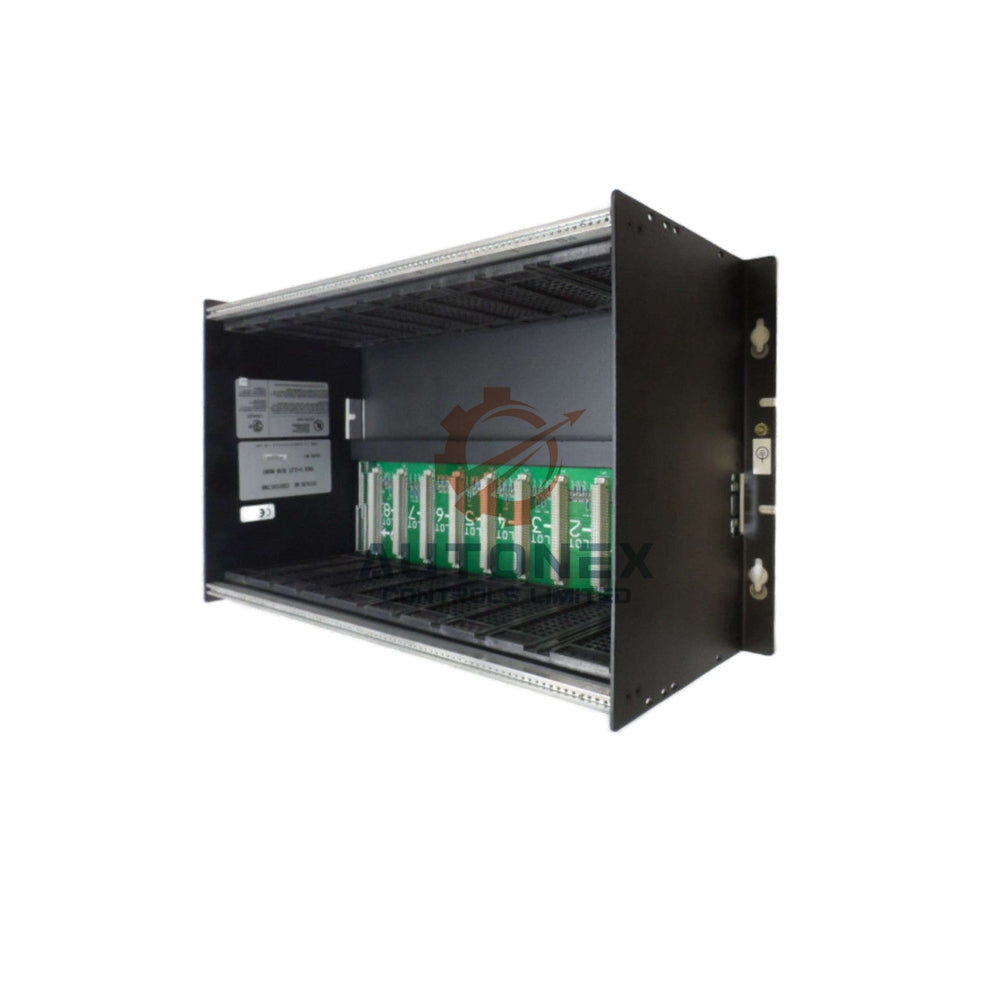

GE Fanuc IC697CHS782 VME Integrator Rack

GE Fanuc IC697CHS782 Series 90-70 VME Integrator Rack

Key Technical Specifications

• Brand: GE Fanuc
• Model: IC697CHS782
• Series: Series 90-70
• Description: VME Integrator Rack
• Total Slots: 17 Slots
• Slot Spacing: 0.8 inches (20.32 mm) centers
• Cooling Method: Convection Cooling (Optional Fan Assembly Available)
• Key Features: Slot Addressing, Shield Grounding, Mounting Flanges
• Compatibility: GE IC697 PLC Modules & Third-Party VME Modules
• Configuration: Requires backplane jumpers for setup.

Frequently Asked Questions (FAQ)

• Q: How many slots does the IC697CHS782 rack have?
  A: The IC697CHS782 is a high-density rack featuring 17 slots for maximum module capacity.
• Q: What is the slot spacing?
  A: Slots are spaced on 0.8-inch (20.32mm) centers, which is standard for VME and compatible modules.
• Q: Does it support modules from other manufacturers?
  A: Yes, it is designed to be compatible with both GE IC697 modules and third-party VME modules.
• Q: How is the rack cooled?
  A> It uses convection cooling. For high-power applications, an optional fan assembly can be added for active cooling.
• Q: What is required for initial configuration?
  A: You need to set a pair of jumpers on the rack's backplane to configure the slot addressing and system parameters.
• Q: What are the mounting requirements?
  A> You must install it using its mounting flanges and ensure adequate space around the unit for proper airflow.
