GE Fanuc IC694TBB032 Terminal Block | RX3i PACSystem

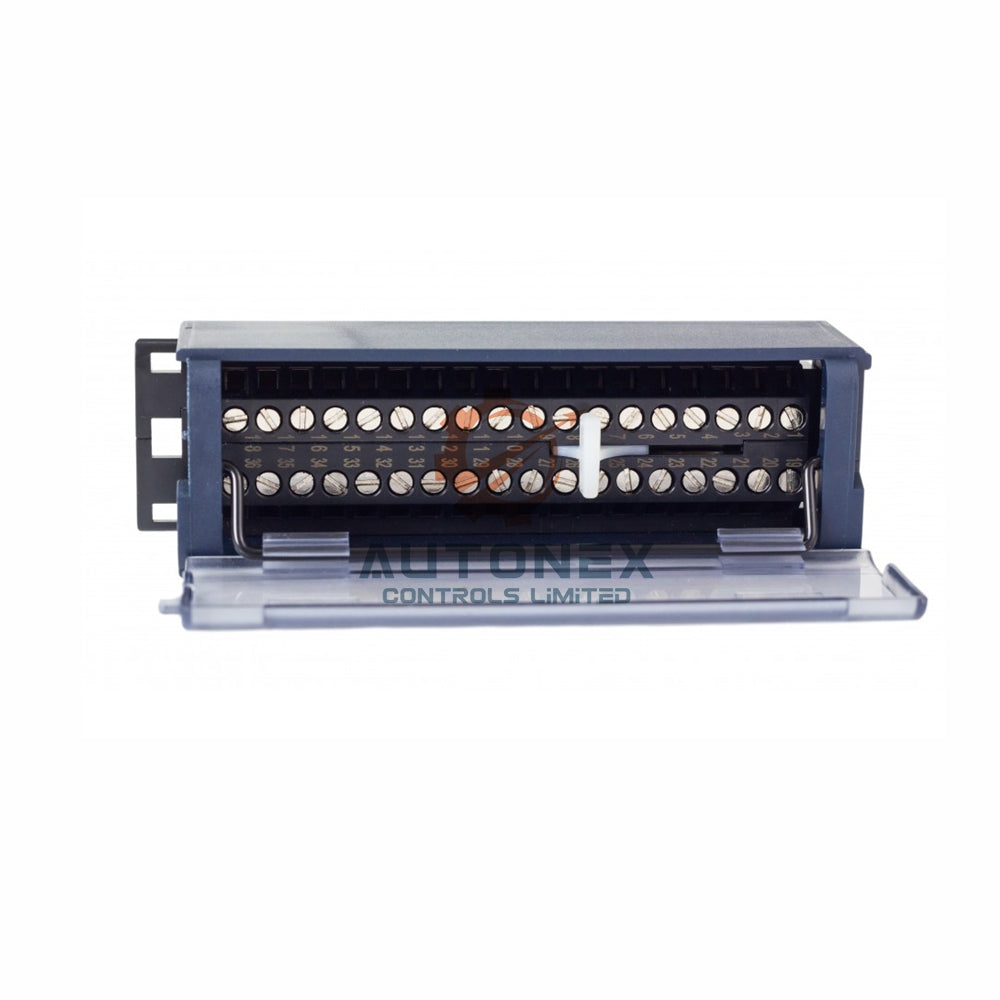

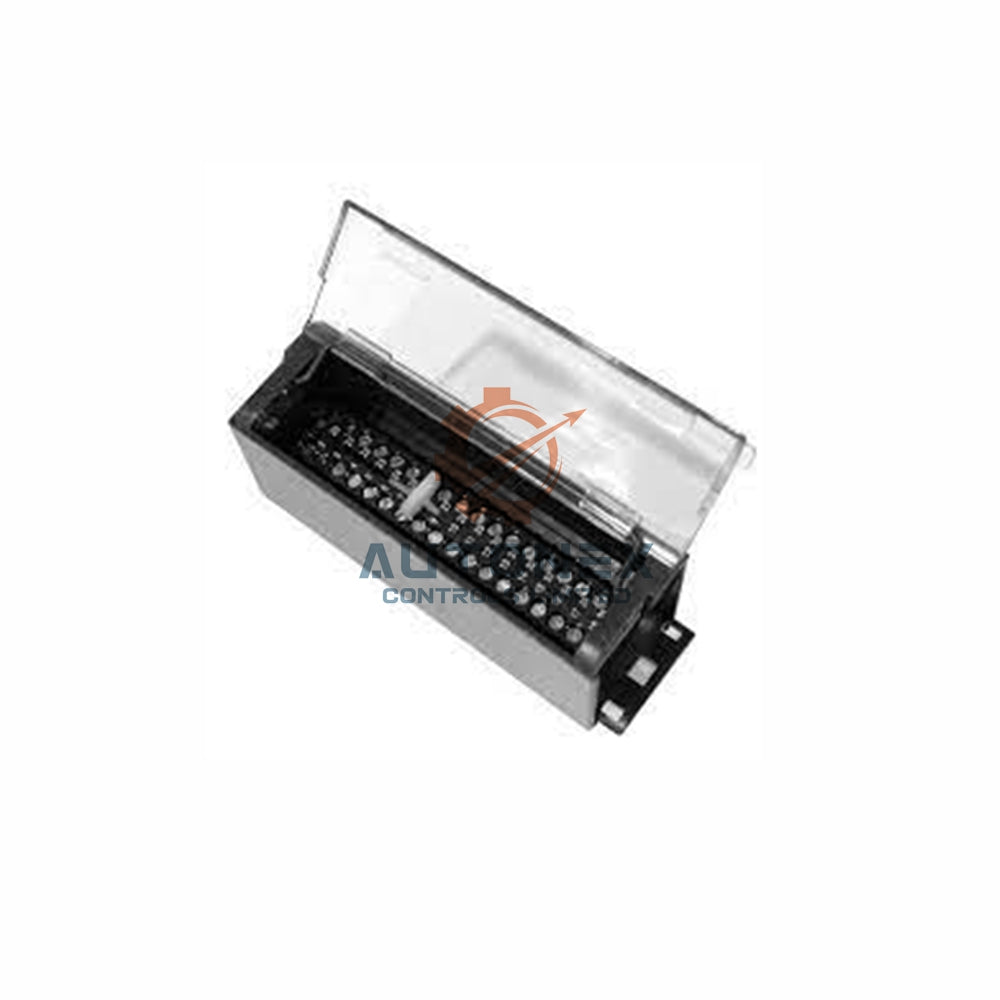

GE Fanuc IC694TBB032 High-Density Box Style Terminal Block Overview

• The IC694TBB032 terminal block accommodates #14 to 26 AWG solid or stranded copper wire, ensuring versatility for various field device connections.
• Each of the 36 screw terminals requires a specific tightening torque of 7 lb-in to guarantee a reliable and secure electrical connection.
• You must strip wires to a precise length of 0.310 inches (7.87 mm); a reference mark on the bottom of the block assists with accurate preparation.
• This component matches the depth of other PACSystem RX3i and Series 90-30 modules, maintaining a consistent and professional panel layout.
• While the terminal block supports hot swapping, we recommend removing power from the module when replacing the electronics to prevent any potential damage.

Technical Specifications and Mounting Details

• Brand and Manufacturer: This unit is a GE Fanuc part from the PACSystem RX3i series, ensuring genuine compatibility and reliable performance.
• Model and Type: The IC694TBB032 functions as a high-density, box-style interface for RX3i I/O modules.
• Electrical and Mechanical Data: It features 36 pins with a 7 lb-in tightening torque and supports a 14-26 AWG wire range for solid or stranded conductors.
• Environmental Tolerance: The block's high-strength construction provides reliable operation within standard industrial control panel temperatures when installed in a well-ventilated area.
• Installation Guide: To install, open the terminal door, push down the latch, and slide the block upwards until it clicks securely into place on the compatible module.

Compatible Modules and Physical Characteristics

• Compatible Hardware: Engineers commonly use the IC694TBB032 with PACSystem RX3i High-Density I/O modules and specific Series 90-30 equivalent modules.
• Dimensions and Weight: This component has a depth of 0.5 inches and a lightweight design at just 0.35 lbs, making it easy to handle during installation.
• Connection Quality: The screw-type terminals provide reliable, vibration-resistant connections, and the thicker outer cover insulation safely accommodates larger gauge wires.
• Design Feature: The block utilizes an open architecture at the rear and a protective front door, allowing for organized wiring and easy access for troubleshooting.

Frequently Asked Questions (FAQ)

• Q: What is the correct wire size for the IC694TBB032 terminal block?
  A: This terminal block accepts wire sizes ranging from #14 AWG to #26 AWG. You can use either solid or stranded copper wire types with this model.
• Q: How much torque should I apply to the screws on this terminal block?
  A: You must tighten each screw terminal to exactly 7 lb-in. This specific torque value ensures a proper connection without damaging the conductor or the block.
• Q: Can I use the IC694TBB032 with old Series 90-30 modules?
  A: Yes, this terminal block is compatible with individually isolated, 16-channel Series 90-30 modules, as well as modern RX3i high-density I/O modules.
• Q: What is the required wire strip length for termination?
  A: You need to strip the insulation from each wire to a length of 0.310 inches (7.87 mm). A guide on the bottom of the IC694TBB032 helps you measure this accurately.
• Q: Is this terminal block considered a new original part?
  A: Yes, we supply the IC694TBB032 as a brand-new, genuine component, not a refurbished or used unit.
