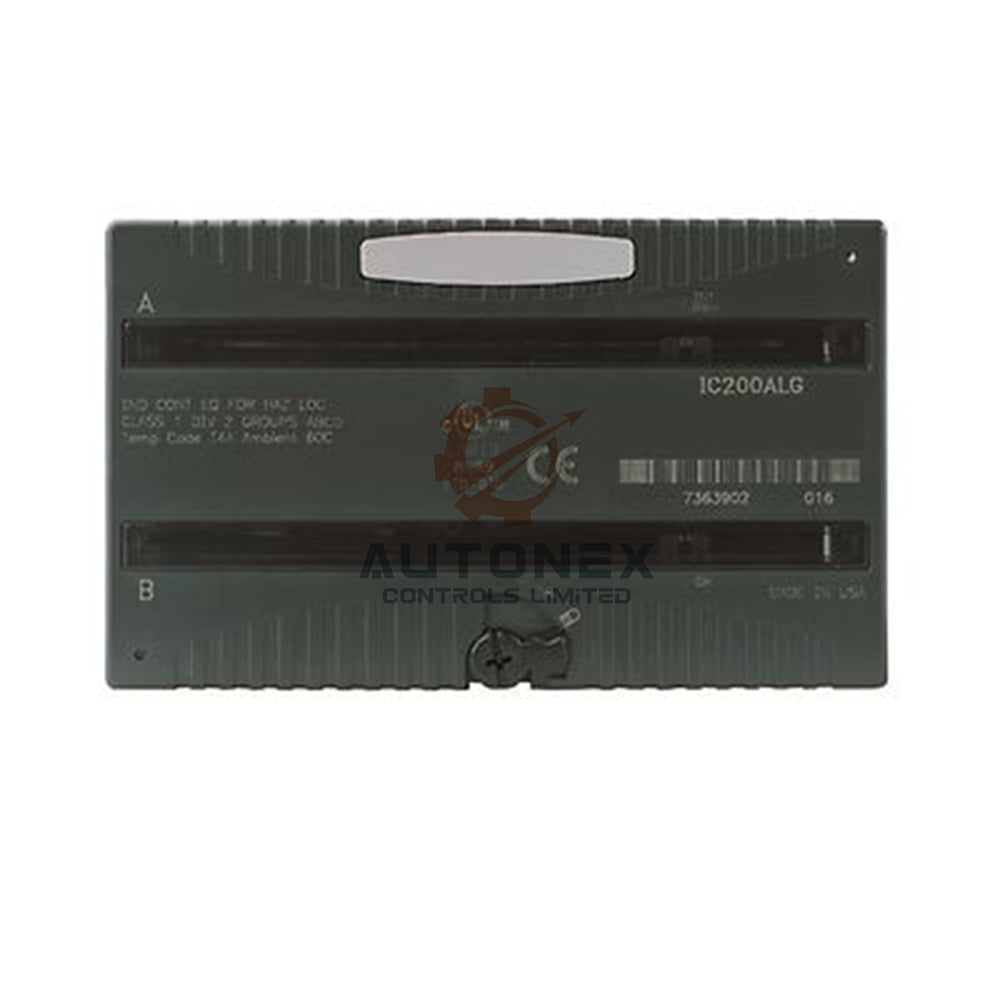

GE Fanuc VersaMax IC200ALG322 Analog Output Module

Key Product Features

• The module offers four independent single-ended analog voltage output channels.
• Advanced 12-bit resolution provides precise 2.5 mV step size for accurate control.
• Excellent channel separation with ≥70 dB crosstalk rejection prevents signal interference.
• Built-in diagnostic capabilities automatically detect user power supply failures.
• Clear LED indicators continuously display field power and module status information.
• Strong electrical isolation rated at 250 VAC continuous ensures operational safety.
• The unit supports resistive loads as low as 5000 Ohms for broad compatibility.

Technical Specifications

• Manufacturer and Model: This is a genuine GE Fanuc IC200ALG322 module.
• Product Series: The unit belongs to the versatile VersaMax automation family.
• Output Configuration: Four single-ended analog voltage output channels.
• Voltage Range: The module generates signals from 0 to 10.24 VDC.
• Signal Resolution: High-precision 12-bit resolution ensures accurate output control.
• Power Consumption: Maximum current draw of 160 mA at nominal voltage.
• Isolation Rating: 250 VAC continuous protection with 1500 VAC withstand capability.
• Status Indication: Two LED indicators for Field Power and OK status monitoring.

Performance Advantages

• The high 12-bit resolution delivers exceptional output signal accuracy.
• Minimal channel crosstalk ensures clean, independent output signals.
• Fast response time maintains synchronization with PLC and field devices.
• Comprehensive power loss detection provides immediate fault notification.
• Robust isolation protection safeguards against electrical noise and surges.
• Wide load compatibility supports various industrial devices and actuators.

Installation & Operation

• Simple integration into VersaMax PLC racks and automation systems.
• Straightforward wiring with single-ended output configuration.
• Clear visual status monitoring through dedicated LED indicators.
• Automatic fault detection enhances system reliability and maintenance.
• The module operates reliably in standard industrial environmental conditions.

Packaging & Shipping Information

• Each unit comes securely packaged in factory-fresh condition.
• Your shipment includes one complete GE Fanuc IC200ALG322 module.
• We process orders promptly and ship within five business days.
• We use reliable carriers including FedEx, UPS, and DHL for delivery.
• All products are covered by our standard 30-day return policy.

Frequently Asked Questions

• What is the output voltage range of the IC200ALG322?
  The module provides voltage outputs from 0 to 10.24 VDC.
• How many output channels does this module have?
  The IC200ALG322 offers four independent single-ended output channels.
• What is the resolution of the analog outputs?
  It features high 12-bit resolution with 2.5 mV steps.
• Do you guarantee the authenticity of your GE Fanuc products?
  Yes, we supply only 100% genuine new GE Fanuc equipment.
• What is your shipping time for this module?
  We typically ship all orders within five business days after payment confirmation.
