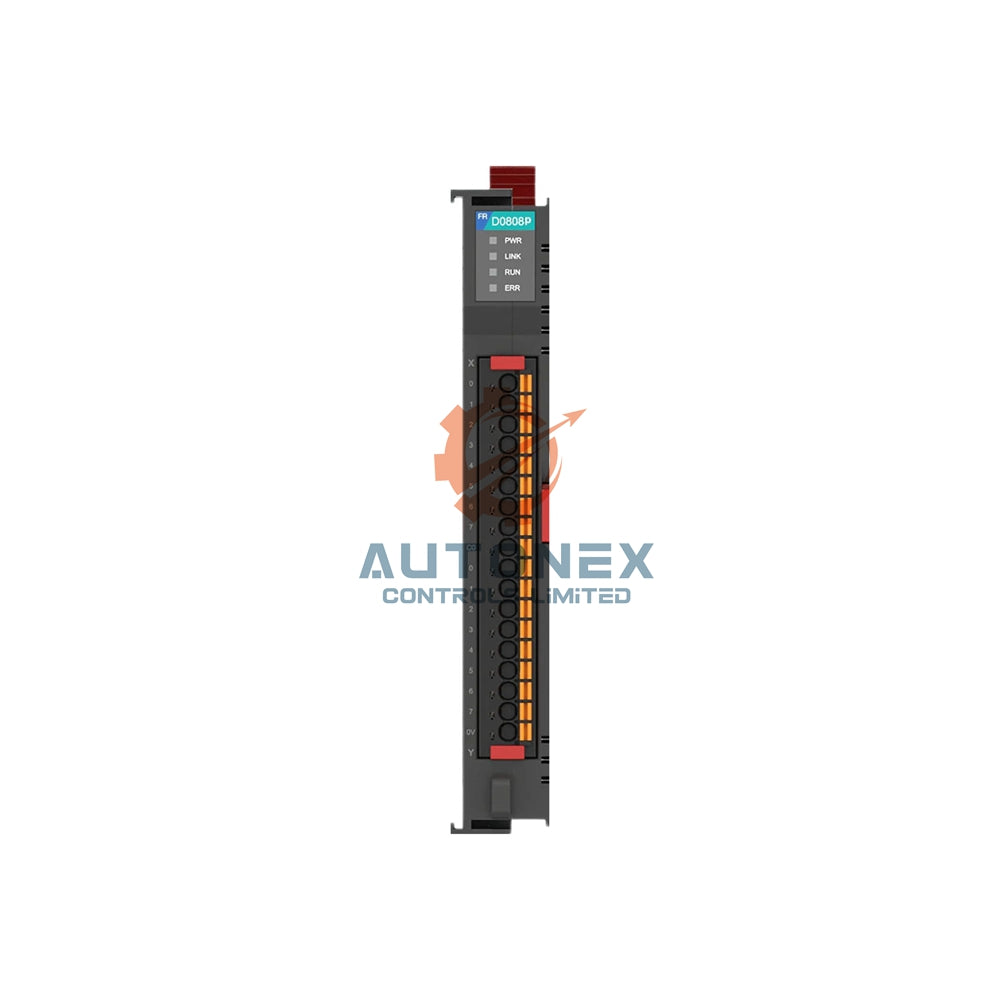

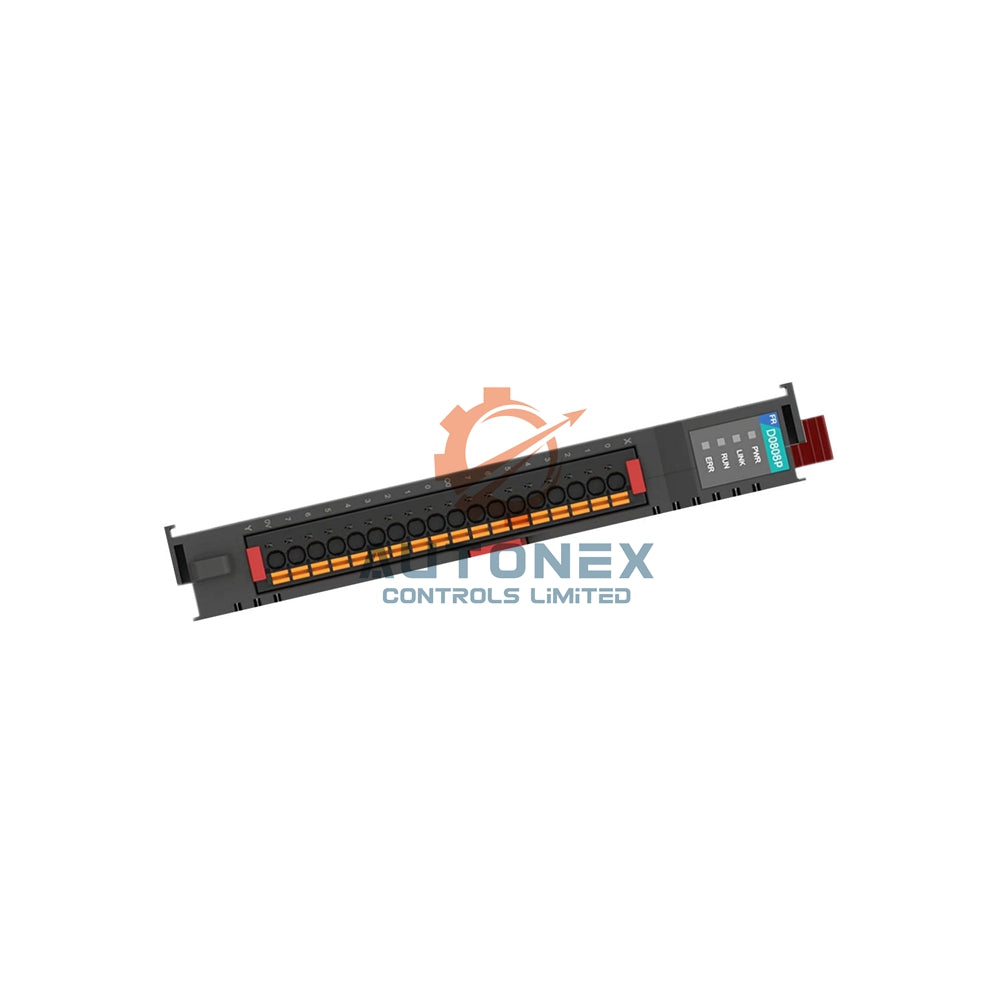

Flexem FR-D0808P 8-Channel Digital I/O Module

Flexem FR-D0808P Digital Mixed Input/Output Module Introduction

Technical Specifications

• Brand & Model: This unit is the Flexem FR-D0808P digital mixed module.
• Input Channels: It features 8 configurable bidirectional input points.
• Input Compatibility: All inputs support both NPN and PNP sensor types.
• Rated Input Voltage: The module operates at a standard 24VDC.
• Input Voltage Range: The input circuits handle a broad range from 0 to 28.8V DC.
• Input Current: Each input requires only 7mA at the rated voltage.
• Output Channels: The device provides 8 discrete output points.
• Output Type: All outputs are of the PNP transistor type (sourcing).
• Output Current Capacity: Each output can drive loads up to 0.5A.
• Current per Group: Total group current is 0.5A multiplied by active points.
• Module Dimensions: The compact size is 111mm x 18mm x 76mm (H*W*D).
• Product Weight: The module weighs just 65 grams.

Frequently Asked Questions (FAQ)

• Q: What is the main difference between the FR-D0808P and the FR-D0808N model?
  A: The key difference is the output type. The FR-D0808P has PNP (sourcing) outputs, while the FR-D0808N has NPN (sinking) outputs. The inputs are identical.
• Q: Can I connect both NPN and PNP sensors to the inputs at the same time?
  A: Yes, you can. The bidirectional input design allows mixing different sensor types on the same module.
• Q: What is the maximum total current for one output group?
  A: The group current rating is 0.5A multiplied by the number of active output points in that group. Please check your wiring configuration.
• Q: What is your return policy if the module does not fit my application?
  A: We offer a 30-day return policy for unused items in their original packaging.
• Q: Do you provide technical documentation for the FR-D0808P?
  A: Yes, we provide datasheets and manuals. Please contact our sales team for specific documents.

For pricing inquiries or technical specifications, please reach out to our sales department.
