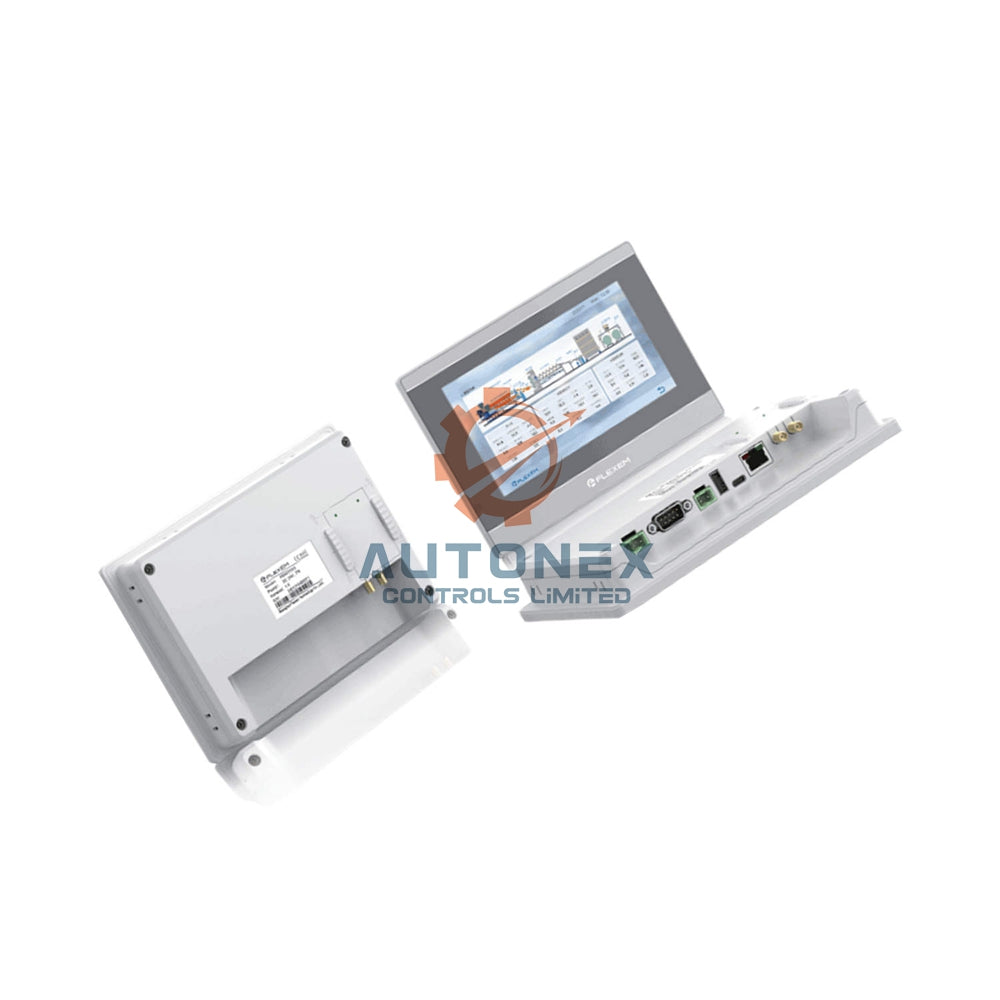

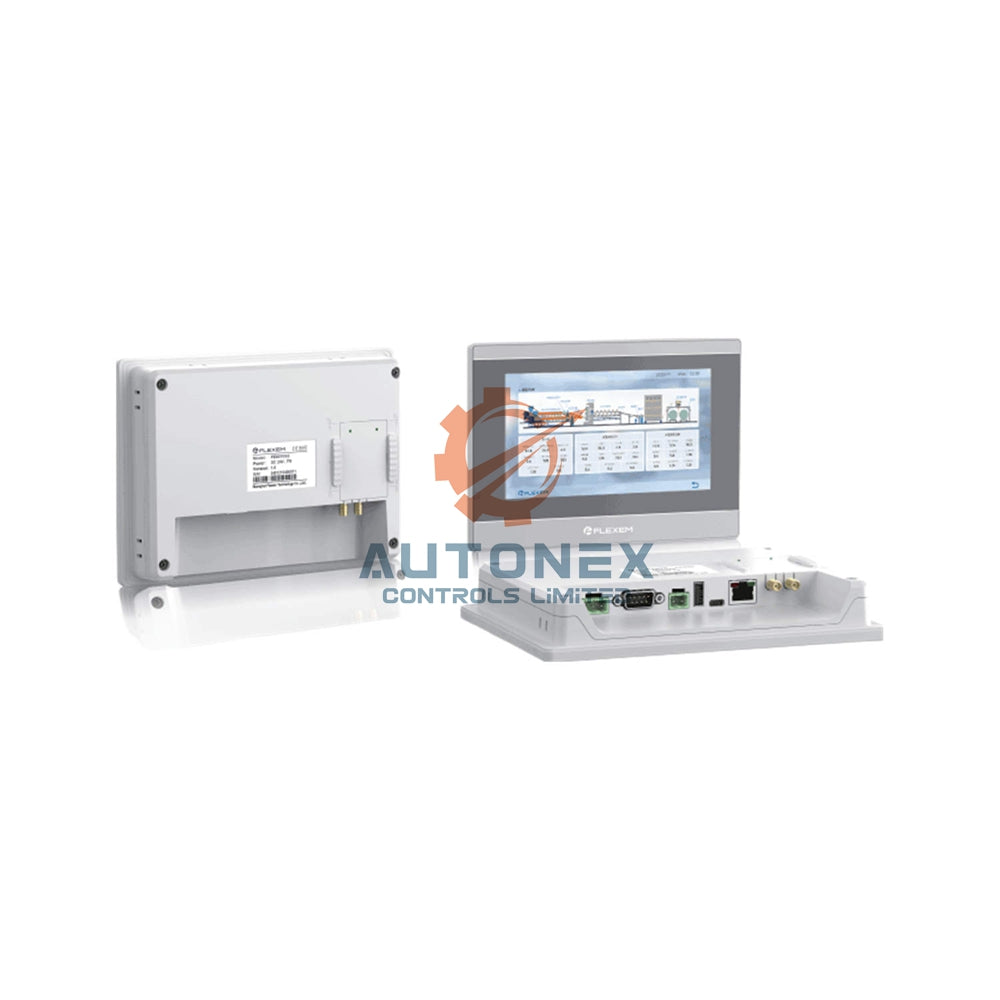

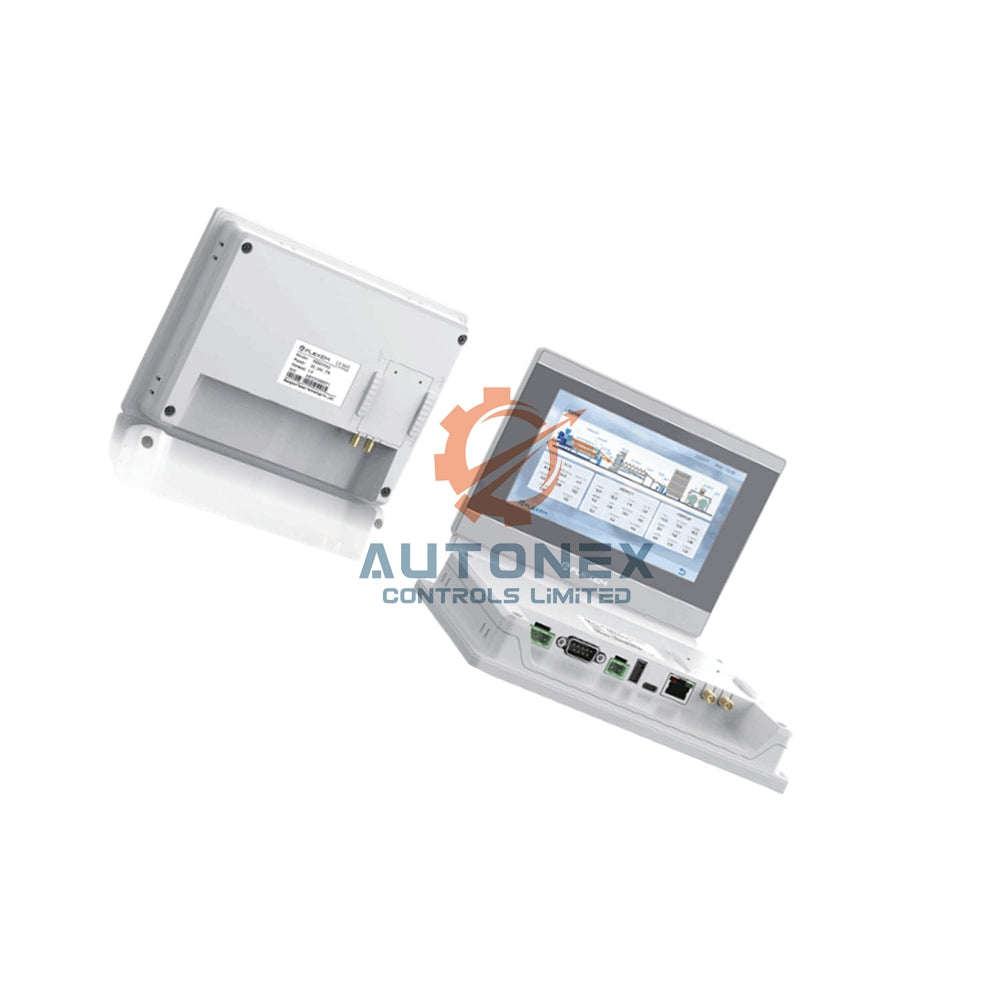

Flexem FE6370C HMI Touch Panel - 6300 Series

Flexem FE6370C: Enhanced HMI from the 6300 Series

Display & Touch Interface

• Brand & Model: Flexem FE6370C (6300 Series HMI).
• Display: 7-inch 16:9 TFT LCD screen with a 50°/70°/70°/70° viewing angle.
• Resolution: 800 x 480 pixel resolution with 24-bit color depth.
• Brightness & Backlight: 350 cd/m² brightness powered by an energy-efficient LED backlight.
• Lifetime: Long-life LCD rated for 50,000 hours of operation.
• Touch Panel: Standard 4-wire resistive touch screen for reliable input.

Power Specifications & Protection

• Rated Power: Low energy consumption, below 10 Watts.
• Input Voltage: 24V DC nominal, with a wide operating range from 9V to 28V DC.
• Power Protection: Integrated lightning surge protection for enhanced durability.
• Interruption Tolerance: Withstands brief power interruptions of less than 5 milliseconds.

Environmental Durability & Mounting

• Operating Temperature: Stable performance from 0°C to 50°C.
• Storage Temperature: Can be safely stored from -20°C to 60°C.
• Humidity: Operates in 10% to 90% relative humidity (non-condensing).
• Vibration Endurance: Withstands 10-25 Hz vibration at 2G for 30 minutes (X, Y, Z axes).
• Protection Rating: Front panel rated IP65 (dust-tight, protected against water jets); rear panel is IP20.
• Enclosure: Robust engineering plastic housing.
• Cutout Size: Precise panel cutout required: 190 x 136 mm (+1.5/-0.0mm tolerance).

Frequently Asked Questions (FAQ)

• Q: How does the FE6370C differ from the older 6000 series models?
  A: The FE6370C provides a faster dual-core CPU and larger 4GB eMMC storage compared to many 6000 series variants.
• Q: What is the screen resolution of this model?
  A: It features an 800 x 480 pixel resolution, suitable for clear display of machine data and interfaces.
• Q: Can I connect both a mouse and a USB drive at the same time?
  A: Yes, the separate Type-A and Type-C USB ports allow you to connect multiple peripherals simultaneously.
• Q: Does this HMI have an Ethernet port for networking?
  A: The FE6370C relies on its serial and USB ports for communication; it does not include a built-in Ethernet port.
• Q: What does the built-in RTC (Real-Time Clock) do?
  A: The RTC allows the HMI to keep accurate time for timestamping alarms, data logs, and scheduled events, even during a brief power loss.
• Q: Is the display suitable for wide viewing?
  A> The viewing angles are optimized (50°/70°/70°/70°), making it clearly visible from various operator positions on the factory floor.
