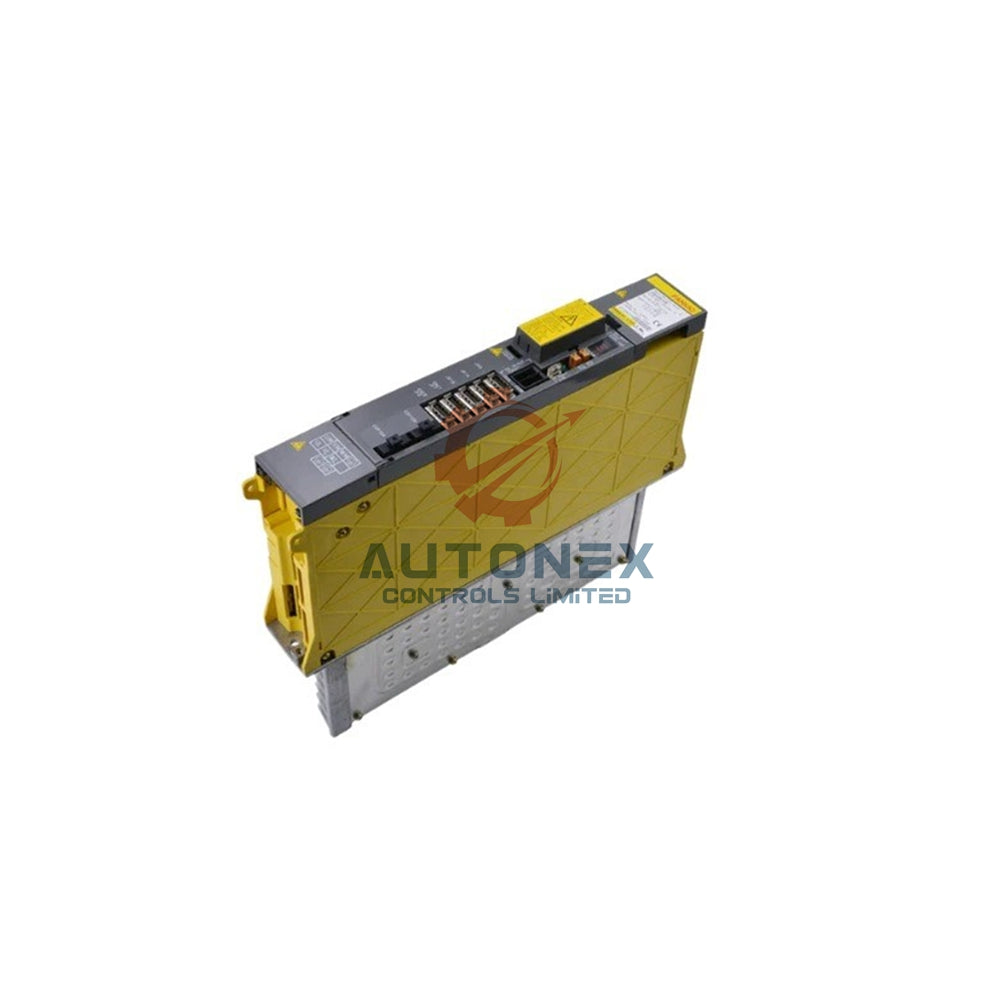

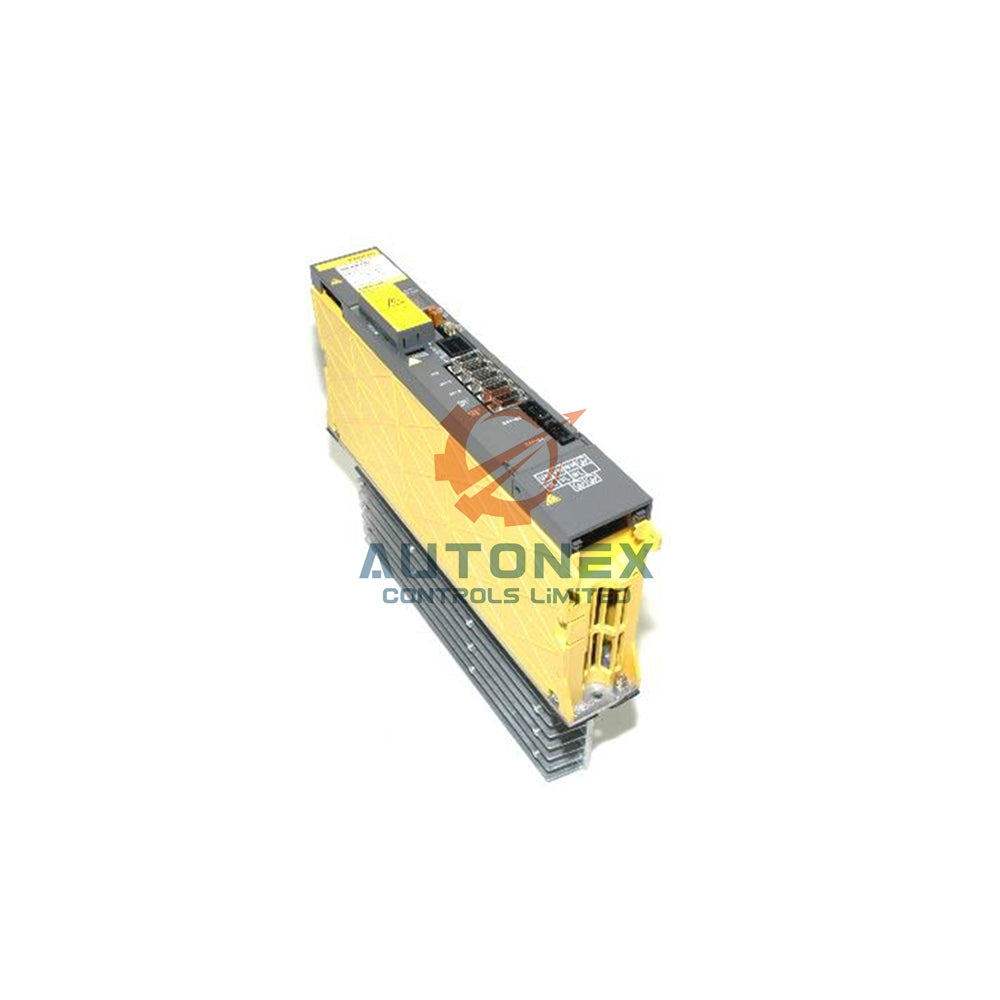

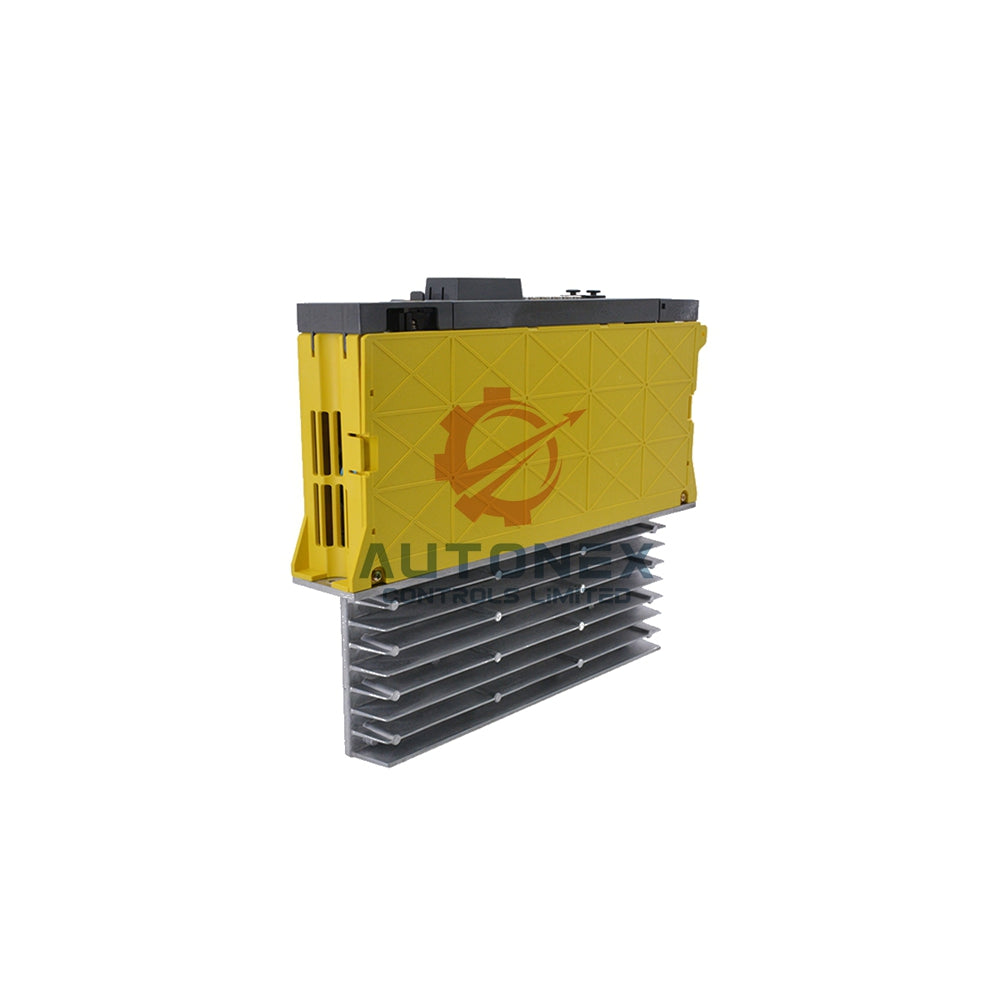

FANUC A06B-6096-H204 Servo Amplifier | 3-Phase 240V

FANUC A06B-6096-H204 High-Performance Servo Amplifier

Key Technical Specifications

• Manufacturer: FANUC · Product Series: A06B · Model: A06B-6096-H204 · Type: Servo Amplifier
• Power Supply: 3-Phase 200‑240V AC · Max Output Voltage: 240V AC · L-Axis Current: 3 Amps · M-Axis Current: 12.5 Amps
• Operating Temperature: 0 to 40°C · Environmental Rating: Withstands up to 5G vibration · Max Altitude: 1000m above sea level
• Dimensions: 380 x 150 x 250 mm (HxWxD) · Weight: 5.44 kg (12.00 lbs) · Cooling Method: Built‑in fan
• Control Support: Analog command and pulse-train input · Suitability: CNC machines, robotic axes, and general motion control

Environmental & Mechanical Robustness

• We design the A06B-6096-H204 to function reliably from 0 to 40 degrees Celsius, ensuring stable operation in typical factory conditions.
• It tolerates vibrations up to 5G, which protects the amplifier in high‑shock environments like heavy machining or robotic cells.
• Engineers rated this unit for altitudes reaching 1000 meters above sea level, so it works well even in elevated industrial sites.
• Fan cooling actively manages heat dissipation, allowing continuous duty cycles without performance degradation.

Frequently Asked Questions (FAQ)

• Is the FANUC A06B-6096-H204 brand new or refurbished? We supply only genuine, factory‑sealed new units. Every amplifier comes in its original packaging with no prior use.
• Do you have the A06B-6096-H204 in stock for immediate shipment? Yes, we maintain ample inventory. Orders typically ship within five business days after payment confirmation.
• Which logistics carriers do you use for this servo amplifier? We partner with FedEx, UPS, and DHL to offer express shipping. You can select your preferred courier at checkout.
• What is your return policy for this amplifier? We accept returns within 30 days of delivery. The unit must be unused and in its original packaging to qualify.
• Does this model support both analog and pulse control simultaneously? The A06B-6096-H204 handles one control mode at a time. You can configure it for either analog or pulse input depending on your application.
• What are the output current ratings for the L and M axes? L‑axis delivers 3 amps continuous, while M‑axis provides 12.5 amps continuous. These ratings suit medium‑power servo motors.
