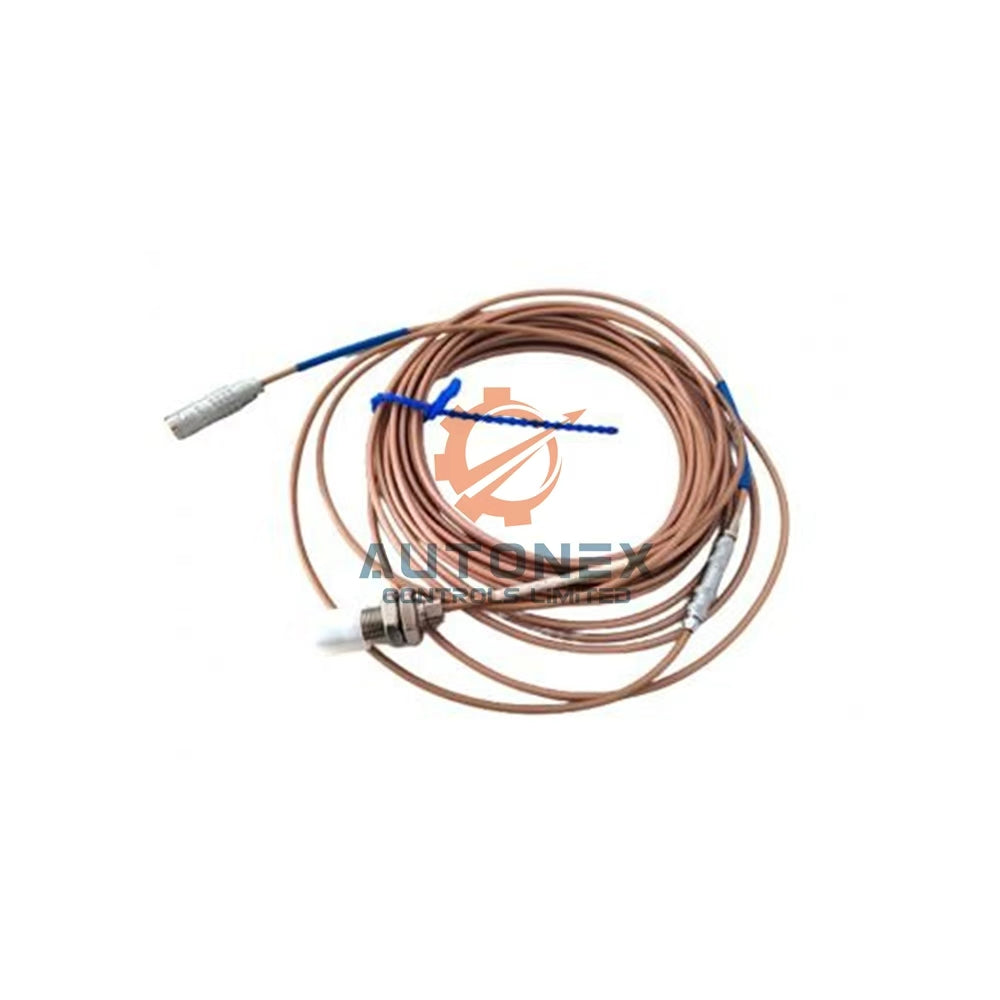

Emerson PR9268/30 - Horizontal Vibration Transducer

Emerson PR9268/30 Series: Horizontal Vibration Monitoring Expert

• Built for harsh industrial settings with robust, splash-proof design
• Specialized horizontal mounting for accurate lateral vibration measurement
• Ready for extreme conditions including radioactive environments
• Multiple configuration choices with armored cable options

Product Overview

The Emerson PR 9268/30 vibration transducer excels in horizontal vibration monitoring. Designed for tough industrial applications, this reliable sensor delivers precise data even in challenging conditions up to 100°C. Perfect for machinery protection where horizontal vibration analysis is critical.

Technical Specifications

Model Variant: PR 9268/30A-B00 with PR9268/303-000 suffix
Mounting Orientation: Horizontal specific design
Angular Tolerance: ±10° standard, ±30° with current adjustment
Temperature Capacity: -20°C to +100°C operational
Peak Temperature: 120°C for short durations (<4 hours)
Vibration Limit: 3000 µm peak-to-peak maximum
Acceleration Range: 10g continuous, 20g short-term
Frequency Coverage: 4 Hz to 1000 Hz full spectrum
Output Sensitivity: 28.5 mV/(mm/s) ±5% at 80 Hz
Cable Specification: 10-meter armored included
Connection Type: 6-pole Harting plug
Protection Class: IP55 rated

Installation Guidance

Ensure optimal performance of your PR 9268/30 transducer:
• Select rigid mounting hardware to minimize external vibration
• Verify environmental compatibility with temperature and chemicals
• Establish appropriate measurement ranges with operations team
• Implement proper cable management for signal integrity
• Conduct full functional testing before commissioning

Professional FAQ

What applications suit horizontal vibration sensors best?
Horizontal models like the PR 9268/30 are ideal for pumps, fans, and compressors where lateral movement monitoring provides crucial machinery health data.

How does armored cable benefit industrial installations?
The 10-meter armored cable resists physical damage, chemicals, and environmental stress, ensuring long-term reliability in plant conditions.

Can this sensor operate in specialized environments?
Yes, optional OPR or RAD versions feature PTFE-covered metal hoses for oil-proof performance or radioactive area compatibility.

What maintenance does the transducer require?
The PR 9268/30 series needs minimal maintenance—periodic visual inspection and connection checks ensure continuous reliable operation.

How quickly can we receive this equipment?
We ship immediately via FedEx, UPS, or DHL with comprehensive 12-month protection against material or workmanship issues.

Ordering & Service

Express Shipping: FedEx, UPS, DHL available worldwide
Package Details: 1200g total weight with protective packaging
Quality Assurance: 12-month comprehensive protection policy
Technical Support: Expert assistance for installation and operation
