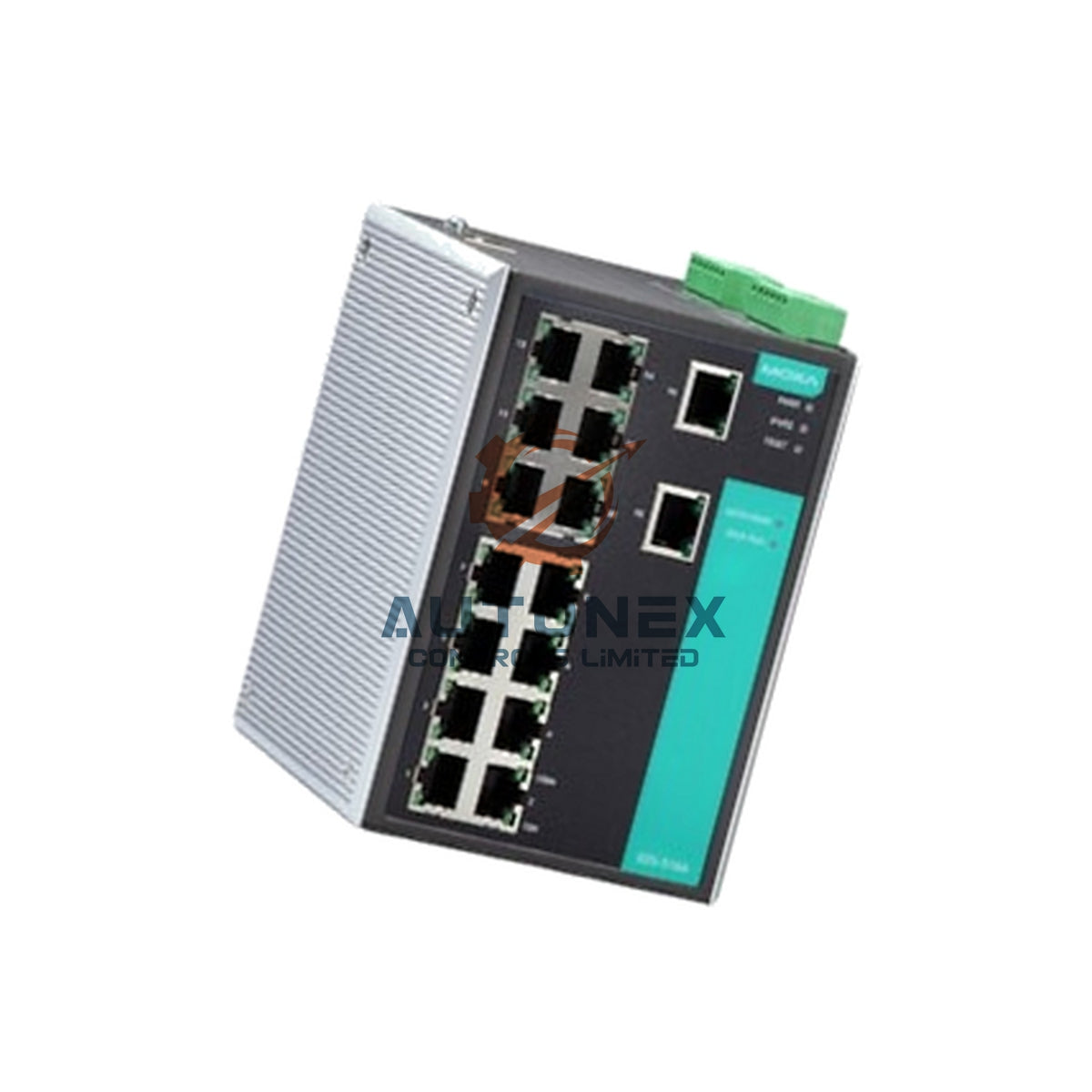

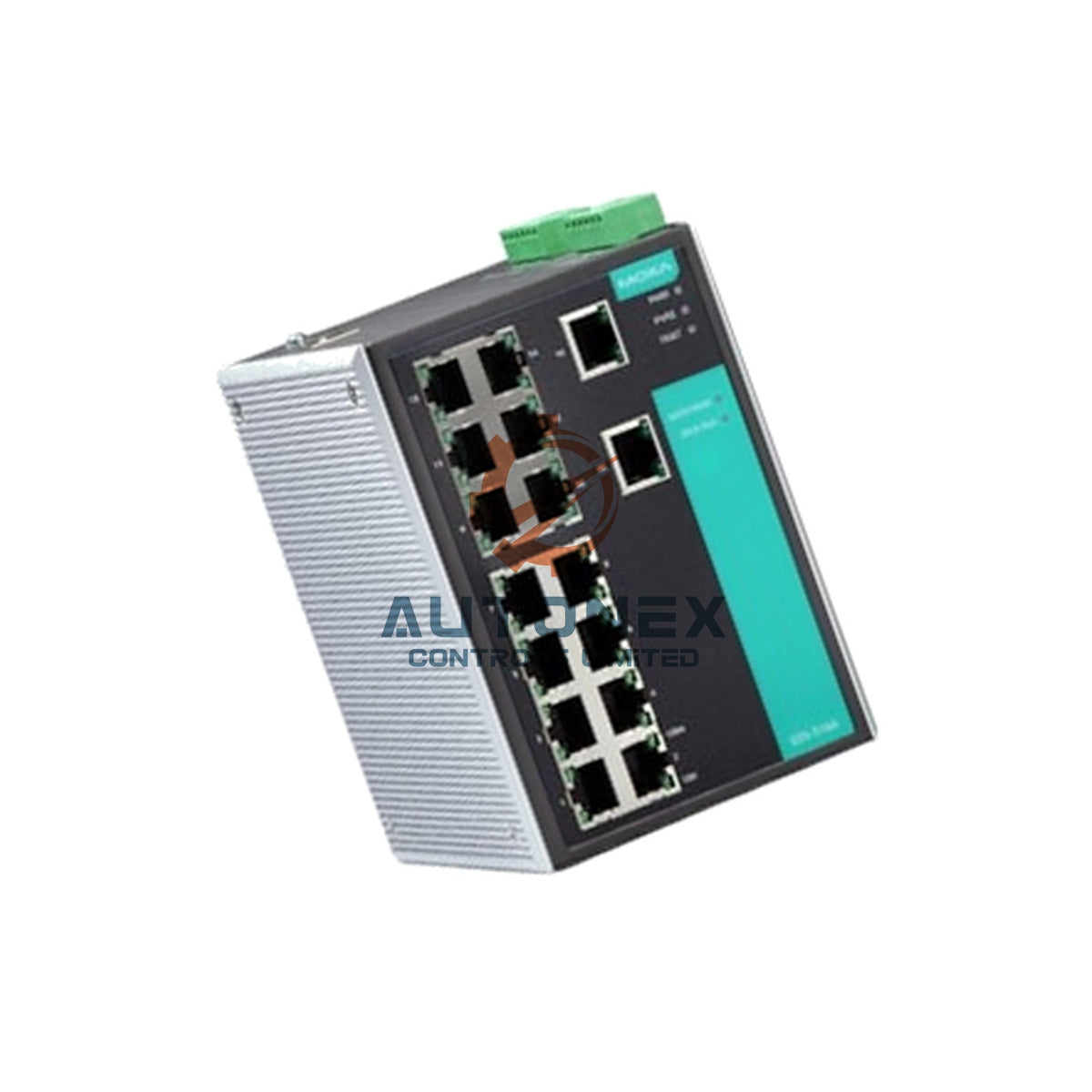

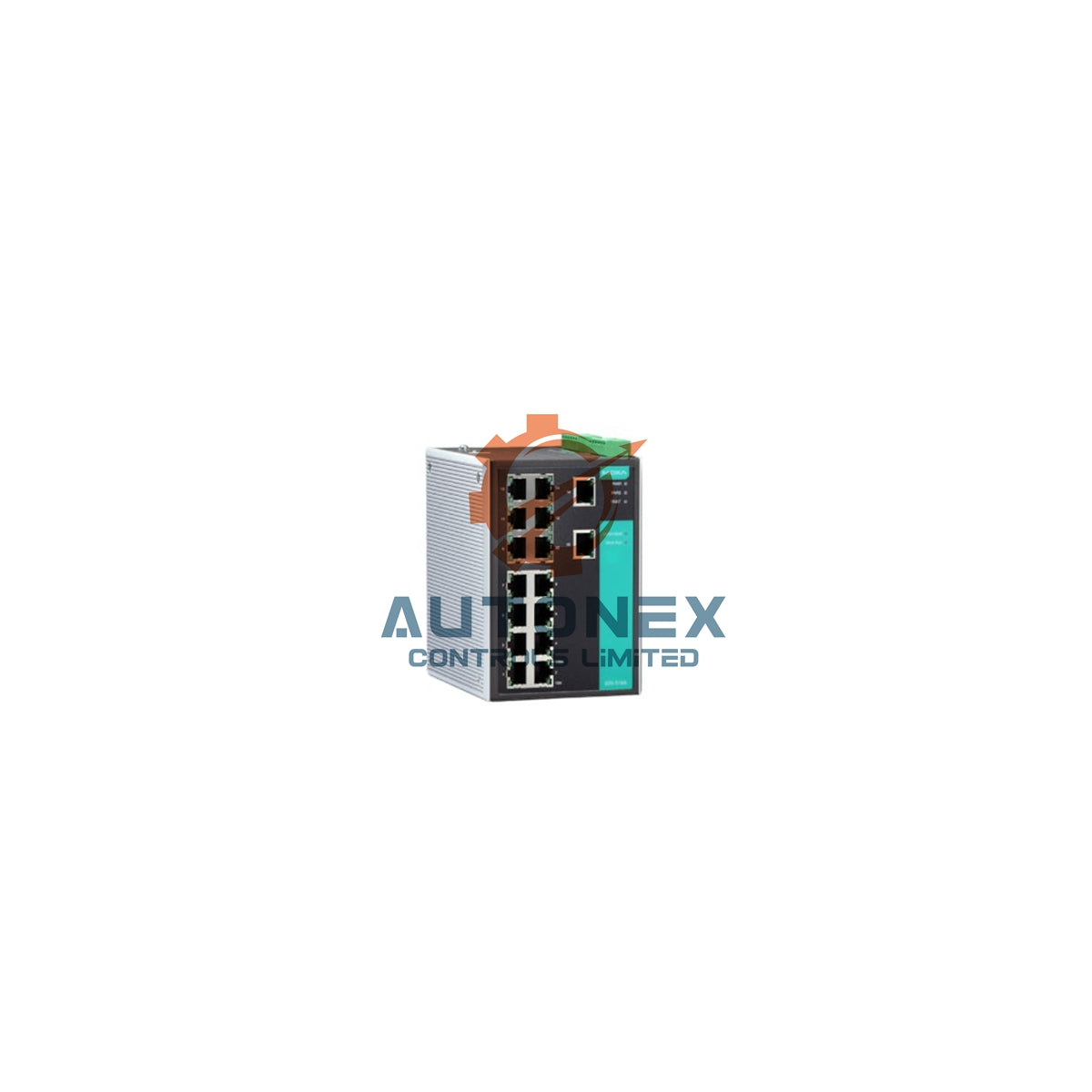

EDS-528E-4GTXSFP-LV Moxa Managed Industrial Switch

EDS-528E-4GTXSFP-LV Moxa Managed Industrial Ethernet Switch

Hardware Overview

• Brand: Moxa
• Model: EDS-528E-4GTXSFP-LV
• Series: EDS-528E Series
• Switch type: Managed Layer 2
• Form factor: DIN-rail mount
• Enclosure: Metal housing
• Protection rating: IP30

Port Specifications

• Ethernet ports: 24 × 10/100BaseT(X) RJ45
• Gigabit combo ports: 4 × 10/100/1000BaseT(X) or 100/1000BaseSFP
• Jumbo frame: 9.6 KB
• MAC table size: 16 K
• Packet buffer: 1 Mbits

Switching Performance

• Switching capacity: Not published in official datasheet
• MAC table size: 16 K entries
• Packet buffer: 1 Mbits
• MTBF: 774,632 hrs (Telcordia, GB)

Communication and Management

• Protocols: IEEE 802.3, 802.3u, 802.3z, 802.3ab, 802.3x, 802.1D, 802.1w, 802.1Q, 802.1p, 802.3ad
• Industrial protocols: EtherNet/IP, Modbus TCP, PROFINET IO Device
• Redundancy: Turbo Ring v1/v2, Turbo Chain, MRP, RSTP, MSTP, STP, Link Aggregation
• Management: Web, CLI, Telnet, serial console, MIB
• Network features: Bandwidth management, port mirroring
• Warning methods: Relay output and email alert

Electrical Characteristics

• Supply voltage: 12/24/48/-48 VDC with redundant dual inputs
• Operating voltage range: 9.6 to 60 VDC
• Input current: 0.47 A maximum at 24 VDC
• Power consumption: Not published in official datasheet

Environmental Tolerance

• Operating temperature: -10 to 60 °C
• Storage temperature: -40 to 85 °C
• Relative humidity: 5 to 95%, non-condensing
• Protection rating: IP30
• Anti-interference: Industrial EMC design supports stable operation

Physical Dimensions and Mounting

• Dimensions (H×W×D): 135 × 115.4 × 137 mm
• Weight: 1.85 kg
• Mounting: DIN-rail standard, wall mounting optional
• Enclosure material: Metal

Installation Guide

• Mount the switch on a DIN-rail or a wall with the optional kit.
• Connect the redundant power inputs to a 12/24/48/-48 VDC supply.
• Use shielded Ethernet cables for noisy industrial environments.
• Verify the operating voltage stays between 9.6 and 60 VDC.
• Configure redundancy and management through the web interface or CLI.
• Check relay and email alerts after the initial power-up.

Package List

• 1 × EDS-528E-4GTXSFP-LV switch
• 1 × DIN-rail mounting kit
• 1 × Quick installation guide
• 1 × Protective caps for unused ports
• 1 × Documentation note

Shipping and Support

• Stock: We keep this model in stock for immediate order processing.
• Dispatch: We ship within 5 days after order confirmation.
• Couriers: FedEx, UPS, and DHL are available.
• Returns: We support 30-day return service.
• Condition: All units are brand new and original.

FAQ

• Q: What is the operating temperature range of the EDS-528E-4GTXSFP-LV?
  A: The switch operates from -10 to 60 °C.
• Q: How many Gigabit ports does this model provide?
  A: It provides 4 Gigabit combo ports with RJ45 or SFP options.
• Q: Does the EDS-528E-4GTXSFP-LV support redundant power inputs?
  A: Yes, it supports redundant dual inputs from 12/24/48/-48 VDC.
• Q: What redundancy protocols does the EDS-528E Series support?
  A: It supports Turbo Ring v1/v2, Turbo Chain, MRP, RSTP, MSTP, and STP.
• Q: Is the switch managed or unmanaged?
  A: It is a Layer 2 managed industrial Ethernet switch.
• Q: What is the MAC table size?
  A: The MAC table size is 16 K entries.
• Q: How long is the MTBF?
  A: The MTBF is 774,632 hours under Telcordia, GB.
• Q: What shipping methods do you offer?
  A: We ship by FedEx, UPS, and DHL.
