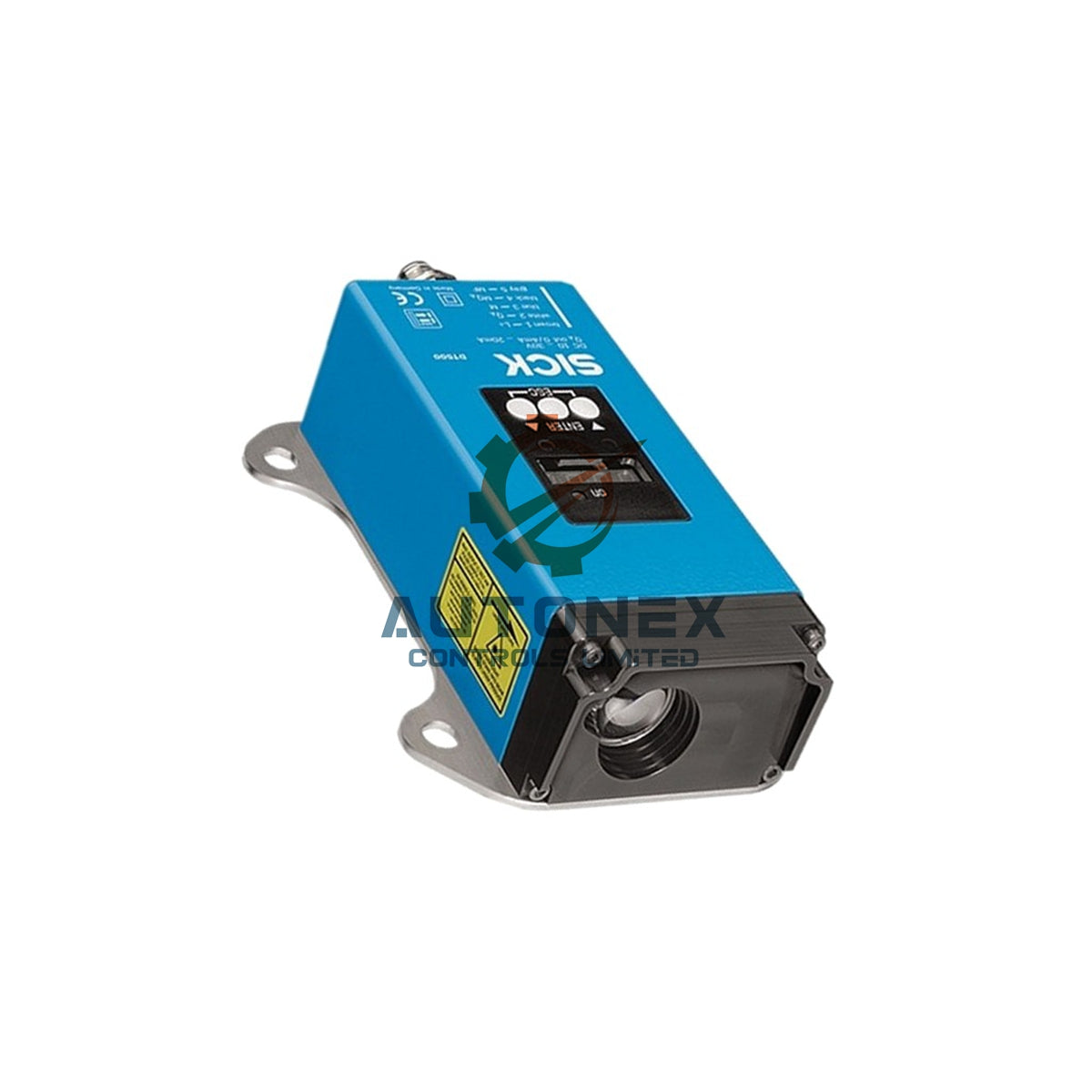

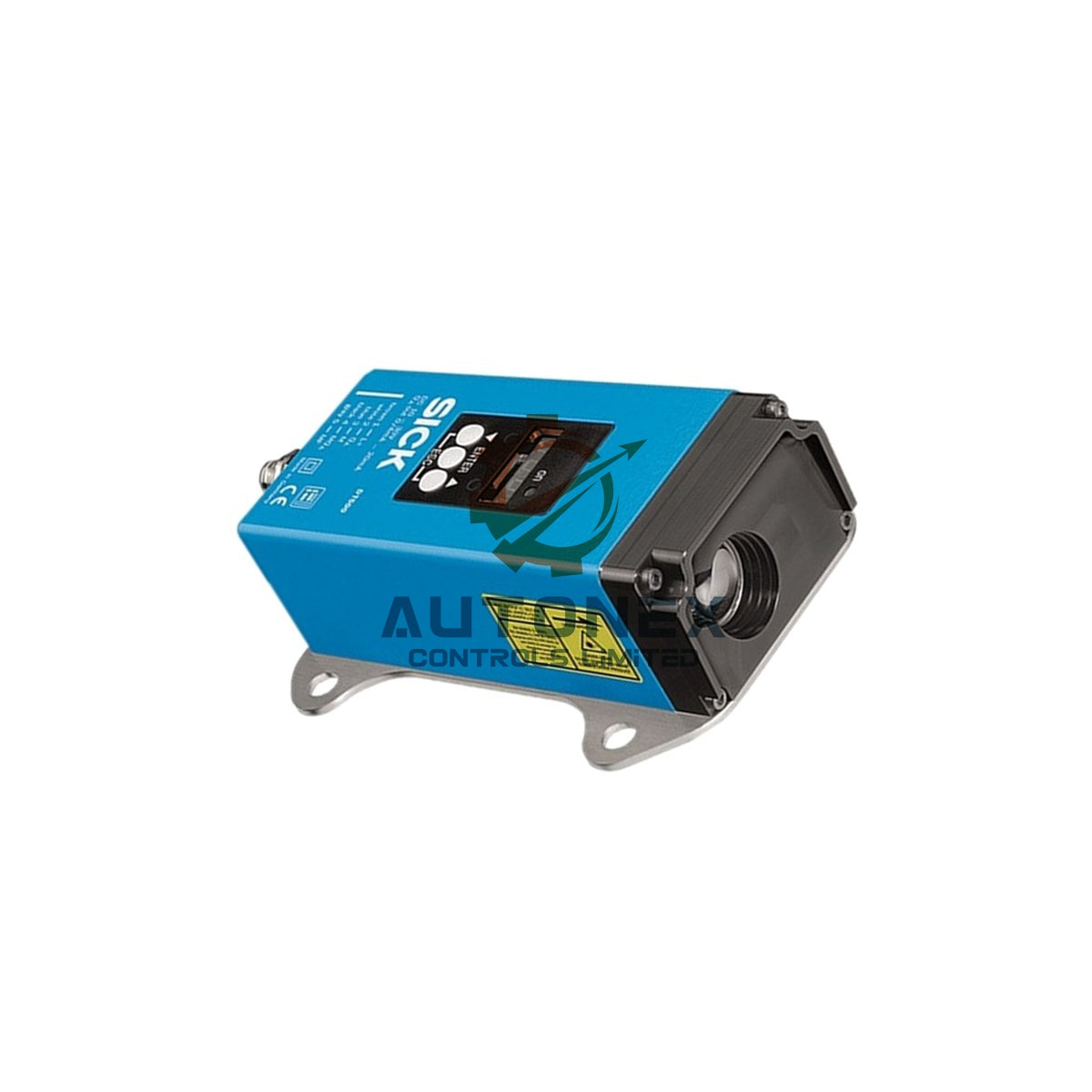

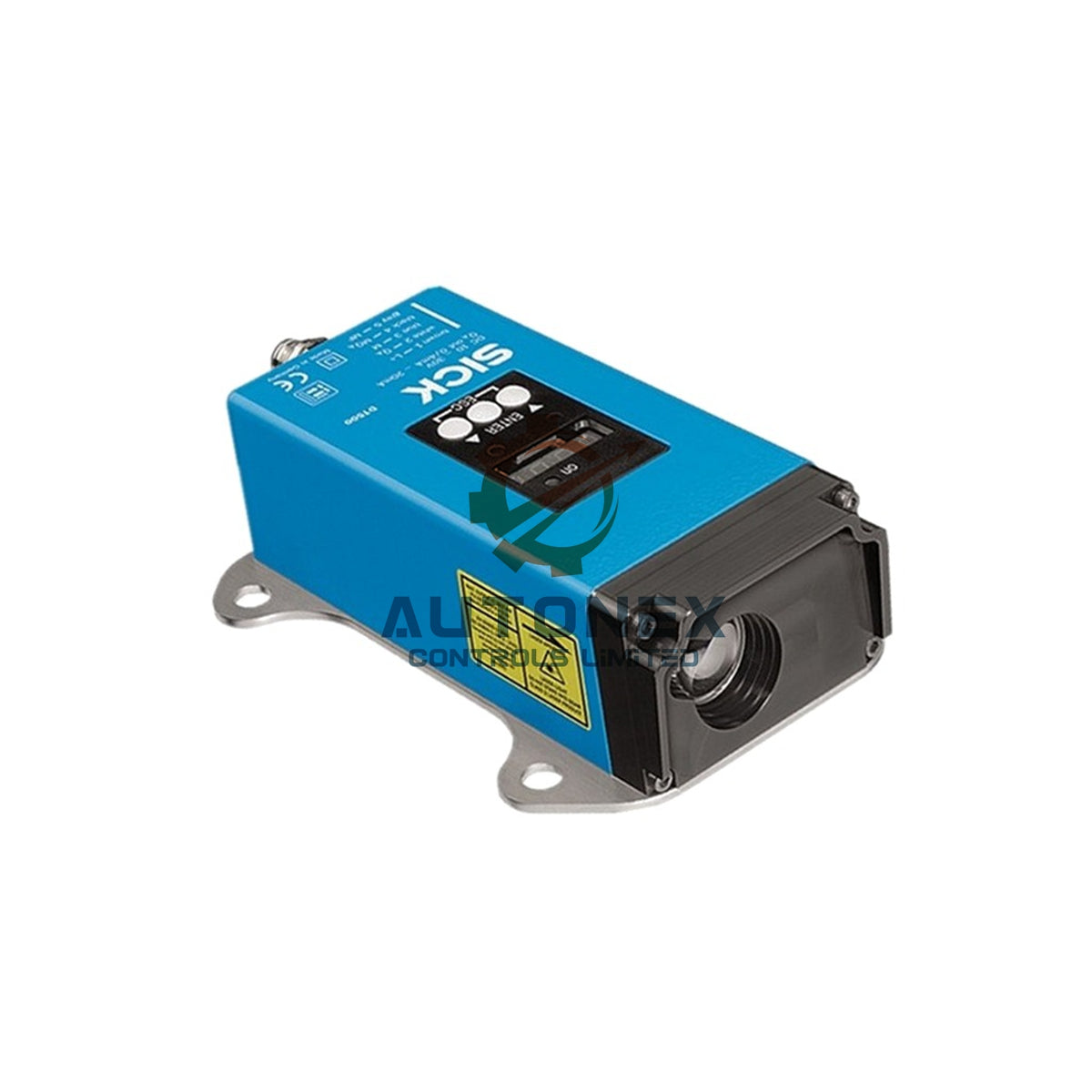

DT500-A511 SICK Long Range Distance Sensor 70 m

DT500-A511 SICK Long Range Distance Sensor – 70 m Laser Measurement

Key Technical Specifications

• Brand: SICK
• Model: DT500-A511
• Category: Long Range Distance Sensors
• Measuring range: 0.2 m to 70 m at 90% remission
• Measuring range: 0.2 m to 30 m at 6% remission
• Target: Natural objects
• Resolution: 12 bit
• Repeatability: 1 mm
• Measurement accuracy: ± 3 mm
• Response time: 150 ms to 6,000 ms
• Output time: 150 ms to 6,000 ms

Laser and Optical Data

• Light source: Laser, red
• Type of light: Visible red light
• Typical light spot size: 10 mm at 7 m
• Typical light spot size: 45 mm at 30 m
• Typical light spot size: 100 mm at 70 m
• Normative reference: IEC 60825-1:2014, EN 60825-1:2014
• Laser class: Class 2

Safety and Electrical Parameters

• MTTFD: 101 years
• DCavg: 0%
• Analog output: 1 current output, 0 mA to 20 mA
• Multifunctional input: PNP
• Laser-off input: > 12 V
• Supply voltage: DC 10 V to 30 V, reverse polarity protected
• Supply voltage with heating: UV ≥ DC 24 V
• Power consumption: Typical 3 W
• Ripple: 5 Vpp
• Initialization time: 500 ms
• Enclosure rating: IP65
• Protection class: II

Mechanical and Environmental Data

• Dimensions: 69 mm x 50 mm x 153 mm
• Housing material: Metal, aluminum die cast
• Window material: Glass
• Weight: 1,000 g
• Operating temperature: –10 °C to +45 °C
• Operating temperature with cooling case: –10 °C to +75 °C
• Storage temperature: –25 °C to +75 °C
• Temperature drift: Typical 0.05 mm/K
• Ambient light immunity: ≤ 3,000 lx
• Mechanical load: Shock EN 60068-2-27 / –2-29
• Mechanical load: Sine EN 60068-2-6
• Mechanical load: Noise EN 60068-2-64
• EMC: EN 61000-6-2 / EN 61000-6-3

Installation Guide

• Mount the sensor on a stable bracket to avoid vibration and misalignment.
• Keep the glass window clean and free from dust, oil, or water drops.
• Align the red laser beam perpendicular to the target surface for best accuracy.
• Respect the supply voltage range of DC 10 V to 30 V during wiring.
• Use the PNP multifunctional input to control the laser-off function when needed.
• Allow 500 ms initialization time after power-up before reading the output.
• Operate within –10 °C to +45 °C, or use a cooling case up to +75 °C.

Package List

• 1 x SICK DT500-A511 long range distance sensor
• 1 x Male connector
• 1 x Quick start guide
• 1 x Protective packaging

Shipping and Support

• We keep this model in stock and ship it within 5 days.
• We use FedEx, UPS, and DHL for fast international delivery.
• We support 30-day returns for your peace of mind.
• All units are brand new and original.

FAQ

• Q: What is the maximum measuring range of the DT500-A511?
  A: It reaches 70 m with 90% remission and 30 m with 6% remission.
• Q: What is the measurement accuracy?
  A: The sensor delivers ± 3 mm accuracy with 1 mm repeatability.
• Q: What output does this sensor provide?
  A: It offers one current output from 0 mA to 20 mA.
• Q: What is the response time?
  A: You can set the response time from 150 ms to 6,000 ms.
• Q: What is the operating temperature range?
  A: It works from –10 °C to +45 °C, or up to +75 °C with a cooling case.
• Q: What is the laser class?
  A: The DT500-A511 uses a Class 2 red laser according to IEC 60825-1:2014.
• Q: Is the sensor in stock?
  A: Yes, we have it in stock and ship within 5 days.
• Q: Do you support returns?
  A: Yes, we support 30-day returns.
