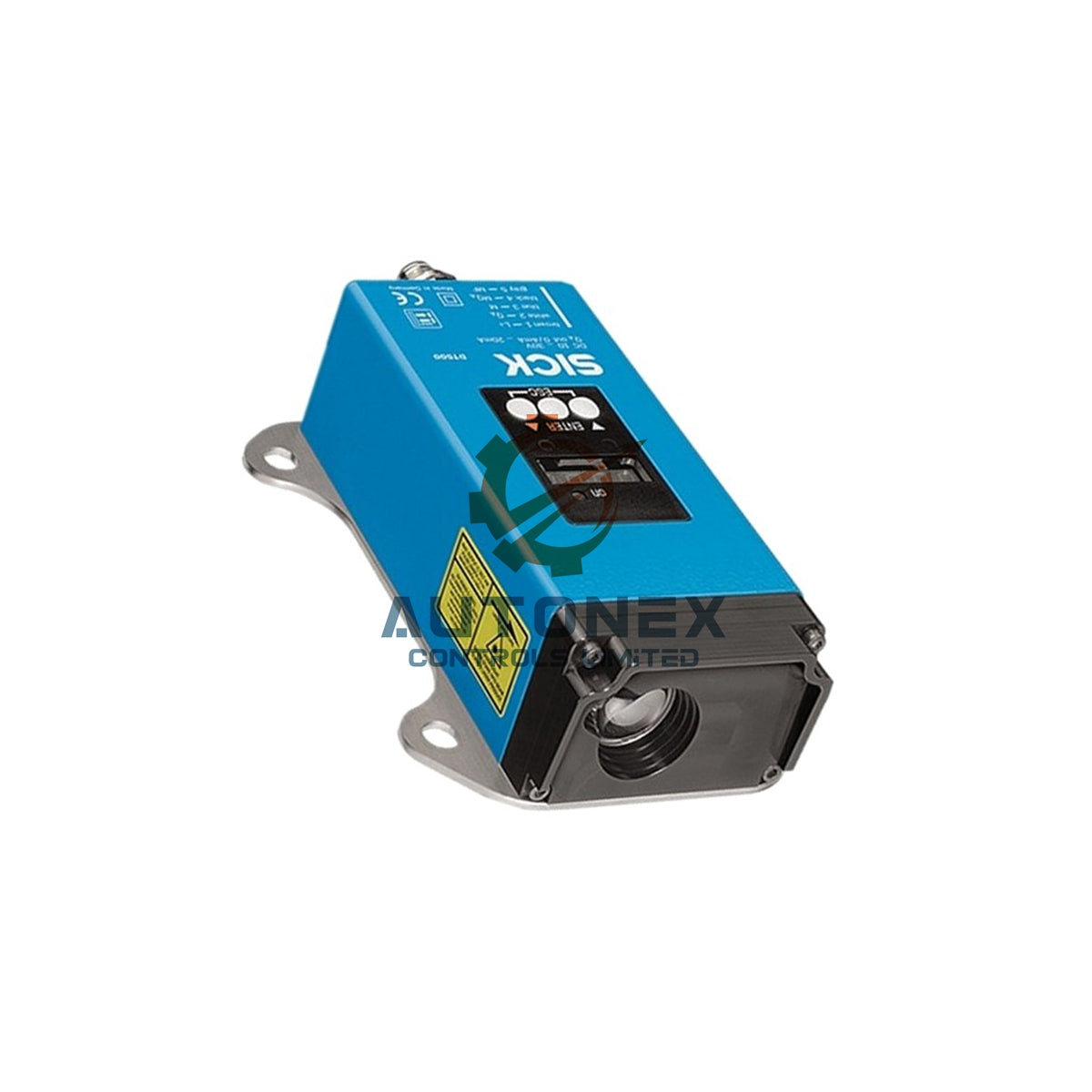

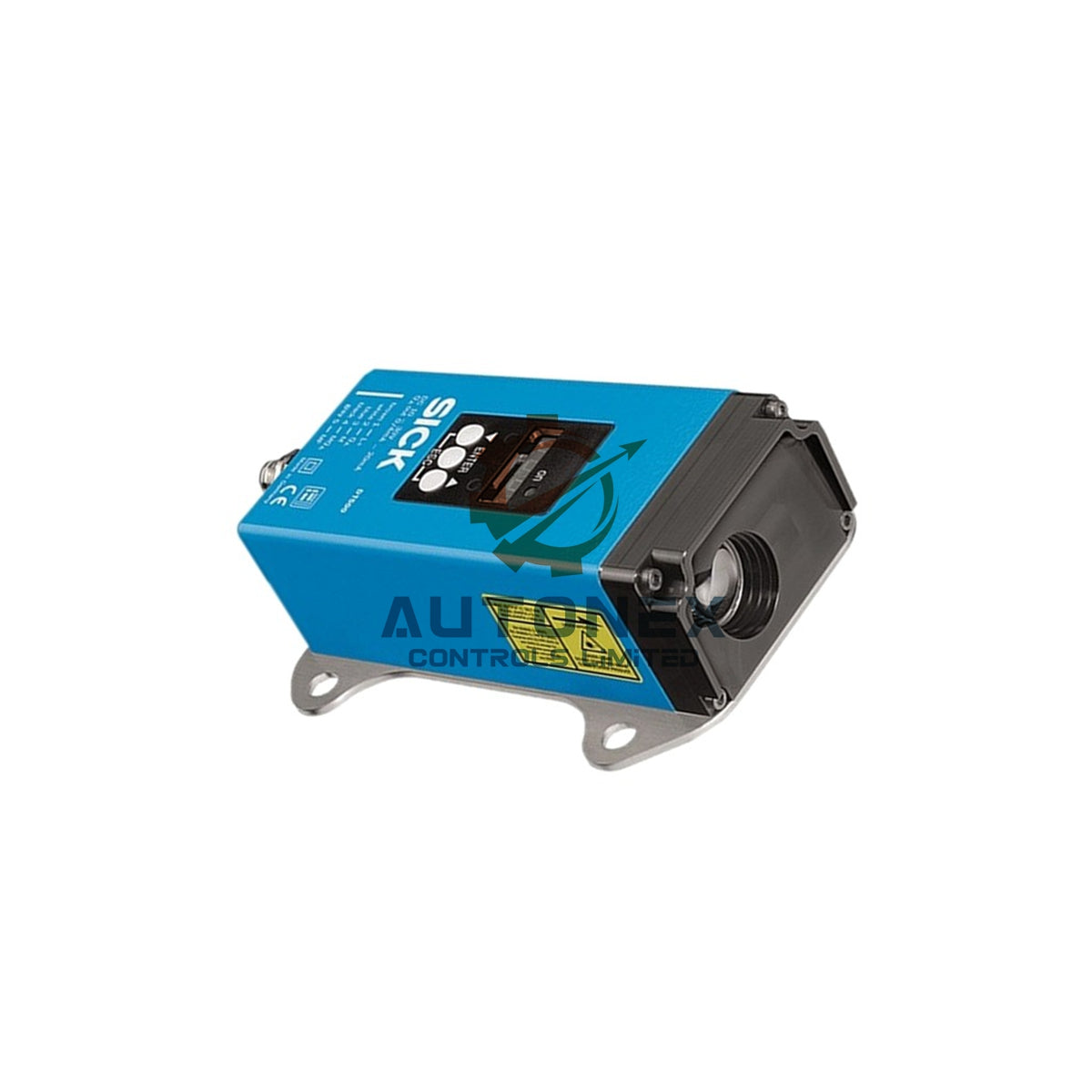

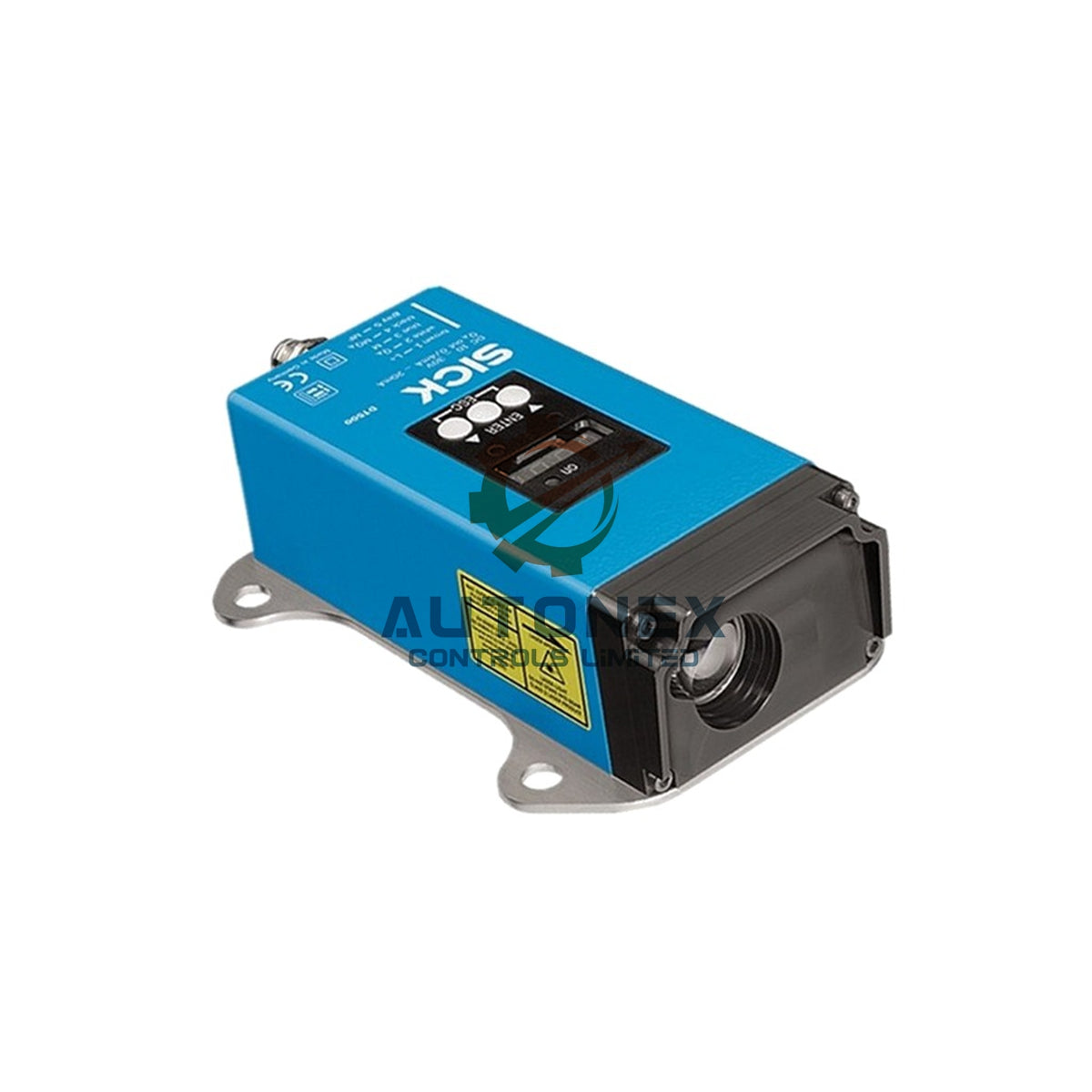

DT500-A311 SICK Dx500 Long Range Distance Sensor

SICK DT500-A311 | Dx500 Long Range Distance Sensor

Core Technical Specifications

• Brand: SICK
• Model: DT500-A311
• Series: Dx500
• Measuring range: 0.2 m to 7 m at 90% remission
• Measuring range: 0.8 m to 7 m at 6% remission
• Target: Natural objects
• Resolution: 12 bit
• Repeatability: 1 mm
• Accuracy: ±3 mm
• Response time: 150 ms
• Output time: 150 ms
• Light source: Laser, red, visible red light
• Laser class: 2, complies with 21 CFR 1040.10 and 1040.11
• Normative reference: IEC 60825-1:2014 and EN 60825-1:2014
• Typical light spot size: 10 mm at 7 m, 45 mm at 30 m, 100 mm at 70 m

Performance and Environmental Durability

• Ambient temperature, operation: –10 °C to +45 °C
• Operation with cooling case: –10 °C to +75 °C
• Ambient temperature, storage: –25 °C to +75 °C
• Temperature drift: Typical 0.05 mm/K
• Ambient light immunity: ≤3,000 lx
• Enclosure rating: IP65
• Protection class: II
• EMC: EN 61000-6-2, EN 55011, and EN 60947-5-7:2003-9
• Mechanical load: Shock per EN 600 68-2-27 / –2-29, sine per EN 600 68-2-6, noise per EN 600 68-2-64

Interfaces and Electrical Data

• Analog output: 1 current output
• Current range: 0 mA to 20 mA
• Configurable current: 0 mA to 20 mA or 4 mA to 20 mA
• Max. load resistance: (Uv – 2 V) / 0.0205 A
• Multifunctional input (MF): >12 V
• Laser-off input: >12 V
• Supply voltage Vs: DC 10 V to 30 V, reverse polarity protected
• Supply voltage with heating: Uv ≥ DC 24 V
• Ripple: 5 Vpp
• Power consumption: Typical 3 W
• Initialization time: 500 ms

Mechanical Details and Installation Guide

• Dimensions (W × H × D): 69 mm × 50 mm × 153 mm
• Housing material: Die-cast aluminum metal
• Window material: Glass
• Weight: 1,000 g
• Connection type: Male connector, M12, 5-pin
• Installation note: Mount the sensor securely on a stable bracket to avoid vibration effects
• Alignment tip: Aim the red laser beam perpendicular to the target surface for best accuracy
• Target tip: Natural objects work well; darker surfaces reduce the effective measuring range
• Environmental tip: Keep the glass window clean to maintain reliable readings
• Cooling option: Add a cooling case for operation up to +75 °C

Safety-Related Parameters

• Laser class: Class 2, visible red light
• Normative reference: IEC 60825-1:2014 and EN 60825-1:2014
• Compliance: 21 CFR 1040.10 and 1040.11, except Laser Notice No. 50 from June 24, 2007

Packing List

• 1 × SICK DT500-A311 Dx500 long range distance sensor
• 1 × Mounting bracket
• 1 × M12 5-pin male connector
• 1 × Quick start guide
