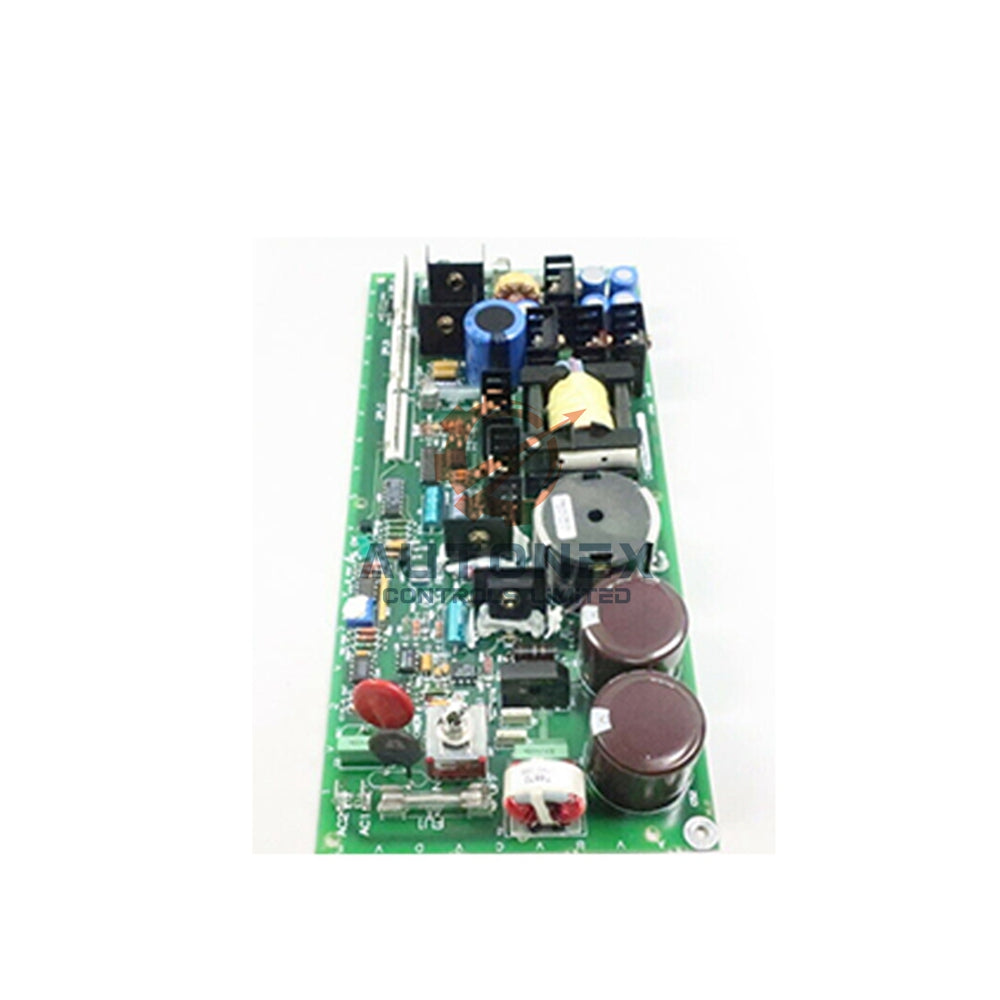

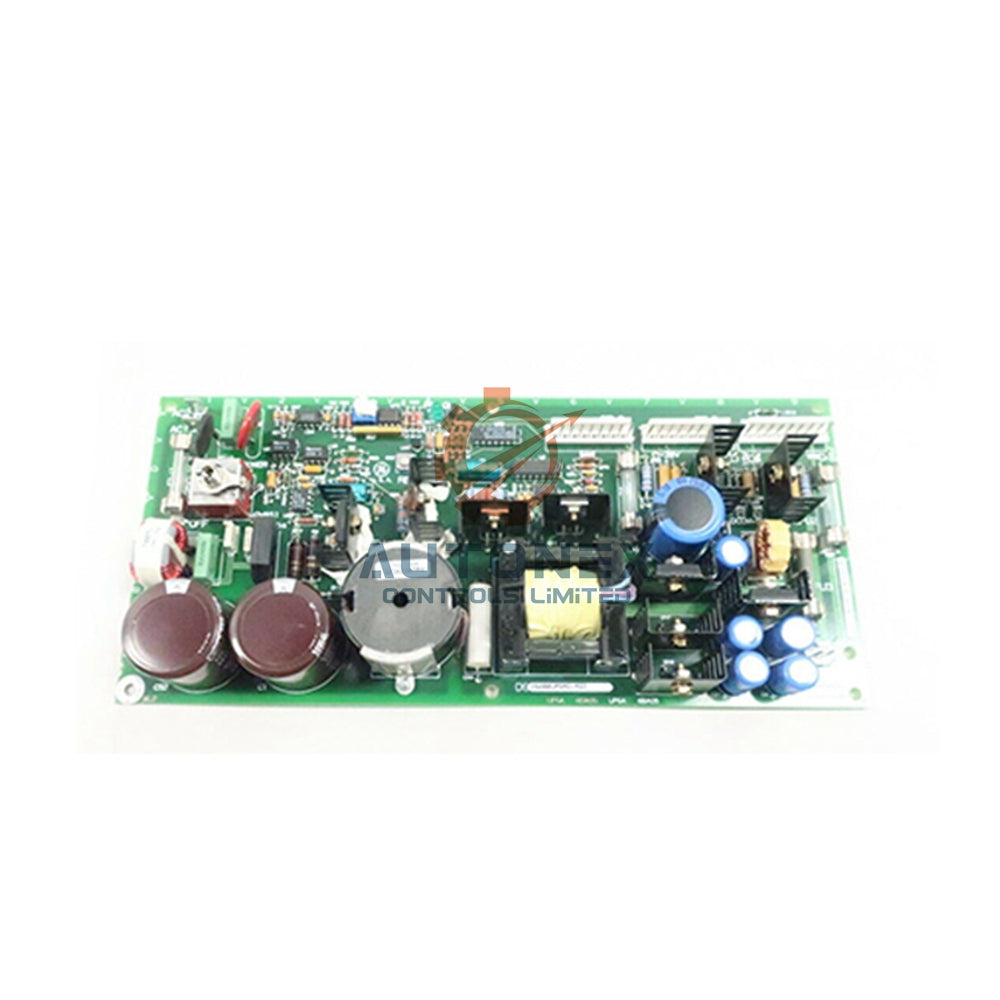

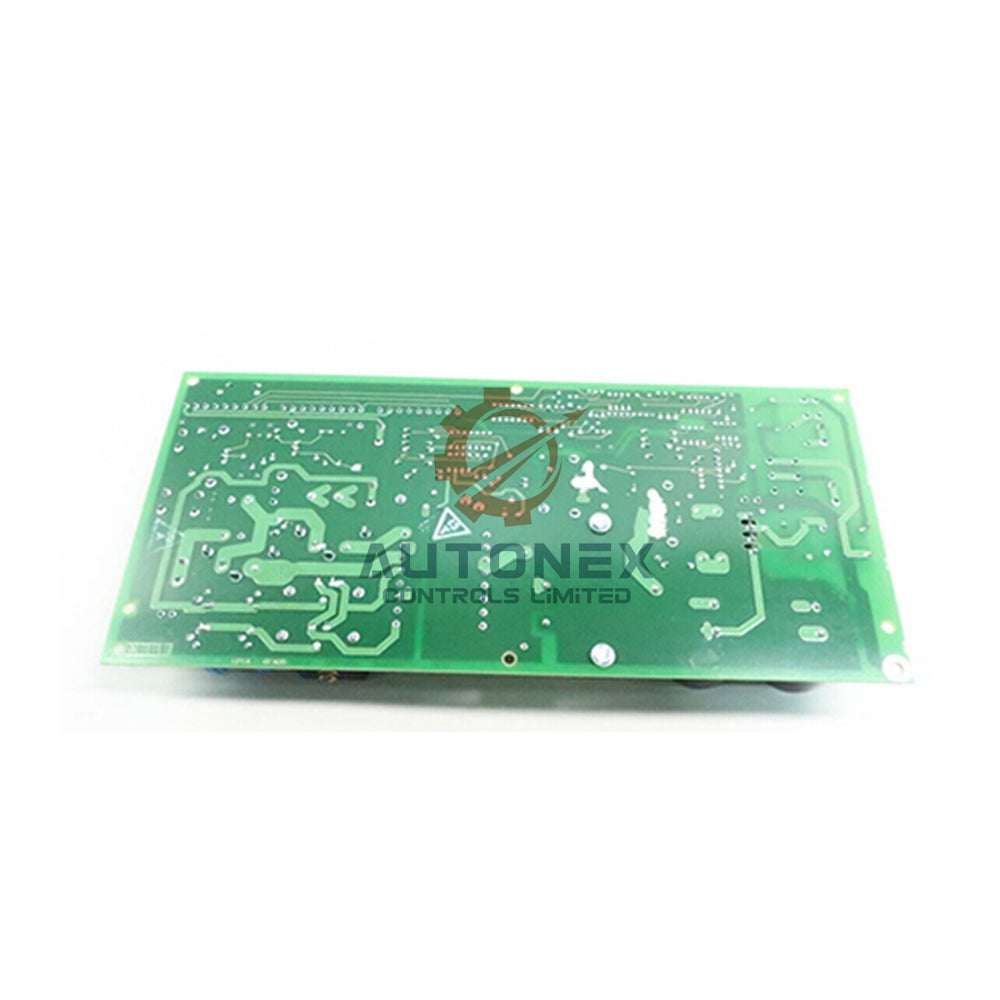

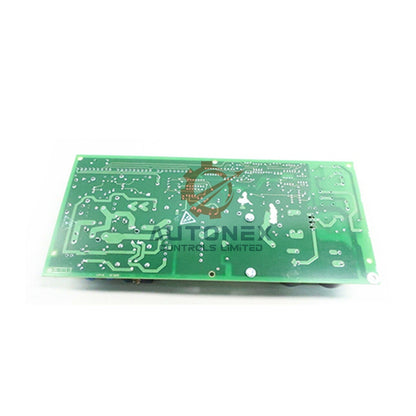

DS200UPSAG1AGD GE Mark V Power Supply Board

DS200UPSAG1AGD GE Mark V UC200 Power Supply Board – Product Overview

Technical Specifications

• Brand: GE General Electric
• Model: DS200UPSAG1AGD
• Series: Mark V
• Function: UC200 Power Supply Board / LAN Circuit Board
• Functional Acronym: UPSA
• Assembly Type: Normal Assembly
• Series Grouping: Group 1
• Revision: A-rated functional product revision
• Manufacture Location: Domestic
• Input Voltage Range: 24 VDC nominal
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 5% to 95% non-condensing
• Frequency Response: DC to 1 kHz
• Resolution: 12-bit analog-to-digital conversion
• Linearity: ±0.1% full scale
• Sensitivity: 10 mV per unit input
• Noise Immunity: High EMI/RFI shielding

Key Hardware Components

• One reset button for manual system recovery
• Three fuses protecting against over-current conditions
• One LED indicator for status monitoring
• Three 9-pin connectors for signal and power interface
• Multiple capacitors for high-voltage storage and release
• Test points for diagnostic measurements

Capacitor Safety and Handling

• The capacitors store high-voltage current during normal operation.
• Operators typically remain unaware of this charging cycle.
• The high voltage poses no risk during standard use.
• A defective board may retain a dangerous charge after shutdown.
• Wait 30 seconds after power removal before touching the board.
• The high-voltage current exits the capacitors within 30 seconds.

Fuse Protection and Replacement

• The three fuses protect board components from over-current damage.
• An irregular current causes one or more fuses to blow.
• The fuse shuts down the circuit it protects.
• Checking fuses is a simple visual task.
• Each fuse connector requires a fuse with the proper rating.
• Refer to factory instructions for the correct fuse rating.
• Pull the fuse out to remove it.
• Press the fuse into the connector to install it.

Installation Guide

• Power down the Mark V control system completely.
• Wait 30 seconds for capacitor discharge.
• Label all cables before disconnection.
• Remove the defective board from its rack.
• Align the new DS200UPSAG1AGD board with the slot guides.
• Secure the board with mounting screws.
• Reconnect all three 9-pin connectors.
• Verify fuse ratings match factory specifications.
• Restore power and check the LED indicator.
• Press the reset button if the system requires initialization.

Package List

• 1 x GE DS200UPSAG1AGD UC200 Power Supply Board
• 3 x Fuses (proper rating installed)
• 1 x Anti-static protective bag
• 1 x Shock-absorbing foam packaging
• 1 x Cardboard shipping box

Shipping Methods

• FedEx Express for urgent deliveries
• UPS Worldwide Saver for reliable transport
• DHL Express for international shipments

Frequently Asked Questions

• Q: What is the condition of this product?
  A: We offer brand new original products only.
• Q: Do you have stock available?
  A: Yes, we keep this item in stock for immediate order processing.
• Q: How fast do you ship?
  A: We dispatch orders within 5 days of payment confirmation.
• Q: What shipping carriers do you use?
  A: We use DHL, FedEx, and UPS for all deliveries.
• Q: What is your return policy?
  A: We support returns within 30 days of delivery.
• Q: What is the operating temperature range?
  A: The board operates from -20°C to +70°C.
• Q: How long should I wait before touching the board after power off?
  A: Wait at least 30 seconds for capacitor discharge.
• Q: Can I replace fuses myself?
  A: Yes, pull out the old fuse and press in a new one with the correct rating.
• Q: What connectors does this board use?
  A: It features three 9-pin connectors for interface.
• Q: What is the functional acronym for this board?
  A: The functional acronym is UPSA.
