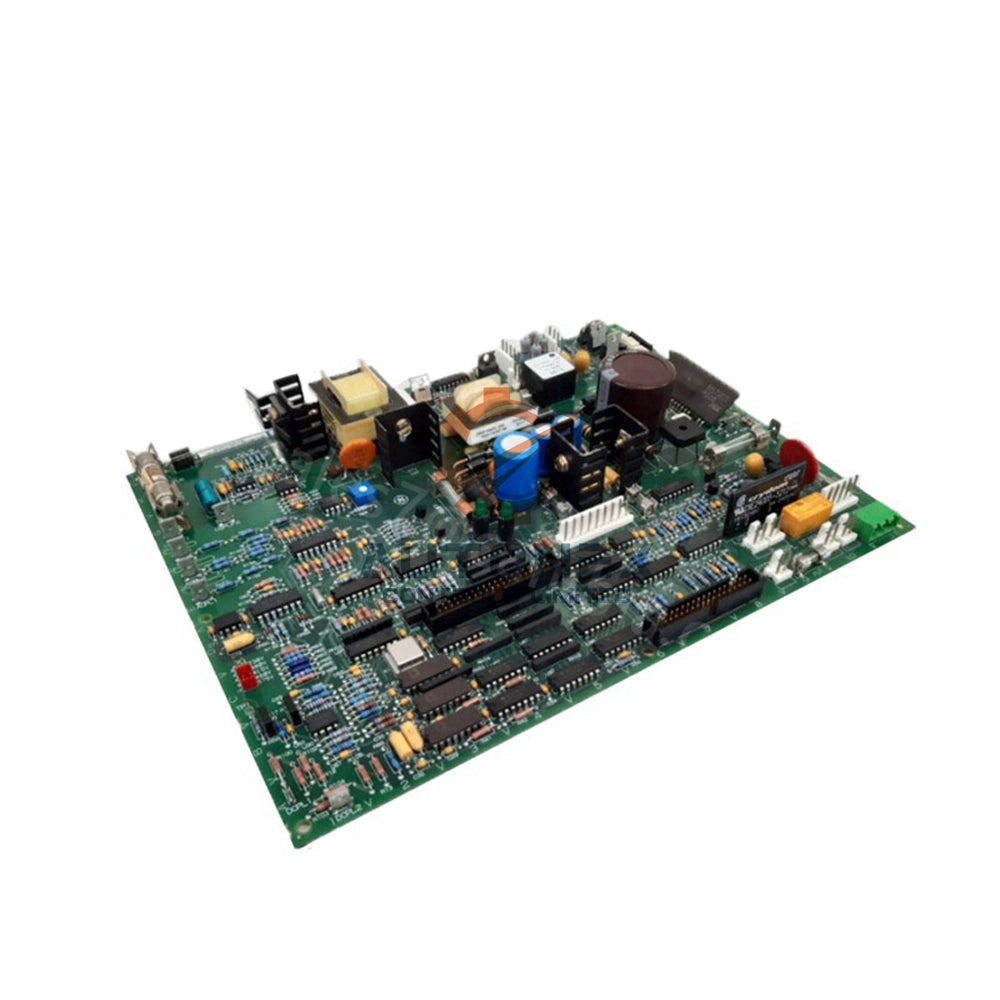

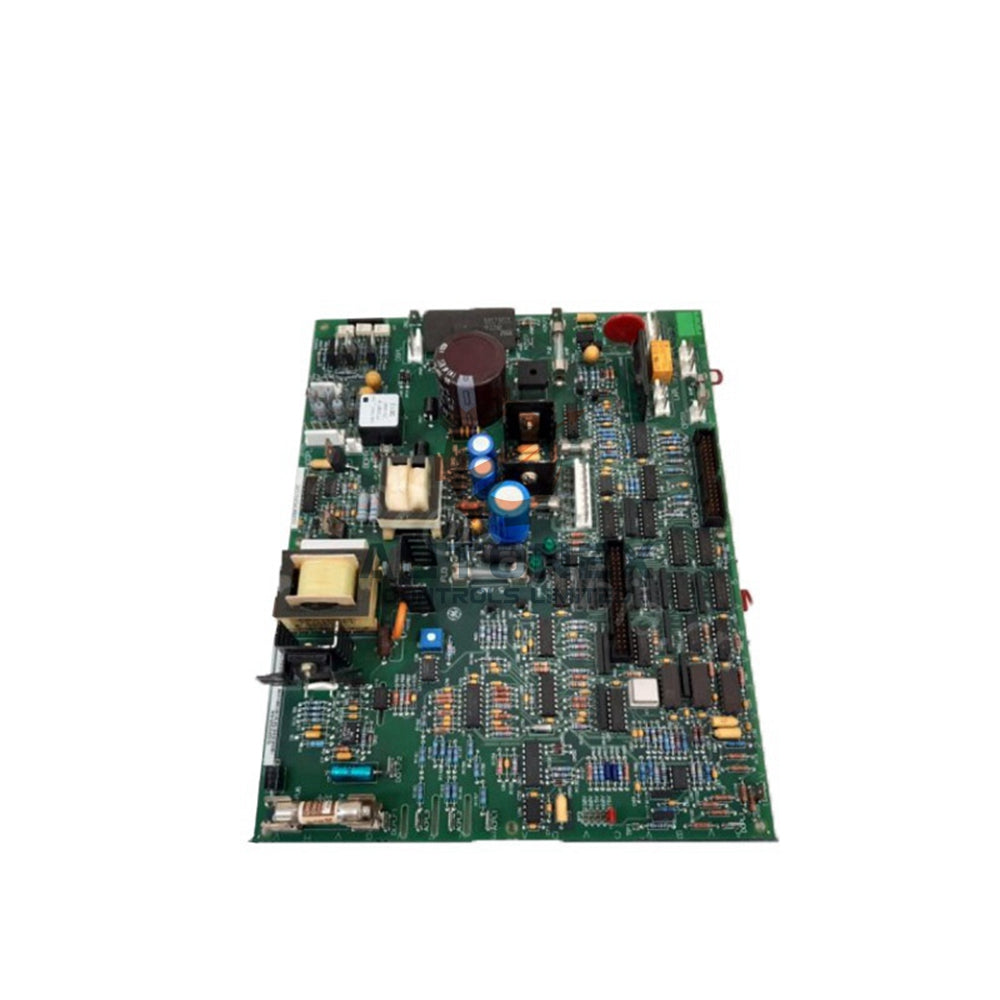

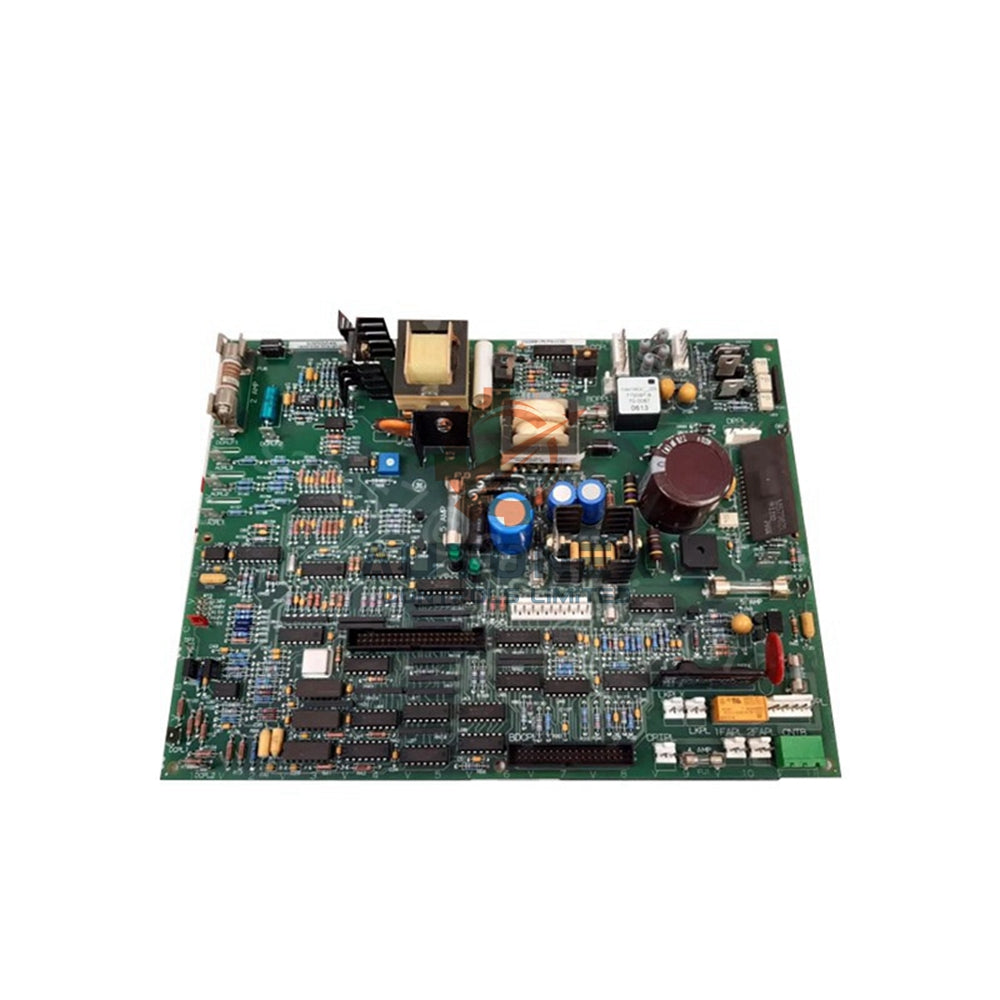

DS200LPPAG1AAA GE Mark V Line Protection Panel Board

DS200LPPAG1AAA Line Protection Panel Board – GE Mark V Series

Technical Specifications

• Brand: General Electric (GE)
• Model: DS200LPPAG1AAA
• Category: Line Protection Panel Board
• Series: Mark V
• Manufacturer: General Electric
• Instruction Manual: GEI-100178
• Functional Acronym: LPPA
• System Input Voltage: 200–600 VAC
• Group Revision: G1
• Input Voltage: 230–600 VAC
• Number of Input Channels: 12
• Outputs: 125 V DC
• Power Supply Voltage: 28 V DC
• Mounting Type: Chassis Mount
• Technology: Surface Mount
• Operating Temperature: 40°C to 85°C
• Size: 33.0 cm × 17.8 cm
• Country of Origin: United States

Key Components and Protection Functions

• Circuit Breakers: These devices trip automatically when ground faults, short circuits, or overcurrent conditions occur.
• Surge Protection Devices (SPDs): They divert excess voltage from switching events or lightning strikes to ground.
• Overcurrent Protection: Circuit breakers and fuses stop excessive current flow to prevent fire hazards and overheating.
• Ground Fault Protection: GFPRs and GFCIs detect leakage currents and interrupt the circuit to prevent electric shock.
• Monitoring and Control Systems: These systems provide real-time status data and remote monitoring capabilities.
• Isolation and Disconnect Switches: Operators use these switches to isolate system sections for safe troubleshooting and maintenance.
• Status Indicators and Alarms: These alerts notify operators of faults or abnormal conditions in the electrical system.

Hardware Layout and Jumper Functions

• The board includes seven jumpers (JP1–JP7) and two terminal blocks with three terminals each.
• JP1, JP2, and JP3 handle MOV or AC line filter blown fuse indication.
• JP4 and JP7 manage AC or DC side connection analog ground current sensing.
• JP5 applies grounding resistor bridge voltage.
• JP6 controls the SCR ripple filter.
• The board also contains test points for diagnostic checks.
• Install the board on standoffs on another drive component; signal wires originate on that component.

Diagnostics and Control Interface

• Access the built-in diagnostic tool through the control panel menu to generate a health report.
• View the report on the control panel display or download it to a laptop for comparison before and after repairs.
• Use the menu-driven interface to upload and download files through a serial cable connection.
• Edit drive configuration parameters to define operating behavior.
• Use the keypad buttons to run, stop, speed up, or slow down the drive directly without changing parameters.

Installation Guide

• Verify that the system input voltage falls within the 200–600 VAC range before installation.
• Mount the DS200LPPAG1AAA board on the designated standoffs on the drive component.
• Connect signal wires from the originating component to the board's terminal blocks.
• Confirm jumper settings (JP1–JP7) match your application requirements using the GEI-100178 manual.
• Check all connections and test points before powering up the system.
• Run the diagnostic tool after installation to verify board health and function.

Packing List

• 1 × DS200LPPAG1AAA Line Protection Panel Board
• 1 × Anti-static protective bag
• 1 × Protective foam packaging
• 1 × Cardboard shipping box

Shipping and Support

• We ship via FedEx, UPS, and DHL to worldwide destinations.
• We dispatch orders within 5 business days after payment confirmation.
• We accept returns within 30 days of delivery under our return policy.
• All units are brand new and original.
• Our stock is available for immediate order.

FAQ

• Q: What is the input voltage range for the DS200LPPAG1AAA?
  A: The board operates on 200–600 VAC system input voltage, with a specified input range of 230–600 VAC.
• Q: How many input channels does this board support?
  A: It provides 12 input channels for signal processing.
• Q: What is the operating temperature range?
  A: The board operates reliably from 40°C to 85°C.
• Q: What output voltage does the board provide?
  A: The output is rated at 125 V DC, with a 28 V DC power supply voltage.
• Q: How do I diagnose a faulty board?
  A: Use the control panel diagnostic menu to generate a health report and compare results before and after repairs.
• Q: Is the DS200LPPAG1AAA in stock?
  A: Yes, we have this item in stock and ready to ship.
• Q: How long does shipping take?
  A: We ship within 5 business days via FedEx, UPS, or DHL.
• Q: What is the return policy?
  A: We support returns within 30 days of delivery.
